ID: 1019253
Product code: 90YE00P0-B0NA00
Can be ordered 53 units Availability: 14 days after order approval
Warranty: 3 years

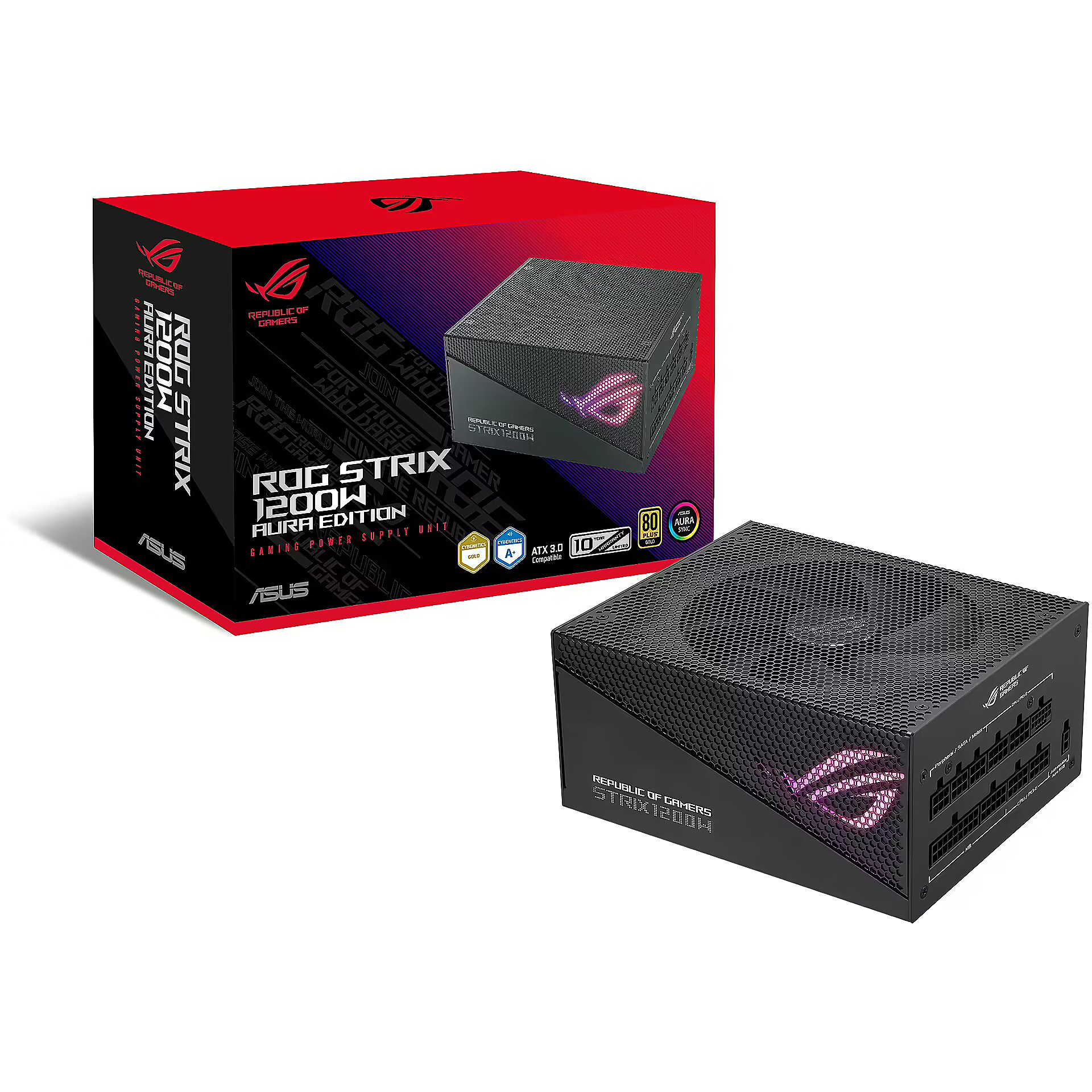

Asus ROG Strix Aura Edition, 1200W, ATX 3.0, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
- Producer: Asus
- Power output: 1200W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
We offer to purchase a Asus power supply unit with a power capacity of 1200W, which has received the 80 PLUS Gold energy efficiency certification.
The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
The power supply unit has RGB lighting.
The manufacturer of the power supply unit is Asus. All power supply units produced by Asus can be viewed here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1200W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 100A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: RGB
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 4
More detailed specification
Brand - ASUS
BrandPartCode - 90YE00P0-B0NA00
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
code - 90YE00P0-B0NA00
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2484
ean - 4711081721475
Eans - 4711081721475
EAN_code - 4711081721475
GTIN - 4711081721475
LongDesc - The ROG Strix 1200W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.COOLINGAluminum CaseBuilt to run coolThe ROG Strix 1200W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.ROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.Axial-tech Fan DesignBetter, faster, strongerAxial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.Dual Ball Fan Bearings2x longer lifespanThe fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.0dB TechnologyQuiet intelligenceTo reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.ENGINEERING80 Plus Gold CertificationHeart of goldTop-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.EXPERIENCEAura SyncOutshine the competitionAddressable RGB lighting is built right in to the ROG Strix 1200W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.10-year WarrantyA decade of powerWe're so confident about the reliability of the ROG Strix 1200W Gold Aura Edition that we back it with a 10-year warranty.
LongProductName - ROG STRIX 1200W Gold Aura Edition RGB power supply (1200 Watt, Aura Sync RGB lighting, 80+ Gold certification, Axial-Tech fan, ATX 3.0 compatible, PCIe 5.0 ready)
LongSummaryDescription - ASUS ROG STRIX 1200W Gold Aura Edition. Total power: 1200 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 120 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400,520,640 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Asus
Manufacturer_code - 90YE00P0-B0NA00
Name - ASUS ROG-STRIX-1200G-AURA-GAMING
Name - ASUS ROG STRIX 1200W Gold Aura Edition, PC power supply (black, 3x PCIe, cable management, 1200 watts)
name - ASUS ROG STRIX 1200W Gold Aura Edition 80 PLUS Gold Netzteil, modular - 1200 Watt
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Manual - Yes
Packaging data - Package depth - 242 mm
Packaging data - Package height - 129 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.73 kg
Packaging data - Package width - 386 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - Ball bearing
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - Cabling type - Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 70 cm
Ports & interfaces - PCI Express power connectors (8-pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,300,400,550 mm
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 120
Ports & interfaces - SATA power cable length - 400 mm
Ports & interfaces - SATA power cable length - 400,520,640 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 80%
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Overcharge
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1200 W
Producer - Asus
producerCode - 90YE00P0-B0NA00
ProducerCode - 90YE00P0-B0NA00
productName - ASUS ROG STRIX 1200W GOLD AURA EDITION power supply
ProductName - ROG STRIX 1200W Gold Aura Edition
productSize - Normal
ShortDescription - 1200 | ATX | 135mm | 20 + 4 pin | 80Plus Gold | 180 x 150 x 86 mm |
ShortSummaryDescription - ASUS ROG STRIX 1200W Gold Aura Edition, 1200 W, 100 - 240 V, 120 W, 1200 W, 120 W, 3.6 W
sizeX - 130
sizeY - 245
sizeZ - 390
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability compliance - Yes
Title - ASUS ROG STRIX 1200W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black
URL - https://rog.asus.com/power-supply-units/rog-strix/rog-strix-1200g-aura-gaming-model/
WarrantyInfo - 10 years
warrantyLength - 120
warrantyType - G
Weight - 3,78
weight - 3795
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 3.23 kg
Weight & dimensions - Width - 180 mm
