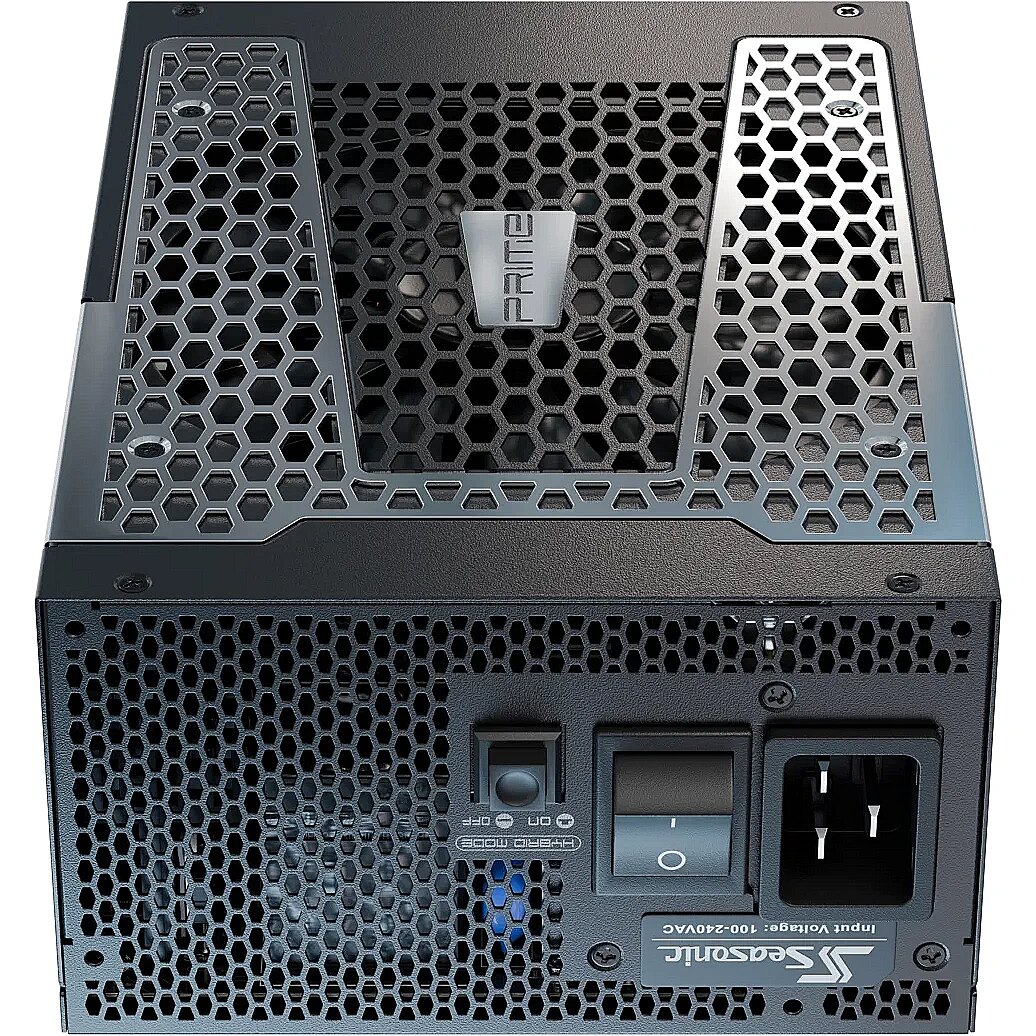

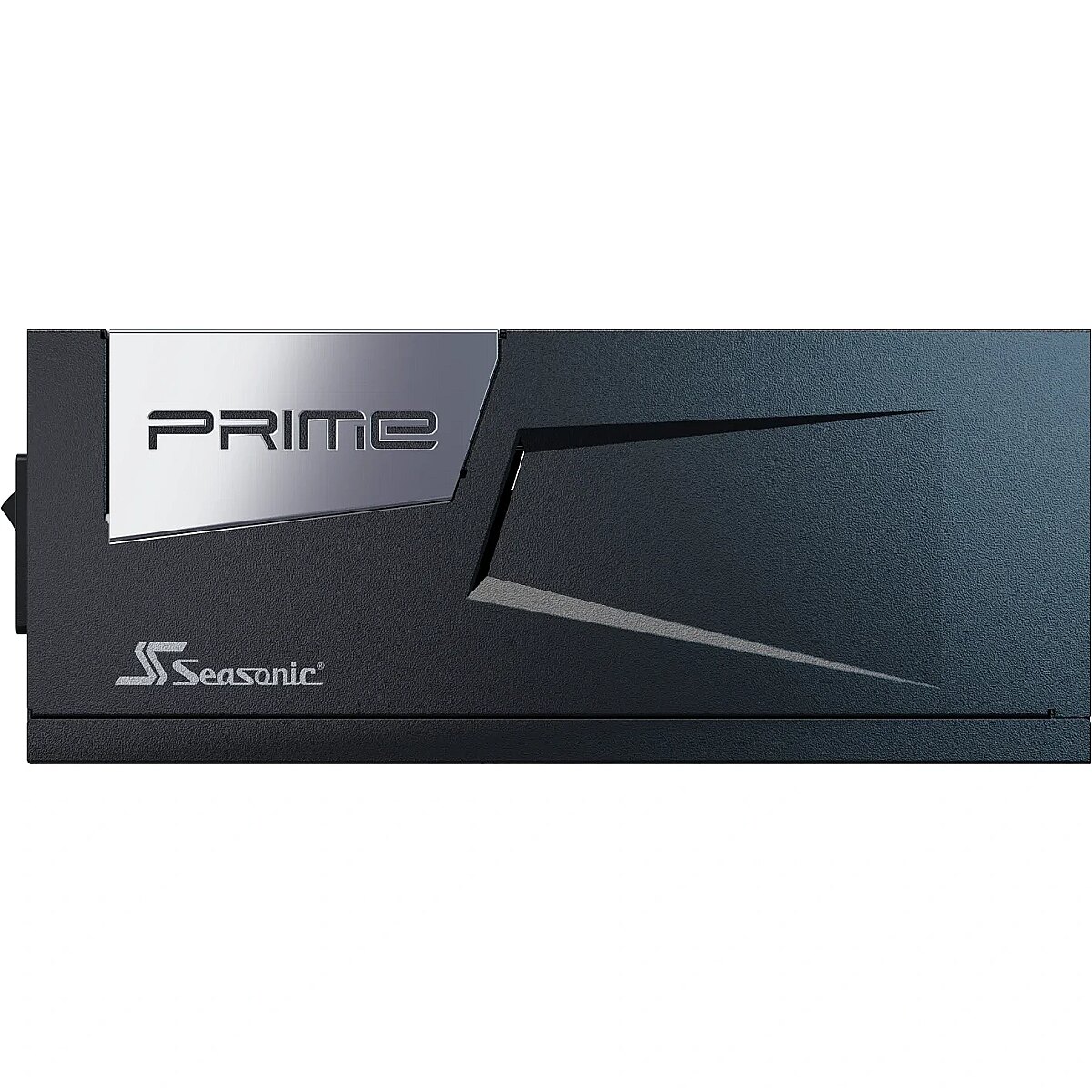

Seasonic PRIME PX ATX 3.0, 1600W, 80PLUS Platinum

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 988667 Product code: PRIME-PX-1600-ATX30
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Seasonic
  • Power output: 1600W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Similar Products
This product Seasonic PRIME PX ATX 3.0, 1600W, 80PLUS Platinum
Be Quiet Dark Power 13, 750W, ATX 3.0, 80PLUS Titanium
Recommended Cooler Master MWE Gold V2 750W, 80PLUS Gold, ATX 3.0
Recommended Seasonic G12-GM, 850W, 80PLUS Gold
Recommended Deepcool PF500, 500W, 80PLUS
Show similar specs. Hide similar specs.
476.10 €
210.11 €
99.58 €
118.07 €
42.78 €
Basic information
Cybenetics Efficiency certification Cybenetics Titanium Nav Nav Nav Nav
Cybenetics Noise level certification Cybenetics A - Nav Nav Nav Nav
Power supply type ATX ATX ATX ATX ATX
Power output 1600W 750W 750W 850W 500W
80 PLUS certification 80 PLUS Platinum 80 PLUS Titanium 80 PLUS Gold 80 PLUS Gold 80 PLUS (White)
Total amperage (+12V) 133.3A 110A 62.5A 70A 40A
Fan size 135 mm 135 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Fully-Modular Fully-Modular Fully-Modular Semi-Modular Nav
Ports and equipment
PCI-E 5.0 1 x 600W 12VHPWR 1 x 600W 12VHPWR 1 x 450W 12VHPWR Nav Nav
Processor plug-in 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS
Motherboard power 20+4pin 20+4pin 24-pin 20+4pin 20+4pin
PCI-E 3 x 6+2pin 4 X 6+2pin 4 X 6+2pin 3 x 6+2pin 2 X 6+2pin
SATA cconnectors 10 12 12 6 6
4pin Molex 5 3 4 3 2
Description

We offer to purchase a Seasonic power supply unit with a power capacity of 1600W, which has received the 80 PLUS Platinum energy efficiency certification.

The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.

80 PLUS Platinum energy efficiency certificate, received by this power supply unit, guarantees at least 92% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the power grid, at least 92 W reaches your computer components, while the remaining 8 W is lost as heat.

The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

The power supply unit has received a Cybenetics A - noise level certificate – the noise generated by the unit will be 25-30 decibels.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Cybenetics Titanium
Cybenetics Noise level certification : Cybenetics A -
Power supply type : ATX
Power output 1600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 133.3A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : 1 x 600W 12VHPWR
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 3 x 6+2pin
SATA cconnectors : 10
4pin Molex : 5
More detailed specification
category - PC Components|Power Supplies|PCIe 5.0
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
code - PRIME-PX-1600-ATX30
ean - 4711173878032
EAN - 4711173878032
EAN_code - 4711173878032
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - PRIME-PX-1600-ATX30
MPN - SSR-1600PD2
Name - 1600W Seasonic PRIME PX-1600 ATX3.0 | 80+ Platinum
name - Seasonic Prime PX-1600, 80 PLUS Platinum Netzteil, modular, ATX 3.0, PCIe 5.0 - 1600 Watt
Name - Seasonic PRIME PX-1600, PC power supply (black, cable management, 1600 watts)
Weight - 5,85
Weight - 5.9
