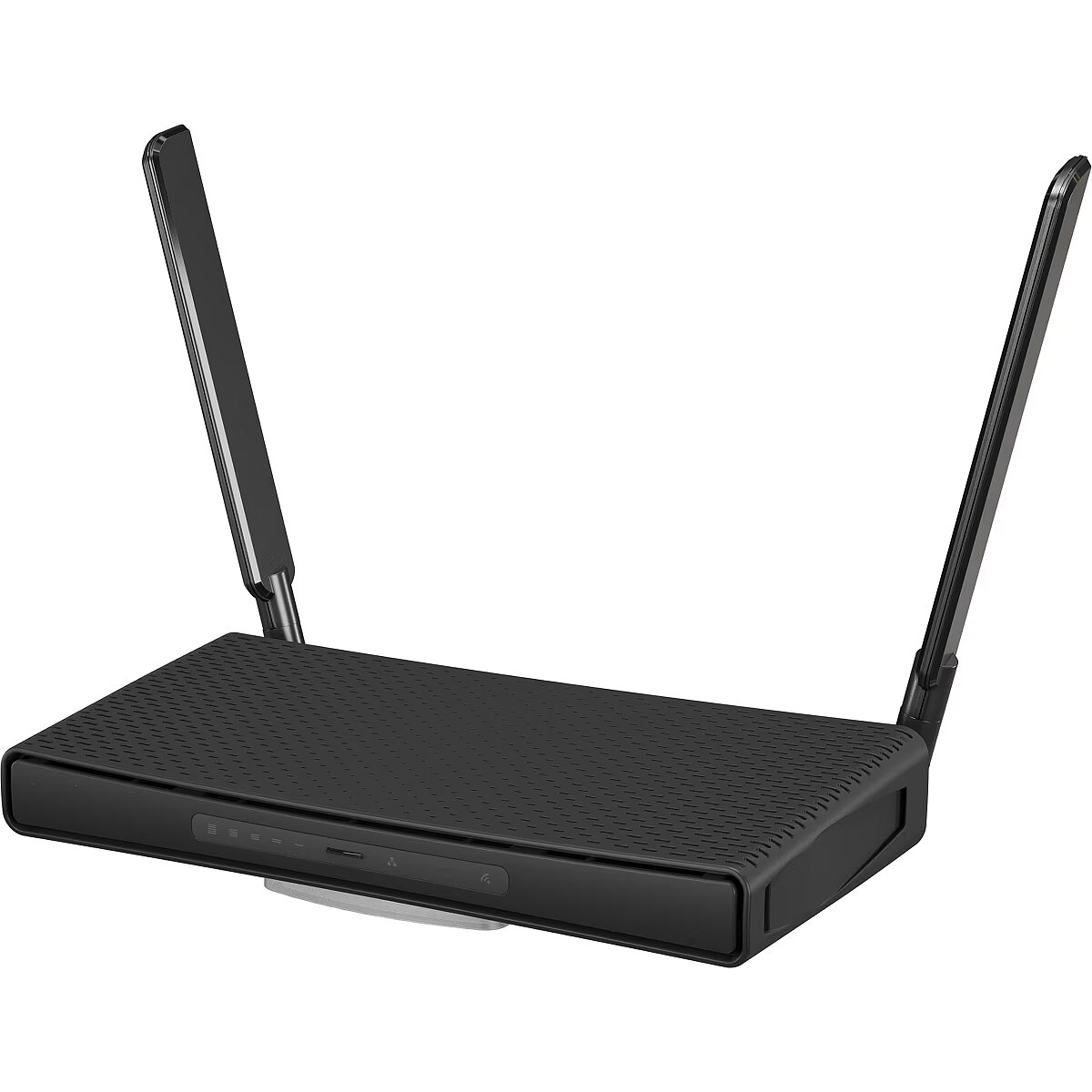

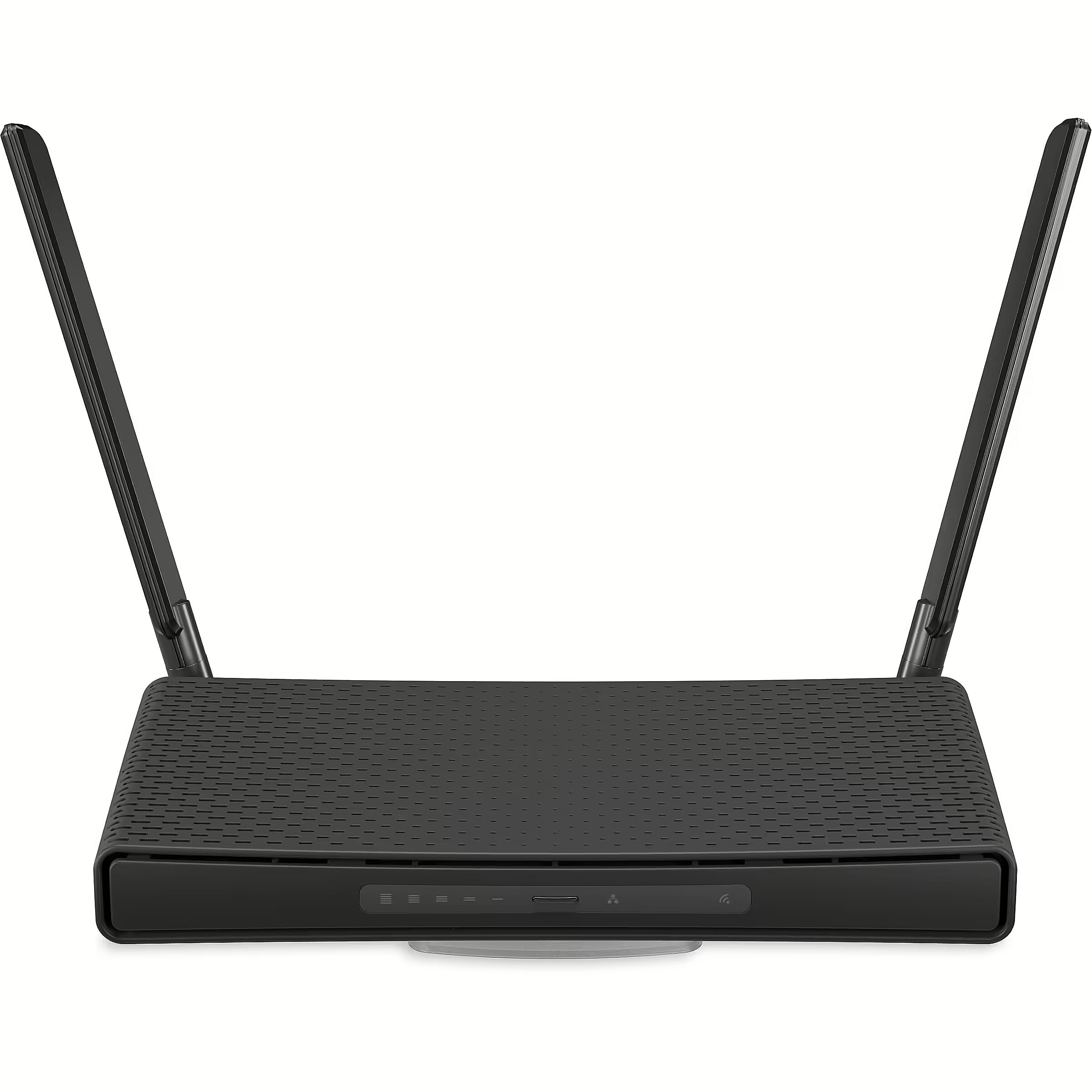

MikroTik hAP ax³

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Recommended
ID: 913258 Product code: C53UiG+5HPaxD2HPaxD
In office 1 units
Warranty: 2 years (Warranty for business entities 1 year)
120.26 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Wednesday, 13.11.2024
Main product parameters All parameters
  • Speed index: 1800
  • Type of device: Router
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
Description

Lightning-fast connectivity throughout the house

hAP ax³ is MikroTik's most powerful AX device with the best wireless network coverage yet. It has an advanced quad-core ARM processor at 1.8 GHz and enough memory(1 GB RAM and 128 MB NAND) for most tasks. Sophisticated firewall settings, IPsec hardware encryption, Wireguard, BGP, complex routing or multiple remote working VPN tunnels won't stop your family from browsing, streaming, gaming, etc. There's enough processing power for everyone! MikroTik have added a fast USB 3 port for all your storage needs or to connect an LTE modem.

AX wireless network - stronger than ever

Depending on your configuration, MikroTik AX products offer up to 40% faster speeds in the 5 GHz band and up to 90% faster speeds in the 2.4 GHz spectrum! Powerful external antennas allow up to 5.5 dBi of gain, so you can forget about Wi-Fi boosters and other gimmicks. Smooth and fast connectivity throughout the apartment - that's how hAP ax³ works . Home network speeds just got serious. There are 4 x Gigabit Ethernet ports and one ultra-fast 2.5 Gigabit port.

Security first

hAP ax³ can ease your mind on several levels at once. European-based manufacturing, MikroTik's renowned Nordic work ethic and cooperation with EU legislators ensure full compliance with all necessary safety requirements. Multiple power options (DC and PoE) allow you to worry less about potential downtime. The latest RouterOS v7 updates and WPA3 advanced encryption support provide unprecedented software security.

In summary, hAP ax³ is one of the fastest, most secure and powerful home access points in the world for both wired and wireless connections. It includes the most advanced networking software on the market - RouterOS. Unlike many other manufacturers, MikroTik doesn't limit your options. There are no paywalls or confusing subscriptions. All MikroTik devices share the same operating system - unlimited. The only limit is your imagination.

Some might ask - why do we need faster wireless speeds at all? Countless use cases were previously impossible or difficult to realise. For example, working with large media files over a wireless network - without having to download and upload everything. Do you really have time to wait? Choose hAP ax³ and save more time for the most important events in your life!

Basic information
Speed index : 1800
Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 6 (802.11ax)
Functionality
3G/4G support USB dongle option

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 5
Wireless card
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website MikroTik hAP ax³
10/100/1000M LAN Ports - 5
Accessories included -
Antenna - Detachable external
Antenna > Antenna type - External antennas
Antenna gain - 5.5 dBi
Antenna Type - Omni-Directional
brand - MikroTik
category - MikroTik > Wi-Fi mājai un ofisam > hAP
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WRO
Certificates - CE, FCC, IC, EAC, ROHS
Code - C53UiG+5HPaxD2HPaxD
Color - Black
Colour - Black
Data transmission speed - 1800 Mbps
Description - hAP ax3 is our most powerful AX device with the best wireless coverage yet. It has a modern quad-core ARM processor operating at 1.8 GHz and enough memory (1 GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing or multiple VPN tunnels for remote work will not prevent your family from conveniently browsing, streaming, gaming and so on. There is enough computing power for everyone.
Description - MIKROTIK hAP ax³ Ultimate power for your whole home hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem. AX wireless – as strong as an ox Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port. Safer in many ways hAP ax³ can ease your mind on multiple levels simultaneously. European-based production, our famous Nordic work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security. To sum things up - hAP ax³ is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation. Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax³ and save more time for the essential things in life.
dimensionalWeight - 804
dimension depth - 55 mm
dimension height - 370 mm
Dimensions - 251 x 130 x 39 mm
dimension weight - 1000 g
dimension width - 200 mm
EAN - 4752224007940
ean - 4752224007940
Eans - 4752224007940
Environment requirements -
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
Full Description Line - hAP ax³|Wireless Router|Data transmission speed 1800 Mbps|IEEE 802.11 b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|USB 3.0|5x10/100/1000M|Antenna Type Omni-Directional|Number of antennas 2|Included Accessories power adapter, fastening set, HGO indoor antenna kit, Case base|Power supply requirements DC 12-28 V / PoE 18-28 V|Colour Black|Dimensions 251 x 130 x 39 mm
guarantee - 12
guarantee_type - normal
height - 0.066 m

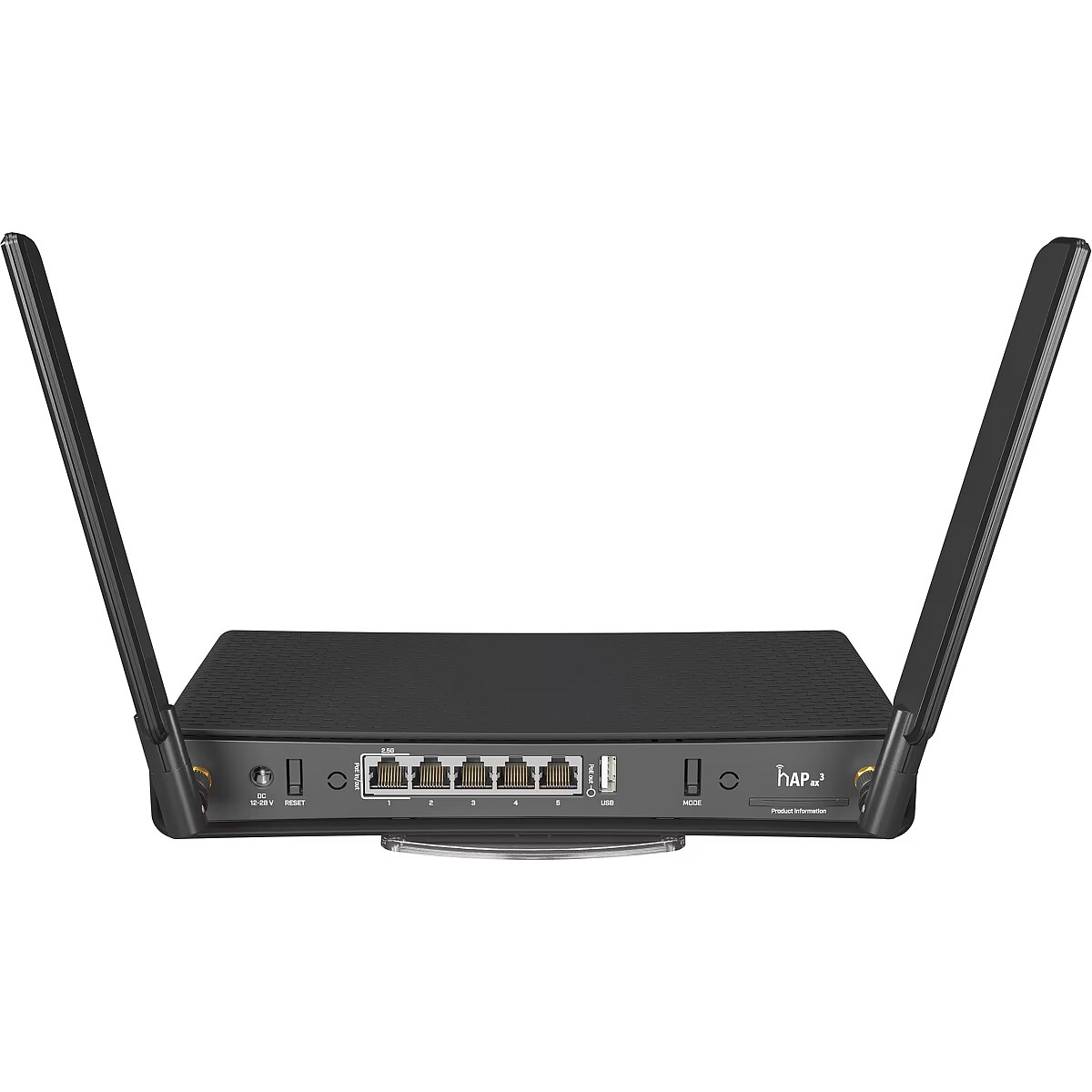

I/O ports - 1 x 10/100/1000/2500 RJ-45 port
I/O ports - 1 x USB 3.0 Type A
I/O ports - 4 x 10/100/1000 Mbit/s
IEEE 802.11 b/g Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11n Network standard - Yes
Included Accessories - power adapter, fastening set, HGO indoor antenna kit, Case base
length - 0.37 m
Management, monitoring, configuration -
Manufacturer - MikroTik
Model - C53UiG+5HPaxD2HPaxD
Model name - hAP ax³
mpn - C53UiG+5HPaxD2HPaxD
MPN - C53UIG+5HPAXD2HPAXD
Name - MikroTik C53UiG+5HPaxD2HPaxD
Name - MikroTik hAP ax3
name - MikroTik Router hAP ax3 C53UiG+5HPaxD2HPaxD
Name - MikroTik | hAP ax | C53UiG+5HPaxD2HPaxD | 802.11ax | Mesh Support No | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 5 | No mobile broadband | MU-MiMO Yes | PoE in/out | Antenna type External antennas
Network architecture - GigabitEthernet
Network Device Type - Wireless Router
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features -
Other features > Ethernet LAN (RJ-45) ports - 5
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 251.00 mm
Package features > Gross height (mm) - 50.00 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 530 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/6/0/2/6/7/3/0618947f7946349bdb1f34ccd2115f83/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces > POE - PoE in/out
Power supply -
Power supply requirements - DC 12-28 V / PoE 18-28 V
producer - MikroTik
Producer - MikroTik
producerCode - C53UiG+5HPaxD2HPaxD
ProducerCode - C53UiG+5HPaxD2HPaxD
Producer product family - hAP ax
Producer product name - C53UiG+5HPaxD2HPaxD
productName - Router WiFi 6 Mikrotik hAP ax3 (C53UiG+5HPaxD2HPaxD) 2,4GHz(2x2)/5GHz(2x2) 5p
productSize - Normal
Security - WPA3
Shipping Box Depth Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 19.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.044 kg
Shipping Box Width Shipping/Package Box Dimensions - 5.5 cm
ShortDescription -
sizeX - 375
sizeY - 195
sizeZ - 55
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Technical details > Gross weight - 0.94 kg
Technical details > Net weight - 0.82 kg
Technical details > Producer - MikroTik
title - MikroTik hAP ax3
Unit Box Height - 0.195
Unit Box Length - 0.375
Unit Box Width - 0.055
Unit Brutto Volume - 0.004022 cubm
Unit Gross Weight - 1.04 kg
Unit Net Weight - 0.3 kg
USB 3.0 Fixed ports - Yes
vendpn - C53UiG+5HPaxD2HPaxD
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 12
warrantyType - G
Weight - 1.04
weight - 1.23 kg
weight - 1060
width - 0.2 m
Wireless LAN features > Wi-Fi band - 802.11ax
Wireless LAN features > Wi-Fi standards - 802.11ax
