10/100/1000M LAN Ports - 5
Accessories included -
Antenna - Detachable external
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 5.5 dBi
Antenna - Antennas quantity - 2
Antenna > Antenna type - External antennas
Antenna gain - 5.5 dBi
Antenna Type - Omni-Directional
brand - MikroTik
category - MikroTik > Wi-Fi mājai un ofisam > hAP
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WRO
Certificates - CE, FCC, IC, EAC, ROHS
Code - C53UiG+5HPaxD2HPaxD
Color - Black
Colour - Black
Data transmission speed - 1800 Mbps

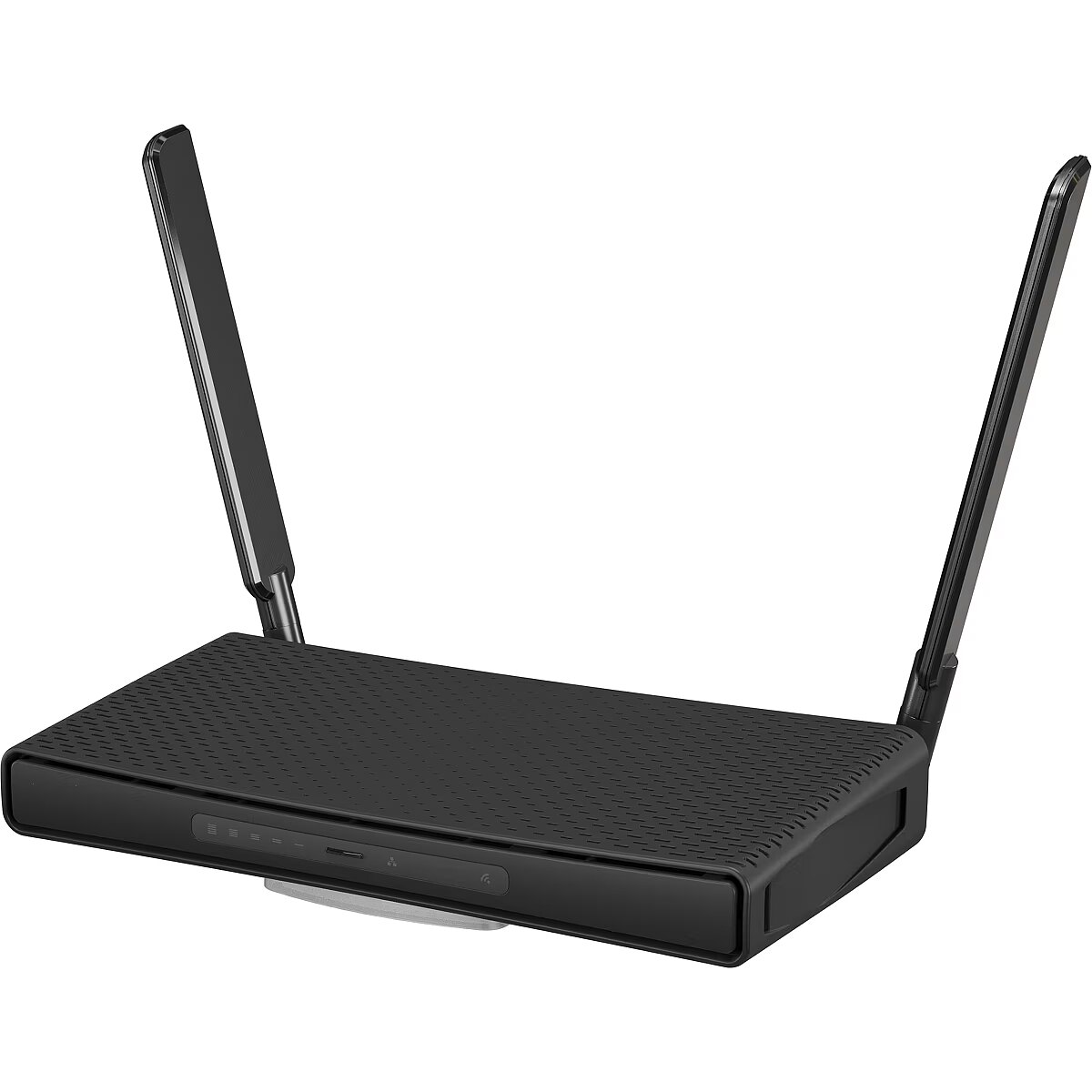

Description - hAP ax3 is our most powerful AX device with the best wireless coverage yet. It has a modern quad-core ARM processor operating at 1.8 GHz and enough memory (1 GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing or multiple VPN tunnels for remote work will not prevent your family from conveniently browsing, streaming, gaming and so on. There is enough computing power for everyone.
Description - MIKROTIK hAP ax³ Ultimate power for your whole home hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem. AX wireless – as strong as an ox Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port. Safer in many ways hAP ax³ can ease your mind on multiple levels simultaneously. European-based production, our famous Nordic work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security. To sum things up - hAP ax³ is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation. Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax³ and save more time for the essential things in life.
Design - Indication light - Yes
Design - Product colour - Black
Design - Product type - Tabletop router
dimensionalWeight - 799
dimension depth - 55 mm
dimension height - 370 mm
Dimensions - 251 x 130 x 39 mm
dimension weight - 1000 g
dimension width - 200 mm
EAN - 4752224007940
ean - 4752224007940
Eans - 4752224007940
Environment requirements -
Features - Built-in processor - Yes
Features - Flash memory - 128 MB
Features - Internal memory - 1024 MB
Features - Processor cores - 4
Features - Processor frequency - 1800 MHz
Features - Processor manufacturer - Qualcomm
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
Full Description Line - hAP ax³|Wireless Router|Data transmission speed 1800 Mbps|IEEE 802.11 b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|USB 3.0|5x10/100/1000M|Antenna Type Omni-Directional|Number of antennas 2|Included Accessories power adapter, fastening set, HGO indoor antenna kit, Case base|Power supply requirements DC 12-28 V / PoE 18-28 V|Colour Black|Dimensions 251 x 130 x 39 mm
guarantee - 12
guarantee_type - normal
height - 0.066 m

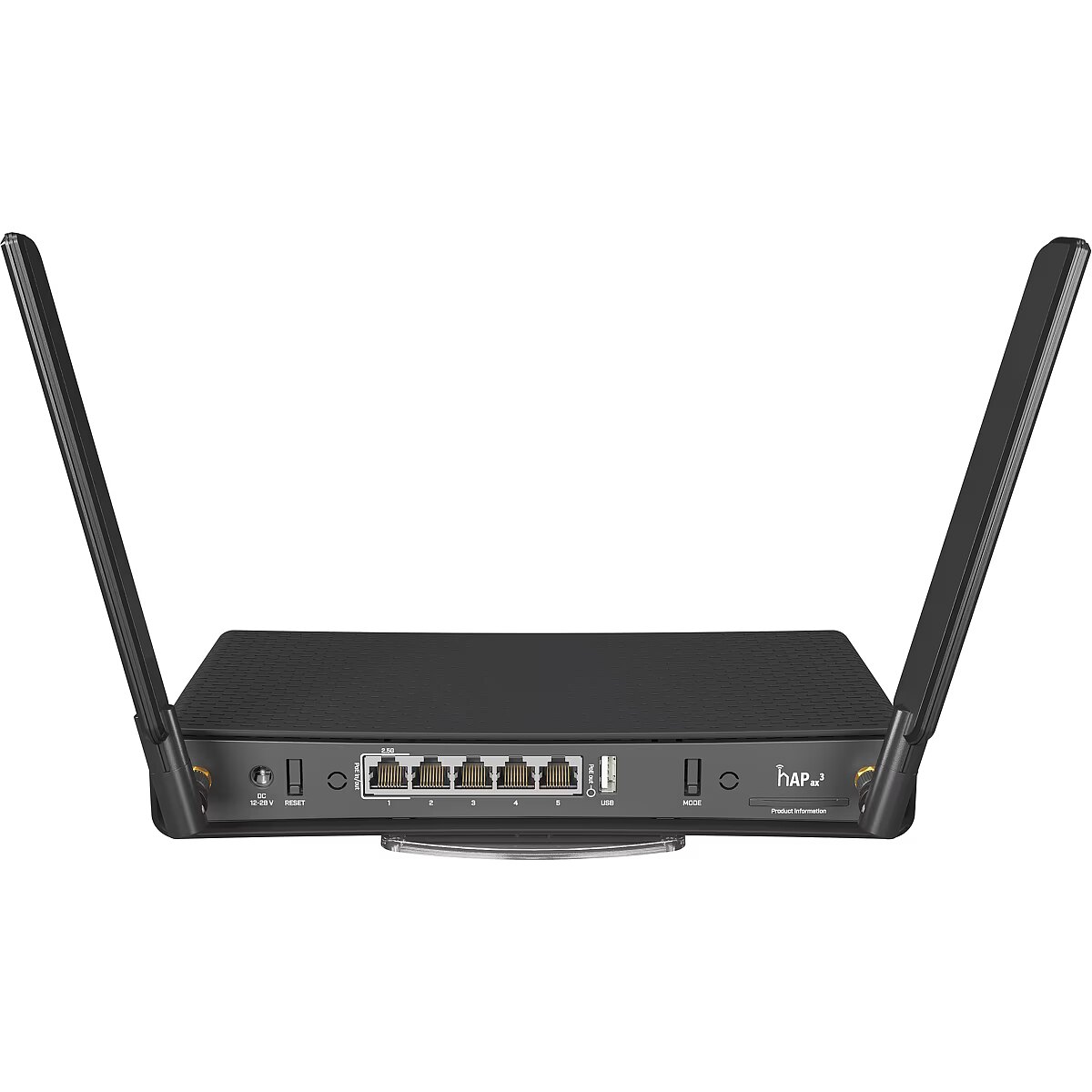

I/O ports - 1 x 10/100/1000/2500 RJ-45 port
I/O ports - 1 x USB 3.0 Type A
I/O ports - 4 x 10/100/1000 Mbit/s
IEEE 802.11 b/g Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11n Network standard - Yes
Included Accessories - power adapter, fastening set, HGO indoor antenna kit, Case base
length - 0.37 m
Management, monitoring, configuration -
Manufacturer - MikroTik
Model - C53UiG+5HPaxD2HPaxD
Model name - hAP ax³
mpn - C53UiG+5HPaxD2HPaxD
MPN - C53UiG+5HPaxD2HPaxD
Name - MikroTik C53UiG+5HPaxD2HPaxD
Name - MikroTik hAP ax3
name - MikroTik Router hAP ax3 C53UiG+5HPaxD2HPaxD
Name - MikroTik | hAP ax | C53UiG+5HPaxD2HPaxD | 802.11ax | Mesh Support No | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 5 | No mobile broadband | MU-MiMO Yes | PoE in/out | Antenna type External antennas
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN interface type - Gigabit Ethernet
Network architecture - GigabitEthernet
Network Device Type - Wireless Router
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating temperature (T-T) - -40 - 70 °C
Other features -
Other features > Ethernet LAN (RJ-45) ports - 5
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 251.00 mm
Package features > Gross height (mm) - 50.00 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 530 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/6/0/2/6/7/3/0618947f7946349bdb1f34ccd2115f83/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces > POE - PoE in/out
Power - Power over Ethernet (PoE) - Yes
Power - Power source type - DC, PoE
Power supply -
Power supply requirements - DC 12-28 V / PoE 18-28 V
producer - MikroTik
Producer - MikroTik
producerCode - C53UiG+5HPaxD2HPaxD
ProducerCode - C53UiG+5HPaxD2HPaxD
Producer product family - hAP ax
Producer product name - C53UiG+5HPaxD2HPaxD
productName - MikroTik hAP ax C53UiG+5HPaxD2HPaxD 802.11ax, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 5, Antenna type External antennas, PoE in/out
productSize - Normal
Security - WPA3
Shipping Box Depth Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 19.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.044 kg
Shipping Box Width Shipping/Package Box Dimensions - 5.5 cm
ShortDescription -
sizeX - 200
sizeY - 54
sizeZ - 370
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Technical details > Gross weight - 0.94 kg
Technical details > Net weight - 0.82 kg
Technical details > Producer - MikroTik
title - MikroTik hAP ax3
Unit Box Height - 0.195
Unit Box Length - 0.375
Unit Box Width - 0.055
Unit Brutto Volume - 0.004022 cubm
Unit Gross Weight - 1.04 kg
Unit Net Weight - 0.3 kg
USB 3.0 Fixed ports - Yes
vendpn - C53UiG+5HPaxD2HPaxD
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 24
warrantyType - F
Weight - 1.04
weight - 1.23 kg
weight - 1100
width - 0.2 m
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 1200 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 1200 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ax
Wireless LAN features > Wi-Fi standards - 802.11ax
