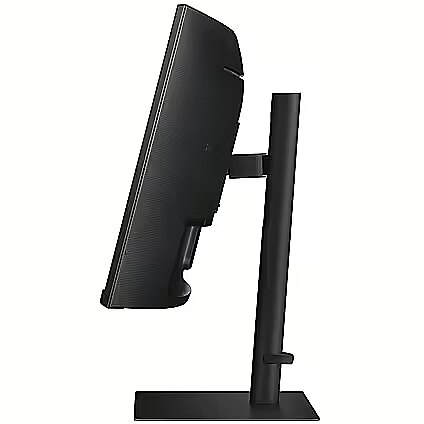

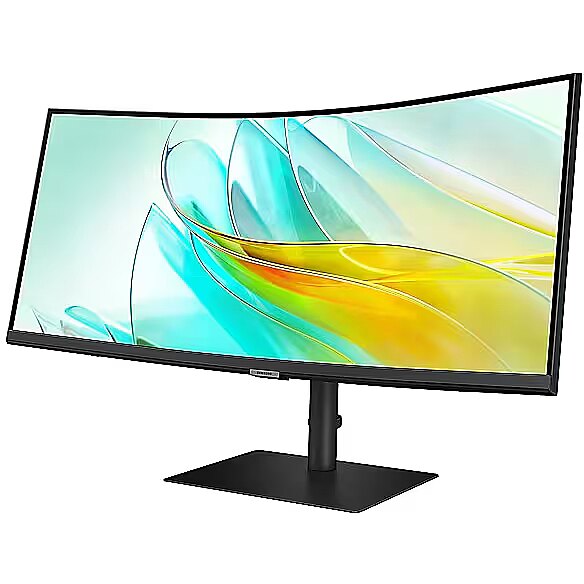

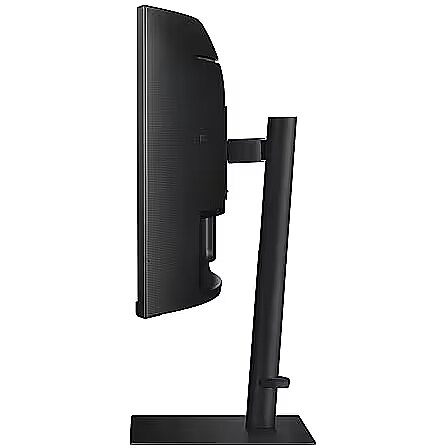

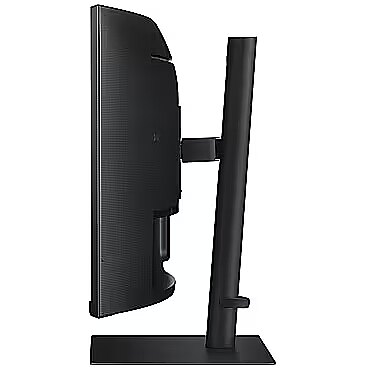

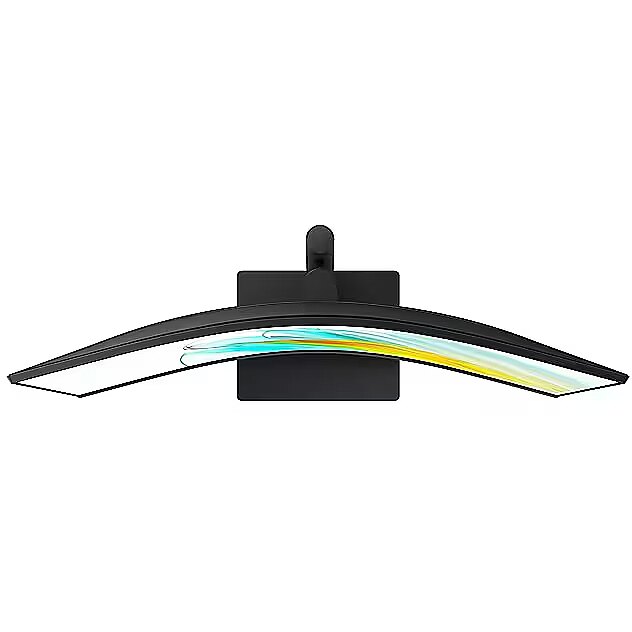

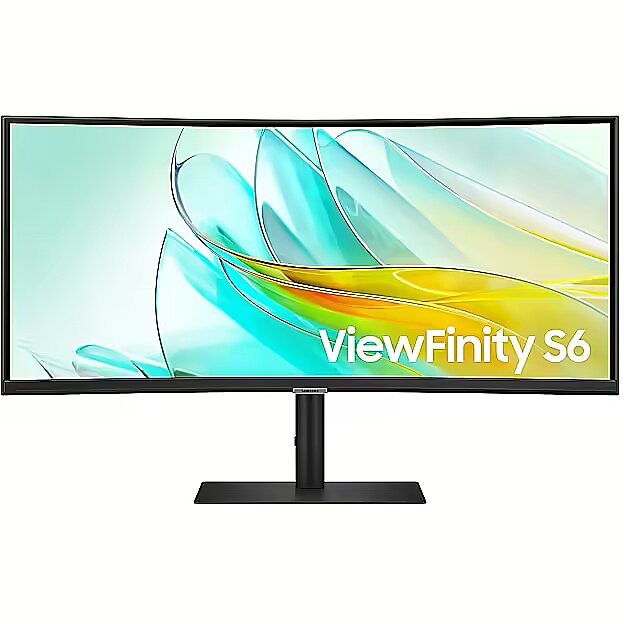

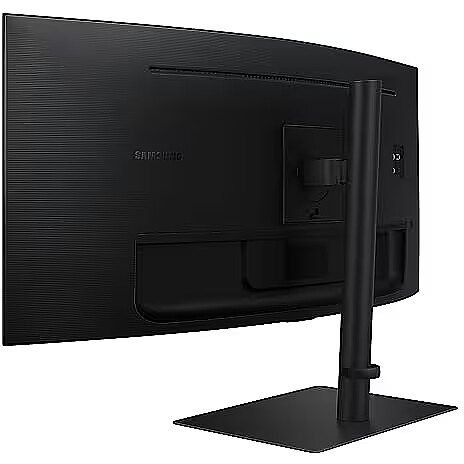

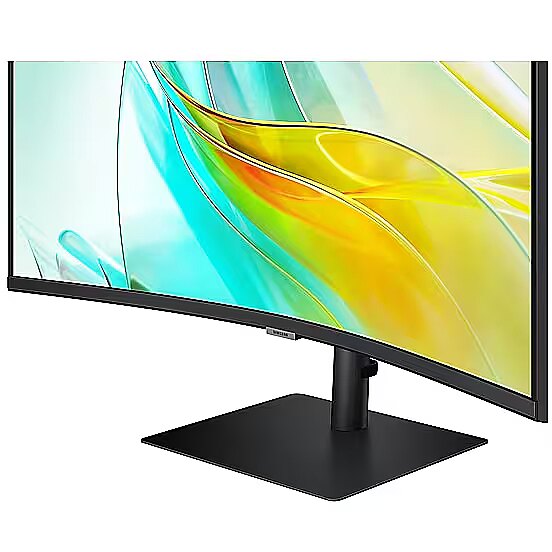

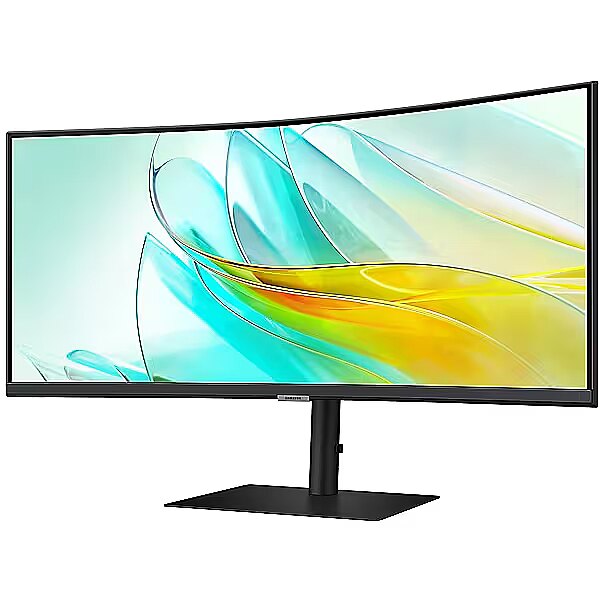

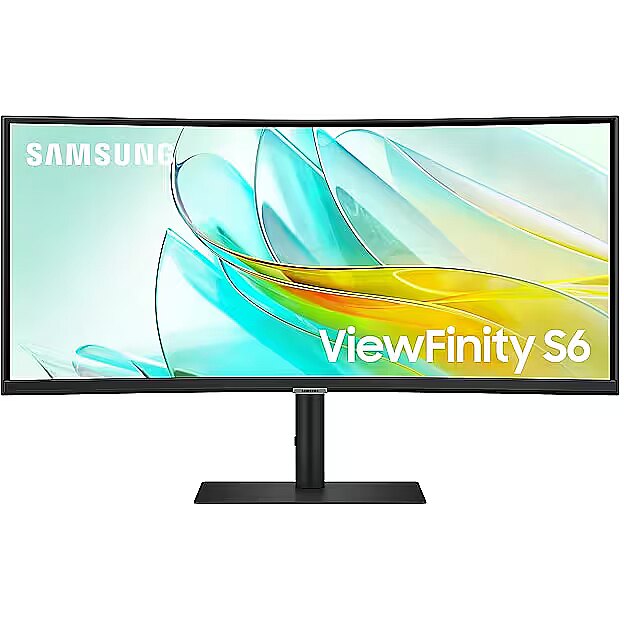

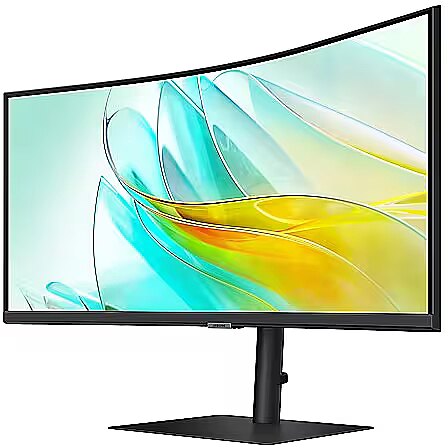

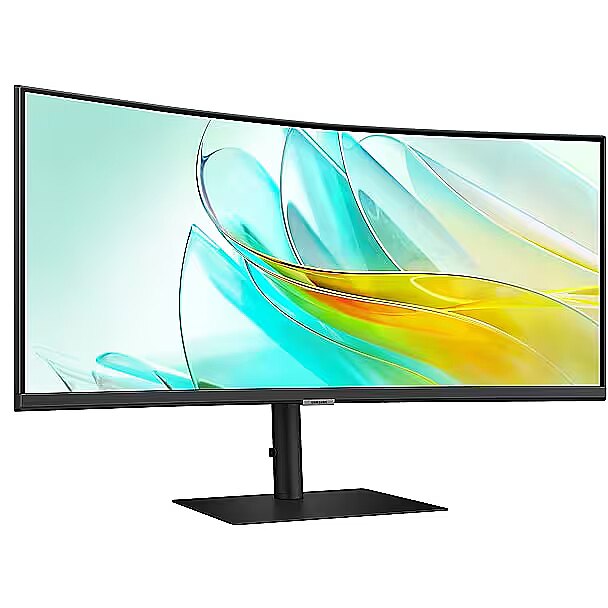

Samsung S34C652UAU, 34"

Name: Samsung S34C652UAU, 34"
Brand: Samsung
SKU: 990749
Price: 558.26 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 990749 Product code: LS34C652UAUXEN

In stock 7 units

Warranty: 2 years

Compare

Main product parameters All parameters

Curved: Ir
Panel Type: VA
Refresh rate: 100 Hz
Response time: 5ms
Contrast ratio: 3000:1
Brightness: 350cd/m2
Size: 34"
Resolution: UWWQHD 3440x1440

Display characteristics

AMD FreeSync : Ir

Curved : Ir

NVIDIA G-SYNC : Nav

Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 100 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 5ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.

Contrast ratio 3000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 350cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 21:9

Color : Black

Size 34"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution UWWQHD 3440x1440

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Nav

Swivel : And

Tilt : YES

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : 90W

USB-C video input : 1

More detailed specification

Accessories included - Power cable 1.5 m HDMI cable DP cable USB Type-C cable USB 3.0 cable
Aspect ratio - 21:9
Auto Pivot - No
Bluetooth - No
Brand - Samsung
BrandPartCode - LS34C652UAUXEN
Brightness - 350 cd/m²
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category 1 - Displays
Category 2 - Monitore
Category_1 - Monitors and TV
Category_2 - LED Monitors 31 inches and up
category_en - Computers & Components > Monitors and accessories > LCD monitors
category_lv - Datortehnika > Monitori un aksesuāri > LCD monitori
category_ru - Datortehnika > Monitori un aksesuāri > LCD monitori
Certificates - TCO
Code - LS34C652UAUXEN
Color - Black
Curved - 1000 R
Depth - 125 mm
Depth with stand - 241 mm
Description -
description_en - Display Type LED-backlit LCD monitor / TFT active matrix
Energy Class G
Energy Class (HDR)Class G
Energy Consumption per Year 47 kWh
Diagonal Size 34"
Curved Screen Yes (1000R)
Adaptive-Sync Technology AMD FreeSync
Built-in Devices KVM Switch, USB 3.0/USB-Hub, Ethernet network adapter
USB Power Delivery 90 Watt
Panel Type VA
Aspect Ratio 21:9
Native Resolution WQHD 3440 x 1440 at 100 Hz
Brightness 350cd/m2
Contrast Ratio 3000:1
HDR Format HDR 10
Colour Support1.07 billion colours
Colour Gamut 115% sRGB
Response Time 5ms
Horizontal Viewing Angle 178
description_lv - Displeja tips LED-backlit LCD monitors / TFT aktīvā matrica
Enerģijas Klase G
Enerģijas klase (HDR)G klase
Enerģijas patēriņš gadā 47 kWh
Diagonāles Izmērs 34"
Izliekts ekrāns Jā (1000r)
Adaptīvā sinhronizācijas tehnoloģija AMD FreeSync
Iebūvētās ierīces KVM slēdzis, USB 3.0 / USB centrmezgls, Ethernet tīkla adapteris
USB strāvas padeve 90 vatu
Paneļa tips VA
Malu Attiecība 21: 9
Native izšķirtspēja WQHD 3440 x 1440 pie 100 Hz
Spilgtums 350cd / m2
Kontrasta Attiecība 3000:1
HDR formāts HDR 10
Krāsu Atbalsts1. 07 miljardi krāsu
Krāsu gamma 115% sRGB
Reakcijas laiks 5ms
Horizontālais Skata Leņķis 178
description_ru - Тип дисплея ЖК-монитор со светодиодной подсветкой / TFT активной матрицей
Класс энергопотребления G
Класс энергопотребления (HDR) G
Потребление энергии в год 47 кВт*ч
Диагональ 34 дюйма
Изогнутый экран есть (1000R)
Технология адаптивной синхронизации AMD FreeSync
Встроенные устройства: KVM-коммутатор, USB 3.0/USB-концентратор, сетевой адаптер Ethernet
Мощность USB 90 Вт
Тип панели: VA
Соотношение сторон 21:9
Собственное разрешение WQHD 3440 x 1440 при 100 Гц
Яркость 350 кд/м2
Коэффициент контрастности 3000:1
Формат HDR HDR 10
Поддержка цветопередачи 1,07 миллиарда цветов
Цветовая гамма 115% sRGB
Время отклика 5 мс
Угол обзора по горизонтали 178
Design - Feet colour - Black
Design - Market positioning - Professional
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 17766
dimension depth - 890 mm
dimension height - 465 mm
dimension weight - 11000 g
dimension width - 215 mm
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness (min) - 280 cd/m²
Display - Display brightness (typical) - 350 cd/m²
Display - Display diagonal - 86.4 cm (34")
Display - Display diagonal (metric) - 86 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3440 x 1440 pixels
Display - Display technology - LCD
Display - Dynamic contrast ratio marketing name - Mega DCR
Display - HD type - UltraWide Quad HD
Display - High Dynamic Range (HDR) supported - Yes
Display - High Dynamic Range (HDR) technology - High Dynamic Range 10 (HDR10)
Display - Maximum refresh rate - 100 Hz
Display - Native aspect ratio - 21:9
Display - Panel type - VA
Display - Quantum dot color technology - No
Display - Refresh rate optimizor - No
Display - Response time - 5 ms
Display - Screen curvature rating - 1000R
Display - Screen shape - Curved
Display - sRGB coverage (typical) - 115%
Display - Viewable size, horizontal - 79.7 cm
Display - Viewable size, vertical - 33.4 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display > Aspect ratio - 21:9
Display > Contrast ratio (typical) - 3000:1
Display > Display - 3440 x 1440
Display > Display brightness - 350 cd/m²
Display > Display diagonal - 34 "
Display > Maximum refresh rate - 100 Hz
Display > Panel type - VA
Display > Response time - 5 ms
Display > Viewing angle, horizontal - 178 °
Display > Viewing angle, vertical - 178 °
Dynamic contrast - Mega Contrast
EAN - 8806094974751
ean - 8806094974751
Eans - 8806094974751
EAN_code - 8806094974751
Energy class - G
Energy label - Pobierz
Ergonomics - Black eQualizer function - No
Ergonomics - Height adjustment - 12 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Picture-in-Picture - Yes
Ergonomics - Pivot - No
Ergonomics - Swivel angle range - -30 - 30°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -2 - 20°
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Ergonomics > Height adjustment - Yes
Ergonomics > VESA mounting - Yes
Ergonomics > VESA mounting interfaces - 100x100 mm
Gross Weight Kg - 9,9
gross_weight - 10.5 kg
GTIN - 8806094974751
guarantee - 36
guarantee_type - external
Height - 369.4 mm
Height adjustment - Yes
Height with stand - 561.5 mm
I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x DisplayPort
I/O connectors - 1 x HDMI
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x USB (Type B)
I/O connectors - 1 x USB (Type C)
I/O connectors - 3 x USB 3.0
LongSummaryDescription - Samsung S65UC. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Manufacturer - Samsung
Manufacturer - SAMSUNG
Manufacturer Code - LS34C652UAUXEN
Manufacturer Name - Samsung
Manufacturer_code - LS34C652UAUXEN
Matrix type - VA
Model - S6U Series
Model - S34C652UAU
MPN - LS34C652UAUXEN
Multimedia - Adaptive Sound Control (ASC) - No
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - RMS rated power - 5 W
Multimedia > Built-in speaker(s) - Yes
Multimedia > TV tuner integrated - No
Name - 84cm/34" (3440x1440) Samsung S34C652UAU 100Hz 5ms HDMI USB-C LS DP black
name - Monitor 34 inches ViewFinity S65UA VA 3440x1440 UWQHD 21:9 1xHDMI 1xDP 1xUSB-C(90W) 3xUSB 3.0 LAN (RJ45) 5ms 100Hz HAS+PIVOT curved speakers 3Y OS (LS34C652UAUXEN)
Name - Samsung ViewFinity S65C LS34C652UAUXEN - 34'' | VA | UWQHD | 100Hz | HDR
Name - SAMSUNG ViewFinity S65UC S34C652UAU, LED monitor - 34 - black, UWQHD, VA, curved, AMD Free-Sync, HDMI, DP, USB-C, 100Hz panel
Name - Samsung | Business Monitor | LS34C652UAUXEN | 34 " | VA | 21:9 | 100 Hz | 5 ms | 3440 x 1440 | 350 cd/m² | Black
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Networking > Ethernet LAN (RJ-45) ports - Yes
Number of colors - 1,07 mld
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 10 - 40 °C
Optional accessory -
Other features -
Other features - Adaptive picture - Yes
Other features - Anynet + (HDMI-CEC) - No
Other features - Auto source switch - Yes
Other features - Daisy chain - No
Other features - Disclaimer - No
Other features - Eco Saving Plus - No
Other features - Factory calibration report - No
Other features - Factory tunning - No
Other features - Far-field voice interaction - No
Other features - Gray balance - No
Other features - Image size - Yes
Other features - Knox vault - No
Other features - Local dimming - No
Other features - Low input lag - No
Other features - Multi View - No
Other features - My contents - No
Other features - Off Timer Plus - Yes
Other features - Picture-by-Picture (PbP) - Yes
Other features - Power consumption (DPMS) - 0.5 W
Other features - Samsung Eye Saver Mode - Yes
Other features - Smart calibration - No
Other features - Tap view - No
Other features - TV Plus - No
Other features - Uniformity correction - No
Other features - Universal guide - No
Other features - Video colour modes - Custom
Other features - Video colour modes - Custom, Eco, Entertain, Game, Graphic, Original, Sports, Standard
Other features - Video colour modes - Eco
Other features - Video colour modes - Entertain
Other features - Video colour modes - Game
Other features - Video colour modes - Graphic
Other features - Video colour modes - Original
Other features - Video colour modes - Sports
Other features - Video colour modes - Standard
Other features - Virtual AIM point - No
Other features - Wireless Dex support - No
Other features - Wireless display - No
Other features - Workspace - No
Other features - Works with Samsung Bixby - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 807.00 mm
Package features > Gross height (mm) - 367.00 mm
Package features > Gross width (mm) - 125.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 23 pc(s)
Package features > Paper/Pasteboard - 2000.00 g
Package features > Plastic (No PET) - 500.00 g
Package features > Tare weight (kg) - 2.50 kg
Package features > Volume (m3) - 0.04 m³
Package features > WEE classification - CL109:2:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - DisplayPort
Packaging content - Cables included - DisplayPort, HDMI, USB Type-C
Packaging content - Cables included - HDMI
Packaging content - Cables included - USB Type-C
Packaging content - Power cable length - 1.5 m
Packaging content - Remote control included - No
Packaging data - Package depth - 367 mm
Packaging data - Package height - 125 mm
Packaging data - Package weight - 10.5 kg
Packaging data - Package width - 807 mm
Packaging data - Stand type - HAS stand
Performance - AMD FreeSync - Yes
Performance - AMD FreeSync type - FreeSync
Performance - Flicker-free technology - Yes
Performance - Game mode - No
Performance - NVIDIA G-SYNC - No
Performance - Smart modes - FPS
Performance - Smart modes - FPS, RPG, RTS
Performance - Smart modes - RPG
Performance - Smart modes - RTS
Performance - VESA Adaptive Sync support - No
Performance - Windows operating systems supported - Windows 10
Ports & interfaces - Audio input - No
Ports & interfaces - Built-in KVM switch - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - DVI port - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDCP version - 2.2
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Number of upstream ports - 1
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Power Delivery - Yes
Ports & interfaces - USB Power Delivery up to - 90 W
Ports & interfaces - USB Type-A downstream ports quantity - 3
Ports & interfaces - USB Type-C downstream ports quantity - 1
Ports & interfaces - USB upstream port type - USB Type-B
Ports & interfaces > DisplayPorts quantity - 1
Ports & interfaces > USB ports quantity - 3
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (HDR) per 1000 hours - 52 kWh
Power - Energy consumption (SDR) per 1000 hours - 32 kWh
Power - Energy efficiency class (HDR) - G
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 1571400
Power - Power consumption (max) - 200 W
Power - Power consumption (off) - 0.3 W
Power - Power consumption (typical) - 32 W
Power - Power supply type - Internal
Power consumption - 200 W
producer - Samsung
Producer - Samsung
producerCode - LS34C652UAUXEN
ProducerCode - LS34C652UAUXEN
ProductName - S65UC
productName - Samsung S65UC computer monitor 86.4 cm (34") 3440 x 1440 pixels UltraWide Quad HD LCD Black
productSize - Normal
Recycling data - Total amount of recyclable materials - 10%
Refresh rate - 100 Hz
Resolution - 3440 x 1440
Response time - 5 ms
Screen size (diag.) - 34''
ShortDescription - 34'' | VA | UWQHD | 100Hz | HDR
Short description - Samsung LCD S34C652UAU 34" black
ShortSummaryDescription - Samsung S65UC, 86.4 cm (34"), 3440 x 1440 pixels, UltraWide Quad HD, LCD, 5 ms, Black
sizeX - 210
sizeY - 900
sizeZ - 470
Speakers built-in - Yes
Static contrast - 3 000:1
Sustainability - Sustainability certificates - TCO
TCO Certified - Yes
Technical details > Gross weight - 10.50 kg
Technical details > Net weight - 8.00 kg
Technical details > Producer - Samsung
Technical details > Producer product family - Business Monitor
Technical details > Producer product name - LS34C652UAUXEN
Technical details > USB-C - Yes
Technical details > USB-C power delivery - 90W
Title - Samsung S65UC computer monitor 86.4 cm (34") 3440 x 1440 pixels UltraWide Quad HD LCD Black
title_en - Samsung S6U Series Monitor 34" / 3440 x 1440
title_lv - Samsung S6U Series Monitors 34" / 3440 x 1440
title_ru - Samsung S6U Series Монитор 34" / 3440 x 1440
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
vendpn - LS34C652UAUXEN
VESA - 100 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Visible area, horizontal - 797.22 mm
Visible area, vertical - 333.72 mm
Warranty -
Warranty - 36
Warranty - 36 month(s)
warrantyLength - 24
warrantyType - F
Web camera - None
Weight - 5.2 kg
weight - 8 kg
Weight - 10,65
Weight - 10.6
weight - 10500
Weight & dimensions - Depth (without stand) - 125 mm
Weight & dimensions - Depth (with stand) - 241 mm
Weight & dimensions - Height (without stand) - 369.4 mm
Weight & dimensions - Height (with stand) - 561.5 mm
Weight & dimensions - Weight (without stand) - 5.2 kg
Weight & dimensions - Weight (with stand) - 8 kg
Weight & dimensions - Width (without stand) - 806.6 mm
Weight & dimensions - Width (with stand) - 806.6 mm
Weight with stand - 8 kg
Width - 806.6 mm
WiFi - No
