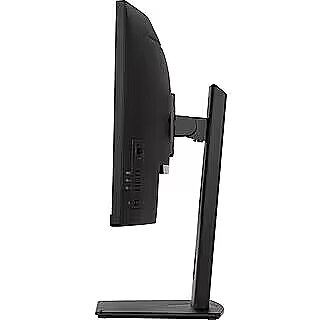

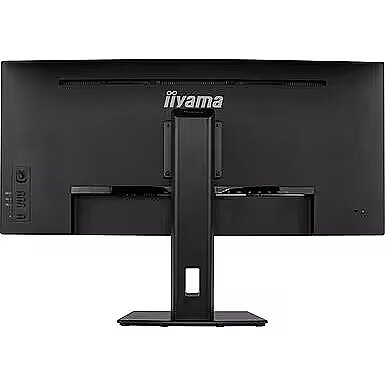

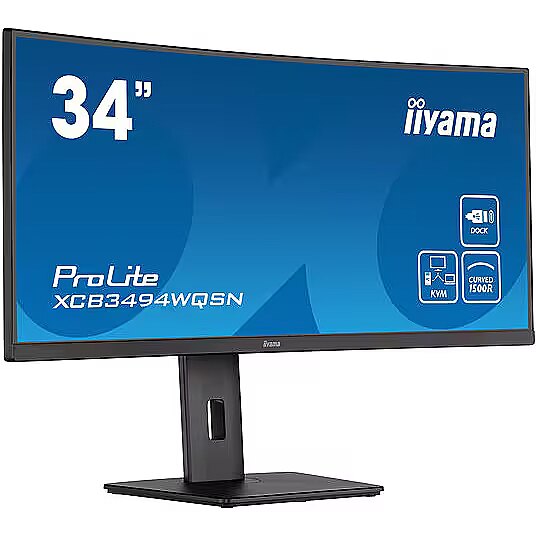

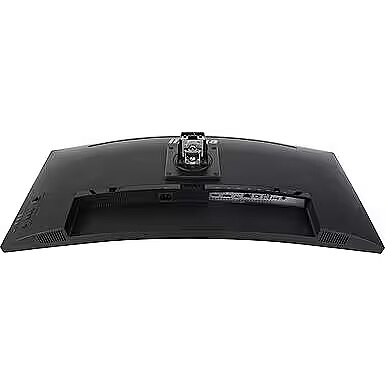

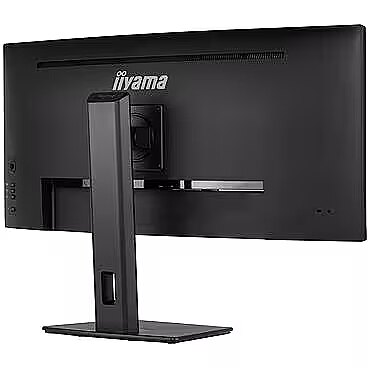

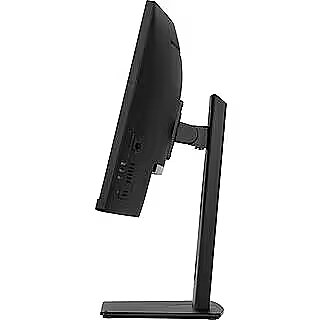

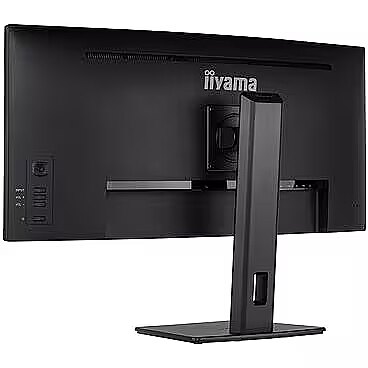

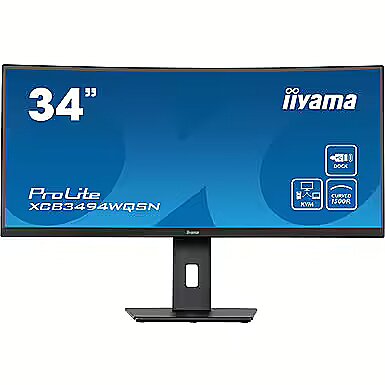

Iiyama XCB3494WQSN-B5, 34"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 936746 Product code: XCB3494WQSN-B5
In stock 4 units
Warranty: 3 years
471.90 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
  • Curved: Ir
  • Panel Type: VA
  • Refresh rate: 120 Hz
  • Response time: 0.4ms
  • Contrast ratio: 3000:1
  • Brightness: 300cd/m2
  • Size: 34"
  • Resolution: UWWQHD 3440x1440
Description
We offer to buy Iiyama 34" a monitor with UWWQHD 3440x1440 resolution.
  • The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
  • DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
  • The port DVI ensures the compatibility with the classic video cards equipped with this port.
  • The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
  • VA panel provides high colour compatibility parameters and improved viewing angle to this monitor.
  • The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
Display characteristics
AMD FreeSync : Ir
Curved : Ir
NVIDIA G-SYNC : Nav
Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 120 Hz
Touchscreen : NO
VESA DisplayHDR : Nav
Response time 0.4ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 3000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 300cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 21:9
Color : Black
Size 34"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution UWWQHD 3440x1440

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Ir
Height adjustment : Ir
Pivot : Nav
Swivel : None
Tilt : YES
VESA wall mount : 100x100 mm
Ports and equipment
D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES
USB-C Power Delivery : 65W
USB-C video input : 1
More detailed specification
Additional information in manufacturers website Iiyama XCB3494WQSN-B5, 34"
100 mm x 100 mm VESA mounting interface - Yes
ARTIKEL1 - B-WARE XCB3494WQSN-B5 34IN
ARTIKEL1 - XCB3494WQSN-B5 86.4CM 34IN IPS
ARTIKEL2 - 3440X1440 300CD HDMI DP
ARTIKEL2 - B-WARE
Audio - Yes
AudioFeatures - 2 x 2W
Brand - iiyama
BrandPartCode - XCB3494WQSN-B5
Breite - 0.48
Brightness - 300
Brightness - 300 cd/m2
Camera - No
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category 1 - Displays
Category 2 - Monitore
Category Code - LC3
Category_1 - Monitors and TV
Category_2 - LED Monitors 31 inches and up
Colour - Black
Contrast - 3000:1
ContrastRatio - 3000:1
ContrastRatioDynamic - 80,000,000:1
Data Sheet (Link) - https://eprel.ec.europa.eu/api/product/1396054/fiches?language=EN
Depth - 242.5 mm
Description - ProLite XCB3494WQSN-B5 34’’ UWQHD curved with USB-C dock, KVM switch and 150mm height adjustable stand Inspired by the curve of the human eye, the 1500R curved VA screen offers superb images along with a comfortable and immersive viewing experience. Equipped with the KVM switch, the XCB3494WQSN enables you to connect multiple computers which can be operated over one console (monitor, keyboard, mouse). The USB-C dock connector allows you to simplify your workspace by using a single cable to both send the signal from your notebook to your monitor while charging the notebook from the monitor. Additionally, if your monitor is connected to the Internet via a LAN cable, your notebook will automatically be connected to the network. The 150mm height-adjustable stand ensures you can adjust the screen position to your preferences, and the flicker-free panel with blue light reducer function reduces eye fatigue.
Design - Product colour - Black
Display - Contrast ratio (dynamic) - 8000000:1
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness (typical) - 300 cd/m²
Display - Display diagonal - 86.4 cm (34")
Display - Display diagonal (metric) - 86.4 cm
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 3440 x 1440 pixels
Display - Display surface - Matt
Display - HD type - UltraWide Quad HD
Display - Horizontal scan range - 30 - 185 kHz
Display - Maximum refresh rate - 120 Hz
Display - Native aspect ratio - 21:9
Display - NTSC coverage (typical) - 93%
Display - Panel type - VA
Display - Pixel pitch - 0.232 x 0.232 mm
Display - Response time - 0.4 ms
Display - Screen curvature rating - 1500R
Display - Screen shape - Curved
Display - sRGB coverage (typical) - 99%
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displayable colours - 16.7 million
DisplayCaseColour - Black
DisplayFeatures -
  • Curvature: 1500R
  • Color support: 16.7M (sRGB: 99%; NTSC: 93%)
  • Blue light reducer
  • Flicker free
  • FreeSync support HDMI: 100Hz, DP / USB-C: 120Hz
  • i-Style Color

    • DisplayFormat - 21:9
    DisplayNativeResolution - 3440 x 1440
    DisplayPort - Yes
    DisplayPort Input/Output connectors - 1
    DisplaySizecm - 86.4 cm
    Display surface - Matte
    DisplayType - LED VA
    DisplayViewingArea - 797.2 x 333.7 mm
    EAN - 4948570121410
    EANCode - 4948570121410
    Eans - 4948570121410
    EAN_code - 4948570121410
    EmissionStandard - Energy class: G
    Energy efficiency class - G
    EPEAT - -
    EPREL Registration Number - 1.39605e+006
    EPREL Version Number - 1
    Ergonomics - Cable lock slot - Yes
    Ergonomics - Cable lock slot type - Kensington
    Ergonomics - Height adjustment - 15 cm
    Ergonomics - Height adjustment - Yes
    Ergonomics - On Screen Display (OSD) - Yes
    Ergonomics - On Screen Display (OSD) languages - Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
    Ergonomics - Panel mounting interface - 100 x 100 mm
    Ergonomics - Tilt adjustment - Yes
    Ergonomics - Tilt angle range - -5 - 23°
    Ergonomics - VESA mounting - Yes
    Ethernet - Yes
    Frequency - 30-185 kHz
    FrequencyV - 48-120 Hz
    Full Description Line - Model XCB3494WQSN-B5|34"|Curved/21 : 9|Panel VA|Resolution 3440x1440|Form factor 21:9|Brightness 300|Contrast 3000:1|Display Matte|Response time 0.4 ms|Horizontal 178 degrees|Vertical 178 degrees|Displayable colours 16.7 million|1xHDMI|1xDisplayPort|3xUSB 3.2|1xUSB-C|1xHeadphones jack|1xRJ45|Speakers|Swivel|Height adjustable|Tilt|PSU Inbuilt|100 mm x 100 mm|Kensington lock|Included Accessories Cables power, USB, HDMI, DP, USB-COther quick start guide, safety guide|Colour Black
    Gewicht - 12.34
    Gewicht - 12.36
    GrossWeight - 12.400 kg
    GRUPPE1 - Displays
    GRUPPE2 - Lcd Monitor
    GTIN - 4948570121410
    HDMI - 1
    HDMI Input/Output connectors - 1
    Headphones jack Input/Output connectors - 1
    Height - 431 mm
    Height adjustable Stand - Yes
    HeightAdjustment - Yes
    HERSTELLER - IIYAMA
    HERSTELLER - IIYAMA CONSIGNMENT
    Hoehe - 0.24
    HSTNUMMER - XCB3494WQSN-B5
    HSTNUMMER - XCB3494WQSN-B5-STD
    Included Accessories - Cables power, USB, HDMI, DP, USB-C
    Other quick start guide, safety guide
    InputSignal -
  • HDMI
  • DisplayPort
  • 2x USB Type-C
  • 3x USB 3.0
  • Audio in
  • RJ-45

    • KensingtonLock - Yes
    Kensington lock support - Yes
    Laenge - 0.9
    LongDesc -
    LongDesc - 34" (86.4 cm) curved monitor with UWQHD resolution, a KVM switch, USB-C dock and a height-adjustable standThe 34" (86.4 cm) XCB3494WQSN curved monitor guarantees a comfortable and immersive viewing experience thanks to the 1500R curvature of the screen. The integrated VA panel with UWQHD resolution (3440x1440) offers excellent image quality and high contrast values. Equipped with a KVM Switch, XCB3494WQSN allows connection to multiple computers to be operated from one console (monitor, keyboard, mouse) The USB-C dock provides a clean and convenient workspace by using only a single cable, to allow the simultaneous transmission of data, video and audio signals, all without quality loss.In addition, the connected device is charged directly by the monitor.When the monitor is connected to the Internet via a LAN cable,your notebook is also automatically connected to the network. The 150mm height-adjustable stand ensures you can adjust the position of the screen to your liking, and the flicker-free panel with blue light reduction function reduces eye fatigue.The height-adjustable base allows you to position the screen perfectly, ensuring optimal viewing comfort. Is good for your health and also increases productivity.
    LongProductName - 34" 3440 x 1440​, 86.4cm, 300 cd/m², 16.7min, 1500r, 240V, 50/60Hz
    LongSummaryDescription - iiyama ProLite XCB3494WQSN-B5. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display surface: Matt, Response time: 0.4 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black
    Manufacturer - Iiyama
    Manufacturer - iiyama
    Manufacturer_code - XCB3494WQSN-B5
    MANUFDATASHEET - https://iiyama.com/gl_en/products/prolite-xcb3494wqsn-b5/
    Model name - XCB3494WQSN-B5
    MonitorControls -
  • Push (Menu)
  • Up
  • Down
  • Left (Eco)
  • Right (Blue Light Reducer)
  • Input
  • Volume +
  • Volume -
  • Power

    • Monitor features - 21 : 9/Curved
    MonitorSize - 34"
    MonitorType - Curved
    MPN - XCB3494WQSN-B5
    Multimedia - Built-in camera - No
    Multimedia - Built-in speaker(s) - Yes
    Multimedia - Number of speakers - 2
    Multimedia - RMS rated power - 2 W
    Name - 34''/86,4cm (3440x1440) iiyama XCB3494WQSN 0,4ms HDMI DisplayPort USB 3.0 Height Adj. Stand Speaker Black
    Name - iiyama ProLite XCB3494WQSN-B5 - 34 - LED, UWQHD, USB-C, VA panel, 120Hz panel, black
    Name - iiyama ProLite XCB3494WQSN-B5 - 34'' | VA | UWQHD | 0,4ms | 120Hz
    Native resolution - 3440x1440
    PackageContents -
  • Cables: power, USB, HDMI, DP, USB-C
  • Quick start guide
  • Safety guide

    • Packaging content - Cables included - AC, DisplayPort, HDMI, USB, USB Type-C
    Packaging content - Quick start guide - Yes
    Packaging data - Package depth - 236 mm
    Packaging data - Package height - 480 mm
    Packaging data - Package weight - 12.4 kg
    Packaging data - Package width - 900 mm
    Panel type - VA
    Performance - AMD FreeSync - Yes
    Performance - Flicker-free technology - Yes
    Performance - Low Blue Light technology - Yes
    Pivot - No
    Pixelpitch - 0.232 mm
    Pixel size - 0.232 mm
    Ports & interfaces - Built-in KVM switch - Yes
    Ports & interfaces - Built-in USB hub - Yes
    Ports & interfaces - DisplayPorts quantity - 1
    Ports & interfaces - HDCP - Yes
    Ports & interfaces - HDMI - Yes
    Ports & interfaces - HDMI ports quantity - 1
    Ports & interfaces - Headphone out - Yes
    Ports & interfaces - Number of USB Type-C upstream ports quantity - 1
    Ports & interfaces - USB Power Delivery - Yes
    Ports & interfaces - USB Power Delivery up to - 65 W
    Ports & interfaces - USB Type-A downstream ports quantity - 3
    Power - AC input frequency - 50 - 60 Hz
    Power - AC input voltage - 100 - 240 V
    Power - Energy efficiency class (SDR) - G
    Power - European Product Registry for Energy Labelling (EPREL) code - 1396054
    Power - Power consumption (off) - 0.5 W
    Power - Power consumption (standby) - 0.5 W
    Power - Power consumption (typical) - 56 W
    Power - Power supply type - Internal
    Power supply - Inbuilt
    ProdDesc - Iiyama Prolite XCB3494WQSN-B5 - 3440 x 1440 @120Hz (4.9 megapixel UWQHD, DisplayPort & USB-C) - Aspect ratio - 21:9 - Panel brightness, 300 cd/m² - Static contrast, 3000:1
    Producer - iiyama
    ProducerCode - XCB3494WQSN-B5
    ProductName - XCB3494WQSN-B5
    ProductPicture - http://www.tdbaltic.ee/images/ds4/XCB3494WQSN-B5-01.jpg
    ProductPicture2 - http://www.tdbaltic.ee/images/ds4/XCB3494WQSN-B5-02.jpg
    ProductPicture3 - http://www.tdbaltic.ee/images/ds4/XCB3494WQSN-B5-03.jpg
    ProductPicture4 -
    Response time - 0.4 ms
    ResponseTime - 0.4 ms
    RJ45 Input/Output connectors - 1
    Rotate - No
    Screen form factor - 21:9
    Screen size - 34"
    Shipping Box Depth Shipping/Package Box Dimensions - 89.5 cm
    Shipping Box Height Shipping/Package Box Dimensions - 48 cm
    Shipping Box Weight Shipping/Package Box Dimensions - 13.6 kg
    Shipping Box Width Shipping/Package Box Dimensions - 23 cm
    ShortDescription - 34'' | VA | UWQHD | 0,4ms | 120Hz
    ShortSummaryDescription - iiyama ProLite XCB3494WQSN-B5, 86.4 cm (34"), 3440 x 1440 pixels, UltraWide Quad HD, 0.4 ms, Black
    Speakers - Yes
    Standby consumption - 0.5 Watts
    Stck_Kart - 1
    Stck_Pal - 0
    Stck_Pal - 15
    Storno - N
    Storno - Y
    Swivel Stand - Yes
    Tilt - Yes
    Tilt Stand - Yes
    Title - iiyama ProLite XCB3494WQSN-B5 LED display 86.4 cm (34") 3440 x 1440 pixels UltraWide Quad HD Black
    Unit Box Height - 0.48
    Unit Box Length - 0.895
    Unit Box Width - 0.23
    Unit Brutto Volume - 0.09881 cubm
    Unit Gross Weight - 13.6 kg
    Unit Net Weight - 9.4 kg
    URL - https://iiyama.com/de_de/produkte/prolite-xcb3494wqsn-b5/
    USB - Yes
    USB-C Input/Output connectors - 1
    USB 3.2 Input/Output connectors - 3
    USBTypeC - 65 W
    Vendor Homepage - iiyama.com/gl_en/products/prolite-xcb3494wqsn-b5/
    VESACompatible - Yes
    VESAStandard - 100 x 100
    ViewingAngle - 178
    Viewing angle horizontal - 178 degrees
    ViewingAngleV - 178
    Viewing angle vertical - 178 degrees
    Warranty - 3 years
    Warranty - 36 months
    WarrantyInfo -
    Weight - 9.400 kg
    Weight - 12,40
    Weight - 12.36
    Weight & dimensions - Depth (with stand) - 245.5 mm
    Weight & dimensions - Height (with stand) - 431 mm
    Weight & dimensions - Weight (with stand) - 9.4 kg
    Weight & dimensions - Width (with stand) - 809.5 mm
    Width - 809.5 mm
    Wireless - No
    WirelessFeatures - -
    471.90 €
    Iiyama XCB3494WQSN-B5, 34"
    Intel technology provider Platinum 2020
    All categories
