AG NEOVO HX-24G, 23.8"

Name: AG NEOVO HX-24G, 23.8"
Brand: AG NEOVO
SKU: 737004
Price: 1247.73 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 737004 Product code: HX4GB011E0100

Can be ordered 4 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 27.11.2024

Main product parameters All parameters

Curved: Nav
Panel Type: VA
Refresh rate: 75 Hz
Response time: 5ms
Contrast ratio: N/A
Brightness: 250cd/m2
Size: 23.8"
Resolution: FHD 1920x1080

Description

We offer to buy AG NEOVO 23.8" a monitor with FHD 1920x1080 resolution.

Thanks to FullHD (1920px X 1080px) resolution this monitor will be perfectly suitable for enjoying BlueRay quality films in the full screen mode.
The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
VA panel provides high colour compatibility parameters and improved viewing angle to this monitor.
5ms the response time is suitable for games and dynamic films.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 5ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.

Contrast ratio N/A

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black

Size 23.8"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Nav

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : NO

VESA wall mount : 100x100 mm

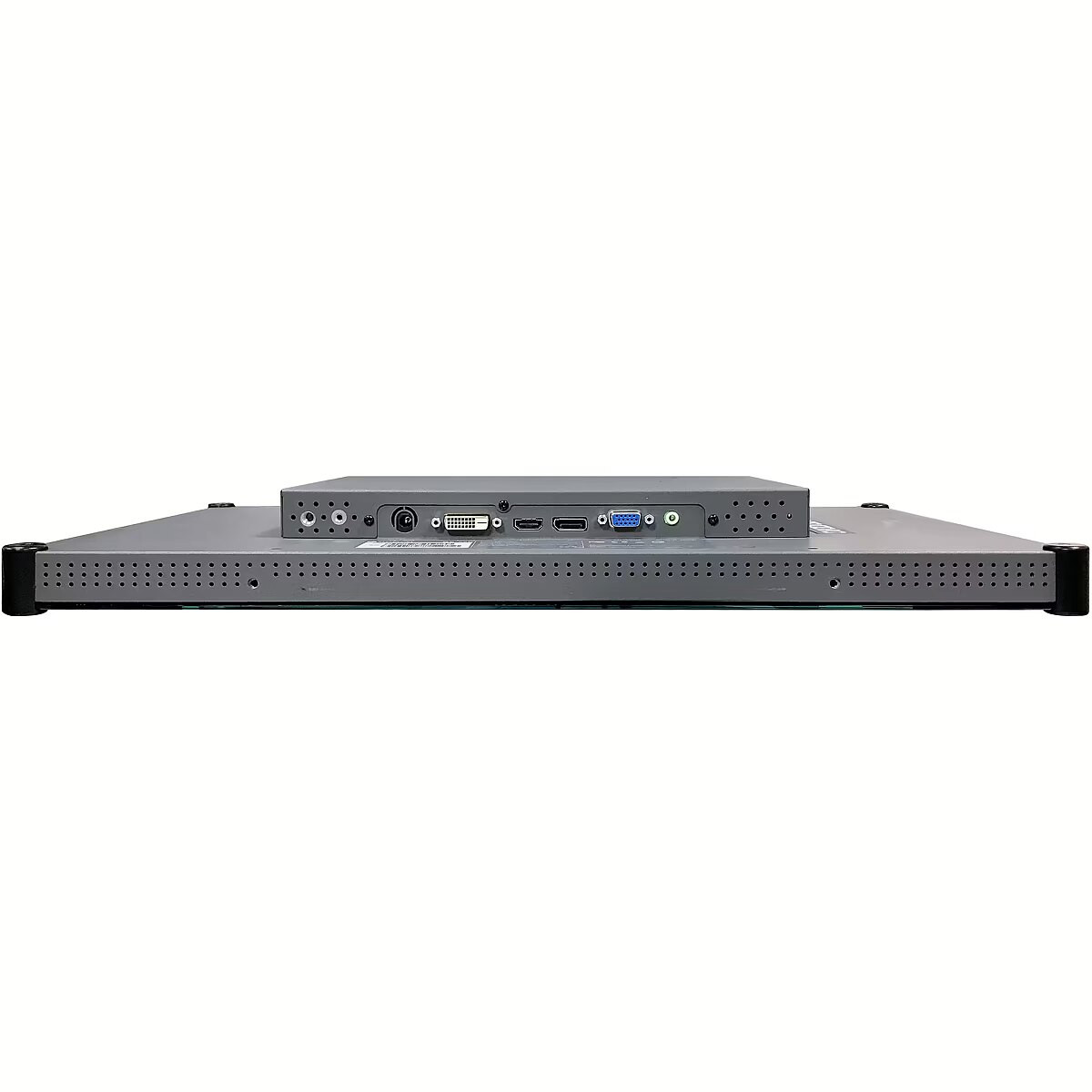

Ports and equipment

D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 1

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website AG NEOVO HX-24G, 23.8"

ARTIKEL1 - HX-24G FHD 250 CD
ARTIKEL2 - VA PANEL HDMI DVI VGA
Brand - AG Neovo
BrandPartCode - HX4GB011E0100
Breite - 0.51
Category - Surveillance Monitors
Design - Mounting type - Freestanding/Wall-mounted
Design - Product colour - Black
Design - Product type - CCTV monitor
Design - Tilt adjustment - Yes
Design - Tilt angle range - 3 - 21°
Display - Anti-glare screen - Yes
Display - Contrast ratio (typical) - 20000000:1
Display - Digital horizontal frequency - 24 - 84 kHz
Display - Digital vertical frequency - 50 - 75 Hz
Display - Display brightness - 250 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display surface reflectivity (typical) - 1%
Display - Display type - LED
Display - Glass thickness - 3 mm
Display - Haze rate - 40%
Display - NTSC coverage (typical) - 72%
Display - Panel type - VA
Display - Pixel pitch - 0.274 x 0.274 mm
Display - Response time - 5 ms
Display - RGB colour space - NTSC
Display - Surface hardness - 3H
Display - Transmission rate - 97
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4710739595949
Gewicht - 11.2
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 4710739595949
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0.25
HSTNUMMER - HX4GB011E0100
Laenge - 0.67
LongDesc - The HX-24G is a 24-inch SDI monitor to broadcast live video footage over a long distance in a surveillance environment. With SDI input and output looping functionality, the monitor allows to receive real-time 1080p images from HD-SDI or 3G-SDI cameras and transmit the uncompressed videos in the light of ultra-low latency and signal interruption to multiple SDI monitors. The HX-24G fulfils the need for high-quality image details to real-time video surveillance monitoring such as official authorities, law enforcement, banks, casinos, jewellery and luxury stores, police patrol cars, private properties.Support HD-SDI and 3G-SDI StandardsThe HX-24G 24-inch SDI monitor supports both HD-SDI and 3G-SDI standards at Full HD image quality. Users don’t need to sacrifice the video quality and image details when zooming in the cameras during live video and playback mode to focus on their specific area of interest.Uncompressed and Ultra-low Latency Transmission via Long DistanceThe HX-24G supports multiple SDI video standards, including SD, HD and 3G-SDI formats. These standards support ultra-low latency and uncompressed transmission of HDTV signals up to 300 meters for live video monitoring.The maximum distances for SD-SDI, HD-SDI and 3G-SDI signal transmission via RG6 cables:3G-SDI: 100M / RG6 Coaxial CablesHD-SDI: 150M / RG6 Coaxial CablesSD-SDI: 300M / RG6 Coaxial CablesEasy Connection with SDI Loop Out for Multiple Monitor SetupsWith HX-24G’s SDI loop-out port, CCTV installers can quickly connect the SDI A/V source to extra SDI monitors without the need for a converter. It’s an ideal solution for CCTV HD-SDI camera and broadcast monitoring.Super ResolutionTo improving the clarity of security footage in real-time, the HX-24G monitor’s super-resolution technology can upscale and enhance the images to present more detail in layered texture horizontally and vertically. It essentially makes an image with a higher resolution in a more natural way.CCTV ModeAG Neovo’s pre-configured CCTV mode can maximise image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don’t waste time testing and re-adjusting constantly, this product already has it all figured out!Night ModeWhile applying to critical surveillance, such as sailing in the dark seas, users have higher image clarity requirements for the monitors in low-light environments. Night Mode features dimming the backlight level in dark environments and remaining the clear viewing with high visibility for reliable navigation.LCD Screen Burn In PreventionAG Neovo’s patented Anti-Burn-in™ technology tackles LCD burn-in effect, prevents a ghost image on the screen. It assures an extended lifespan for the monitors and secures the user’s investment.Robust Design for Video SurveillanceA professional video surveillance monitor is built for 24/7 use in challenging conditions. The HX-24G SDI monitor fits with NeoV Optical Glass screen and durable metal casing to prevent scratching and high-velocity impacts, also providing enhanced heat dissipation to ensure proper operation.PID Command & Ctrl for RS232 System IntegrationPID Command & Ctrl software helps integrators easily control and integrate this 24-Inch SDI monitor via RS232 connections. Users can quickly find command codes for programming into external control systems for remote management, OSD-related settings, and easy control on deployed displays on its simple and intuitive interface.
LongProductName - 23.6" VA, LED, 1920 x 1080px, 250 cd/m², 5 ms, NTSC 72%, BNC, DisplayPort, HDMI, DVI-D, VGA, RS-232, USB, 2 x 2W, 8.1 kg
LongSummaryDescription - AG Neovo HX-24G. Product type: CCTV monitor, Mounting type: Freestanding/Wall-mounted, Product colour: Black. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, Display type: LED. Speaker power: 2 W, Panel mounting interface: 75 x 75,100 x 100 mm, Cable lock slot type: Kensington. Power source type: DC, Power supply type: External, Power consumption (typical): 21 W. Weight: 7.3 kg, Height: 352.6 mm, Depth: 56.2 mm
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC, Audio, VGA
Packaging content - Quick start guide - Yes
Packaging content - Warranty card - Yes
Performance - Built-in speaker(s) - Yes
Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Number of built-in speakers - 2
Performance - Panel mounting interface - 75 x 75,100 x 100 mm
Performance - Speaker power - 2 W
Performance - VESA mounting - Yes
Ports & interfaces - 3.5 mm (1/8-inch) in - Yes
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Composite video in - 1
Ports & interfaces - Composite video out - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DVI-D ports quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - SDI inputs - 1
Ports & interfaces - SDI outputs - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output current - 2.75 A
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 21 kWh
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 21 W
Power - Power source type - DC
Power - Power supply type - External
ProductName - HX-24G
ShortSummaryDescription - AG Neovo HX-24G, CCTV monitor, Freestanding/Wall-mounted, Black, 3 - 21°, 60.5 cm (23.8"), 1920 x 1080 pixels
Stck_Kart - 1
Stck_Pal - 10
Storno - Y
Technical details - Compliance certificates - CE, Low Voltage Directive (LVD), REACH, RoHS
Technical details - Sustainability compliance - Yes
Title - AG Neovo HX-24G CCTV monitor 60.5 cm (23.8") 1920 x 1080 pixels
URL - https://www.agneovo.com/uk/monitors/security-surveillance/hx-series/hx-24g
WarrantyInfo -
Weight & dimensions - Depth - 56.2 mm
Weight & dimensions - Depth (with stand) - 196 mm
Weight & dimensions - Height - 352.6 mm
Weight & dimensions - Height (with stand) - 392.8 mm
Weight & dimensions - Package depth - 249 mm
Weight & dimensions - Package height - 517 mm
Weight & dimensions - Package weight - 11.2 kg
Weight & dimensions - Package width - 672 mm
Weight & dimensions - Weight - 7.3 kg
Weight & dimensions - Weight (with stand) - 8.1 kg
Weight & dimensions - Width - 562.4 mm
Weight & dimensions - Width (with stand) - 562.4 mm
