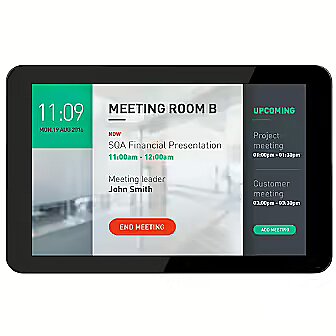

Philips 10BDL4151T, 10.1"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 697821 Product code: 10BDL4551T/00
In stock 6 units
Warranty: 3 years
461.18 €
Delivery options
  • Delivery to Smartpost 6.99 €: 06.02.2025
  • Courier delivery 11.99 €: 06.02.2025
Main product parameters All parameters
  • Curved: Nav
  • Panel Type: N/A
  • Refresh rate: 60 Hz
  • Response time: 30ms
  • Contrast ratio: 500:1
  • Brightness: 300cd/m2
  • Size: 10.1"
  • Resolution: WXGA 1280 x 800
Description
We offer to buy Philips 10.1" a monitor with WXGA 1280 x 800 resolution.
  • The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
  • The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
Display characteristics
AMD FreeSync : Nav
Curved : Nav
NVIDIA G-SYNC : Nav
Panel Type N/A

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz
Touchscreen : YES
VESA DisplayHDR : Nav
Response time 30ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 500:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 300cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Mobile
Aspect ratio : 16:10
Color : Black
Size 10.1"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution WXGA 1280 x 800

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Nav
Height adjustment : Nav
Pivot : Ir
Swivel : None
Tilt : NO
VESA wall mount : 75x75mm
Ports and equipment
D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : Nav
USB-C video input : 0
More detailed specification
Additional information in manufacturers website Philips 10BDL4151T, 10.1"
ARTIKEL1 - 10BDL4551T 10IN 25.4CM VA 8BIT
ARTIKEL2 - E-LED 1280X800 300CD/M2 800:1 30
Audio - Yes
Audio - Built-in speaker(s) - Yes
AudioFeatures - 2 x 2W
Brand - Philips
BrandPartCode - 10BDL4551T/00
Breite - 0.35
Brightness - 300 cd/m2
Camera - Yes
Category - Meeting Room Displays
ContrastRatio - 500:1
ContrastRatioDynamic - -
Depth - 29 mm
Design - Certification - CB, CE, RoHS, FCC, Class A, UL
Design - Panel mounting interface - 75 x 75 mm
Design - VESA mounting - Yes
Display - Contrast ratio (typical) - 500:1
Display - Display brightness - 300 cd/m²
Display - Display diagonal - 25.6 cm (10.1")
Display - Display resolution - 1280 x 800 pixels
Display - Response time - 30 ms
Display - Touchscreen - Yes
Display - Touchscreen technology - Capacitive
DisplayCaseColour - -
DisplayFeatures -
  • Operating system: Android 8.1
  • Protection glass: 0.7 mm tempered safety glass
  • Picture performance: Advanced color control
  • Screen saving functions: Low Brightness
  • Keyboard control: Hidden, Lockable
  • Energy saving functions: Smart Power
  • Memory: 2GB DDR3/ 8GB eMMC

    • DisplayFormat - 16:10
    DisplayNativeResolution - 1280 x 800
    DisplayPort - No
    DisplaySizecm - 25.6 cm
    DisplayType - LED
    DisplayViewingArea - -
    EANCode - 8712581772659
    EmissionStandard - -
    EPEAT - -
    Ethernet - Yes
    Frequency - -
    FrequencyV - -
    Gewicht - 1.71
    GrossWeight - 1.700 kg
    GRUPPE1 - Displays
    GRUPPE2 - Lcd Touchscreen
    GTIN - 685417569984
    GTIN - 0685417569984
    GTIN - 8712581772659
    HDMI - 1
    Height - 167.2 mm
    HeightAdjustment - No
    HERSTELLER - PHILIPS
    Hoehe - 0.09
    HSTNUMMER - 10BDL4551T/00
    InputSignal -
  • HDMI
  • Audio jack
  • RJ-45
  • USB
  • microSD

    • KensingtonLock - -
    Laenge - 0.35
    LongDesc -
    LongDesc - From shelf advertising to wayfinding, this ultra-clear Multi-Touch Smart Display is ideal when space is at a premium. A versatile all-in-one solution, content is easy to manage remotely. Power-over-Ethernet enables flexible placementCMND and Create. Develop and launch your own contentTake control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.Operate, monitor and maintain with CMND and ControlRun your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.Built-in camera and speakersThe built-in camera and speakers make this small touchscreen a truly versatile smart solution. Use it for retail audience measurement, footfall analytics, and more. Harness the power of Android AI apps to show targeted content. Or simply use your display for video conferencing.Easy installation with PoE+ technologyPlace your Philips Professional Display almost anywhere. PoE+ allows power and data to be delivered to your display over a single Ethernet cable. You won't need a power socket, but a power adapter is also supplied should you wish to plug in.Internal memory. Upload content for instant playSave and play content without the need for a permanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.CMND & Deploy. Install and launch apps remotelyQuickly install and launch any app - even when you're off site and working remotely. CMND & Deploy lets you add and update your own apps, as well as apps from the Philips Professional Display App Store. Simply scan the QR code, log in to the store and click on the app you want to install. The app will be automatically downloaded and launched.Android SoC processor. Native and web appsControl your display via an Internet connection. Android-powered Philips Professional Displays are optimised for native Android apps and you can install web apps directly to the display too. A new Android 8 OS ensures the software is kept secure and stays up to date with the latest specification for longer.
    LongProductName - 10", 1280 x 800, 300 cd/m², HDMI, RJ45, USB, Wi-Fi, 2 GB DDR3/ 8 GB eMMC, VESA 75 x 75mm, Android
    LongSummaryDescription - Philips 10BDL4551T/00. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Response time: 30 ms. Panel mounting interface: 75 x 75 mm, Certification: CB, CE, RoHS, FCC, Class A, UL. Operating system installed: Android 8, Video formats supported: 3GP, AVI, DAT, FLV, MKV, MOV, MP4, MPG, TS, VOB, WEBM. Width: 261 mm, Depth: 29 mm, Height: 167.2 mm. Cables included: AC, HDMI, USB
    MANUFDATASHEET - https://www.download.p4c.philips.com/files/1/10bdl4551t_00/10bdl4551t_00_pss_aenus.pdf
    MonitorControls -
  • Multi-touch technology: Projected capacitive
  • Touch points: 5 simultaneous touchpoints

    • MonitorSize - 10.1"
    MonitorType - Interactive
    Network - Ethernet LAN - Yes
    Network - Wi-Fi - Yes
    Operational conditions - Operating relative humidity (H-H) - 10 - 85%
    Operational conditions - Operating temperature (T-T) - 0 - 40 °C
    Operational conditions - Storage temperature (T-T) - -20 - 60 °C
    PackageContents -
  • Quick start guide
  • Table top stand
  • USB cable
  • DC power adapter
  • HDMI cable
  • Power plug
  • Silicon foot

    • Packaging content - Cables included - AC, HDMI, USB
    Performance - Operating system installed - Android 8
    Performance - Video formats supported - 3GP, AVI, DAT, FLV, MKV, MOV, MP4, MPG, TS, VOB, WEBM
    Pivot - No
    Pixelpitch - -
    Ports & interfaces - HDMI output ports quantity - 1
    Ports & interfaces - HDMI ports quantity - 1
    Ports & interfaces - USB port - Yes
    ProdDesc - Philips 10BDL4551T - 10" Diagonal Class (10.1" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) / camera - 720p 1280 x 800
    ProductName - 10BDL4551T/00
    ProductPicture - http://www.tdbaltic.ee/images/ds4/10BDL4551T-00-01.jpg
    ProductPicture2 - http://www.tdbaltic.ee/images/ds4/10BDL4551T-00-02.jpg
    ProductPicture3 -
    ProductPicture4 -
    ResponseTime - 30 ms
    Rotate - No
    ShortSummaryDescription - Philips 10BDL4551T/00, 25.6 cm (10.1"), 1280 x 800 pixels, 30 ms, 300 cd/m², 500:1, Capacitive
    Stck_Kart - 8
    Stck_Pal - 8
    Storno - Y
    Tilt - No
    Title - Philips 10BDL4551T/00 meeting room display 25.6 cm (10.1") 1280 x 800 pixels
    URL - https://www.philips.co.uk/p-p/10BDL4551T_00/signage-solutions-multi-touch-display
    USB - 1
    USBTypeC - No
    VESACompatible - Yes
    VESAStandard - 75 x 75
    ViewingAngle - 160
    ViewingAngleV - 160
    Warranty - 3 years
    WarrantyInfo -
    Weight - 0.740 kg
    Weight & dimensions - Depth - 29 mm
    Weight & dimensions - Height - 167.2 mm
    Weight & dimensions - Weight - 740 g
    Weight & dimensions - Width - 261 mm
    Width - 261 mm
    Wireless - Yes
    WirelessFeatures - -
