AOC 24G2ZU/BK, 23.8"

Name: AOC 24G2ZU/BK, 23.8"
Brand: AOC
SKU: 531267
Price: 271.5 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 531267 Product code: 24G2ZU/BK

In stock >50 units

Warranty: 3 years

Compare

Delivery options

Courier delivery 11.99 €: 03.03.2025

Main product parameters All parameters

Curved: Nav
Panel Type: TN
Refresh rate: 240 Hz
Response time: 0.5ms
Contrast ratio: 1000:1
Brightness: 350cd/m2
Size: 23.8"
Resolution: FHD 1920x1080

Display characteristics

AMD FreeSync : Ir

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type TN

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 240 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 0.5ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 350cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Gaming

Aspect ratio : 16:9

Color : Black, Red

Size 23.8"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Ir

Swivel : And

Tilt : YES

VESA wall mount : 100x100 mm

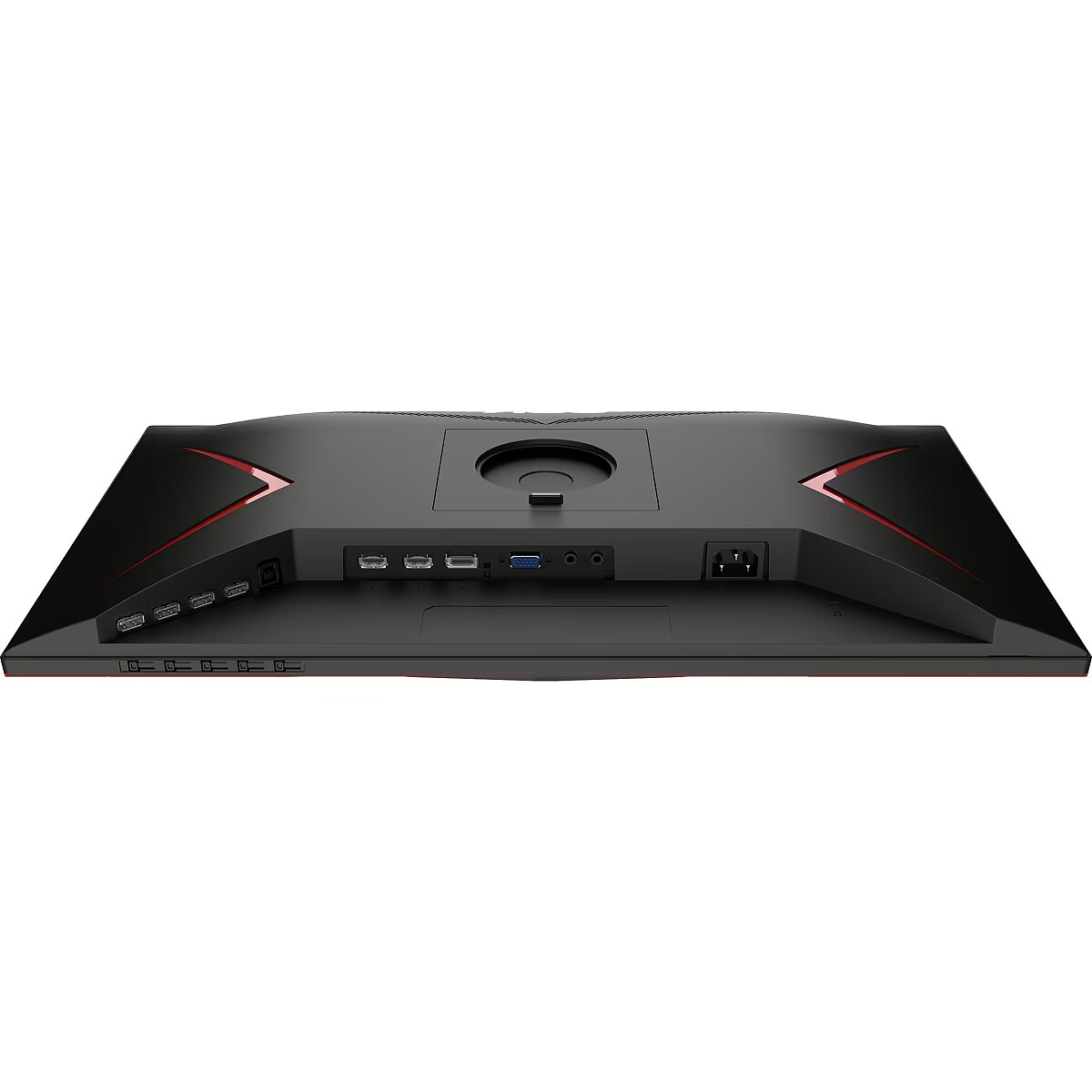

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 2

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website AOC 24G2ZU/BK, 23.8"

Brand - AOC
BrandPartCode - 24G2ZU/BK
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category_1 - Monitors and TV
Category_2 - LED Monitors up to 24 inches
Code - 24G2ZU/BK
Design - Detachable stand - Yes
Design - Feet colour - Black, Red
Design - Frameless design - Yes
Design - Front bezel colour - Black/Red
Design - Market positioning - Gaming
Design - Product colour - Black, Red
Design > Colour of product - Black
Display - Adobe RGB coverage - 74%
Display - Anti-glare screen - Yes
Display - Backlight type - W-LED
Display - Colour depth - 6 bit
Display - Contrast ratio (dynamic) - 80000000:1
Display - Contrast ratio (typical) - 1000:1
Display - Digital horizontal frequency - 30 - 280 kHz
Display - Display brightness (typical) - 350 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 60.5 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display scanning frequency - 30 - 280 KHz, 48 - 240 Hz
Display - Display surface - Matt
Display - Display technology - LED
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 280 kHz
Display - Maximum refresh rate - 240 Hz
Display - Native aspect ratio - 16:9
Display - NTSC coverage (typical) - 75%
Display - Panel type - IPS
Display - Pixel pitch - 0.2745 x 0.2745 mm
Display - Response time - 0.5 ms
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 105%
Display - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Display - Supported video modes - 1080p
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Viewable size, horizontal - 52.7 cm
Display - Viewable size, vertical - 29.6 cm
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
Display > Aspect ratio - 16:9
Display > Contrast ratio (typical) - 1000:1
Display > Display - 1920 x 1080
Display > Display brightness - 350 cd/m²
Display > Display diagonal - 23.8 "
Display > Display surface - Anti-Glare 3H
Display > HD type - FHD
Display > Maximum refresh rate - 240 Hz
Display > Panel type - IPS
Display > Response time - 1 ms
Display > Touchscreen - No
Display > Viewing angle, horizontal - 160 °
Display > Viewing angle, vertical - 170 °
EAN - 4038986147354
Eans - 4038986147354
EAN_code - 4038986147354
Ergonomics - Adjustable height (max) - 13 cm
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - Yes
Ergonomics - Number of OSD languages - 16
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - Yes
Ergonomics - Swivel angle range - 30 - 30°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 23°
Ergonomics - VESA mounting - Yes
Ergonomics > Height adjustment - 0-13 cm
Ergonomics > Height adjustment - Yes
Ergonomics > Pivot - Yes
Ergonomics > Swivelling - No
Ergonomics > Tilt adjustment - Yes
Ergonomics > Tilt angle - -5/23 °
Ergonomics > VESA mounting - Yes
Ergonomics > VESA mounting interfaces - 100 x 100 mm
GTIN - 4038986147354
Link - https://eu.aoc.com/en/gaming/products/monitors/24g2zu-bk
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - Adjustable display with 240Hz refresh rate, 0.5ms MPRT and Adaptive SyncThe AOC 24G2ZU guarantees stutter-free and smooth gameplay thanks to its 240Hz refresh rate, 0.5ms response time and low input lag. If features height adjustment and swivel function, as well as Adaptive Sync and G-Sync compatibility, for a fully customised gaming experience.
LongProductName - 24G2ZU/BKAdjustable display with 240Hz refresh rate, 0.5ms MPRT and Adaptive Sync
LongSummaryDescription - AOC G2 24G2ZU/BK. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 0.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black, Red
Manufacturer - AOC
Manufacturer_code - 24G2ZU/BK
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 2 W
Multimedia > Built-in speaker(s) - Yes
Multimedia > TV tuner integrated - No
Name - AOC 23.8 LED 24G2ZU / BK
Name - AOC 24G2ZU - 23,8'' | IPS | Full HD | 0,5ms | 240Hz
Name - AOC | Monitor | 24G2ZU/BK | 23.8 " | IPS | FHD | 16:9 | 240 Hz | 1 ms | 1920 x 1080 | 350 cd/m² | Headphone out (3.5mm) | HDMI ports quantity 2 | Black | Warranty 36 month(s)
Networking > Ethernet LAN (RJ-45) ports - No
Other features - Certification - ISO 9241-307
Other features - Compliance certificates - WEEE
Other features - Exterior finish type - Textured
Other features - Heavy metals free - Hg (mercury)
Other features - Light effects - No
Other features - Recyclable packaging material - 100%
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 604 mm
Package features > Gross height (mm) - 485 mm
Package features > Gross width (mm) - 180 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 40 pc(s)
Package features > Paper/Pasteboard - 1500.00 g
Package features > Plastic (No PET) - 508.00 g
Package features > Tare weight (kg) - 2.08 kg
Package features > Volume (m3) - 0.0527292 m³
Package features > WEE classification - CL109:2:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - DisplayPort, HDMI
Packaging content - DisplayPort cable length - 1.8 m
Packaging content - HDMI cable length - 1.8 m
Packaging content - Power cable length - 1.8 m
Packaging content - Stand included - Yes
Packaging data - Package depth - 184 mm
Packaging data - Package height - 492 mm
Packaging data - Package type - Box
Packaging data - Package weight - 7.11 kg
Packaging data - Package width - 605 mm
Packaging data - Warranty card - Yes
PDF - https://www.blobs.lt/products/5/7/5/9/5/3/d560f68639ec529685dabb6463615eae/original.pdf
Performance - AMD FreeSync - Yes
Performance - AMD FreeSync refresh rate range - 48 - 240 Hz
Performance - AMD FreeSync type - FreeSync Premium
Performance - Fast charging - Yes
Performance - Flicker-free technology - Yes
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Audio input - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Type-A downstream ports quantity - 4
Ports & interfaces > DisplayPorts quantity - 1
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > Output connections - Headphone out (3.5mm)
Ports & interfaces > USB ports quantity - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (HDR) per 1000 hours - 22 kWh
Power - Energy consumption (SDR) per 1000 hours - 22 kWh
Power - Energy efficiency class (HDR) - F
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 436926
Power - External power adapter - No
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.3 W
Power - Power consumption (typical) - 26 W
Power > Energy efficiency class - F
Producer - AOC
ProducerCode - 24G2ZU/BK
ProductName - 24G2ZU/BK
ShortDescription - 23,8'' | IPS | Full HD | 0,5ms | 240Hz
ShortSummaryDescription - AOC G2 24G2ZU/BK, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LED, 0.5 ms, Black, Red
Technical details > Gross weight - 7.2 kg
Technical details > Net weight - 5.12 kg
Technical details > No flickering - Yes
Technical details > Producer - AOC
Technical details > Producer product family - Monitor
Technical details > Producer product name - 24G2ZU/BK
Technical details > USB-C - No
Technical details > USB-C power delivery - N/A
Title - AOC G2 24G2ZU/BK LED display 60.5 cm (23.8") 1920 x 1080 pixels Full HD Black, Red
URL - https://eu.aoc.com/
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
Weight - 7,35
Weight & dimensions - Depth (without stand) - 49 mm
Weight & dimensions - Depth (with stand) - 227.3 mm
Weight & dimensions - Height (without stand) - 322 mm
Weight & dimensions - Height (with stand) - 504.6 mm
Weight & dimensions - Weight (without stand) - 2.95 kg
Weight & dimensions - Weight (with stand) - 5.03 kg
Weight & dimensions - Width (without stand) - 539.2 mm
Weight & dimensions - Width (with stand) - 539 mm
