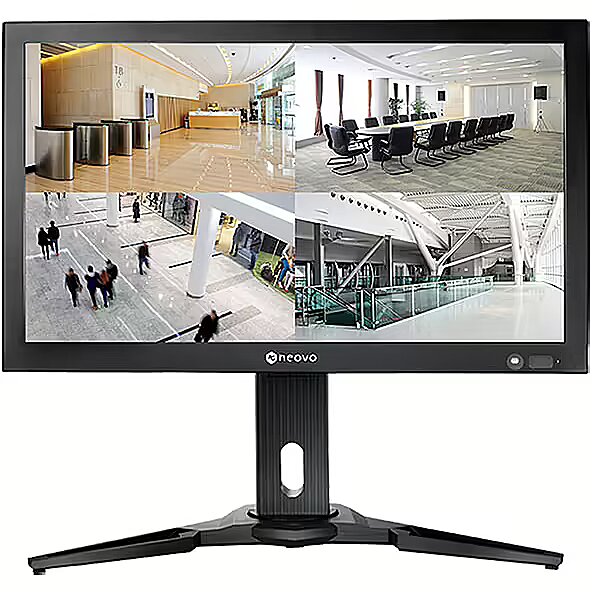

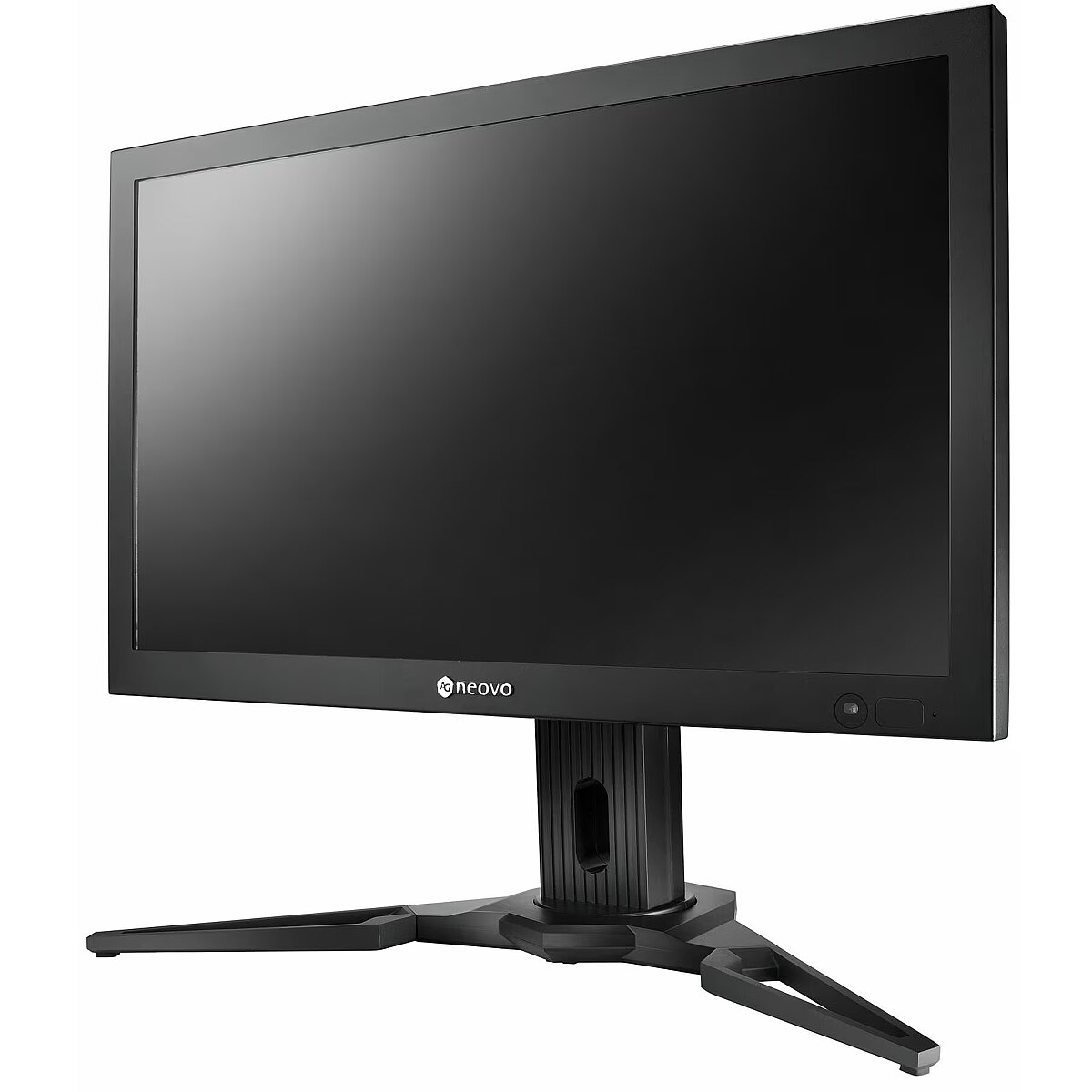

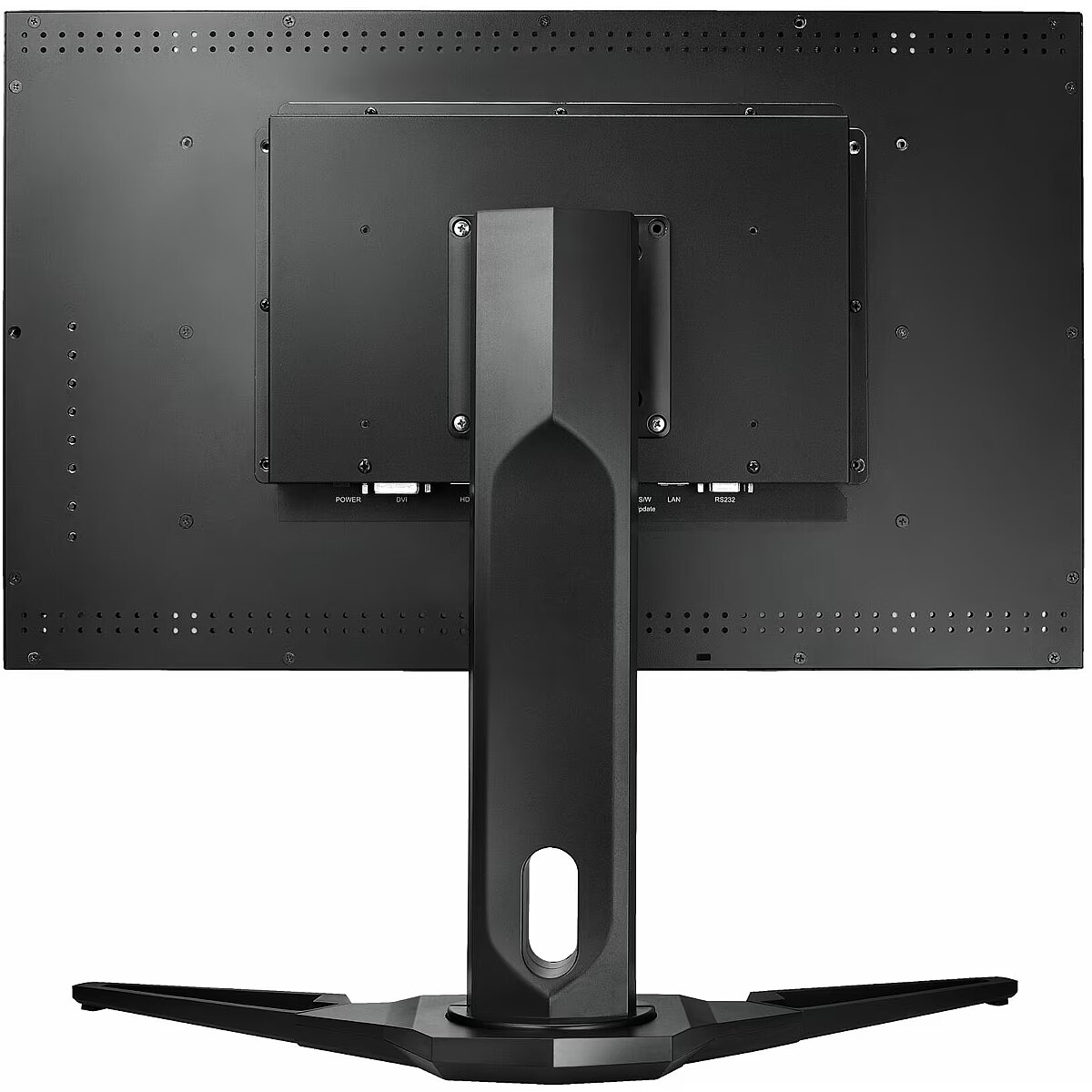

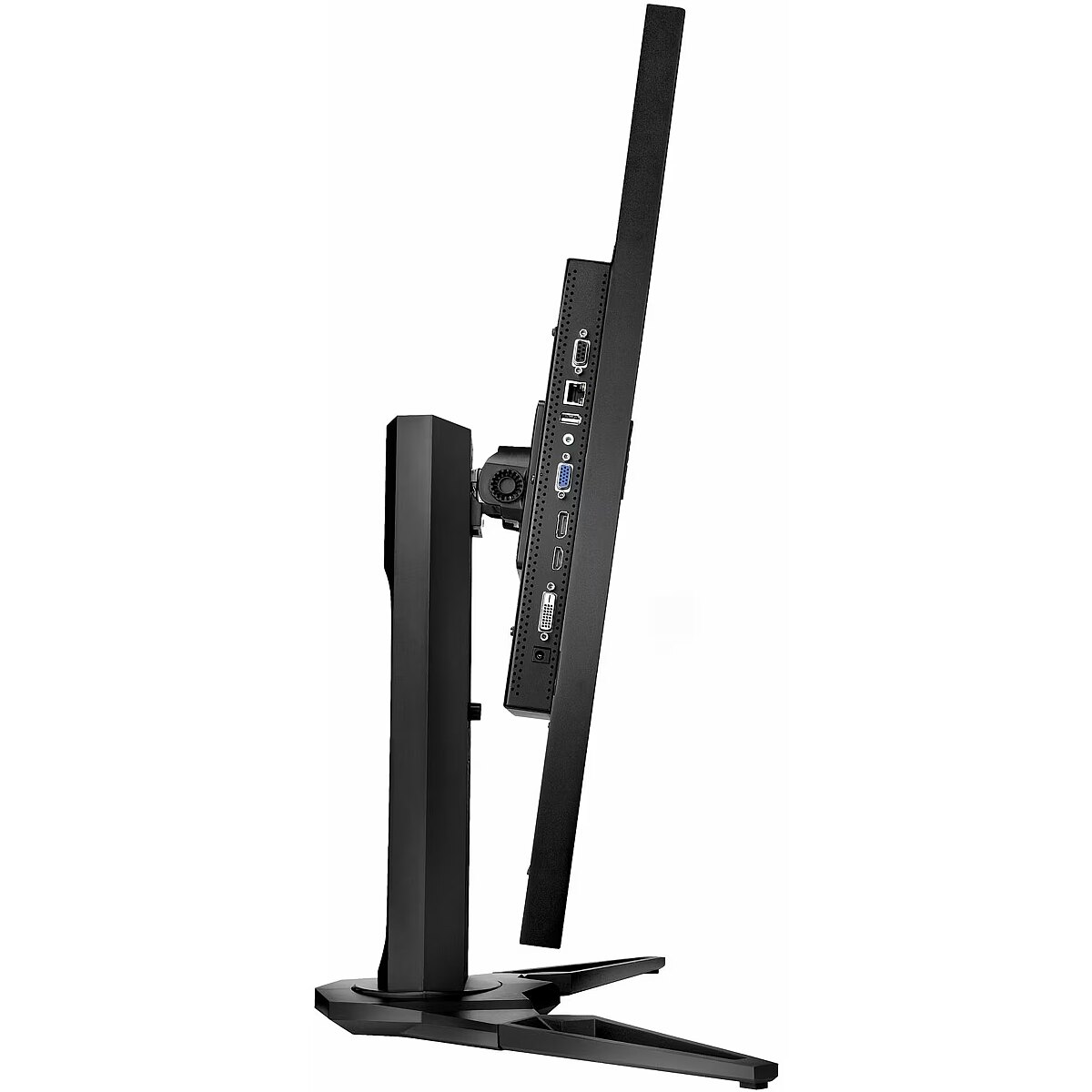

AG NEOVO QX-28, 27.9"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 460857 Product code: QX280011E0100
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
1,608.65 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 23.12.2024
Main product parameters All parameters
  • Curved: Nav
  • Panel Type: TN
  • Refresh rate: 85 Hz
  • Response time: 3ms
  • Contrast ratio: 1000:1
  • Brightness: 300cd/m2
  • Size: 27.9"
  • Resolution: 4K UHD 3840x2160
Description
We offer to buy AG NEOVO 27.9" a monitor with 4K UHD 3840x2160 resolution.
  • The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
  • DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
  • The port DVI ensures the compatibility with the classic video cards equipped with this port.
  • The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
  • The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
  • 3ms fast response time makes this monitor perfectly suitable for enjoying computer games and dynamic films.
Display characteristics
AMD FreeSync : Nav
Curved : Nav
NVIDIA G-SYNC : Nav
Panel Type TN

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 85 Hz
Touchscreen : NO
VESA DisplayHDR : Nav
Response time 3ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 300cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 16:9
Color : Black
Size 27.9"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution 4K UHD 3840x2160

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Nav
Height adjustment : Ir
Pivot : Ir
Swivel : And
Tilt : YES
VESA wall mount : 100x100 mm

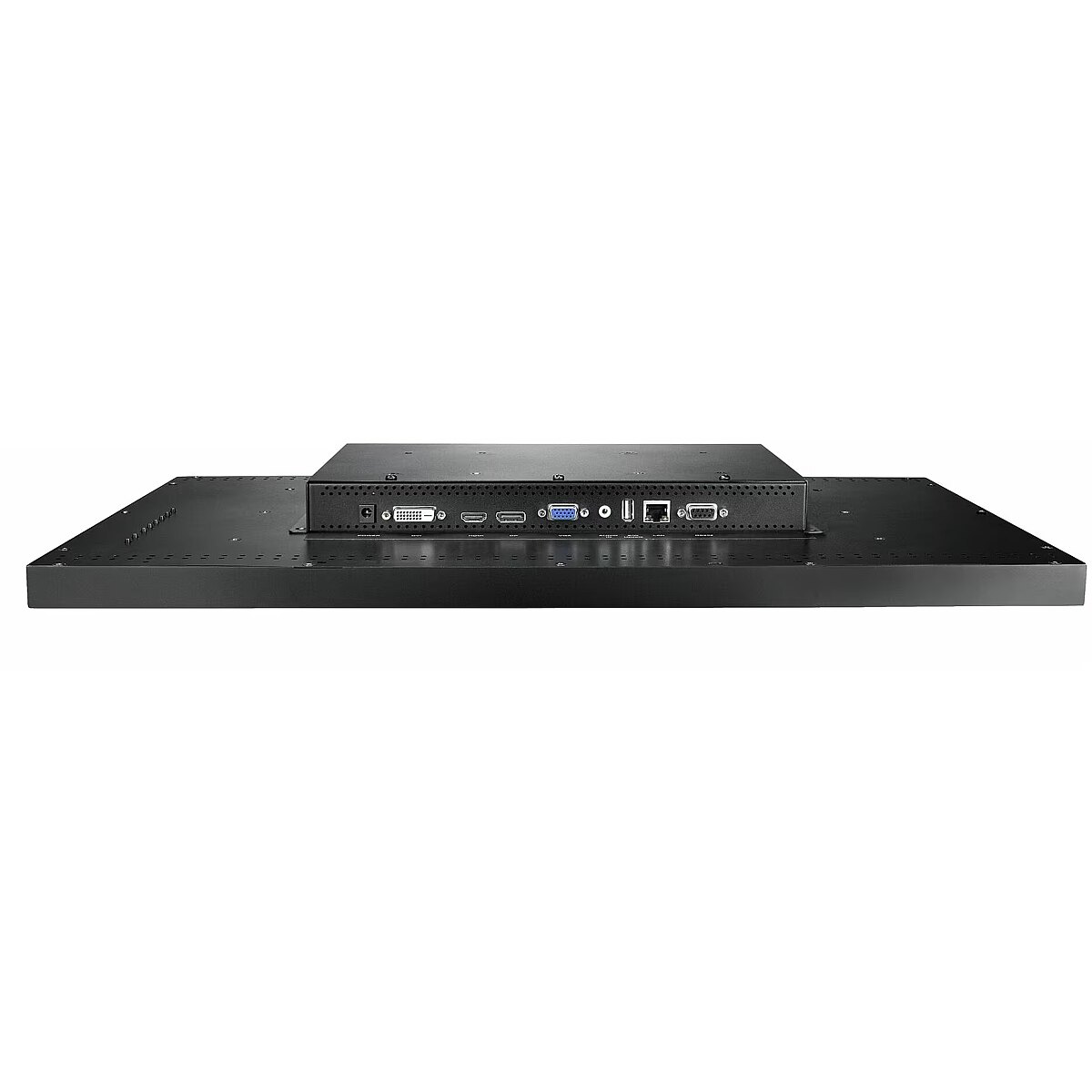

Ports and equipment
D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 1

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : Nav
USB-C video input : 0
More detailed specification
Additional information in manufacturers website AG NEOVO QX-28, 27.9"
ARTIKEL1 - QX-28 28IN 3840X2160 UHD 300CD
ARTIKEL2 - D-SUB DVI-D HDMI DP
Brand - AG Neovo
BrandPartCode - QX280011E0100
Category - Surveillance Monitors
Design - Height adjustment - Yes
Design - Height adjustment range - 0 - 100 mm
Design - Mounting type - Freestanding
Design - Product colour - Black
Design - Swivel angle range - -45 - 45°
Design - Tilt adjustment - Yes
Design - Tilt angle - 22°
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 300 cd/m²
Display - Display diagonal - 70.9 cm (27.9")
Display - Display number of colours - 1.073 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display type - LED
Display - Horizontal scan range - 31 - 92 kHz
Display - Panel type - TN
Display - Pixel pitch - 0.16 x 0.16 mm
Display - Response time - 3 ms
Display - Vertical scan range - 48 - 85 Hz
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
EANCode - 4710739593990
Gewicht - 16.8
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4710739593990
HERSTELLER - AG NEOVO TECHNOLOGY
HSTNUMMER - QX280011E0100
LongDesc - The QX-28 is a 28-inch 4K surveillance monitor designed for demanding video security systems. Multi-screen viewing enables simultaneous display of multiple video footage signals with up to 4 split screens. In addition to simplifying hardware setup by enabling the use of one display in place of four 1080p monitors, the QX-28 monitor provides the gain in clarity required for real-time and up-close monitoring in control rooms, traffic management centres, casinos, emergency operations centres and other public installations.EXPERIENCE THE 4K DIFFERENCEDon’t miss a single detail with this powerful 4K surveillance monitor. View smooth video and graphics with a new level of detail and clarity. Offering UHD 3840 x 2160 resolution with 8.3 million pixels, this 28-inch 4K surveillance monitor provides sufficient resolution for even the most demanding video security systems.EASY CONTROL AND INTEGRATIONIts built-in RS232 and Ethernet control capabilities make this surveillance monitor easy to control and integration a breeze. Whether it is a local serial management connection or a remote network installation, it can be managed in multiple control room scenarios.MULTI-SCREEN VIEWER; ONE DISPLAY, FOUR SCREENSBeyond the traditional two-input Picture-by-Picture (PIP) feature, the multi-screen viewer functionality can display up to four Full HD screens simultaneously from four different input sources. This advanced feature allows it to replace a typical four monitor setup and delivers four-quadrant viewing at crisp and true 1080p content.INDUSTRY-LEADING RELIABILITYDesigned for 24/7 operation, this durable metal-housed surveillance monitor protected with NeoV Optical Glass screen take advantage of superior components to ensure a long product lifetime.PID COMMAND & CTRL SOFTWAREPID Command & Ctrl software allows users to control this 28-Inch 4K surveillance monitor via LAN or RS232 connections. It provides a simple and intuitive interface for remote management, OSD-related settings, and easy control of deployed displays.
LongProductName - 28” IPS, UHD 3840 x 2160, 300 cd/m2, 1000 : 1, 170°/160°, 5 ms, 3 W x 2, D-Sub, DVI-D, HDMI, DisplayPort, Service Port
LongSummaryDescription - AG Neovo QX-28. Mounting type: Freestanding, Product colour: Black, Height adjustment range: 0 - 100 mm. Display diagonal: 70.9 cm (27.9"), Display resolution: 3840 x 2160 pixels, Display type: LED. Speaker power: 3 W, Panel mounting interface: 100 x 100,100 x 200 mm. Power source type: DC, Power consumption (typical): 29 W, Power consumption (standby): 0.5 W. Weight: 10.4 kg, Height: 405 mm, Depth: 59.8 mm
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Built-in speaker(s) - Yes
Performance - Number of built-in speakers - 2
Performance - Panel mounting interface - 100 x 100,100 x 200 mm
Performance - Speaker power - 3 W
Performance - VESA mounting - Yes
Ports & interfaces - 3.5 mm (1/8-inch) in - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DVI-D ports quantity - 1
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - RJ-45 ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - Energy consumption (SDR) per 1000 hours - 29 kWh
Power - Energy efficiency class (SDR) - G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 29 W
Power - Power source type - DC
ProductName - QX-28
ShortSummaryDescription - AG Neovo QX-28, Freestanding, Black, 0 - 100 mm, 22°, -45 - 45°, 70.9 cm (27.9")
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Technical details - Compliance certificates - RoHS
Title - AG Neovo QX-28 70.9 cm (27.9") 3840 x 2160 pixels
URL - https://ua.agneovo.com/it/content/qx-series.asp
WarrantyInfo -
Weight & dimensions - Depth - 59.8 mm
Weight & dimensions - Depth (with stand) - 270 mm
Weight & dimensions - Height - 405 mm
Weight & dimensions - Height (with stand) - 565.5 mm
Weight & dimensions - Package depth - 250 mm
Weight & dimensions - Package height - 538 mm
Weight & dimensions - Package type - Box
Weight & dimensions - Package weight - 16.5 kg
Weight & dimensions - Package width - 778 mm
Weight & dimensions - Weight - 10.4 kg
Weight & dimensions - Weight (with stand) - 13.3 kg
Weight & dimensions - Width - 681 mm
Weight & dimensions - Width (with stand) - 681 mm
