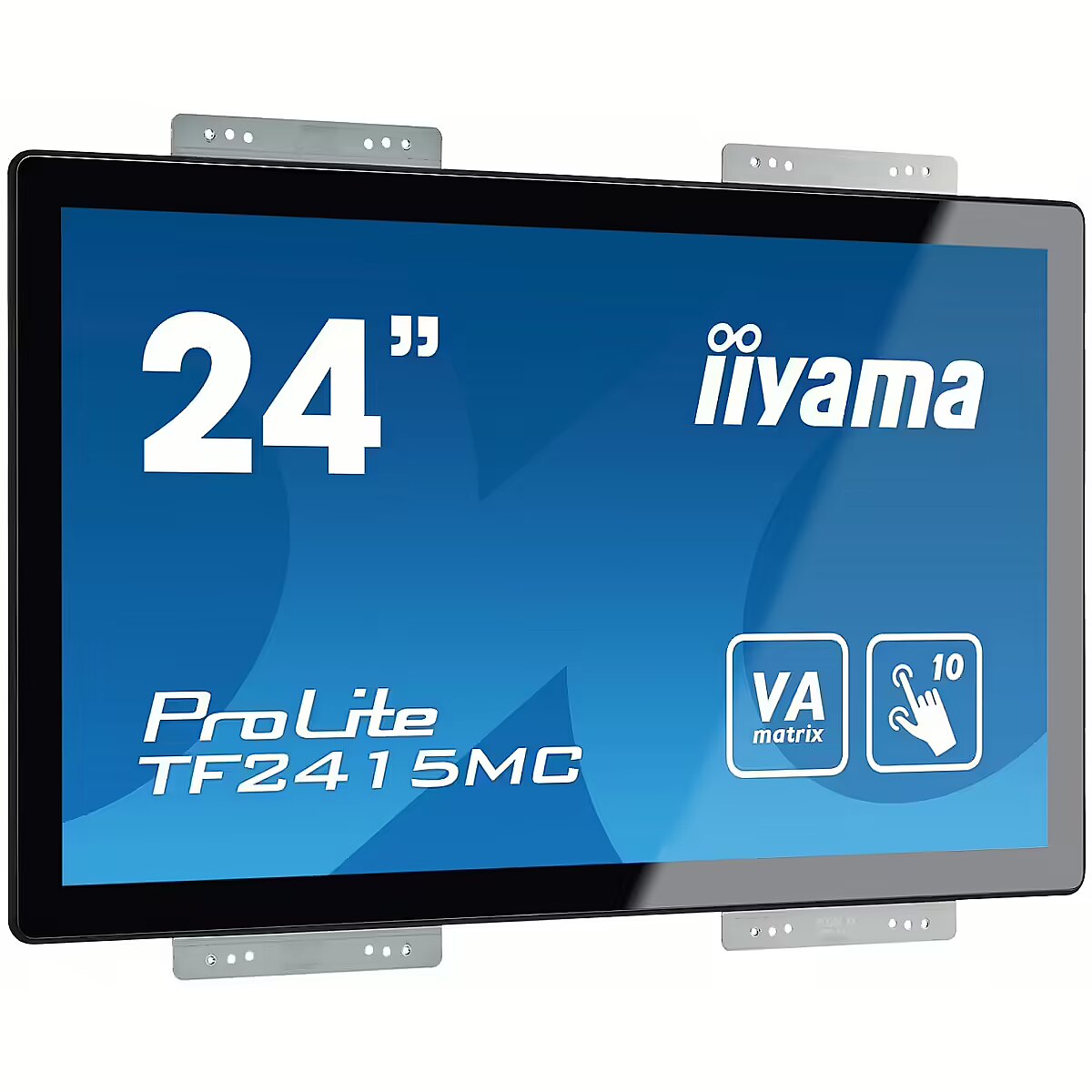

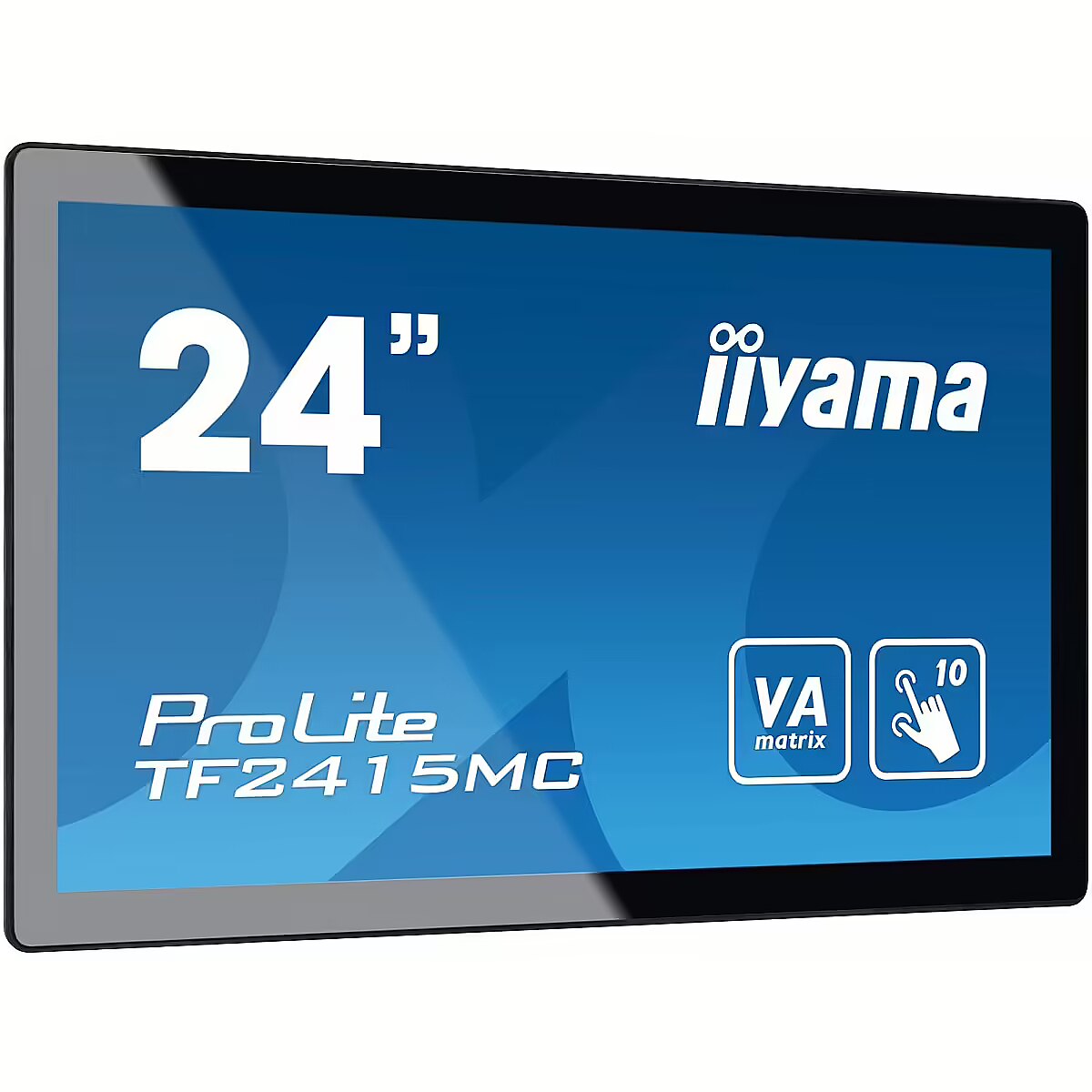

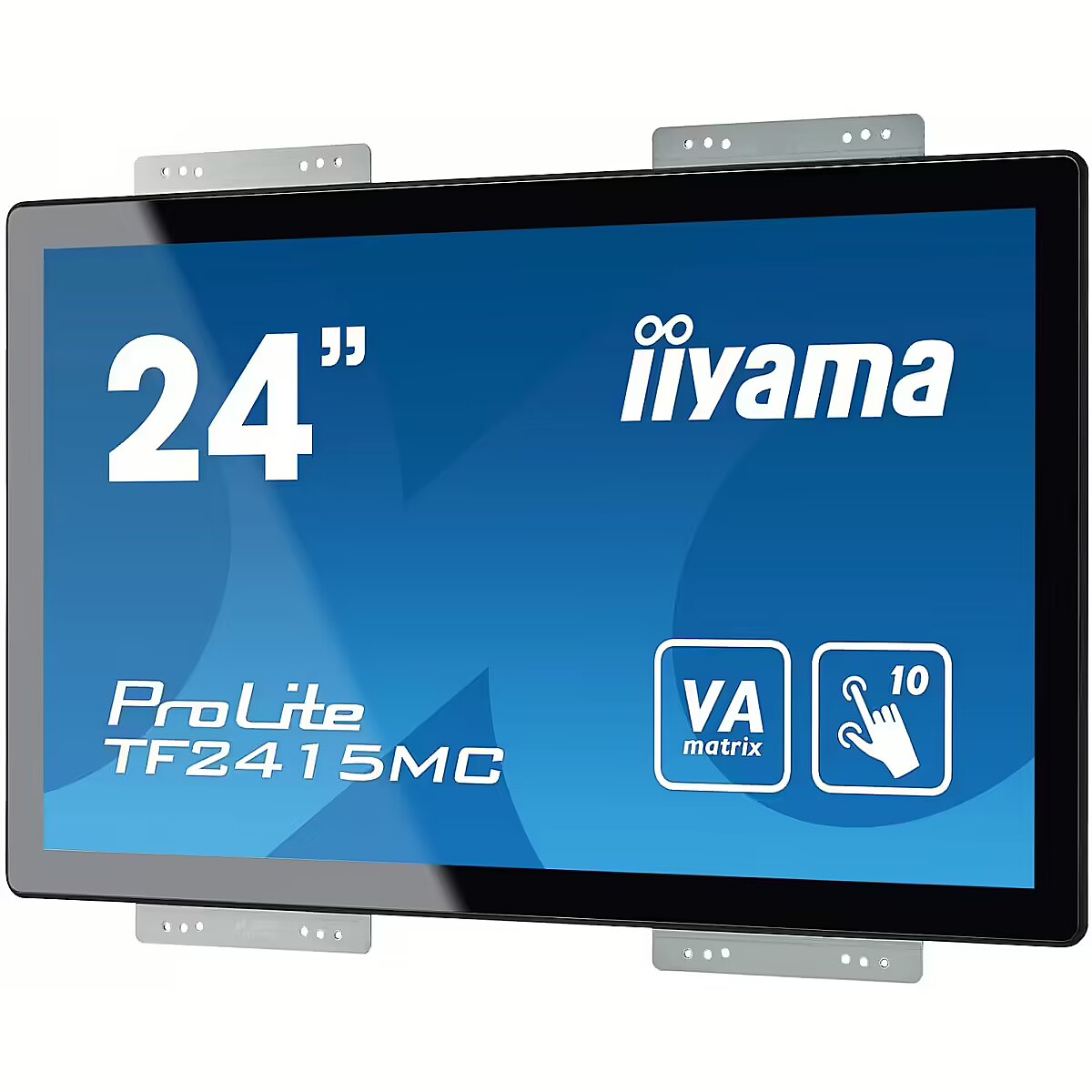

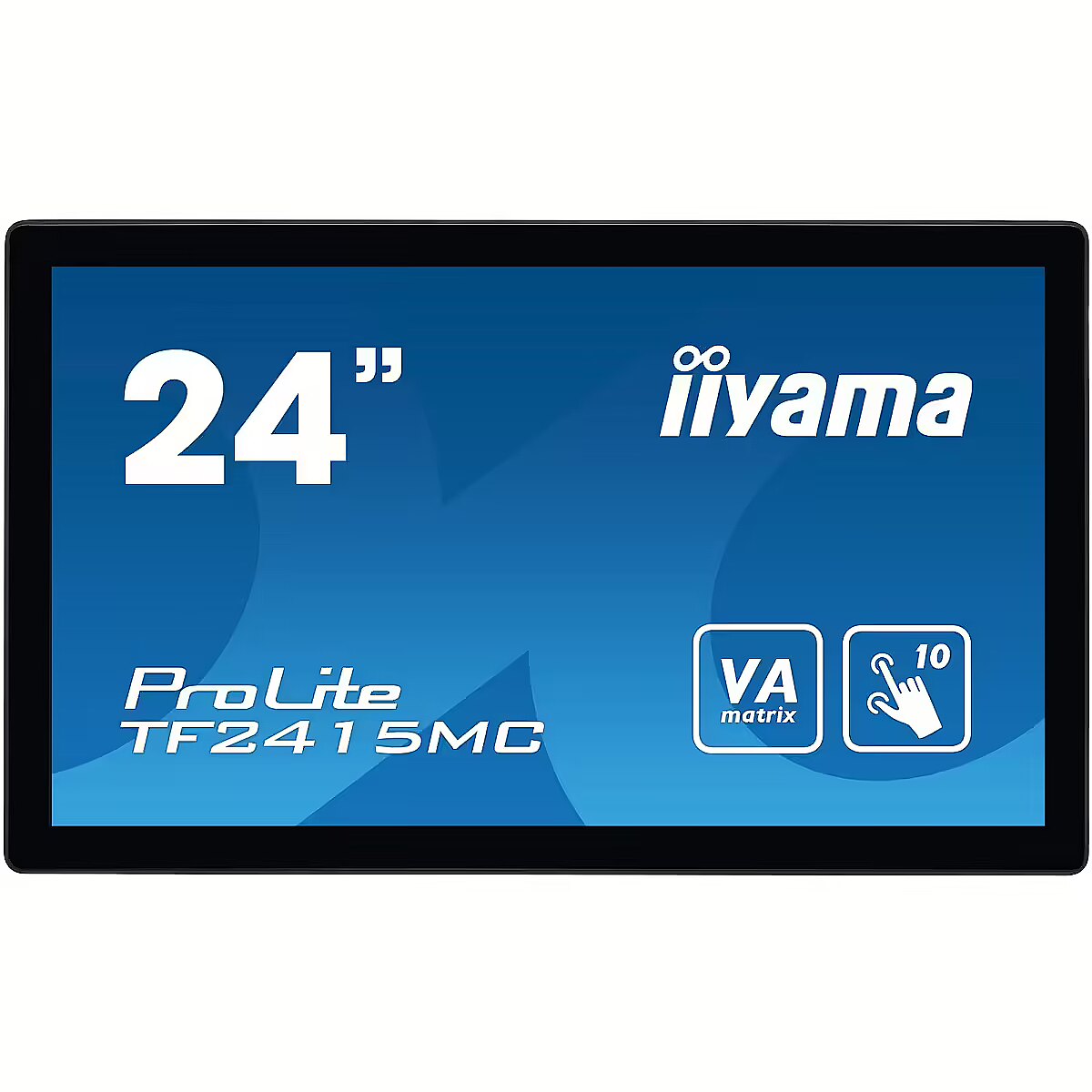

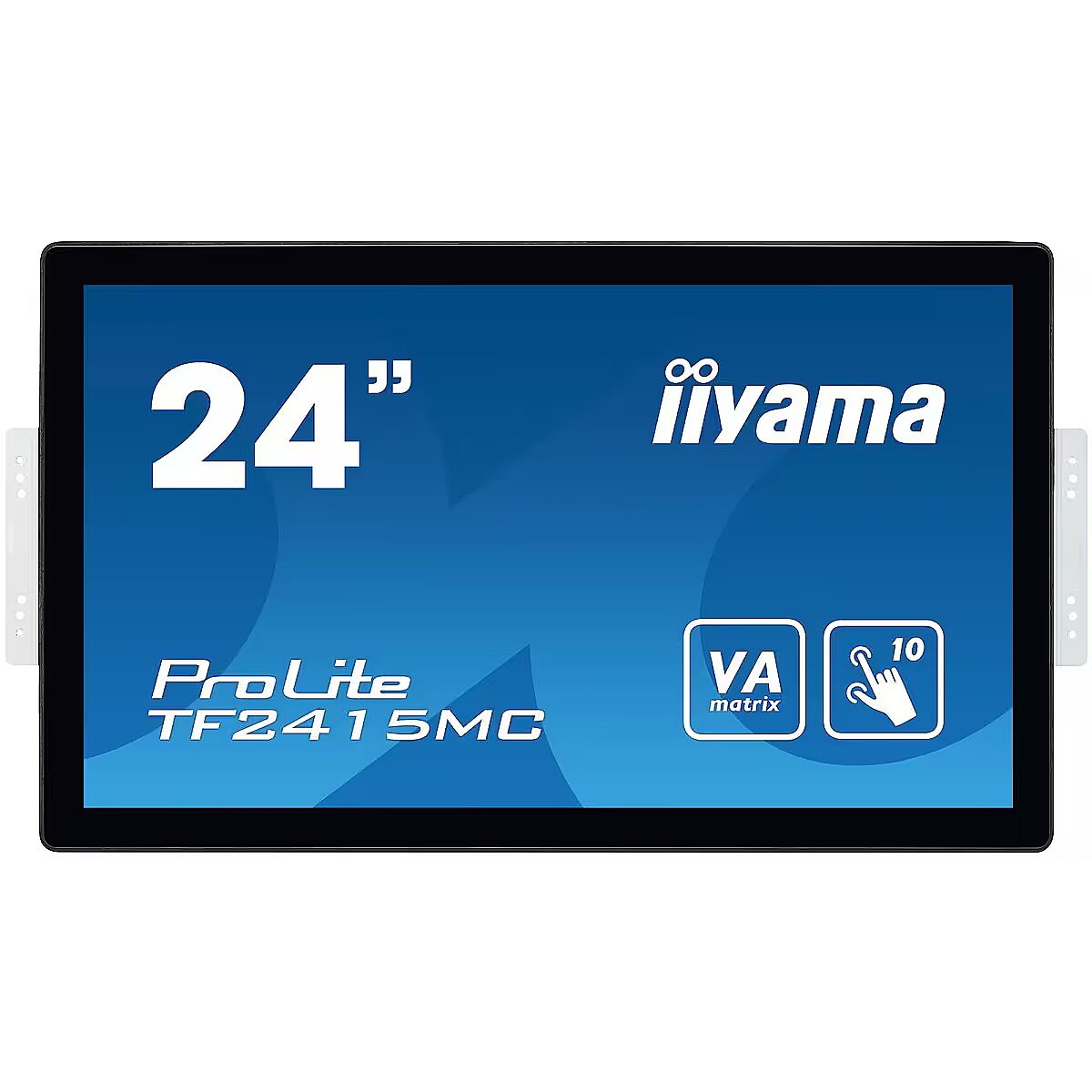

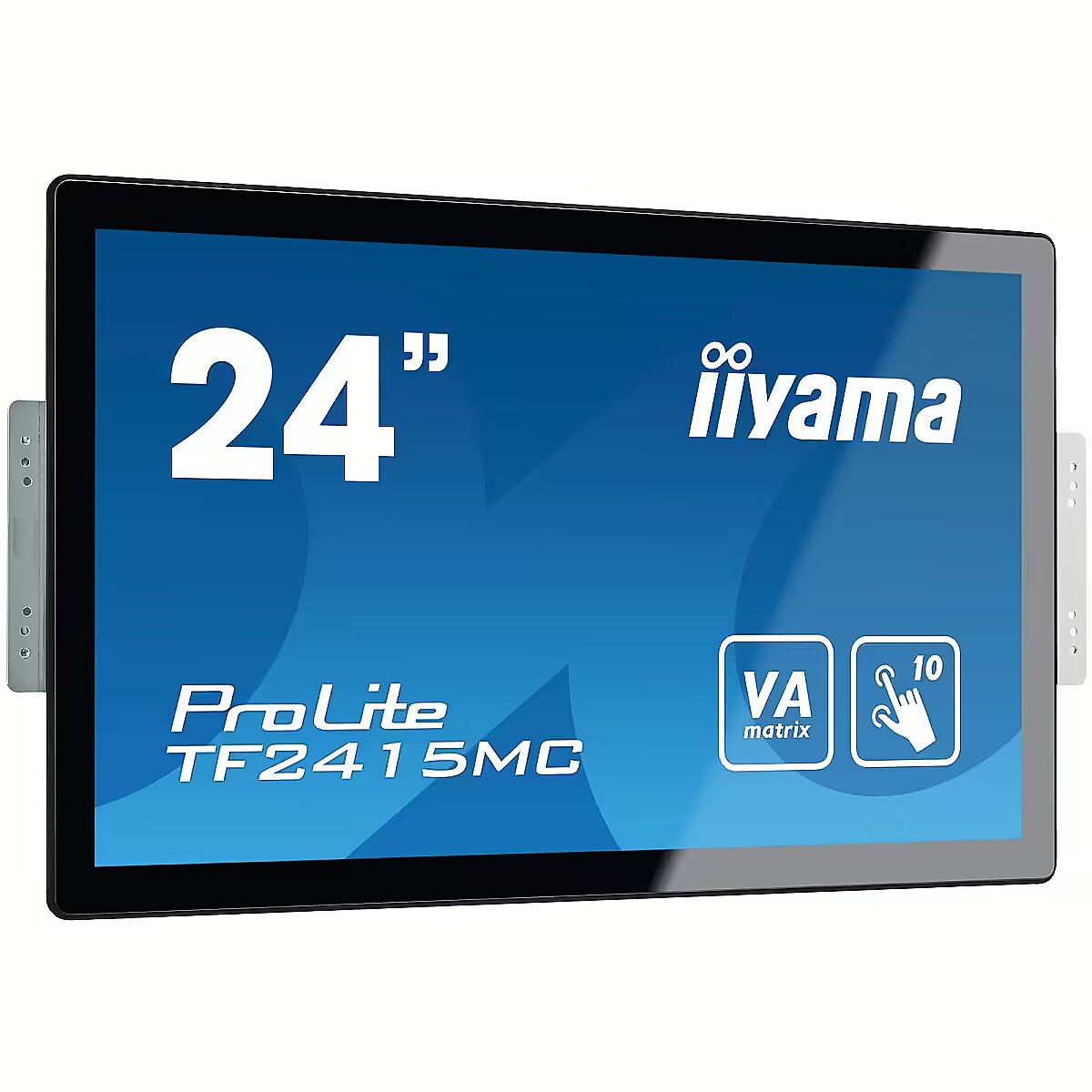

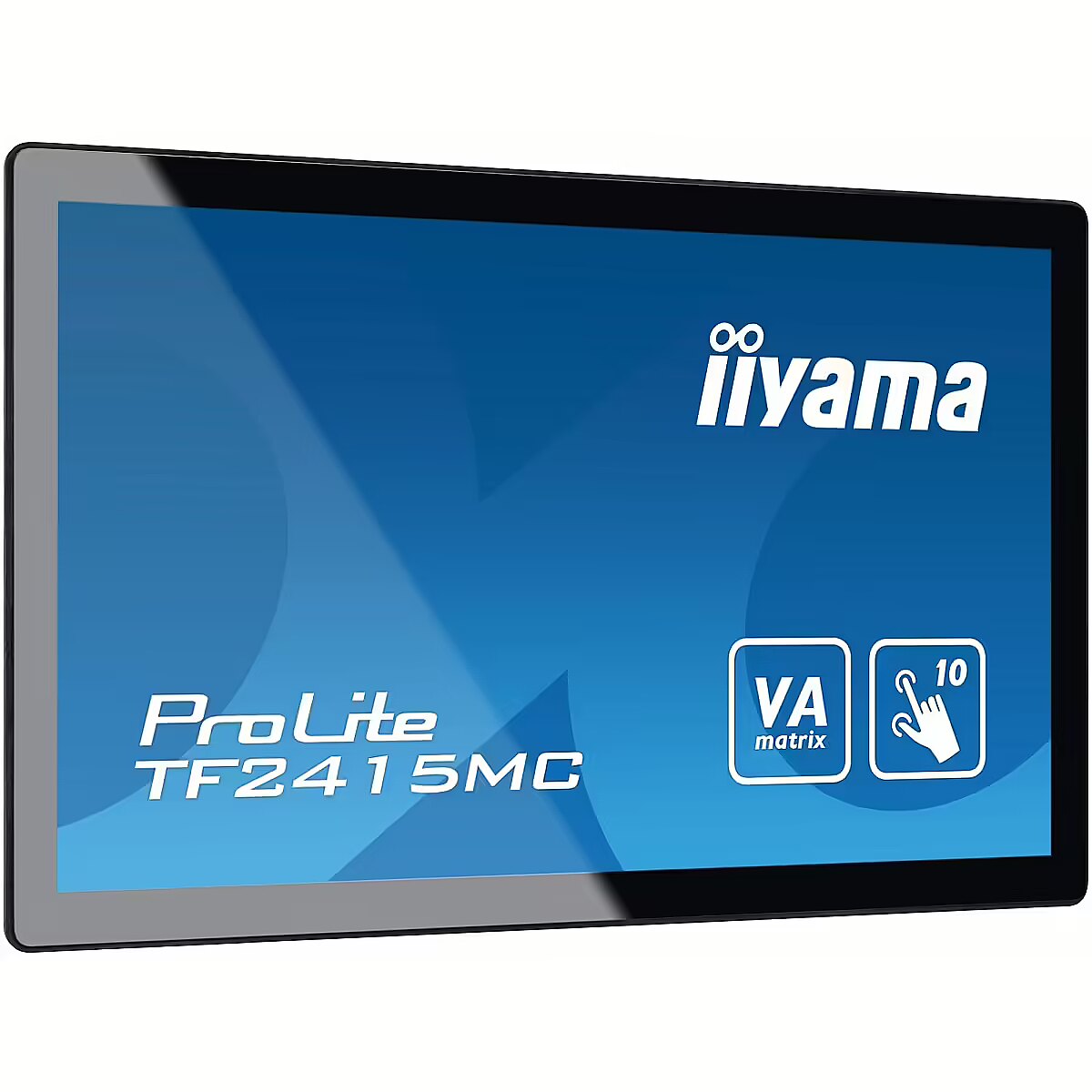

Iiyama TF2415MC-B2, 24"

Name: Iiyama TF2415MC-B2, 24"
Brand: Iiyama
SKU: 336850
Price: 640.85 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 336850 Product code: TF2415MC-B2

Can be ordered 7 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 10.12.2024

Main product parameters All parameters

Curved: Nav
Panel Type: VA
Refresh rate: 75 Hz
Response time: 16ms
Contrast ratio: 3000:1
Brightness: 350cd/m2
Size: 23.8"
Resolution: FHD 1920x1080

Description

We offer to buy Iiyama 23.8" a monitor with FHD 1920x1080 resolution.

Thanks to FullHD (1920px X 1080px) resolution this monitor will be perfectly suitable for enjoying BlueRay quality films in the full screen mode.
The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
VA panel provides high colour compatibility parameters and improved viewing angle to this monitor.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz

Touchscreen : YES

VESA DisplayHDR : Nav

Response time 16ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.

Contrast ratio 3000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 350cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black

Size 23.8"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Nav

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : NO

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website Iiyama TF2415MC-B2, 24"

ARTIKEL1 - TF2415MC-B2 23.8IN VA LED
ARTIKEL2 - 1920X1080 350 CD 3000:1 CONTRAST
Audio - -
AudioFeatures - -
Brand - iiyama
BrandPartCode - TF2415MC-B2
Breite - 0.46
Brightness - 315 cd/m2
Camera - No
Category - Computer Monitors
Category_1 - Monitors and TV
Category_2 - LED Monitors up to 24 inches
ContrastRatio - 3000:1
ContrastRatioDynamic - -
Depth - 42.5 mm
Design - Product colour - Black
Display - Aspect ratio - 16:9
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness - 315 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 60.5 cm
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - HD type - Full HD
Display - Horizontal scan range - 31.4 - 82 kHz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Pixel pitch - 0.2745 x 0.2745 mm
Display - Response time - 16 ms
Display - Screen shape - Flat
Display - Separate H/V sync - Yes
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touchscreen type - Multi-user
Display - Touch technology - Multi-touch
Display - Vertical scan range - 56 - 75 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
DisplayCaseColour - Black
DisplayFeatures -

Open frame

Touchscreen

DisplayFormat - 16:9
DisplayNativeResolution - 1920 x 1080
DisplayPort - Yes
DisplaySizecm - 60.5 cm
DisplayType - LED VA
DisplayViewingArea - 527.04 x 296.46 mm
EANCode - 4948570116775
EAN_code - 4948570116775
EmissionStandard - -
EPEAT - -
Ergonomics - Number of OSD languages - 7
Ergonomics - On Screen Display (OSD) languages - German, English, Spanish, French, Italian, Japanese

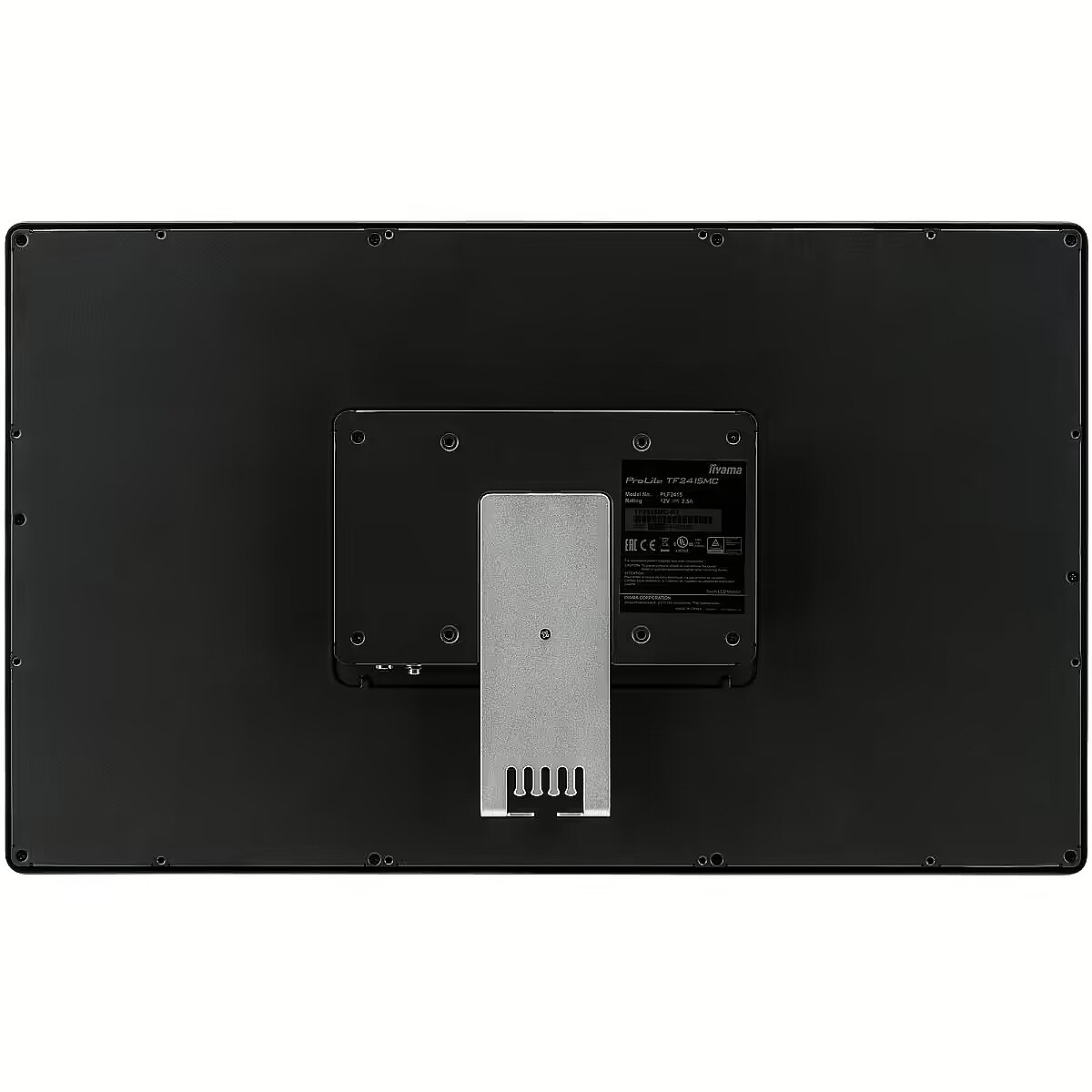

Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Plug and Play - Yes
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Ethernet - No
Frequency - 31.4-82 kHz
FrequencyV - 75 Hz
Gewicht - 8.12
GrossWeight - 8.500 kg
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570116775
HDMI - 1
Height - 347 mm
HeightAdjustment - No
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0.16
HSTNUMMER - TF2415MC-B2
InputSignal -

VGA

HDMI

DisplayPort

Audio jack

USB

KensingtonLock - -
Laenge - 0.69
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - 03-12 (143)
LongDesc - The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.TOUCH TECHNOLOGY - CAPACITIVEThis technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.FOAM SEALA foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.OPEN FRAME BRACKETSThis open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.BALL-DROP-TEST PROOFThe ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.TOUCH THROUGH-GLASSThis through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.ANTI-FINGERPRINT COATINGThis special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
LongProductName - TF2415MC-B2, 23.8", 1920x1080, VA LED, 16:9, 16 ms, VGA, HDMI, DP, HDCP, 575x347x42.5 mm
LongSummaryDescription - iiyama ProLite TF2415MC-B2. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 16 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Manufacturer - Iiyama
Manufacturer_code - TF2415MC-B2
MANUFDATASHEET - https://iiyama.com/pdf/Product/706/en.pdf
MonitorControls -

Touch technology: projective capacitive

Touch points: 10 (HID, only with supported OS)

Touch method: stylus, finger, glove (latex)

MonitorSize - 23.8"
MonitorType - Touch
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Name - Iiyama TF2415MC-B2 - 23.8 - LED (Black, Full HD, Touch, HDMI, DisplayPort)
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - AC adapter included - Yes
Other features - Certification - CB, CE, TÜV-Bauart, CU, cULus
Other features - Display viewable area (HxV) - 527.04 x 296.46 mm
Other features - Full HD - Yes
Other features - Glass protection - Yes
Other features - International Protection (IP) code - IP65
Other features - Placement supported - Horizontal/Vertical
PackageContents -

Cables: power, USB, HDMI, DP

Quick start guide

Safety guide

AC adapter

Touch Panel Driver Disk (CD-ROM)

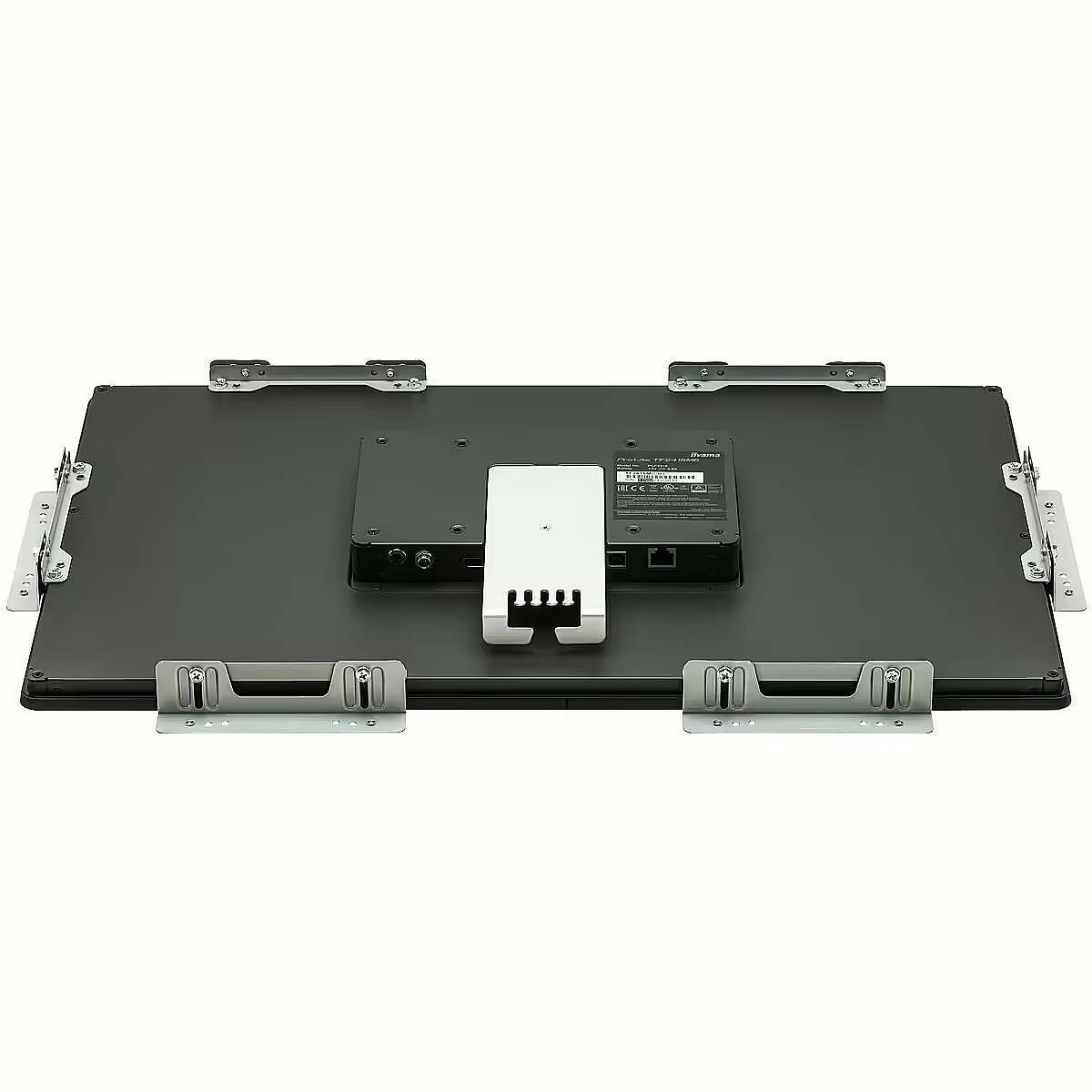

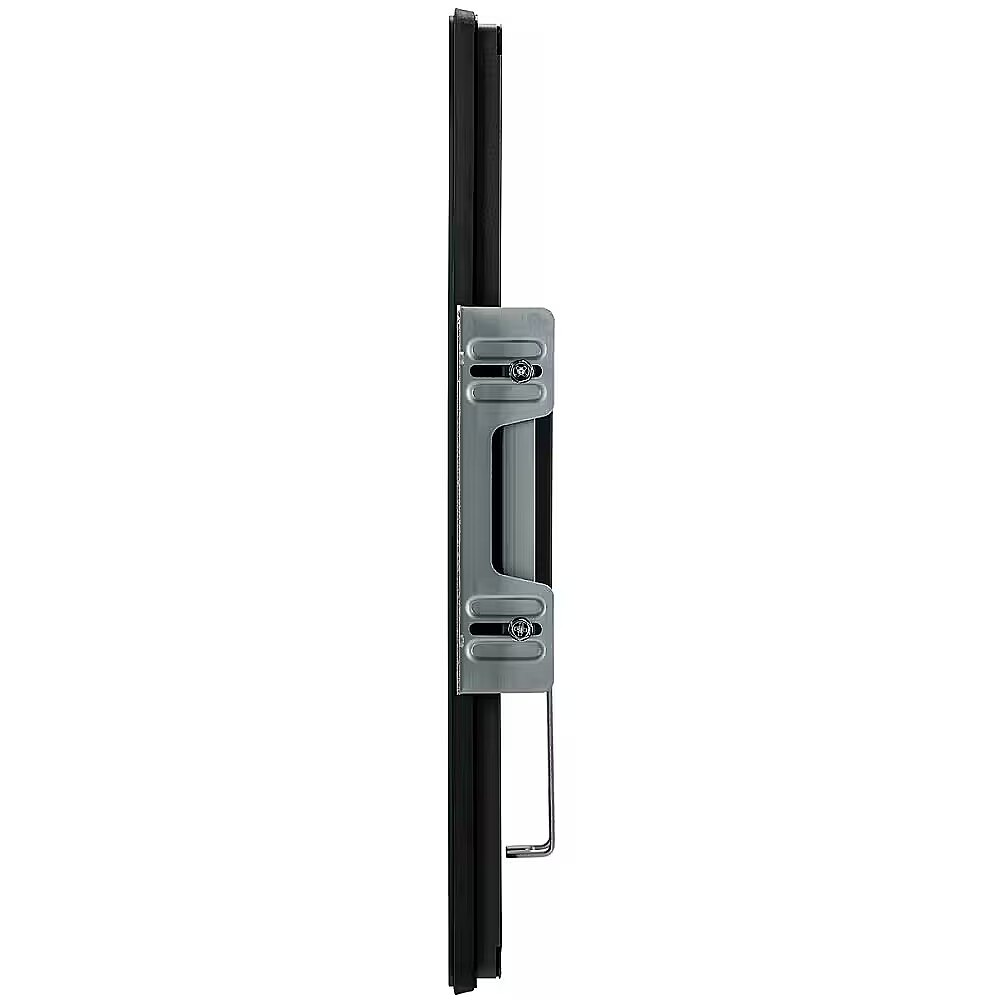

L-Bracket, external control pad

Packaging content - Cables included - AC, DisplayPort, HDMI, USB
Packaging content - Quick start guide - Yes
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - OmniTapps Multitouch compatibility - No
Pivot - No
Pixelpitch - 0.2745 mm
Ports & interfaces - Audio output - 1
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - Energy consumption (SDR) per 1000 hours - 22 kWh
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 378595
Power - Power consumption (off) - 1.2 W
Power - Power consumption (standby) - 1.2 W
Power - Power consumption (typical) - 25 W
Power - Power supply type - DC
ProdDesc - 24" PCAP Bezel Free 10P Touch. 1920x1080. Anti-Fingerprint coating. VA panel. 315cd/m² (with touch). 3000:1. 16ms. USB Interface.
ProductName - TF2415MC-B2
ProductPicture - http://www.tdbaltic.ee/images/ds4/TF2415MC-B2-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ResponseTime - 16 ms
Rotate - No
ShortSummaryDescription - iiyama ProLite TF2415MC-B2, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LCD, 16 ms, Black
Stck_Kart - 1
Stck_Pal - 13
Storno - Y
Tilt - No
Title - iiyama ProLite TF2415MC-B2 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
URL - https://iiyama.com/gl_en/products/prolite-tf2415mc-b2/
USB - 1
USBTypeC - No
VESACompatible - Yes
VESAStandard - 100 x 100
ViewingAngle - 178
ViewingAngleV - 178
Warranty - 3 years
WarrantyInfo -
Weight - 5.800 kg
Weight - 8,65
Weight & dimensions - Depth (without stand) - 42.5 mm
Weight & dimensions - Height (without stand) - 347 mm
Weight & dimensions - Weight (without stand) - 5.8 kg
Weight & dimensions - Width (without stand) - 575 mm
Width - 575 mm
Wireless - No
WirelessFeatures - -
