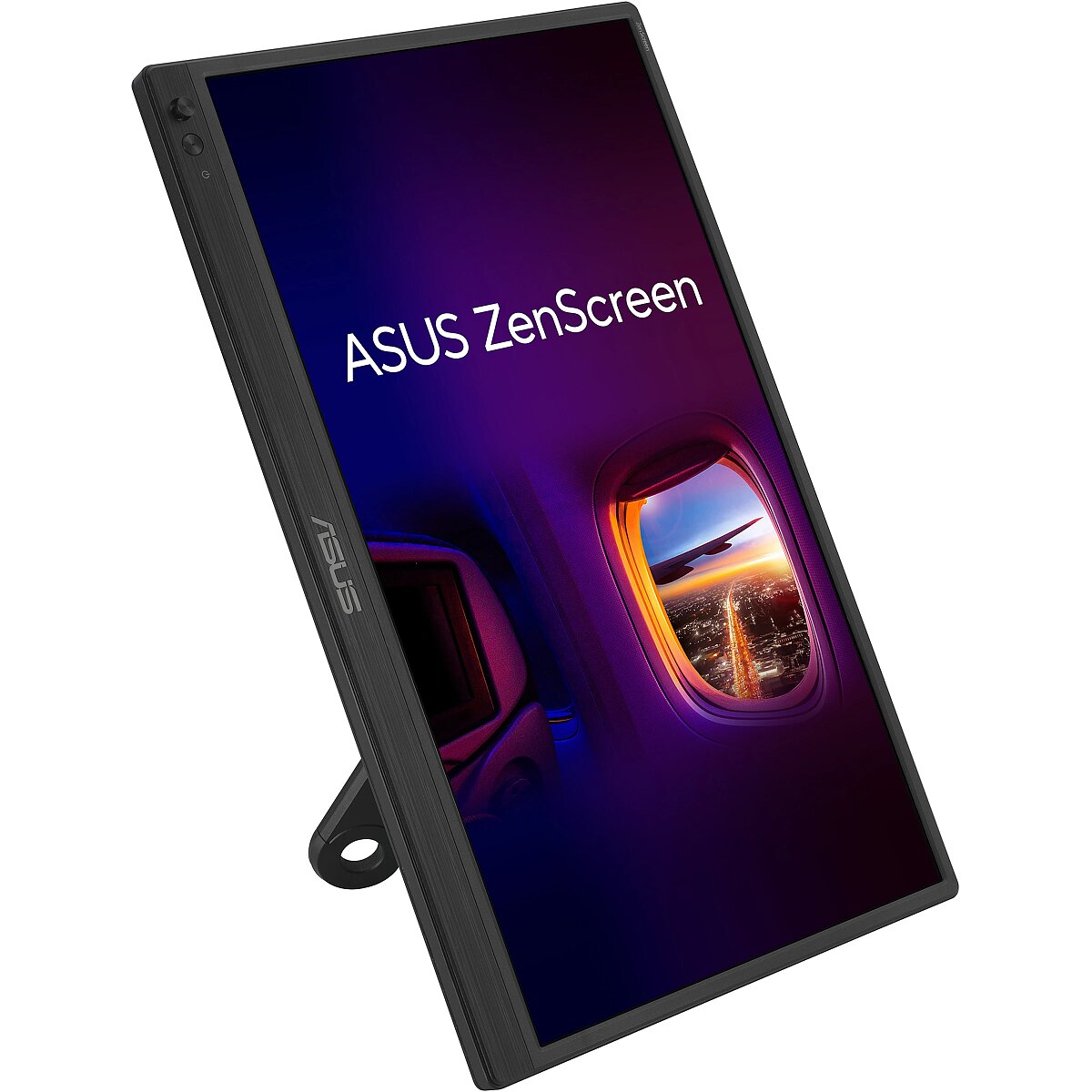

Asus ZenScreen MB169CK, 15.6"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1209922 Product code: 90LM0AZ3-B01171
Can be ordered 71 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
157.20 €
Delivery options
  • Courier delivery 11.99 €: 07.05.2025
Main product parameters All parameters
  • Curved: Nav
  • Panel Type: IPS
  • Refresh rate: 60 Hz
  • Response time: 5ms
  • Contrast ratio: 800:1
  • Brightness: 250cd/m2
  • Size: 15.6"
  • Resolution: FHD 1920x1080
Description
We offer to buy Asus 15.6" a monitor with FHD 1920x1080 resolution.
  • IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
  • The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
  • 5ms the response time is suitable for games and dynamic films.
Display characteristics
AMD FreeSync : Nav
Curved : Nav
NVIDIA G-SYNC : Nav
Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz
Touchscreen : NO
VESA DisplayHDR : Nav
Response time 5ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 800:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 16:9
Color : Black
Size 15.6"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Ir
Height adjustment : Nav
Pivot : Nav
Swivel : None
Tilt : YES
VESA wall mount : NO
Ports and equipment
D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port Micro HDMI

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : Nav
USB-C video input : 2
More detailed specification
Additional information in manufacturers website Asus ZenScreen MB169CK, 15.6"
Accessories included -
Aspect ratio - 16:9
Auto Pivot - Yes
Bluetooth - No
Brand - ASUS
BrandPartCode - 90LM0AZ3-B01171
Brightness - 250 cd/m²
Category - Computer Monitors
Category 1 - Displays
Category 2 - Monitore
Certificates - Energy Star
Certificates - TUV
Color - Black
Depth - 12 mm
Description - ASUS ZenScreen MB169CK przenośny monitor USB 16 cali (obszar widoczny 15,6 cala), Full HD, IPS, dwa złącza USB typu C, funkcja Flicker Free, filtr światła niebieskiego, powierzchnia antyodblaskowa, podpórka 360°. 15,6-calowy przenośny wyświetlacz Full HD IPS z powłoką antyodblaskową o ultrasmukłej i cienkiej konstrukcji pomaga wykonywać zadania wydajniej, gdy jesteś w podróży Złącze USB typu C (tryb DP Alt) dla wygody użytkownika i zgodności ze zgodnymi urządzeniami Monitory ASUS Eye Care są wyposażone w certyfikowane przez TÜV Rheinland technologie Flicker-free i Low Blue Light, aby zapewnić komfortowe oglądanie Automatycznie wykrywa orientację i przełącza monitor między trybami poziomym i pionowym za pomocą oprogramowania DisplayWidget Center Przyjazna dla użytkownika konstrukcja z wbudowanym gniazdem na statyw z tyłu i 360-stopniową podpórką dla wszechstronności Elegancki i przenośny design
ASUS ZenScreen jest idealny do życia w podróży. Ten elegancki, przenośny wyświetlacz jest lekki i ma smukły profil, więc z łatwością mieści się w każdej torbie podróżnej i jest gotowy do pracy, zawsze i wszędzie.
Wystarczy jeden kabel
MB169CK oferuje bogate możliwości połączeń dzięki dwóm portom USB-C i mini-HDMI. Wystarczy jeden kabel USB-C, aby zduplikować lub rozszerzyć ekran laptopa. USB-C obsługuje zarówno zasilanie, jak i transmisję sygnału wideo, więc wystarczy podłączyć i grać, gdy nadejdzie czas na zwiększenie wydajności pracy.
Zaprojektowany z myślą o wszechstronności
360-stopniowa odłączana podpórka umożliwia łatwe przykręcenie do tylnego gniazda statywu, umożliwiając łatwą regulację nachylenia w trybie pionowym lub poziomym. Dzięki podpórce 360° możesz z łatwością umieścić ją na blacie stołu.
Rozszerz swoją przestrzeń roboczą
Panel IPS FHD (1920 x 1080) zapewnia oszałamiającą jakość obrazu i kąty widzenia 178°, dzięki czemu uzyskasz doskonałe kolory i kontrast nawet podczas oglądania ekranu z pozycji niecentralnej.
Design - Market positioning - Consumer
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 440 mm
dimension height - 295 mm
dimension weight - 1700 g
dimension width - 75 mm
Display - Anti-glare screen - Yes
Display - Contrast ratio (typical) - 800:1
Display - Digital horizontal frequency - 24 - 83 kHz
Display - Digital vertical frequency - 50 - 60 Hz
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 39.6 cm (15.6")
Display - Display diagonal (metric) - 40 cm
Display - Display number of colours - 262000 colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - HD type - Full HD
Display - LED backlight - Yes
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel pitch - 0.179 x 0.179 mm
Display - Response time - 5 ms
Display - Response time measurement type - GTG (Gray to Gray)
Display - Screen shape - Flat
Display - Touchscreen - No
Display - Viewable size, horizontal - 34.4 cm
Display - Viewable size, vertical - 19.4 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Glare
Dot pitch - 0.179 mm
ean - 4711387767535
EAN - 4711387767535
Energy class - not applicable
Ergonomics - Cable lock slot - No
Ergonomics - Height adjustment - No
Ergonomics - VESA mounting - No
GTIN - 4711387767535
guarantee - 24
guarantee_type - external
Height - 226 mm
Height adjustment - No
I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x mini HDMI
I/O connectors - 2 x USB (Type C)
LongDesc - Sleek and portable designASUS ZenScreen™ is ideal for life on the road. This sleek portable display is light weight and has a slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.One cable is all you needMB169CK features rich connectivity with dual USB-C and mini-HDMI ports. A single USB-C cable* is all you need to duplicate or extend your laptop screen. USB-C handles both power and video signal transmission, so it’s simply a matter of plug-and-play when it’s time to level up your work efficiency.Note* Need to check whether the USB-C port of your laptop supports DP Alt mode prior to use. Or You can use HDMI connectivity along with USB-C (DC-IN) as power input instead if your laptop does not support USB-C (DP Alt mode).
LongProductName - ZenScreen MB169CK Portable USB Monitor- 16 inch (15.6 inch viewable), Full HD, IPS, dual USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface, 360° kickstand
LongSummaryDescription - ASUS ZenScreen MB169CK. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Product colour: Black
Manufacturer - ASUS
Matrix type - TFT IPS
Model - ASUS ZenScreen MB169CK
MPN - 90LM0AZ3-B01171
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - No
name - ASUS MB169CK 15.6 IPS USB-C FHD mHDMI
Name - ASUS ZenScreen MB169CK 39.6cm (16:9) FHD HDMI USB-C
Optional accessory -
Other features -
Other features - Brand specific technologies - SPLENDID
Packaging data - Package depth - 76 mm
Packaging data - Package height - 290 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.7 kg
Packaging data - Package width - 434 mm
Performance - AMD FreeSync - No
Performance - Flicker-free technology - Yes
Performance - Game mode - Yes
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDCP version - 1.4
Ports & interfaces - HDMI - Yes
Ports & interfaces - Headphone out - No
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - USB Type-C downstream ports quantity - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 7 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - C
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (PowerSave) - 0.5 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 7.64 W
Power consumption - 7.64 W
producer - Asus
ProductName - MB169CK
Refresh rate - 60 Hz
Resolution - 1920 x 1080 (FHD 1080)
Response time - 5 ms
Screen size (diag.) - 15.6"
ShortSummaryDescription - ASUS ZenScreen MB169CK, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, LCD, 5 ms, Black
Speakers built-in - No
Static contrast - 800:1
Sustainability - Sustainability certificates - ENERGY STAR, Forest Stewardship Council (FSC) Mix
Title - ASUS ZenScreen MB169CK computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Black
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.asus.com/displays-desktops/monitors/zenscreen/asus-zenscreen-mb169ck/
vendpn - MB169CK
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Visible area, horizontal - 344.16 mm
Visible area, vertical - 193.59 mm
Warranty -
WarrantyInfo -
Web camera - None
Weight - 0.78 kg
Weight & dimensions - Depth (without stand) - 12 mm
Weight & dimensions - Height (without stand) - 226 mm
Weight & dimensions - Weight (without stand) - 780 g
Weight & dimensions - Width (without stand) - 360 mm
Width - 360 mm
WiFi - No
