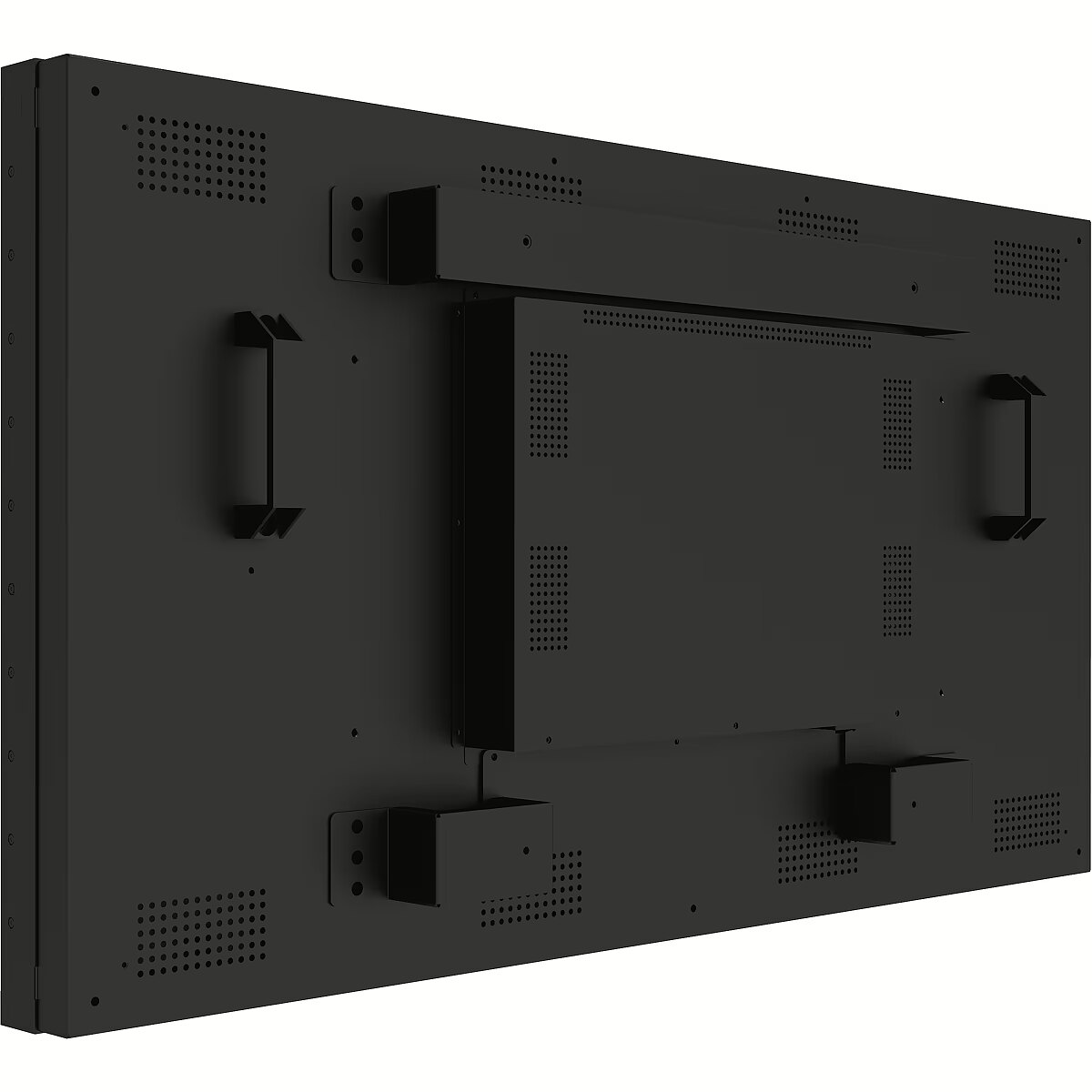

AG NEOVO PN-46D2, 46"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1078413 Product code: PN46D2011M000
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
2,509.63 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Curved: Nav
  • Panel Type: IPS
  • Refresh rate: 60 Hz
  • Response time: 0.5ms
  • Contrast ratio: 1200:1
  • Brightness: 500dc/m2
  • Size: 46"
  • Resolution: FHD 1920x1080
Description
We offer to buy AG NEOVO 46" a monitor with FHD 1920x1080 resolution.
  • IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
  • The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
  • DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
Display characteristics
AMD FreeSync : Nav
Curved : Nav
NVIDIA G-SYNC : Nav
Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz
Touchscreen : NO
VESA DisplayHDR : Nav
Response time 0.5ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 1200:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 500dc/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 16:9
Color : Black
Size 46"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Nav norādīts
Height adjustment : Nav
Pivot : Nav
Swivel : None
Tilt : NO
VESA wall mount : 400x400 mm
Ports and equipment
D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 3

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 2

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : Nav
USB-C video input : 0
More detailed specification
Additional information in manufacturers website AG NEOVO PN-46D2, 46"
ARTIKEL1 - PN-46D2 49IN FHD 1920X1080
ARTIKEL2 - 500CD 24/7 ANTI-GLARE
Brand - AG Neovo
BrandPartCode - PN46D2011M000
Breite - 0
Category - Video Wall Displays
Design - Bezel width (bottom) - 1 mm
Design - Bezel width (top) - 2.5 mm
Design - Orientation - Horizontal/Vertical
Design - Panel mounting interface - 400 x 400 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - VESA mounting - Yes
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 116.8 cm (46")
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - Haze rate - 25%
Display - HD type - Full HD
Display - LED backlight - Yes
Display - Operating hours (hours/days) - 24/7
Display - Panel type - IPS
Display - Pixel pitch - 0.53 x 0.53 mm
Display - Response time - 0.0005 s
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4710739598018
Gewicht - 27.5
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 4710739598018
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0
HSTNUMMER - PN46D2011M000
Laenge - 1.15
LongDesc - 46'' Ultra-narrow Bezel Video Wall DisplayThe PN-46D2 is a 46″ ultra-narrow bezel video wall display tailored for large-scale LCD installations. Featuring UniWall™ technology and DisplayPort daisy-chain capability, effortlessly create seamless video walls up to 15×15 without the need for additional devices. With an impressive brightness of 500 nits, support for Ultra HD content, and flexible portrait & landscape orientations, this display is the ideal choice for captivating advertising and delivering real-time information in malls, retail stores, restaurants, and indoor public areas.Seamless Visual PerformanceThe 46” ultra-narrow bezel LCD displays can be combined to create a virtually seamless large screen. The 3.5mm bezel-to-bezel video wall creates a visually stunning digital wall that delivers dynamic content and immerses the viewer.Vibrant and Clear in Any Light500 nits BrightnessThe display’s 500 nit brightness ensures highly visible images and messages in a wide range of locations from shopping malls to lobbies, control rooms and more.Anti-glareNon-glare panels with 25% haze evenly distribute light across the screen to maintain vibrant and accurate content.4K Content ResolutionUtilising daisy chain design through DisplayPort 1.2 port enables the display to present UHD content on multiple screens without an external graphic card.Premium performance tailored for versatile installations24/7 Continuous OperationWith its professional-grade panel, this ultra-narrow bezel video wall display consistently delivers high-quality images for extended periods, ensuring stable performance over time.Keep Images ConsistentAdvanced factory calibration ensures each panel to be able to deliver uniform brightness and color chromaticity out-of-box.Portrait and Artistic ImmersionOur displays support both landscape and portrait orientations, also allow you to implement creative artistic video wall setups.Intelligent Temperature ManagementWith our cutting-edge technology, receive instant on-screen warnings when the temperature is getting higher. The smart cooling fan responds immediately, ensuring optimal conditions.Effortless Setups, Control & ManagementSimplified Cabling, Enhanced EfficiencyStreamline your video wall setup with DisplayPort Daisy-Chaining. Connecting multiple displays has never been easier, as it eliminates the need for separate cables between each display and the input source, reducing cable clutter and simplifying the setup process.Setup Video Wall with EaseLeverage the embedded UniWall™ function to construct a single large-screen matrix, comprising up to 15 x 15 displays of video wall, without the need for an external matrix controller.Maintenance Made EasyRemote Management via RS232 & LANRS232 and LAN controls offer seamless and efficient management of your displays, allowing for easy remote control and monitoring capabilities in control rooms.On-site ControlWith Infrared Remote (IR) Looping, effortlessly manage all video wall displays using a single remote controller, eliminating the need for multiple remotes and simplifying configurations. Enjoy streamlined management on-site.By Mobile DevicesPID Command & Ctrl software offers intuitive user interfaces for remote management through laptops and mobile devices, enabling effortless video wall display creation. The software includes features like easy color calibration, temperature checks, IR/key-locking options, and usage monitoring for convenient daily maintenance.
LongProductName - 46", IPS, 1920 x 1080px, 500 cd/m², 1200:1, 178°/178°, 16.7M, 5 ms, 2 x DisplayPort in, 2 x HDMI, 1 x DisplayPort out, RS232, RJ-45, USB, 100-240V, 21.9 kg
LongSummaryDescription - AG Neovo 46'' Ultra-narrow Bezel Video Wall Display. Display diagonal: 116.8 cm (46"), Display resolution: 1920 x 1080 pixels, Display technology: LCD, Display brightness: 500 cd/m², HD type: Full HD, Operating hours (hours/days): 24/7. Product colour: Black
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 60 °C
Packaging data - Cables included - AC, HDMI, LAN (RJ-45), RS-232
Packaging data - Package depth - 215 mm
Packaging data - Package height - 698 mm
Packaging data - Package weight - 26.3 kg
Packaging data - Package width - 1145 mm
Packaging data - Remote control included - Yes
Ports & interfaces - DisplayPorts in - 2
Ports & interfaces - DisplayPorts out - 1
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - IR input ports quantity - 1
Ports & interfaces - RS-232 input ports - 1
Ports & interfaces - RS-232 output ports - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 2.0
Ports & interfaces - Wi-Fi - No
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 103 kWh
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 103 W
ProductName - 46'' Ultra-narrow Bezel Video Wall Display
ShortSummaryDescription - AG Neovo 46'' Ultra-narrow Bezel Video Wall Display, 116.8 cm (46"), LCD, 1920 x 1080 pixels, 24/7
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Sustainability - Sustainability certificates - CE, EAC, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE, EAC, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Title - AG Neovo 46'' Ultra-narrow Bezel Video Wall Display
URL - https://www.agneovo.com/global/products/pn-46d2
WarrantyInfo -
Weight & dimensions - Depth - 125.3 mm
Weight & dimensions - Height - 576.6 mm
Weight & dimensions - Weight - 21.9 kg
Weight & dimensions - Width - 1022 mm
