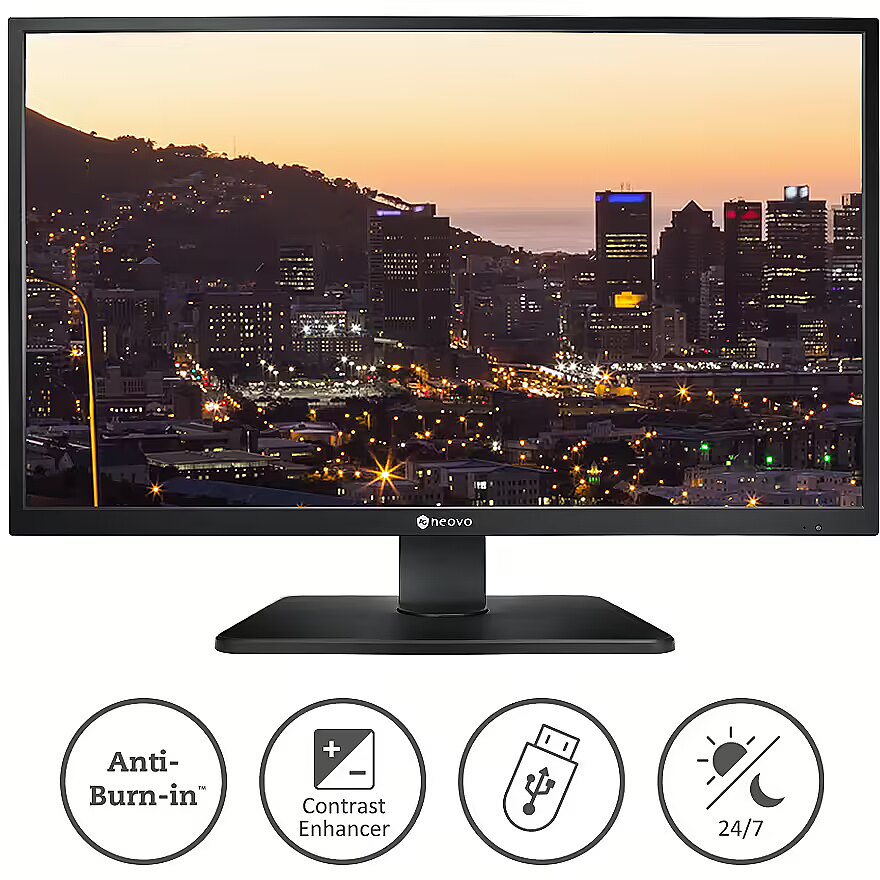

AG NEOVO SC-32E, 31.5"

Name: AG NEOVO SC-32E, 31.5"
Brand: AG NEOVO
SKU: 1052701
Price: 450.42 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1052701 Product code: SC-32E

Can be ordered 5 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 23.12.2024

Main product parameters All parameters

Curved: Nav
Panel Type: TN
Refresh rate: 75 Hz
Response time: 4ms
Contrast ratio: 3000:1
Brightness: 500dc/m2
Size: 31.5"
Resolution: FHD 1920x1080

Description

We offer to buy AG NEOVO 31.5" a monitor with FHD 1920x1080 resolution.

The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
The port DVI ensures the compatibility with the classic video cards equipped with this port.
The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
Thanks to the 4ms fast response time this monitor will be an excellent choice for enjoying dynamic games and films.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type TN

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 4ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.

Contrast ratio 3000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 500dc/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black

Size 31.5"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Nav

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : YES

VESA wall mount : 200x100 mm

Ports and equipment

D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 1

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website AG NEOVO SC-32E, 31.5"

Accessories included - User manual Base assembly instructions Remote control with AAA batteries Power cord 15-pin D-Sub cable Audio cable Screws Package
Aspect ratio - 1:1
Aspect ratio - 4:3
Aspect ratio - 16:9
Auto Pivot - No
Brand - AG Neovo
BrandPartCode - SC-32E
Brightness - 500 cd/m²
Category - Surveillance Monitors
Certificates - CE
Certificates - FCC Class A
Certificates - RoHS
Certificates - WEEE
Color - Black
Depth - 189 mm
Description - Large format monitor SC-32E BLACK
The SC-32 display with 500 nits brightness, 3000: 1 contrast ratio and Full HD 1920 x1080 resolution ensures clear images and high-quality colors. 4ms response time and fast signal switching ensure effective supervision control. The flexibility of VGA, HDMI, BNC and S-Video connections ensures seamless system integration. The comfortable wide viewing angle makes the SC-32 display ideal for security control applications.
Design - Certification - CE, LVD, WEEE, RoHS, REACH, FCC
Design - Mounting type - Freestanding
Design - Product colour - Black
dimensionalWeight - 17919
dimension depth - 210 mm
dimension height - 520 mm
dimension weight - 9500 g
dimension width - 800 mm
Display - Brightness - 350 cd/m²
Display - Display diagonal - 80 cm (31.5")
Display - Display resolution - 1920 x 1080 pixels
Display - Display surface - Matt
Display - Display type - IPS
Display - Display type - LED
Display - Response time - 5 ms
Dot pitch - 0.364 mm
ean - 4710739595796
Energy class - E
Energy label - Pobierz
Frequency, horizontal max. - 80 kHz
Frequency, horizontal min. - 31.5 kHz
Frequency, vertical max. - 75 Hz
Frequency, vertical min. - 50 Hz
GTIN - 4710739595796
guarantee - 36
guarantee_type - normal
Height - 503.8 mm
I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x BNC (Video)
I/O connectors - 1 x HDMI
I/O connectors - 1 x Mini-DIN-4 (S-Video)
LongDesc - The SC-Series surveillance displays designed for 24/7 operation feature Anti-Burn-in™ technology which prevents image retention while performing nonstop in security and surveillance environments. The series also includes enhanced image quality and settings control such as gamma curve selection, black-level adjustment, contrast enhancer and CCTV mode that help create richer images even under unfavourable lighting conditions coming from low light surveillance footage.Industry-leading ReliabilityThe SC-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-in™ technology also prevents image ghosting while performing continuous mission-critical operations.Enhanced Image ClarityDisplays with exceptionally clear images with cutting-edge gamma curve selection, black-level adjustability, and high dynamic contrast ratio 20,000,000:1; the SC-Series can capture darker details and deliver premium images, thereby enhancing image detail quality. A pre-configured CCTV mode has been geared specifically for surveillance control rooms to adjust the display’s video settings such as sharpness, colour temperature, and brightness to maximise image clarity especially in low light surveillance footage at night.Adaptable to Your Environment NeedsWith adaptability in mind, the SC-Series provides an array of configurations designed to help you tailor the display to your surveillance needs. This includes on/off toggles for the blue screen or the power LED and selectable aspect ratios including 16:9, 4:3, 1:1 or even a custom zoom mode which helps accommodate the display to the conditions of your control room regardless of the input signal.
LongProductName - SC-32E 32'' LED-Backlit TFT LCD (VA Technology) 1920 x 1080, 300 cd/m², 5 ms, HDMI, DVI, VGA, Composite, USB, 3W x 2
LongSummaryDescription - AG Neovo SC-32E. Mounting type: Freestanding, Product colour: Black, Certification: CE, LVD, WEEE, RoHS, REACH, FCC. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, Display type: LED. Power source type: AC, Energy efficiency class (SDR): E, Energy efficiency scale: A to G. Weight: 5.6 kg, Height: 540.3 mm, Depth: 236.8 mm
Matrix type - TFT-TN
Matrix type - TFT LCD
Model - SC-32E
name - Monitor SC-32E IPS HDMI DVI-D VGA 350cd/m2 5M/S 24/7 BNC SPEAKERS
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Optional accessory -
Other features -
Packaging content - DFU / User manual - Y
Packaging content - Power supply cable - Yes
Packaging content - Quantity - 1
Packaging content - Remote control included - Yes
Performance - Built-in speaker(s) - Yes
Performance - Number of speakers - 2
Ports & interfaces - Audio input - 3.5mm
Ports & interfaces - Audio output - 3.5 mm
Ports & interfaces - AV input - Yes
Ports & interfaces - BNC input ports - 1
Ports & interfaces - BNC output ports - 1
Ports & interfaces - Cable lock slot - Yes
Ports & interfaces - DVI port - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - USB 2.0 connectors - 1
Ports & interfaces - VESA mounting - Yes
Ports & interfaces - VGA (D-Sub) input ports - 1
Power - Energy consumption (SDR) per 1000 hours - 26 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - Power source type - AC
Power consumption - 26 W
producer - AG NEOVO
producerCode - SC-32E
productName - AG Neovo SC-32E surveillance monitor 80 cm (31.5") 1920 x 1080 pixels
ProductName - SC-32E
productSize - Normal
Resolution - 1920 x 1080 (FHD 1080)
Response time - 4 ms
Screen size (diag.) - 32"
ShortSummaryDescription - AG Neovo SC-32E, Freestanding, Black, CE, LVD, WEEE, RoHS, REACH, FCC, 80 cm (31.5"), 1920 x 1080 pixels, LED
sizeX - 805
sizeY - 530
sizeZ - 210
Speakers built-in - Yes
Static contrast - 3 000:1
Title - AG Neovo SC-32E surveillance monitor 80 cm (31.5") 1920 x 1080 pixels
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
URL - https://displays.agneovo.com/gl/products/sc-series
vendpn - SC-32E
VESA - 200 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty -
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Web camera - None
Weight - 9.3 kg
weight - 10760
Weight & dimensions - Depth - 236.8 mm
Weight & dimensions - Height - 540.3 mm
Weight & dimensions - Weight - 5.6 kg
Weight & dimensions - Width - 728.8 mm
Width - 503.8 mm
