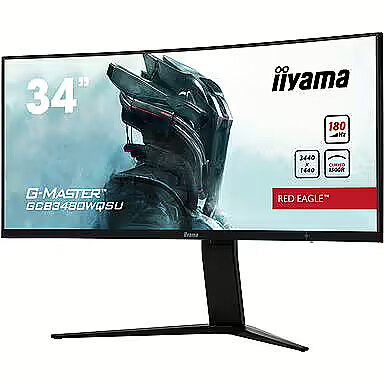

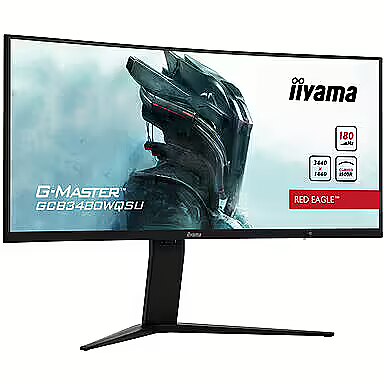

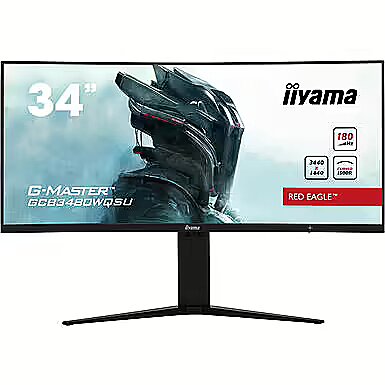

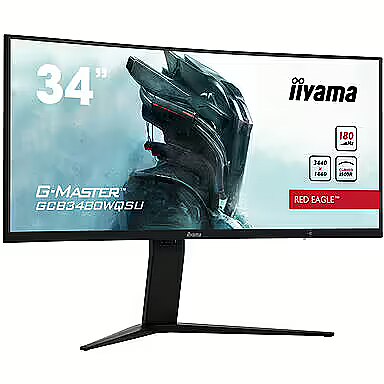

Iiyama GCB3480WQSU-B1, 34"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1014909 Product code: GCB3480WQSU-B1
In stock 20 units
Warranty: 3 years
431.65 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
  • Curved: Ir
  • Panel Type: VA
  • Refresh rate: 180 Hz
  • Response time: 0.4ms
  • Contrast ratio: 4000:1
  • Brightness: 420cd/m2
  • Size: 34"
  • Resolution: UWWQHD 3440x1440
Description
We offer to buy Iiyama 34" a monitor with UWWQHD 3440x1440 resolution.
  • The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
  • DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
  • VA panel provides high colour compatibility parameters and improved viewing angle to this monitor.
  • The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
Display characteristics
AMD FreeSync : Ir
Curved : Ir
NVIDIA G-SYNC : Nav
Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 180 Hz
Touchscreen : NO
VESA DisplayHDR : DisplayHDR 400
Response time 0.4ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 4000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 420cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 21:9
Color : Black
Size 34"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution UWWQHD 3440x1440

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Ir
Height adjustment : Ir
Pivot : Nav
Swivel : None
Tilt : YES
VESA wall mount : 100x100 mm

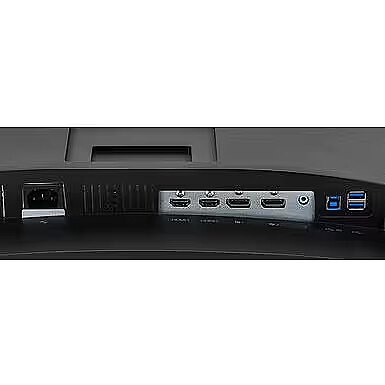

Ports and equipment
D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 2

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 2

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES
USB-C Power Delivery : Nav
USB-C video input : 0
More detailed specification
100 mm x 100 mm VESA mounting interface - Yes
ARTIKEL1 - GCB3480WQSU-B1 34IN CURVED WQHD
ARTIKEL2 - 3440X1440 180HZ 0.4MS 420CD
Audio - Yes
AudioFeatures - 2 x 2W
Brand - iiyama
BrandPartCode - GCB3480WQSU-B1
Breite - 0
Brightness - 420
Brightness - 420 cd/m2
Camera - No
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category Code - LC3
Category_1 - Monitors and TV
Category_2 - LED Monitors 31 inches and up
Colour - Black
Contrast - 4000:1
ContrastRatio - 4000:1
ContrastRatioDynamic - -
Data Sheet (Link) - https://eprel.ec.europa.eu/api/product/1654168/fiches?language=EN
Depth - 256 mm
Depth Unit Dimensions - 256 mm
Description - G-MASTER GCB3480WQSU-B1 Immerse yourself in the game with the curved GCB3480WQSU Red Eagle featuring a game changing 180Hz refresh rate. The 1500R curved VA panel with 180Hz refresh rate, 0.4ms MPRT and 3440x1440 resolution gives you an immersive viewing experience and guarantees superb image quality. The height adjustable stand ensures you can easily adjust the screen position and intuitive customizable screen settings (predefined or custom) along with the Black Tuner function gives you control over the dark scenes to make sure details are always clearly visible. The HDMI, DisplayPort, USB hub and a headphone connector ensure compatibility across various devices and media platforms and the PbP (picture-by-picture) function allows for simultaneous display of content from up to four different signal inputs.
Design - Market positioning - Office
Design - Product colour - Black
Display - Contrast ratio (typical) - 4000:1
Display - Display brightness (typical) - 420 cd/m²
Display - Display diagonal - 86.4 cm (34")
Display - Display diagonal (metric) - 86.4 cm
Display - Display resolution - 3440 x 1440 pixels
Display - Display technology - LCD
Display - HD type - UltraWide Quad HD
Display - High Dynamic Range (HDR) supported - Yes
Display - High Dynamic Range (HDR) technology - High Dynamic Range (HDR) 400
Display - Horizontal scan range - 48 - 180 kHz
Display - Maximum refresh rate - 180 Hz
Display - Native aspect ratio - 21:9
Display - Panel type - VA
Display - Pixel pitch - 0.232 x 0.232 mm
Display - Response time - 0.4 ms
Display - Screen curvature rating - 1500R
Display - Screen shape - Curved
Display - Touchscreen - No
Display - Viewable size, horizontal - 79.7 cm
Display - Viewable size, vertical - 33.4 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
DisplayCaseColour - Black
DisplayFeatures -
  • 1500R curvature
  • Blue light reducer
  • Flicker-free
  • FreeSync Premium Pro
  • HDR400

    • DisplayFormat - 21:9
    DisplayNativeResolution - 3440 x 1440
    DisplayPort - Yes
    DisplayPort Input/Output connectors - 2
    DisplaySizecm - 86.4 cm
    Display surface - Matte
    DisplayType - LED VA
    DisplayViewingArea - 797.2 x 333.7 mm
    EANCode - 4948570122257
    Eans - 4948570122257
    EAN_code - 4948570122257
    EmissionStandard - Energy class: F
    Energy efficiency class - E
    EPEAT - -
    EPREL Registration Number - 1.65417e+006
    EPREL Version Number - 1
    Ergonomics - Cable lock slot - Yes
    Ergonomics - Cable lock slot type - Kensington
    Ergonomics - Height adjustment - 11 cm
    Ergonomics - Height adjustment - Yes
    Ergonomics - Number of OSD languages - 10
    Ergonomics - On Screen Display (OSD) - Yes
    Ergonomics - On Screen Display (OSD) languages - Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
    Ergonomics - Panel mounting interface - 100 x 100 mm
    Ergonomics - Picture-in-Picture - Yes
    Ergonomics - Tilt angle range - 20 - 5°
    Ergonomics - VESA mounting - Yes
    Ethernet - No
    Frequency - 48-180 kHz
    FrequencyV - 180 Hz
    Full Description Line - 34"|Gaming/Curved/21 : 9|Panel VA|Resolution 3440x1440|Form factor 21:9|Refresh rate 180Hz|Brightness 420|Contrast 4000:1|Display Matte|Response time 0.4 ms|Horizontal 178 degrees|Vertical 178 degrees|2xHDMI|2xDisplayPort|2xUSB 3.2|1xHeadphones jack|Speakers|Height adjustable|Tilt|100 mm x 100 mm|Kensington lock|Colour Black
    Gewicht - 10.68
    GrossWeight - 10.6 kg
    GRUPPE1 - Displays
    GRUPPE2 - Lcd Monitor
    GTIN - 4948570122257
    HDMI - 2
    HDMI Input/Output connectors - 2
    Headphones jack Input/Output connectors - 1
    Height - 441.5 mm
    Height adjustable Stand - Yes
    HeightAdjustment - Yes
    Height Unit Dimensions - 551.5 mm
    HERSTELLER - IIYAMA CONSIGNMENT
    Hoehe - 0
    HSTNUMMER - GCB3480WQSU-B1
    InputSignal -
  • 2x HDMI
  • DisplayPort
  • 2x USB 3.2
  • Audio out

    • KensingtonLock - Yes
    Kensington lock support - Yes
    Laenge - 0
    LongDesc -
    LongSummaryDescription - iiyama G-MASTER GCB3480WQSU-B1. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LCD, Response time: 0.4 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
    Manufacturer - Iiyama
    Manufacturer_code - GCB3480WQSU-B1
    MANUFDATASHEET - https://iiyama.com/gl_en/products/g-master-gcb3480wqsu-b1/
    MonitorControls -
  • Power Switch/Menu/Power Indicator
  • Scroll Up/Input Select
  • Scroll Down
  • Left/Eco Mode
  • Right/Volume

    • Monitor features - 21 : 9/Curved/Gaming
    MonitorSize - 34"
    MonitorType -
  • Curved
  • Gaming

    • Multimedia - Built-in camera - No
    Multimedia - Built-in speaker(s) - Yes
    Multimedia - Number of speakers - 2
    Multimedia - RMS rated power - 6 W
    Name - iiyama G-Master GCB3480WQSU-B1 Red Eagle - 34'' | VA | UWQHD | 0,4ms | 180Hz | HDR
    Name - iiyama G-Master GCB3480WQSU-B1, gaming monitor - 34 - black, UWQHD, HDMI, DisplayPort, USB, Free-Sync, 180 Hz, HDR, curved, 180Hz panel
    Native resolution - 3440x1440
    Other features - Certification - CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
    PackageContents -
  • Cables: power, USB, HDMI, DP
  • Quick start guide
  • Safety guide

    • Packaging content - Cables included - AC, DisplayPort, HDMI, USB
    Packaging content - Quick start guide - Yes
    Packaging data - Package depth - 237 mm
    Packaging data - Package height - 502 mm
    Packaging data - Package weight - 10.6 kg
    Packaging data - Package width - 899 mm
    Panel type - VA
    Performance - AMD FreeSync - Yes
    Performance - AMD FreeSync refresh rate range - 48 - 180 Hz
    Performance - AMD FreeSync type - FreeSync
    Performance - Flicker-free technology - Yes
    Performance - Low Blue Light technology - Yes
    Pivot - No
    Pixelpitch - 0.232 mm
    Pixel size - 0.232 mm
    Ports & interfaces - Built-in USB hub - Yes
    Ports & interfaces - DisplayPorts quantity - 2
    Ports & interfaces - HDCP - Yes
    Ports & interfaces - HDMI - Yes
    Ports & interfaces - HDMI ports quantity - 2
    Ports & interfaces - Headphone out - Yes
    Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
    Power - AC input frequency - 50/60 Hz
    Power - AC input voltage - 100 - 240 V
    Power - Energy consumption (HDR) per 1000 hours - 57 kWh
    Power - Energy consumption (SDR) per 1000 hours - 26 kWh
    Power - Energy efficiency class (SDR) - E
    Power - Energy efficiency scale - A to G
    Power - European Product Registry for Energy Labelling (EPREL) code - 1654168
    Power - Power consumption (off) - 0.3 W
    Power - Power consumption (standby) - 0.5 W
    Power - Power consumption (typical) - 51 W
    ProdDesc - 34" Curved R1500, 3440x1440, 2H2DP, USB,HAS
    Producer - iiyama
    ProducerCode - GCB3480WQSU-B1
    ProductName - GCB3480WQSU-B1
    ProductPicture - http://www.tdbaltic.ee/images/ds4/GCB3480WQSU-B1-01.jpg
    ProductPicture2 - http://www.tdbaltic.ee/images/ds4/GCB3480WQSU-B1-02.jpg
    ProductPicture3 - http://www.tdbaltic.ee/images/ds4/GCB3480WQSU-B1-03.jpg
    ProductPicture4 -
    Refresh rate - 180Hz
    Response time - 0.4 ms
    ResponseTime - 0.4 ms
    Rotate - Yes
    Screen form factor - 21:9
    Screen LED backlight - Yes
    Screen size - 34"
    Shipping Box Depth Shipping/Package Box Dimensions - 89 cm
    Shipping Box Height Shipping/Package Box Dimensions - 50 cm
    Shipping Box Weight Shipping/Package Box Dimensions - 10.9 kg
    Shipping Box Width Shipping/Package Box Dimensions - 24 cm
    ShortDescription - 34'' | VA | UWQHD | 0,4ms | 180Hz | HDR
    ShortSummaryDescription - iiyama G-MASTER GCB3480WQSU-B1, 86.4 cm (34"), 3440 x 1440 pixels, UltraWide Quad HD, LCD, 0.4 ms, Black
    Speakers - Yes
    Standby consumption - 0.4 Watts
    Stck_Kart - 1
    Stck_Pal - 15
    Storno - Y
    Tilt - Yes
    Tilt Stand - Yes
    Title - iiyama G-MASTER GCB3480WQSU-B1 computer monitor 86.4 cm (34") 3440 x 1440 pixels UltraWide Quad HD LCD Black
    Unit Box Height - 0.5
    Unit Box Length - 0.89
    Unit Box Width - 0.24
    Unit Brutto Volume - 0.1068 cubm
    Unit Gross Weight - 10.9 kg
    Unit Net Weight - 7.6 kg
    USB - 2
    USB 3.2 Input/Output connectors - 2
    USBTypeC - No
    Vendor Homepage - iiyama.com/gl_en/products/g-master-gcb3480wqsu-b1/
    VESACompatible - Yes
    VESAStandard - 100 x 100
    ViewingAngle - 178
    Viewing angle horizontal - 178 degrees
    ViewingAngleV - 178
    Viewing angle vertical - 178 degrees
    Warranty - 3 years
    Warranty - 36 months
    Weight - 7.6 kg
    Weight - 10,60
    Weight & dimensions - Depth (with stand) - 256 mm
    Weight & dimensions - Height (with stand) - 551.5 mm
    Weight & dimensions - Weight (with stand) - 7.6 kg
    Weight & dimensions - Width (with stand) - 808 mm
    Width - 808 mm
    Width Unit Dimensions - 808 mm
    Wireless - No
    WirelessFeatures - -
    431.65 €

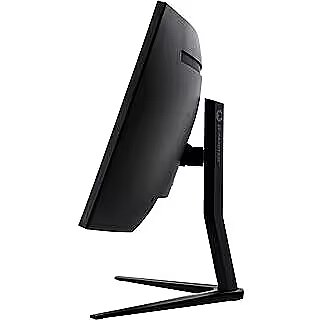

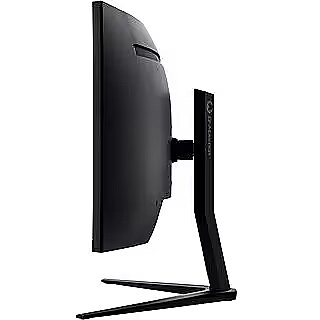

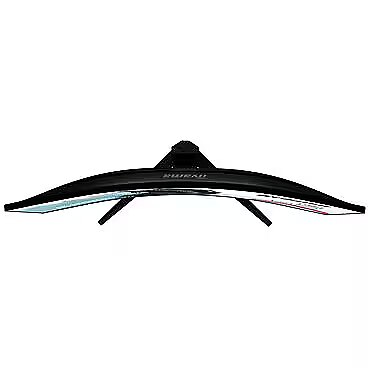

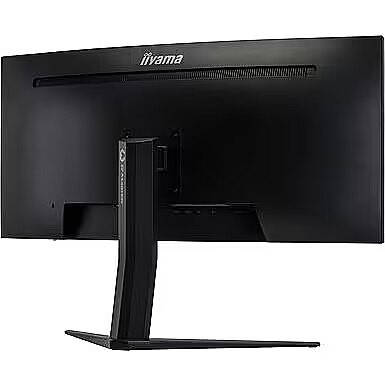

    Iiyama GCB3480WQSU-B1, 34"
    Intel technology provider Platinum 2020
    All categories
