Epson SureColor SC-T5405

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 708381 Product code: C11CJ56301A0
In stock 1 units
Warranty: 2 years (Warranty for business entities 1 year)
2,486.04 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
  • Max. print size: A0
  • Native resolution: 2400 x 1200 dpi
  • Print speed (monochrome): 22 ppm
  • Type: Inkjet
  • Cartridges: 4
Basic information
Max. print size A0

The size of paper that can be placed in the printer feeder and printed in the particular printer. If this index of the printer is, for example, A4 it means that this particular printer can print for sure also smaller size paper, for example, A5. This possibility has certain restrictions that can be found in the detailed specification of the printing size and type of paper supported.

Native resolution 2400 x 1200 dpi

The resolution of the printer determines the number of dots that the printer printing head can print horizontally and vertically. By applying various additional methods a printer can print a higher resolution result. This parameter indicates the natural resolution of the printer without using compression. A higher resolution means a higher image quality and detail.

Print speed (monochrome) 22 ppm

The average index of the number of black and white pages with 5% average coverage that can be printed by this printer per minute.

Type Inkjet

The type of printing is the main criterion for selecting the princter because it determines the printer application.

Ink - this technology will be suitable for the users who want to print colour photos at high quality. The costs per print-out are quite high, also ink cartridges dry out when the printer is on stand-by for a long time.

Black and white laser - the best type of printing from the economic point of view, produces good quality print-outs of black and white documents at the lowest cost per print-out. The best buy for the home and office needs. Printers of more expensive models have considerably bigger toner cartridges which will certainly pay back if more than ten pages per day are printed.

Colour laser - this technology allows to print black and white laser print-outs at the same costs per page as with the black and white laser printer and to produce colour print-outs at comparatively low costs per print-out.

The quality of the colour printing by this technology is much lower than with the ink printing, therefore this device is worth buying only if tens of colour graphics, models, product samples photos and colour logos have to be printed every day. This technology currently is not suitable for printing photos.

The size of paper that can be placed in the printer feeder and printed in the particular printer. If this index of the printer is, for example, A4 it means that this particular printer can print for sure also smaller size paper, for example, A5. This possibility has certain restrictions that can be found in the detailed specification of the printing size and type of paper supported.

Functionality
ADF (automatic document feeder) Nav

ADF means automatic document feeding. This is implemented by means of a special scanner cover where it is possible to place several pages at once, for example, a pack of copied or scanned documents.

Auto Duplex function Nav

Double-sided printing that is quite often implemented as a semi-automated function which means that the printer prints one side of the page and then the user has to put all the pack of print-outs in the feeder manually.

There can also be Duplex printers that are able to turn the page during the printing process. Prior to buying the printer you should read the detailed specification about how the Duplex function is implemented.

Cartridges 4

The number of toners or cartridges that the particular printer has. In case of ink printing a higher number of cartridges means better printing quality and more economical replacement of cartridges.

Copier Nav

An option to place a printed document in the feeder and copy it.

Fax Nav

A possibility to connect the device to the phone line and phone for sending and receiving fax messages.

Scanner Nav

A possibility to place a printed paper in the feeder and to receive a scanned document in the computer as a file.

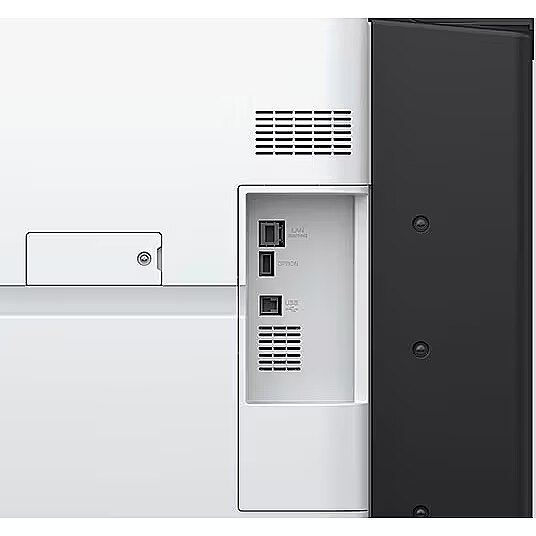

Ports and equipment
LAN interface Ir

A very useful function if the printer is used from various computers connected in a network. If there is LAN connection it is possible to place the printer at any place where the network and power connection is available and to produce print-outs from any computer without the necessity to connect the printer to any particular computer and to maintain this computer switched on.

LPT interface Nav

This is an obsolete standard and required only in few cases when a company uses DOS software that cannot print from any other ports except LPT. This type of connection is very slow, therefore in most cases a printer with LPT has also the much faster USB or LAN connection.

USB 2.0 interface Ir

The most stable, convenient and fastest connection of the printer if the printer is located close to the computer and is used for printing from one computer. The USB connection slot is available with almost all portable computers and desktop computers.

Wireless connections
Bluetooth Nav

A possibility to connect this printer to the computer via the Bluetooth wireless connection. Usually this type of connection is available for portable computers of average or expensive category. Desktop computers usually do not have the Bluetooth, therefore it will be necessary to buy a low priced USB Bluetooth transmitter for being able to use this functionality.

WiFi Ir

An excellent way of connecting a computer within a wireless network if you use exclusively wireless network connection at home or at office or if the printer is placed at a location where it is not possible to connect a LAN cable.

USB Cable
More detailed specification
Additional information in manufacturers website Epson SureColor SC-T5405
Brand - Epson
BrandPartCode - C11CJ56301A0
Category - Large Format Printers
Copying - Copying - No
GTIN - 8715946687049
Input & output capacity - Total number of input trays - 2
Logistics data - Harmonized System (HS) code - 84433210
Logistics data - Quantity per pack - 1 pc(s)
LongDesc - Flexible technical printerThe 36-inch technical printer for professionals looking for reliability and cost saving, with high-quality precision printing in-house.SureColor SC-T5405 - wireless printer (with stand)The SC-T5405 large format printer is ideal for printing high-quality CAD designs, architectural or engineering technical drawings, general office documents, high-visibility posters for event organisers or point-of-purchase (POP) signage for retailers. Designed for those who need a professional-level, floor-standing, technical printer which boasts a low total cost of ownership.Enhanced productivityHigh capacity ink cartridges (110ml, 350ml and 700ml) and 4-colour pigment UltraChrome XD2 inks that are smudge and water resistant. Also, the SC-T5405 delivers deep blacks and crisp, dense lines — which is ideal for technical graphics.A bigger pictureThe SC-T5405 offers cost and time saving benefits by enabling a document enlargement workflow. Simply connect your Epson inkjet multifunction printer to your LFP and select the size you desire (up to A0 / 36 inches). Change seamlessly between LFP roll and sheetfeed as this printer supports up to A0 cut sheets as well as rolls. Even occasional users can expect consistent print quality. Unique Nozzle Verification Technology (NVT) helps prevent misprints by constantly monitoring for any blockages.
LongProductName - Wireless, USB 3.0, Gigabit ethernet, Wi-Fi Direct, NVT, B5 - A0, 1385‎ x 750 x 1060 mm
LongSummaryDescription - Epson SureColor SC-T5405. Print technology: Inkjet, Maximum resolution: 2400 x 1200 DPI, Page description languages: ESC/P-R, HP-GL/2, HP-RTL. Maximum print size: A0 (841 x 1189 mm), Paper tray media types: Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Roll, Satin paper, ISO A-series sizes (A0...A9): A0, A1, A2, A3, A3+, A4. USB connector: USB Type-A / USB Type-B, Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TLS, SSL, IEE 802, SNMP, IPSec, IPv6. Product colour: Black, Grey, White, Display: LCD, Display diagonal: 10.9 cm (4.3"). Power consumption (standby): 13 W, Power consumption (typical): 38 W, Power consumption (off): 0.25 W
Other features - Compatible products - WorkForce DS-6500, WorkForce DS-60000
Other features - Ink drop - 4
Other features - Line accuracy - +/- 0,1
Other features - Minimum line width - 0.02 mm
Other features - Touchscreen - Yes
Packaging data - Drivers included - Yes
Packaging data - Manual - Yes
Packaging data - Package depth - 1550 mm
Packaging data - Package height - 1116 mm
Packaging data - Package weight - 112 kg
Packaging data - Package width - 850 mm
Paper handling - Borderless printing width - 11.81, 12.99, 15.98, 20.28, 10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll
Paper handling - Cut sheets - Yes
Paper handling - ISO A-series sizes (A0...A9) - A0, A1, A2, A3, A3+, A4
Paper handling - ISO B-series sizes (B0...B9) - B1, B2, B3, B4, B5
Paper handling - Maximum print size - A0 (841 x 1189 mm)
Paper handling - Maximum roll width - 91.4 cm
Paper handling - Media thickness - 0.05 - 0.3 mm
Paper handling - Paper tray media types - Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Roll, Satin paper
Paper handling - Print margin cut-sheet - 3 x 3 x 20 x 3
Paper handling - Roll paper - Yes
Performance - Built-in display - Yes
Performance - Colour display - Yes
Performance - Control type - Touch
Performance - Country of origin - Indonesia
Performance - Display - LCD
Performance - Display diagonal - 10.9 cm (4.3")
Performance - Internal memory - 1024 MB
Performance - Maximum internal memory - 1000 MB
Performance - Product colour - Black, Grey, White
Performance - Sound pressure level (printing) - 50 dB
Performance - Sound pressure level (standby) - 32 dB
Ports & interfaces - Direct printing - Yes
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - Mobile printing technologies - Apple AirPrint
Ports & interfaces - Security algorithms - SSL/TLS, SNMP, IPSec
Ports & interfaces - Supported network protocols - TLS, SSL, IEE 802, SNMP, IPSec, IPv6
Ports & interfaces - USB connector - USB Type-A / USB Type-B
Ports & interfaces - USB port - Yes
Ports & interfaces - Wi-Fi - Yes
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100-240 V
Power - Power consumption (off) - 0.25 W
Power - Power consumption (standby) - 13 W
Power - Power consumption (typical) - 38 W
Printing - Colour - Yes
Printing - Maximum resolution - 2400 x 1200 DPI
Printing - Number of print cartridges - 4
Printing - Page description languages - ESC/P-R, HP-GL/2, HP-RTL

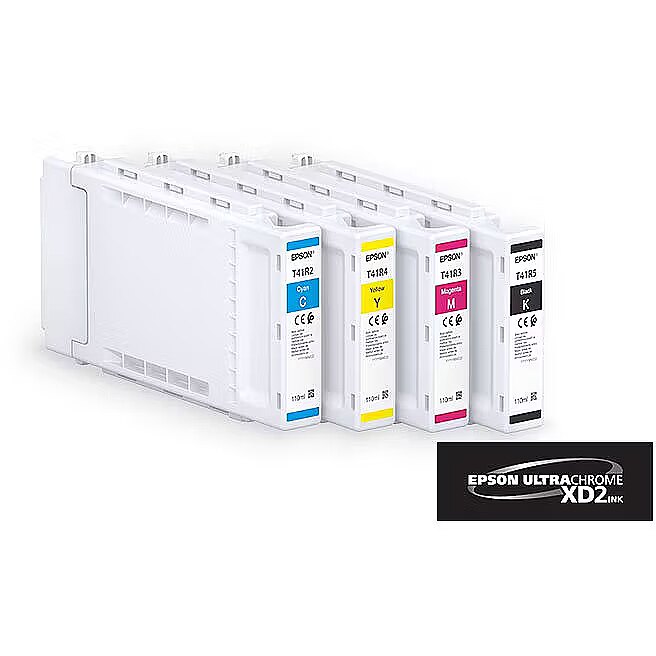

Printing - Print cartridge volume (metric) - 700 ml
Printing - Print head nozzles - 800 nozzles black, 800 nozzles per colour
Printing - Printing colours - Pigment black, Pigment cyan, Pigment yellow, Pigment magenta
Printing - Print speed (normal quality, A1) - 22 pph
Printing - Print technology - Inkjet
ProductName - SC-T5405
Scanning - Scanning - No
ShortSummaryDescription - Epson SureColor SC-T5405, Inkjet, 2400 x 1200 DPI, ESC/P-R, HP-GL/2, HP-RTL, Pigment black, Pigment cyan, Pigment yellow, Pigment magenta, 700 ml, 22 pph
System requirements - Compatible operating systems - Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
System requirements - Mac operating systems supported - Mac OS X 10.6 Snow Leopard
System requirements - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Title - Epson SureColor SC-T5405 large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
URL - https://www.epson.de/en/products/printers/large-format-printers/surecolor-sc-t5405-wireless-printer-with-stand#specifications
WarrantyInfo -
Weight & dimensions - Depth - 750 mm
Weight & dimensions - Height - 1060 mm
Weight & dimensions - Weight - 76 kg
Weight & dimensions - Width - 1385 mm
