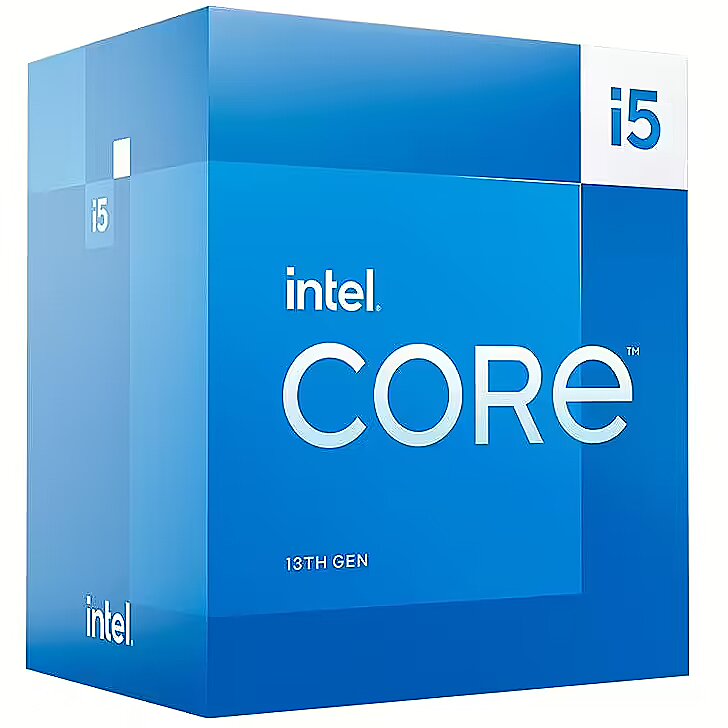

Intel Core i5-13500 (6P+8E/20T, 2.50 GHz, 24 MB Cache, LGA1700, 65W)

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 927121 Product code: BX8071513500
Can be ordered 18 units Availability: 14 days after order approval
Warranty: 3 years
243.68 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Socket: LGA 1700
  • Processor number: i5-13500
  • Number of Performance Cores: 6
  • Clock rate: 2.50 GHz
  • Cache: 24 MB
  • Processing Die Lithography: 10nm
  • TDP: 65W
  • Cooler included: Ir
All parameters
Efficient number of cores : Eight Core
Socket LGA 1700
This parameter determines the CPU socket on the mother board for which the particular CPU is intended. Physically the CPU can be placed in the compliant socket only. Prior to buying the CPU you should verify that your motherboard has the corresponding CPU socket.
Type Core i5 (Raptor Lake)
The CPU type indicates the CPU models set by the manufacturer based upon their capacity and the application features. For Intel CPUs these are starting from most powerful - Core i7, Core i5, Core i3, Core 2 Quad, Core 2 Duo, Pentium Dual Core and Celeron models.
Processor number i5-13500
The CPU manufacturer Intel has introduced the system of numbering of CPUs that allows accurate identification of each CPU manufactured by Intel and its compatibility with motherboards. Prior to buying the CPU you verify the support of this CPU number on the website of the motherboard manufacturer.
Number of Performance Cores 6
The number of the CPU cores is the parameter of the operation speed and stability. CPU with two or more cores can handle tasks in parallel, thus achieving extra high-speed and the system stability. Prior to buying a multi-core CPU you should verify if the motherboard supports this type of CPU.
Threads : 20
Clock rate 2.50 GHz
The CPU clock frequency is the index of operation speed that determines the number of calculation cycles that the CPU can perform per second. Higher clock frequency means higher operation speed.
Turbo frequency : 4.80 GHz
Cache 24 MB

Small, fast memory that stores the copies of the data memories from the main memory that are most often used by the computer applications. It is like a temporary storage or data buffer between the CPU and RAM.

It shows with how big numbers it can operate within a single cycle. It is advisable to have this index at the level of 512 KB or at least 256 KB.

Performance (PassMark) : 30500+
Processing Die Lithography : 10nm
TDP : 65W
Integrated graphics : Intel UHD Graphics 770
Cooler included Ir
BOX processors come in eye-catching retail packaging while Tray version CPUs are put inside small transparent plastic case.
More detailed specification
ARTIKEL1 - CORE I5-13500 2.50GHZ
ARTIKEL2 - SKTLGA1700 24.00MB CACHE BOXED
Artikuls - BX8071513500SRMBM
Cache - 24MB
category - PC Components|CPUs / Processors|Intel Processors|Sockel 1700
Category - Root/Electronics/PC parts/Processors
Category 1 - CPUs
Category 2 - Intel CPUs
Category Code - CPU
Category_1 - Processors
Category_2 - Processors - Intel 1700
Clock speed - 2500 MHz
code - BX8071513500
Compatible with -
Cooling Method - Cooling Fan
Core Name - Raptor Lake
Core Quantity - 14
CPU - INTEL Core i5-13500
CPU application - Desktop
CPU Boost frequency - 4.8 GHz
CPU Cache Size - 24 MB
CPU code - Intel Core i5-13500
CPU Family name - Core i5
CPU frequency - 2.5 GHz
CPU socket - LGA1700
Description - Boxed Intel® Core™ i5-13500 Processor (24M Cache, up to 4.80 GHz) FC-LGA16A
Description - Desktop Intel Core i5-13500 processor 13th generation Intel Core i5-13500 desktop processor. With PCIe 5.0 and 4.0 support, DDR5 and DDR4 support, the 13th Gen Intel Core i5 desktop processors are optimized for gaming and productivity and help deliver high performance. Compatible with motherboards based on Intel 700 and Intel 600 series chipsets. Base processor power 65 W.
dimensionalWeight - 218
dimension depth - 80 mm
dimension height - 125 mm
dimension weight - 453 g
dimension width - 105 mm
ean - 5032037260251
EAN - 5032037260251
EAN Code - 5032037260251
EANCode - 5032037260251
Eans - 5032037260251
EAN_code - 5032037260251
ECC support - Yes
Efficient-core Base Clock Rate - 1.8 GHz
Efficient-cores Quantity - 8
Efficient-core Turbo Clock Rate - 3.5 GHz
Extra cooling - Yes
Features - Enhanced SpeedStep TechnologyExecute Disable BitHyper-Threading TechnologyIntel Trusted Execution TechnologyIntel Virtualization TechnologyStreaming SIMD Extensions 4.1Streaming SIMD Extensions 4.2Thermal Monitoring Tech
Features - Commodity Classification Automated Tracking System (CCATS) - 740.17B1
Features - CPU configuration (max) - 1
Features - Direct Media Interface (DMI) Revision - 4.0
Features - Embedded options available - Yes
Features - Execute Disable Bit - Yes
Features - Export Control Classification Number (ECCN) - 5A992C
Features - Idle States - Yes
Features - Market segment - Desktop
Features - Maximum number of PCI Express lanes - 20
Features - PCI Express configurations - 1x16+1x4
Features - PCI Express configurations - 2x8+1x4
Features - PCI Express slots version - 4.0
Features - PCI Express slots version - 5.0
Features - Scalability - 1S
Features - Supported instruction sets - AVX 2.0
Features - Supported instruction sets - SSE4.1
Features - Supported instruction sets - SSE4.2
Features - Thermal Monitoring Technologies - Yes
Features - Use conditions - PC/Client/Tablet
Features - Use conditions - Workstation
Full Description Line - Desktop|Core i5|i5-13500|2500 MHz|Number of cores 14|Cache 24MB|Socket LGA1700|Turbo frequency 4800 MHz|Packing type BOX
Graphics - Discrete graphics card - No
Graphics - Discrete graphics card model - Not available
Graphics - Multi-Format Codec Engines - 2
Graphics - Number of displays supported (on-board graphics) - 4
Graphics - Number of execution units - 32
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card base frequency - 300 MHz
Graphics - On-board graphics card DirectX version - 12.0
Graphics - On-board graphics card dynamic frequency (max) - 1550 MHz
Graphics - On-board graphics card ID - 0x4680
Graphics - On-board graphics card maximum resolution (DisplayPort) - 7680 x 4320 pixels
Graphics - On-board graphics card maximum resolution (eDP - Integrated Flat Panel) - 5120 x 3200 pixels
Graphics - On-board graphics card maximum resolution (HDMI) - 4096 x 2160 pixels
Graphics - On-board graphics card model - Intel UHD Graphics 770
Graphics - On-board graphics card OpenGL version - 4.5
Graphics - On-board graphics card outputs supported - DisplayPort 1.4a
Graphics - On-board graphics card outputs supported - Embedded DisplayPort (eDP) 1.4b
Graphics - On-board graphics card outputs supported - HDMI 2.1
Graphics - On-board graphics card refresh rate at maximum resolution (DisplayPort) - 60 Hz
Graphics - On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) - 120 Hz
Graphics - On-board graphics card refresh rate at maximum resolution (HDMI) - 60 Hz
Graphics Adapter - INTEL UHD Graphics 770
Graphics Base Frequency - 300 MHz
Gross Weight Kg - 0,46
GRUPPE1 - Memory & Processors
GRUPPE2 - Processors / Math Corp
guarantee - 36
guarantee_type - normal
HERSTELLER - INTEL
HSTNUMMER - BX8071513500
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230117150021482301.jpg
Instruction Set - 64 bit
Integrated graphics - Yes
L2 Cache Size - 10 MB
L3 cache - 24 MB
Logistics data - Harmonized System (HS) code - 8542310001
Manufacturer - INTEL
Manufacturer - Intel
Manufacturer Code - BX8071513500
Manufacturer Name - Intel
Manufacturer_code - BX8071513500
Maximum TDP - 154 W
Max Memory Size - 128GB
Max Number of DMI Lanes - 8
Max Number of PCI Express Lanes - 20
Memory - ECC - Yes
Memory - Maximum internal memory supported by processor - 192 GB
Memory - Memory bandwidth (max) - 76.8 GB/s
Memory - Memory channels - Dual-channel
Memory - Memory types supported by processor - DDR4-SDRAM
Memory - Memory types supported by processor - DDR5-SDRAM
Memory - Non-ECC - Yes
Memory Channels Supports - 2
Memory Types - DDR4/DDR5
Model number - i5-13500
MPN - BX8071513500
Name - Intel Core i5-13500
name - Intel Core i5-13500 2,50 GHz (Raptor Lake) Sockel 1700 - boxed
Name - Intel Core i5-13500, Processor - boxed
Name - Intel S1700 CORE i5 13500 BOX GEN13
name - Processor Core i5-13500 BOX 2,5 GHz, LGA1700
Number of cores - 14
Number of threads - 20
Operational conditions - Tjunction - 100 °C
Other features - Graphics output - eDP 1.4b, DP 1.4a, HDMI 2.1
Other features - L2 cache - 11776 KB
Other features - Maximum internal memory - 192 GB
Other information -
Package Type - Box
Packing type - BOX
Packs in Box - 1
Pack Weight Brutto (kg) - 0.488 kg
Performance-core Base Clock Rate - 2.5 GHz
Performance-cores Quantity - 6
Performance-core Turbo Clock Rate - 4.8 GHz
Pieces in pack - 1
Processor - Box - Yes
Processor - Bus type - DMI4
Processor - Cooler included - Yes
Processor - Efficient-core base frequency - 1.8 GHz
Processor - Efficient-core boost frequency - 3.5 GHz
Processor - Efficient cores - 8
Processor - Maximum number of DMI lanes - 8
Processor - Maximum turbo power - 154 W
Processor - Memory bandwidth supported by processor (max) - 76.8 GB/s
Processor - Performance-core base frequency - 2.5 GHz
Processor - Performance-core boost frequency - 4.8 GHz
Processor - Performance cores - 6
Processor - Processor ARK ID - 230580
Processor - Processor base power - 65 W
Processor - Processor boost frequency - 4.8 GHz
Processor - Processor cache - 24 MB
Processor - Processor cache type - Smart Cache
Processor - Processor codename - Raptor Lake
Processor - Processor cores - 14
Processor - Processor family - Intel® Core™ i5
Processor - Processor generation - 13th gen Intel® Core™ i5
Processor - Processor manufacturer - Intel
Processor - Processor model - i5-13500
Processor - Processor operating modes - 64-bit
Processor - Processor socket - LGA 1700
Processor - Processor threads - 20
Processor family - Intel Core i5
Processor special features - Enhanced Intel SpeedStep Technology - Yes
Processor special features - Intel 64 - Yes
Processor special features - Intel Stable Image Platform Program (SIPP) - Yes
Processor special features - Intel Trusted Execution Technology - Yes
Processor special features - Intel Turbo Boost Max Technology 3.0 - No
Processor special features - Intel Virtualization Technology (VT-x) - Yes
Processor special features - Intel Virtualization Technology for Directed I/O (VT-d) - Yes
Processor special features - Intel vPro® Enterprise Platform Eligibility - Yes
Processor special features - Intel vPro® Essentials Platform Eligibility - Yes
Processor special features - Intel VT-x with Extended Page Tables (EPT) - Yes
Processor special features - Intel® Active Management Technology (Intel® AMT) - Yes
Processor special features - Intel® AES New Instructions (Intel® AES-NI) - Yes
Processor special features - Intel® Boot Guard - Yes
Processor special features - Intel® Clear Video HD Technology (Intel® CVT HD) - Yes
Processor special features - Intel® Control-flow Enforcement Technology (CET) - Yes
Processor special features - Intel® Deep Learning Boost (Intel® DL Boost) - Yes
Processor special features - Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 - Yes
Processor special features - Intel® Hardware Shield Eligibility - Yes
Processor special features - Intel® Hyper Threading Technology (Intel® HT Technology) - Yes
Processor special features - Intel® One-Click Recovery - Yes
Processor special features - Intel® OS Guard - Yes
Processor special features - Intel® Quick Sync Video Technology - Yes
Processor special features - Intel® Remote Platform Erase (RPE) - Yes
Processor special features - Intel® Secure Key - Yes
Processor special features - Intel® Speed Shift Technology - Yes
Processor special features - Intel® Standard Manageability (ISM) - Yes
Processor special features - Intel® Thread Director - Yes
Processor special features - Intel® Threat Detection Technology (TDT) - Yes
Processor special features - Intel® Total Memory Encryption - Multi Key - Yes
Processor special features - Intel® Turbo Boost Technology - 2.0
Processor special features - Intel® Virtualization Technology with Redirect Protection (VT-rp) - Yes
Processor special features - Intel® Volume Management Device (VMD) - Yes
Processor special features - Intel® vPro™ Platform Eligibility - Yes
Processor special features - Mode-based Execute Control (MBE) - Yes
producer - Intel
Producer - Intel
producerCode - BX8071513500
ProducerCode - BX8071513500
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230105124725012118&THEME=asbis&LANG=lv
ProductCategory - Procesori
ProductCode - BX8071513500SRMBM
ProductDescription - Intel CPU Desktop Core i5-13500 (2.5GHz, 24MB, LGA1700) box
productName - Intel Core i5-13500 processor 24 MB Smart Cache Box
productSize - Normal
ProductType - CPU Desktop
Product Type - CPU Desktop
Shipping Box Depth Shipping/Package Box Dimensions - 12 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.454 kg
Shipping Box Width Shipping/Package Box Dimensions - 10.5 cm
Short description - CPU Intel Core i5-13500 / LGA1700 / Box ### 14C / 20T/ 24M Cache/ up to 4.8 GHz
ShortDescription - Intel Core i5 | Socket 1700 | 2,5-4,80Ghz | Raptor Lake |
sizeX - 80
sizeY - 112
sizeZ - 122
Socket - 1700
Socket - LGA1700
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Supported Memory Speed - 3200MHz(PC4-25600)/4800MHz(PC5-38400)
TDP - 65 W
Technical details - Launch date - Q1'23
Technical details - OpenCL version - 3.0
Technical details - Status - Launched
Technical details - Target market - Gaming
Threads Quantity - 20
Turbo Clock Rate - 4.80 GHz
Turbo frequency - 4800 MHz
Unit Brutto Volume - 0.001008 cubm
Unit Gross Weight - 0.454 kg
Unit Net Weight - 0.03 kg
Vendor - INTEL
Vendor Homepage - ark.intel.com
vendpn - BX8071513500
Version - Box
Warranty - 36 months
warrantyLength - 36
Warranty Products Returnable - Yes
Warranty Term (month) - 36 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,47
Weight - 0.46
weight - 465
Weight & dimensions - Processor package size - 45 x 37.5 mm
243.68 €
Intel Core i5-13500 (6P+8E/20T, 2.50 GHz, 24 MB Cache, LGA1700, 65W)
Intel technology provider Platinum 2020
All categories
