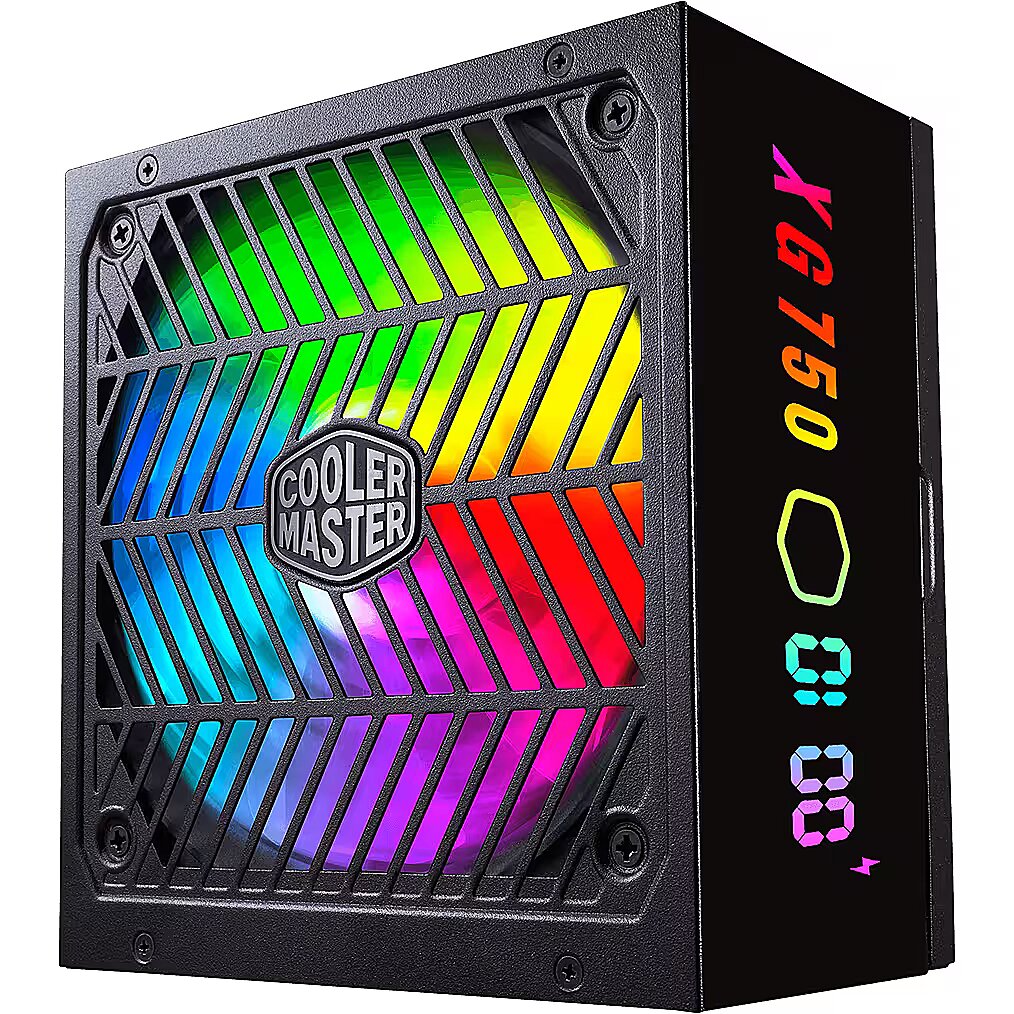

Cooler Master XG PLUS Series, 750W, 80PLUS Platinum

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 836554 Product code: MPG-7501-AFBAP-XEU
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
220.79 €
Main product parameters All parameters
  • Producer: Cooler Master
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

This Cooler Master brand power supply unit has an 80 PLUS Platinum energy efficiency certificate and a power output of 750W.

With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.

80 PLUS Platinum energy efficiency certificate, received by this power supply unit, guarantees at least 92% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the power grid, at least 92 W reaches your computer components, while the remaining 8 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

The power supply unit has RGB lighting.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 62.5A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : RGB
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 12
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 1
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Platinum
Description - ORIGINAL IS EVERYTHING
Cooler Master keeps searching for uniqueness, creativity, and more. XG Plus Platinum is the first Cooler Master in-house designed power supply, providing next-level efficiency, rigid design, and sturdy performance to fulfill all your daily computing and gaming needs.
SILENCE IS PLATINUM
The XG Plus Platinum is Cooler Masters first in-house designed platform, created to provide rated efficiency and high-end performance. It offers full-modular cabling with in-line capacitors, an ARGB 135mm silent fan, and a 10 year warranty. The built-in Information Display Panel compatible with MasterPlus+ software, can monitor real time performance and manage ARGB effects hassle-free.
POWERED BY COOLER MASTER
The XG Plus Platinum marks the culmination of many years of effort and the beginning of a new era for Cooler Master power supply units. This product line debuts the first generation of power supply platform created by Cooler Master in-house. This platform allows Cooler Master to offer an entirely new class of high efficiency products. The use of 100% Japanese capacitors allows this power supply unit to deliver top-shelf performance with reduced ripple noise.
SILENCE IS PLATINUM
Some power supply units offer great cooling performance. And some offer quiet operation. The XG Plus Platinum offers both. The in-house designed was created so that we could deliver a high quality PSU that could power gaming builds at top of the line performance levels while remaining relatively cool.
ARGB FANS WITH DIGITAL SIDE PANEL
The XG Plus Platinum ARGB fan with digital display panel can monitor real time performance data, showing fan speed, temperature, power load, and customized ARGB lighting.
CRAFTED FOR EXCELLENCE
The XG Plus Platinum is created and designed for performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The full-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency while creating minimal noise pollution.
FLAT CABLES
The XG Plus Platinum is using flat cabling to reduce clutter, which in turn increases both airflow and aesthetic quality.
ALL IN CONTROL
The MasterPlus+ software is Cooler Master's newest innovation for system management. This software provides users the ability to monitor just about every aspect of the XG Plus Platinum's operations in real time. Temperature, fan speed, system load, and so much more.
10 YEARS WARRANTY
The XG Plus Platinum offers top quality power supply units that can deliver professional grade performance. With an included 10 years* warranty, youll be using this longer than most up to date home consoles and most of the other components in your system.
dimension depth - 130 mm
dimension height - 215 mm
Dimensions - 160 x 150 x 86 mm
dimension weight - 3106 g
dimension width - 305 mm
ean - 4719512112229
Eans - 4719512112229
Fan - 13.5 cm
Fan speed (max) - 1800 rpm
Floppy power connectors - 0
guarantee - 24
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
Name - Cooler Master XG Plus 750W 80+ Platinum ARGB
name - Power Supply XG Plus 750W Platinum ARGB
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features - OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 750 W
producer - Cooler Master
Producer - CoolerMaster
ProducerCode - MPG-7501-AFBAP-XEU
SATA power connectors - 12
ShortDescription - 750 | ATX | 135mm | 24 pin | 150mm x 160mm x 86mm | 80 Plus Platinum | 92% efektywności | ARGB
vendpn - MPG-7501-AFBAP-XEU
