Aerocool VX-550 PLUS, 550W

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 177181 Product code: AEROVX-550PLUS
In stock 1 units
Warranty: 2 years
54.27 €
Main product parameters All parameters
  • Producer: Aerocool
  • Power output: 550W
  • 80 PLUS certification: Nav
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 1 X 6+2pin
Description

The power of 550W is more than sufficient for office programs, web browsing, and light computer games. It will be able to run a basic computer with an integrated graphics card, budget-level processor, small SSD or hard drive. If you plan to upgrade your computer in the future, you should definitely consider a more powerful power supply.

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Raiba.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : Nav
Total amperage (+12V) : 42A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 1 X 6+2pin
SATA cconnectors : 3
4pin Molex : 3
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS
Description - AeroCool VX PLUS 550 zasilacz / PSU
Przy konstruowaniu zasilaczy komputerowych z serii VX PLUS, mieliśmy na celu dostarczenie zasilacza o najlepszej wartości. Zasilacze VX PLUS pozwalają na łatwą instalację, zapewniają jednocześnie niezawodną jakość i doskonałą wydajność, co czyni je idealnymi zasilaczami dla producentów systemów klasy podstawowej. Wyposażony w ulepszony transformator i 12 cm wentylator ze zoptymalizowaną kontrolą prędkości wentylatora. Zasilacz o najlepszej wartości dla producentów systemów klasy podstawowej Kompatybilny z ATX 12V 2.3 Ulepszony transformator pozwala na obsługę ciężkiego systemu ładowania 12V Mocna szyna pojedyncza + 12 V oferuje kompatybilne wyjście DC Cichy 12 cm wentylator ze zoptymalizowaną kontrolą prędkości wentylatora Zawiera ochronę elektryczną OPP / OVP / UVP / SCP / SIP Nieograniczona wartość
VX PLUS oferuje najlepszą wartość, jakiej można oczekiwać od zasilacza z łatwą instalacją i najwyższą wydajnością, co czyni go idealnym początkowym zasilaczem dla konstruktorów systemów podstawowych.
Ulepszony projekt
Wyposażony w unikalną, górną obudowę, VX PLUS wygląda lepiej niż kiedykolwiek i poprawia cały wygląd i styl każdej gry
Ulepszony transformator
Ulepszony transformator poprawia równowagę między regulacjami napięcia 12 V, 3,3 V i 5 V oraz poprawia stabilność, umożliwiając obsługę dużego obciążenia systemu 12V.
Zoptymalizowane obroty wentylatora
Cichy wentylator 12 cm ze zoptymalizowaną inteligentną kontrolą prędkości wentylatora. Wentylator pracuje z prędkością uruchamiania przed osiągnięciem 50% obciążenia w temperaturze otoczenia 25 .
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1579
dimension depth - 100 mm
dimension height - 200 mm
Dimensions - 85 x 150 x 140 mm
dimension weight - 1361 g
dimension width - 230 mm
ean - 4718009151512
Eans - 4718009151512
Fan - 12 cm
Floppy power connectors - 1
guarantee - 24
guarantee_type - normal
Logistics data - Master (outer) case height - 250 mm
Logistics data - Master (outer) case length - 410 mm
Logistics data - Master (outer) case width - 500 mm
Logistics data - Products per master (outer) case - 10 pc(s)
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
Name - AEROCOOL AEROVX-550PLUS AEROCOOL VX-550
name - Power supply PGS VX 550W 80+ BOX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 1
Other features -
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express power cable length - 40 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - SATA power cable length - 150 mm
Ports & interfaces - SATA power cable length - 300 mm

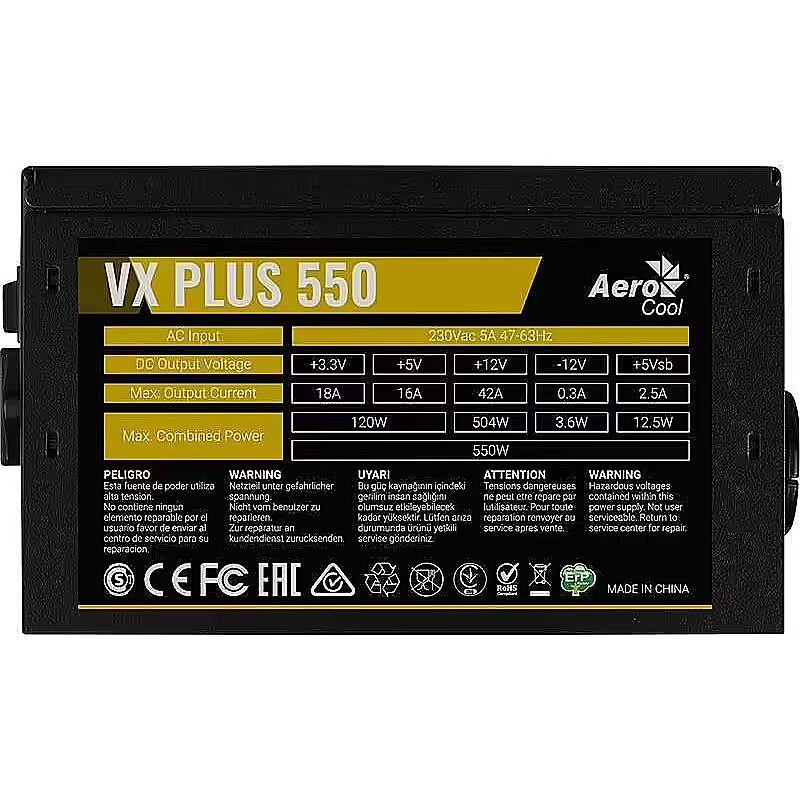

Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 504 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 5 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 16 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 42 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 550 W
Power supply - 550 W
producer - AeroCool
Producer - AeroCool
producerCode - AEROVX-550PLUS
ProducerCode - AEROVX-550PLUS
productName - Aerocool VX PLUS 550 power supply unit 550 W ATX Black
productSize - Normal
SATA power connectors - 3
ShortDescription - AEROCOOL AEROVX-550PLUS AEROCOOL VX-550, PLUS Zasilacz ATX 550W, 12cm wentylator, aktywne PFC
sizeX - 235
sizeY - 210
sizeZ - 160
vendpn - AEROVX-550PLUS
warrantyLength - 24
warrantyType - G
weight - 1302
