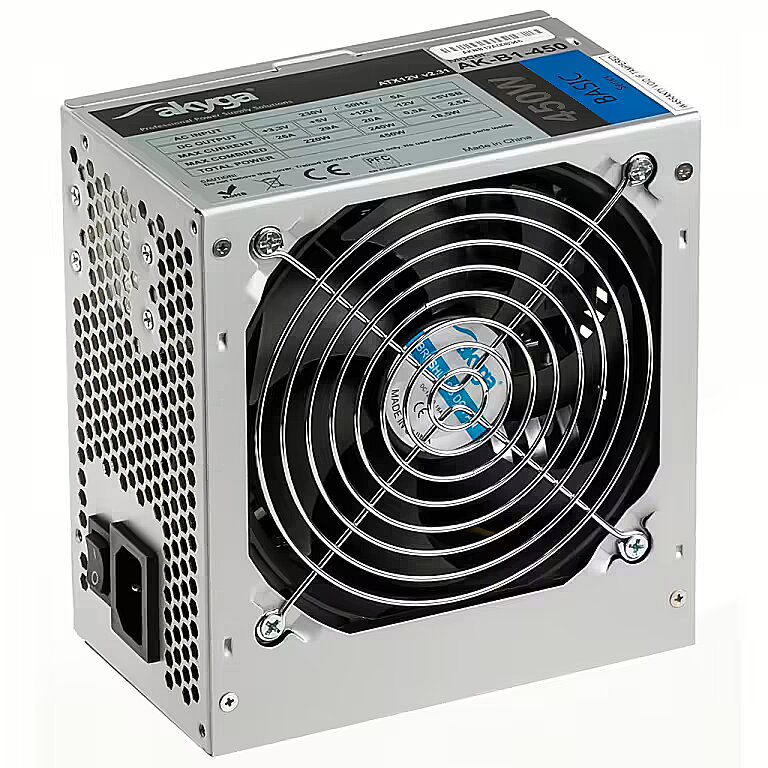

Akyga AK-B1-450, 450W

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 151137 Product code: AK-B1-450
Can be ordered 9 units Availability: 14 days after order approval
Warranty: 2 years
24.32 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Producer: Akyga
  • Power output: 450W
  • 80 PLUS certification: Nav
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 4-pin EPS
  • PCI-E: Nav
Description

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.

The color of the block is Sudraba. The block has flat cables, whose color is Raiba.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 450W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : Nav
Total amperage (+12V) : 20A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Silver
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 4-pin EPS
Motherboard power : 20+4pin
PCI-E : Nav
SATA cconnectors : 3
4pin Molex : 2
Case
More detailed specification
Category - Root/Electronics/PC parts/PC power supply units
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Grey
dimensionalWeight - 684
Eans - 5901720130327
Name - Akyga Basic AK-B1-450
Operational conditions - Operating temperature (T-T) - 5 - 50 °C
Packaging data - Package depth - 220 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.09 kg
Packaging data - Package width - 160 mm
Performance - ATX version - 2.31
Performance - Certification - CE, FCC, REACH, RoHS
Performance - Mean time between failures (MTBF) - 10000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 220 W
Power - Combined power (+5V) - 220 W
Power - Combined power (+12V) - 240 W
Power - Efficiency - 70%
Power - Max output current (+3.3V) - 26 A
Power - Max output current (+5V) - 29 A
Power - Max output current (+12V) - 20 A
Power - Power Factor Correction (PFC) type - Passive
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 450 W
Producer - Akyga
producerCode - AK-B1-450
ProducerCode - AK-B1-450
productName - Akyga AK-B1-450 power supply unit 450 W 20+4 pin ATX ATX Grey
productSize - Normal
ShortDescription - 450 | ATX | 120mm | 20 + 4 pin | 150mm x 85mm x 140mm | ROHS, CE, CE | standardowy |
sizeX - 225
sizeY - 95
sizeZ - 160
Technical details - Sustainability certificates - RoHS
warrantyLength - 24
warrantyType - G
weight - 1090
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 1.01 kg
Weight & dimensions - Width - 150 mm
