ID: 1042116
Product code: R-PXA00P-FC0B-EU
In office 3 units
Warranty: 3 years

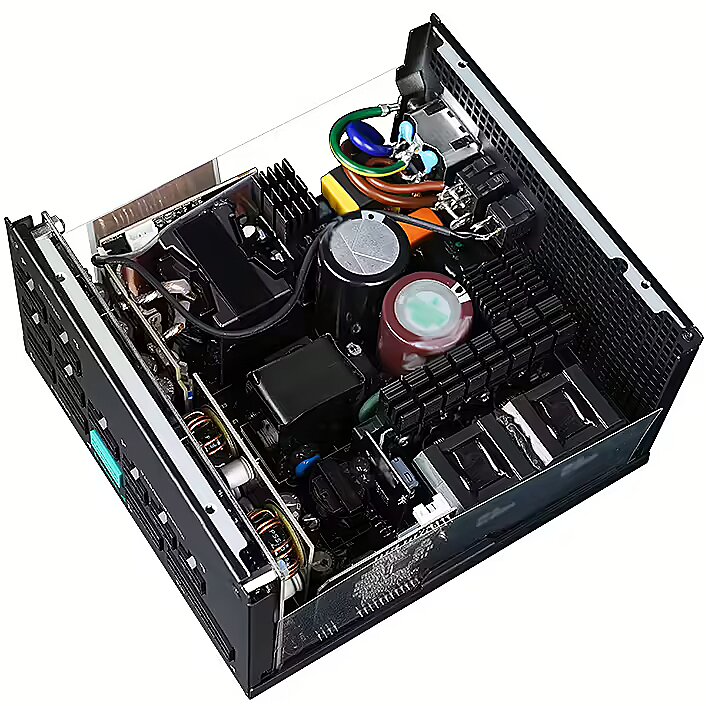

Deepcool PX1000P, 1000W, 80PLUS Platinum, PCI-E 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Monday, 25.11.2024
Main product parameters All parameters
- Producer: Deepcool
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Platinum
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 5 x 6+2pin
Description
Available for purchase is a power supply produced by Deepcool with a power output of 1000W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.
Even the best gaming computer will be able to operate safely with this 1000W power supply unit. The power will be sufficient for both a substantial water cooling system and multiple high-end graphics cards, an overclocked high-end processor, and several hard drives.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply unit has received the 80 PLUS Platinum energy efficiency certificate, which guarantees at least 92% efficiency at 50% load. This means that for every 100W of power the power supply unit receives from the electrical grid, at least 92W are delivered to your computer components, while the remaining 8W are lost as heat.
This power supply unit is equipped with a 1 x 600W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.
The color of this power supply is Melna,Sudraba. The cable color is Melna and they are flat.
This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.
This power supply unit's noise level is 30-35 dB, and it has a Cybenetics Standard ++ noise level certification.
This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.
The power supply manufacturer is Deepcool. All power supplies produced by Deepcool can be viewed here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Cybenetics Standard ++
Power supply type
: ATX
Power output
1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Platinum
Total amperage (+12V)
: 83.3A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna, Silver
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 5 x 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 4
More detailed specification
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies
Category_1 - Power
Category_2 - PSU - Accessories
Code - R-PXA00P-FC0B-EU
code - R-PXA00P-FC0B-EU
Desc - Jauda: 1000 W, Energoefektivitāte: 80 Plus Platinum, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 5 x 6 + 2 PIN, Garantija: 2 gadi
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2293
EAN - 6933412717195
ean - 6933412717195
EAN_code - 6933412717195
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_115283_1.jpg
LargeDescHTML -
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PX1000P-ATX-3.0-Platinum-Power-Supply/2023/17418.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PXA00P-FC0B-EU
Name - Barošanas bloks Deepcool PX1000P 1000W
Name - DeepCool PX-P 1000W Platinum, power supply (1000 watts)
name - DeepCool PX1000P Netzteil, 80 Plus Platinum, ATX 3.0, PCIe 5.0 - 1.000 Watt
Name - Deepcool | PSU | PX1000P | 1000 W
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 160.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 150.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 419 pc(s)
Package features > Paper/Pasteboard - 260.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Cables included - AC, PCIe, CPU, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - 2
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 65 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 5
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 650
Ports & interfaces - Peripheral (Molex) power cable length - 800
Ports & interfaces - Peripheral (Molex) power cable length - 950 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 500 mm
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 800
Ports & interfaces - SATA power cable length - 950 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 999.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Hold time - 16 ms
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - NLO
Power - Power protection features - OCP (overcurrent protection)
Power - Power protection features - OPP (overload protection)
Power - Power protection features - OTP (overheat protection)
Power - Power protection features - OVP (overvoltage protection)
Power - Power protection features - SCP (short circuit protection)
Power - Power protection features - SIP (surge and shock protection)
Power - Power protection features - UVP (undervoltage protection)
Power - Total power - 1000 W
Power > Nominal power - 1000 W
producerCode - R-PXA00P-FC0B-EU
Producer product family - PSU
Producer product name - PX1000P
productName - DeepCool PX1300P power supply unit 1000 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 360
sizeY - 245
sizeZ - 130
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - Deepcool
Warranty - 120
Warranty - 120 month(s)
warrantyLength - 144
warrantyType - G
Weight - 1
weight - 4100
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
