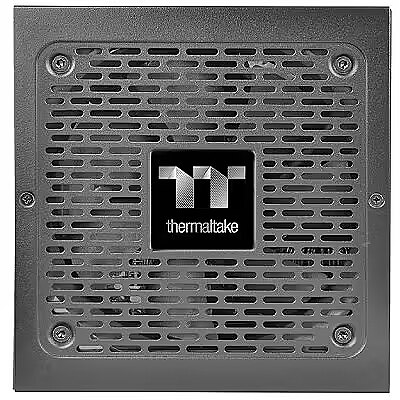

Thermaltake Smart BM3, 650W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 990884 Product code: PS-SPD-0650MNFABE-3
Can be ordered 23 units Availability: 14 days after order approval
Warranty: 3 years
87.96 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 650W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Semi-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

This Thermaltake brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 650W.

650W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.

This power supply unit is equipped with a 1 x 300W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.

The power supply unit's cables are partially modular. Some cables can be attached or removed as needed, while others are fixed. This unit is intended for those who want a certain level of flexibility but do not want a fully modular system.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 54.2A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Semi-Modular
Ports and equipment
PCI-E 5.0 : 1 x 300W 12VHPWR
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 3
4pin Molex : 7
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included - 150 x86 x 140 mm
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
Description - Power supply - Smart BM3 650W Modular 80+ Bronze 14cm DC-DC Gen5
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1419
dimension depth - 120 mm
dimension height - 270 mm
Dimensions -
dimension weight - 2528 g
dimension width - 220 mm
ean - 4713227539630
EAN - 4713227539630
Eans - 4713227539630
EAN_code - 4713227539630
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-SPD-0650MNFABE-3
MB power connector - 24 pin
Modular power supply - Semi
MOLEX power connectors - 7
MPN - PS-SPD-0650MNFABE-3
Name - 650W Thermaltake Smart BM3 | 80+ Bronze
name - Thermaltake Smart BM3 6 50W
Name - Thermaltake Smart BM3 650W
Name - Thermaltake SMART BM3 650W, PC power supply (black, 1x 12VHPWR, 4x PCIe, cable management, 650 watts)
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 5 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 55 °C
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.0
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Safety - CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC
PFC - Active
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 7
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 650 W
Power - Combined power (-12V) - 3.6 W
Power - Hold time - 17 ms
Power - Input current - 15 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54.2 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 650 W
producer - Thermaltake
Producer - Thermaltake
producerCode - PS-SPD-0650MNFABE-3
ProducerCode - PS-SPD-0650MNFABE-3
productName - Thermaltake Smart BM3 power supply unit 650 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 3
ShortDescription - 650 | ATX | 140mm | 20+4 | 86mm x 150mm x 140mm | modularny | 80+ Bronze EU | PCIe Gen 5.0
sizeX - 275
sizeY - 215
sizeZ - 120
vendpn - PS-SPD-0650MNFABE-3
warrantyLength - 60
warrantyType - G
Weight - 2,54
Weight - 2.52
weight - 2530
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
