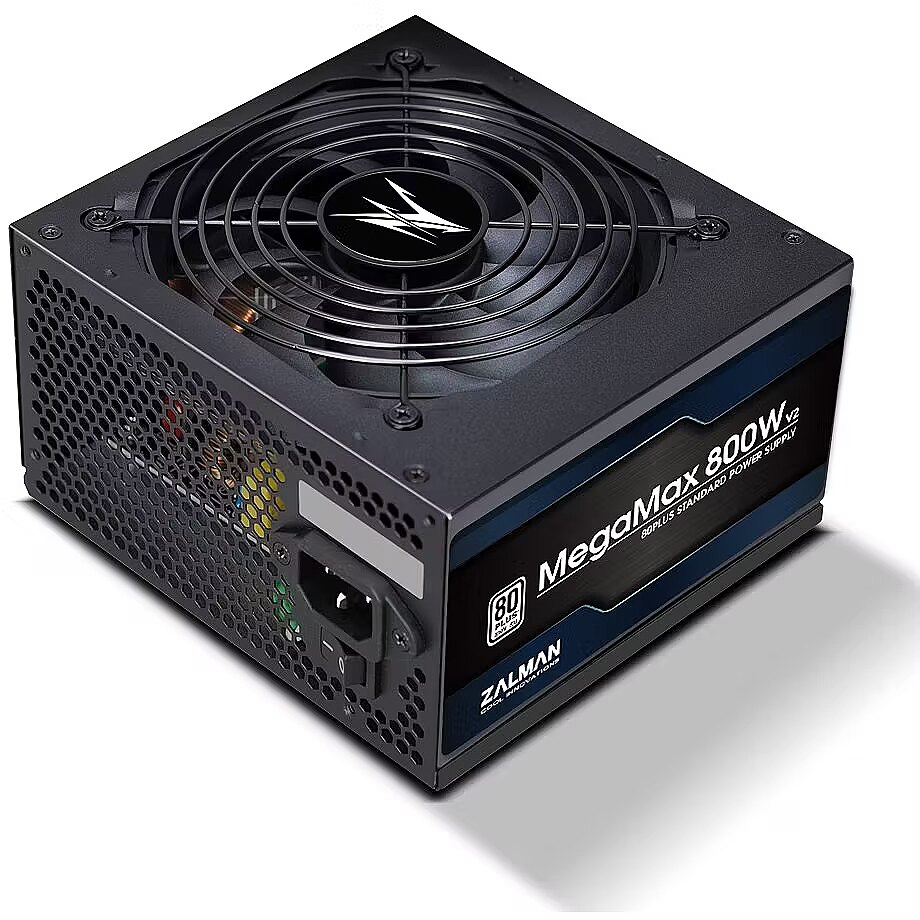

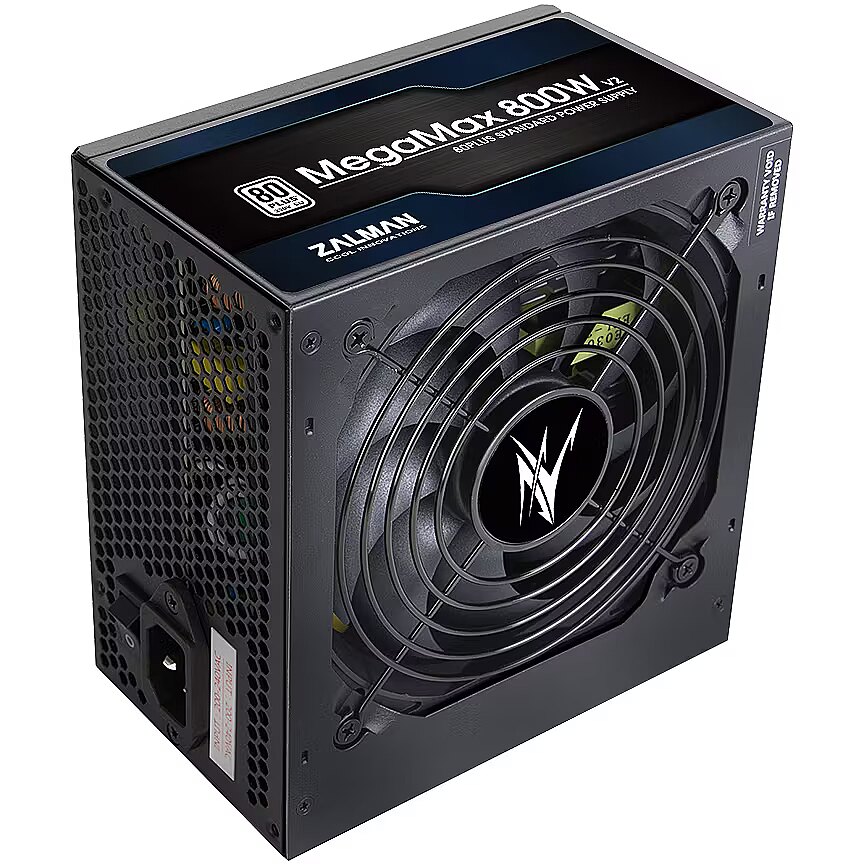

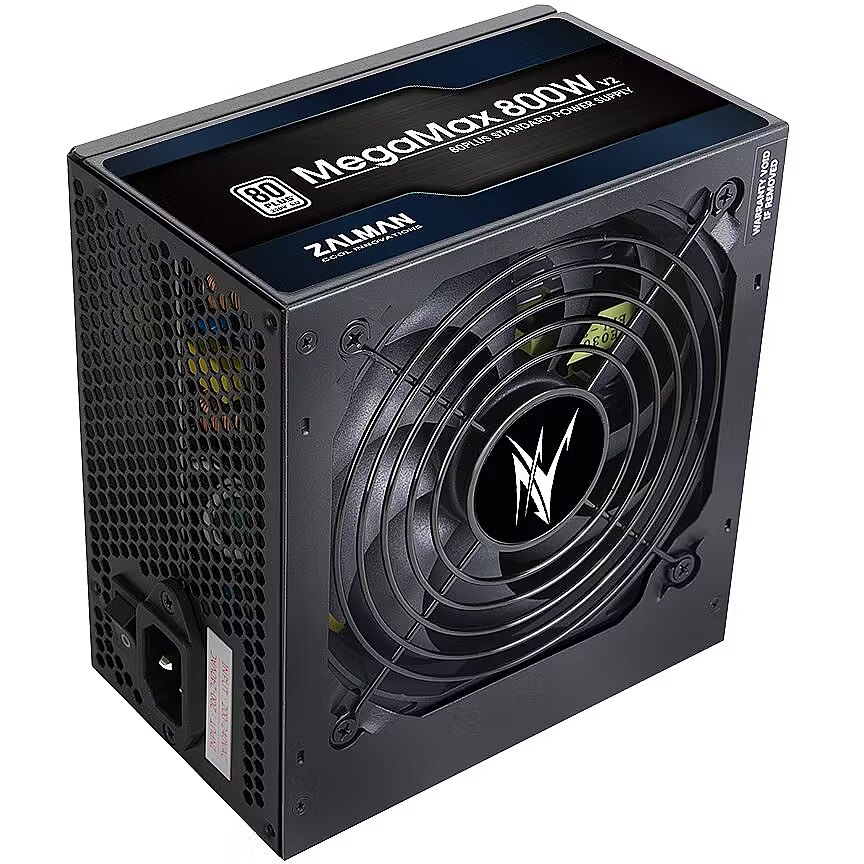

Zalman MegaMax, 800W, 80PLUS

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 988293 Product code: ZM800-TXII
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
70.65 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Producer: Zalman
  • Power output: 800W
  • 80 PLUS certification: 80 PLUS (White)
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

Available for purchase is a power supply produced by Zalman with a power output of 800W. The product has been awarded an 80 PLUS (White) energy efficiency certificate.

800W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply has been awarded the 80 PLUS (White) energy efficiency certificate, which ensures at least 80% efficiency. This indicates that at least 80 W out of 100 W of power received from the mains by the power supply is delivered to the computer components, with the remaining 20 W being lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 800W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS (White)
Total amperage (+12V) : 60A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Brand - Zalman
BrandPartCode - ZM800-TXII
Category - Power Supply Units
Certificates 80+ - 80 PLUS
Description -
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Product colour - Black
dimension depth - 185 mm
dimension height - 280 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 2040 g
dimension width - 100 mm
ean - 8809213762727
Fan - 12 cm
Fan speed (max) - 2500 rpm
Floppy power connectors - 1
GTIN - 8809213762727
guarantee - 36
guarantee_type - normal
LongDesc - Zalman ZM800-TXII MegaMax, 80PLUS 230V80PLUS 230V EU standard certifiedThe MegaMax guarantees stable performance and efficiency certified 80 PLUS Standard.Active PFC with up to 98% maximum power factorBy applying an active PFC (Power Factor Correction) circuit that maximizes energy efficiency, it provides electromagnetic wave reduction and energy efficiency, while preventing reverse current.HDB (Hydro-Dynamic Bearing) Powerful and safe HDB bearingQuiet and smooth operation with HDB bearings. Durability is improved and life expectancy is extended. It reduces noise and minimizes heat generation.120mm cooling fan for quiet and powerful cooling performance120mm Low-Noise Fan delivers a powerful spin even at low rpm to quickly remove heat from the power supply for optimum cooling performance.High-quality, performance-oriented parts used to be durable and reliableIt provides a smooth power supply to the PC and reduces unnecessary power consumption by using quality parts that are durable and reliable.SpecificationsModel: ZM800-TXIIEfficiency: Max 85% @ 230VAC, typical loadDimensions: 140 (L) x 150 (W) x 86 (H) mmMTBF: 100,000 hoursWeight: 1.85 kgOperating temperature: 10 ∼ 45 °CPFC: Active PFCRegulation: KC, CE, CB, RoHS, EACType: Intel ATX 12V Ver2.31Protection: OPP / OVP / UVP / SCPInput voltage: 220-240VACInput Current: 7AInput Frequency: 50-60HzFan Size: 120mmFan Bearing: Hydraulic Dynamic BearingRated Speed: 2500RPMCables (connector): Motherboard 20 + 4 pin (1), CPU 4 + 4 pin (1), CPU 8 pin (1), PCI-E 6 + 2 pin (4), S-ATA (8), IDE ( 4), FDD (1)
LongProductName - Zalman ZM800-TXII MegaMax, 80PLUS 230V EU STANDARD Certified high efficiency / PCI-E Connectors support up to dual CrossFire & SLI / Compliance with Intel ATX12V Ver2.31 standards. / Interleaved Active PFC
LongSummaryDescription - Zalman ZM800-TXII MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E. Total power: 800 W, AC input voltage: 220 - 240 V, AC input frequency: 50 - 60 Hz. Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 4
name - Power supply MegaMax 800W V2 80+ STD EU ZM700-TXII
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating temperature (T-T) - 10 - 45 °C
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 1
Performance - 80 PLUS certification - 80 PLUS
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 220 - 240 V
Power - Input current - 7 A
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 800 W
Power supply - 800 W
producer - Zalman
ProductName - ZM800-TXII MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E
SATA power connectors - 8
ShortSummaryDescription - Zalman ZM800-TXII MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E, 800 W, 220 - 240 V, 50 - 60 Hz, 7 A, Active, Non-Modular
Title - Zalman ZM800-TXII MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E power supply unit 800 W ATX Black
URL -
vendpn - ZM800-TXII
WarrantyInfo -
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.85 kg
Weight & dimensions - Width - 150 mm
