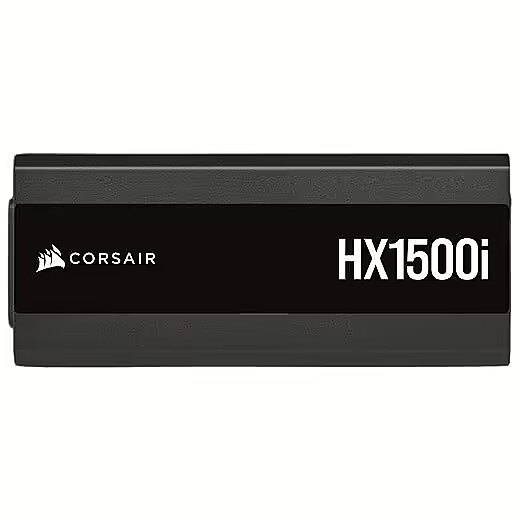

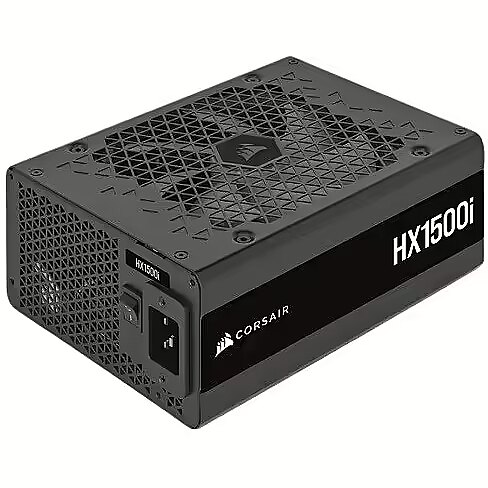

Corsair HX1500i (2023), 1500W, 80PLUS Platinum

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 983516 Product code: CP-9020261-EU
Can be ordered 5 units Availability: 14 days after order approval
Warranty: 2 years
343.54 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: Corsair
  • Power output: 1500W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 7 x 6+2pin
Description

This Corsair brand power supply unit has an 80 PLUS Platinum energy efficiency certificate and a power output of 1500W.

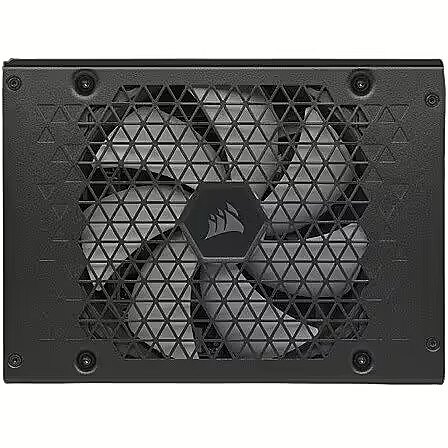

This power supply unit is equipped with a 140 mm fan. It will be significantly quieter than a regular 120 mm fan and will provide adequate cooling at lower speeds, thanks to the massive blade size.

The power supply unit has received the 80 PLUS Platinum energy efficiency certificate, which guarantees at least 92% efficiency at 50% load. This means that for every 100W of power the power supply unit receives from the electrical grid, at least 92W are delivered to your computer components, while the remaining 8W are lost as heat.

1 x 600W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

The power supply has a Cybenetics A - noise level certificate, which means that its noise level is 25-30 dB.

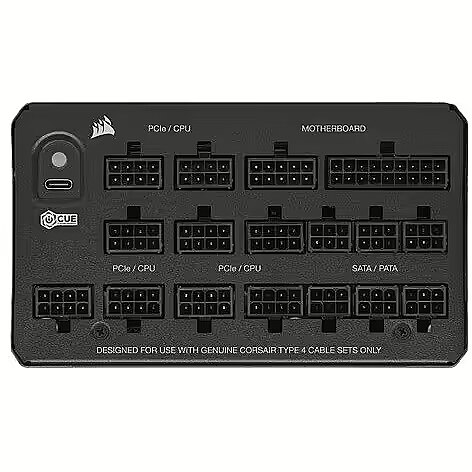

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A -
Power supply type : ATX
Power output 1500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 125A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : 1 x 600W 12VHPWR
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 7 x 6+2pin
SATA cconnectors : Eight Core
4pin Molex : Eight Core
Case
More detailed specification
Accessories included -
category - PC Components|Power Supplies|PCIe 5.0
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
code - CP-9020261-EU
Description - Fully modular, ultra-quiet Platinum-class ATX power supply HX1500i 1500 W (EU) Fully modular, ultra-quiet CORSAIR HXi Series power supplies with three EPS12V connectors are built with the best components and therefore operate with 80 PLUS Platinum class efficiency. EFFICIENCY AND VERSATILE CONNECTIVITY Equipped with three EPS12V connectors and fully modular cabling, the HXi Series power supplies have all the connectivity needed for today's and tomorrow's maximally upgraded computers with demanding graphics cards and processors. QUIET OPERATION The HXi series power supplies have a 140 mm fan with a dynamic oil bearing and Zero RPM mode. This ensures long-lasting and quiet operation of the fan, which switches off at low and medium loads and spins as fast as needed. POWER SUPPLY STABILITY AND RELIABILITY HXi power supplies with 80 PLUS Platinum certification and exclusively high-grade Japanese electrolytic capacitors operating at temperatures up to 105°C stand out with up to 92% efficiency, which means long-term reliability, lower power consumption, quieter operation and lower temperatures. POWER ON DEMAND As fully digital power supplies, all models in the HXi series deliver clean power with consistent performance while minimising coil squeal and noise. In this way, they ensure stable and quiet computer operation. The HXi series power supplies support a paused state with connection retention, so they offer a new level of efficiency at low loads run quietly and come out of sleep mode in no time. YOUR ARSENAL UNDER YOUR COMMAND Using the CORSAIR iCUE software, you can monitor the PSU's performance, switch between single and multi-rail modes, and control the fan speed directly from your desktop.
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2235
dimension depth - 130 mm
dimension height - 340 mm
Dimensions -
dimension weight - 4465 g
dimension width - 235 mm
ean - 0840006697442
ean - 840006697442
EAN_code - 0840006697442
Fan - 14 cm
guarantee - 120
guarantee_type - normal
Manufacturer - Corsair
Manufacturer_code - CP-9020261-EU
Modular power supply - Yes
Name - Corsair HX1000i 1500W, PC power supply (black, cable management, 1500 watts)
name - Corsair HXi Series (2023) HX1500i Netzteil 80 PLUS Platinum, modular - 1500 Watt, schwarz
name - Power supply HX1500I 1500W PLATINUM ATX 3.0
Other features -
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 7
Ports & interfaces - Peripheral (Molex) power cable length - 750 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 8
Ports & interfaces - SATA power cable length - 800
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 17.5 W
Power - Combined power (+12V) - 1500 W
Power - Efficiency - 92%
Power - Input current - 10 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3.5 A
Power - Max output current (+12V) - 125 A
Power - Total power - 1500 W
Power supply - 1500 W
producer - Corsair
producerCode - CP-9020261-EU
productName - Corsair HX1500i power supply unit 1500 W 24-pin ATX ATX Black
productSize - Normal
sizeX - 345
sizeY - 240
sizeZ - 135
vendpn - CP-9020261-EU
warrantyLength - 24
warrantyType - G
Weight - 2,40
weight - 4545
