ID: 978276
Product code: BN340
In stock 13 units / In office 1 units
Warranty: 2 years

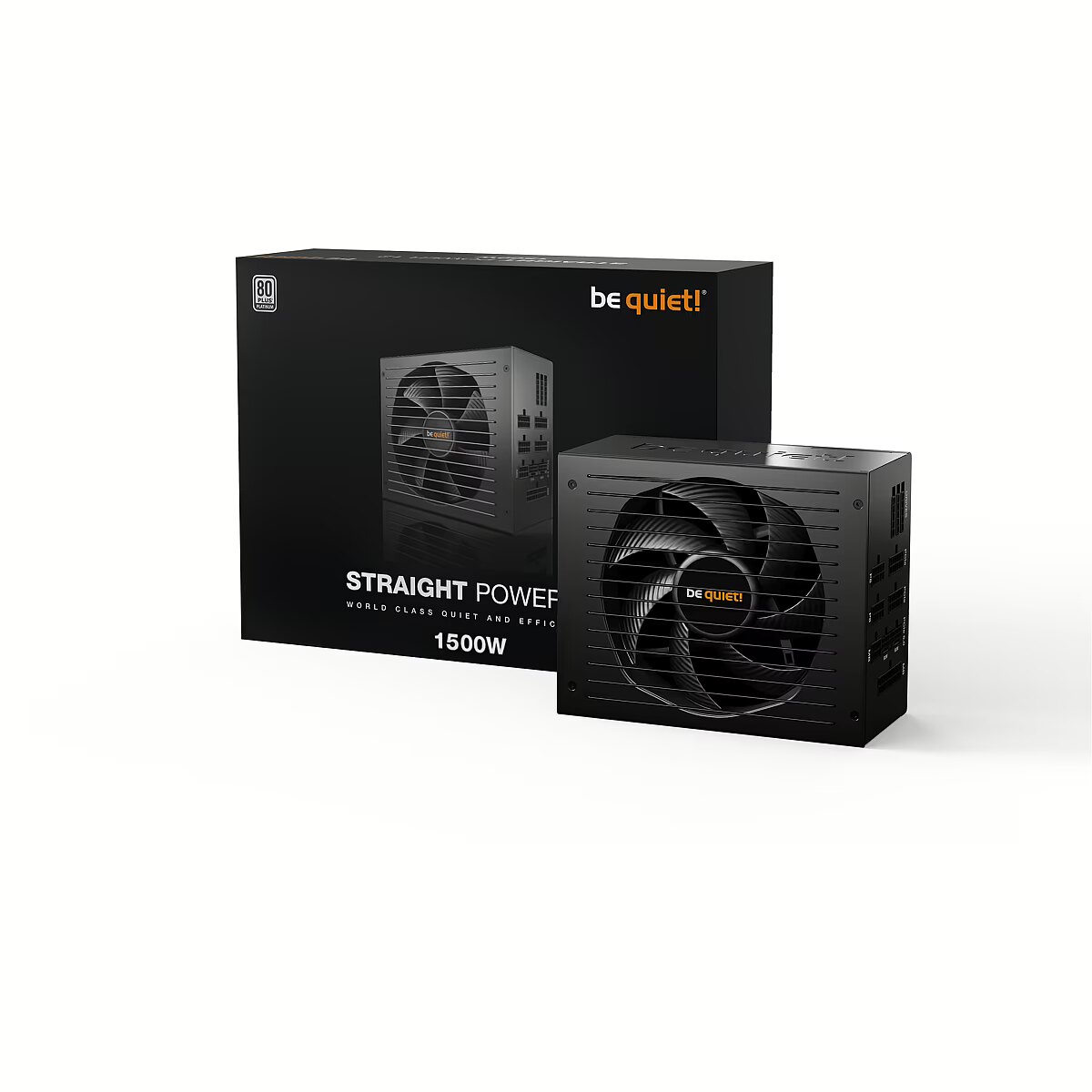

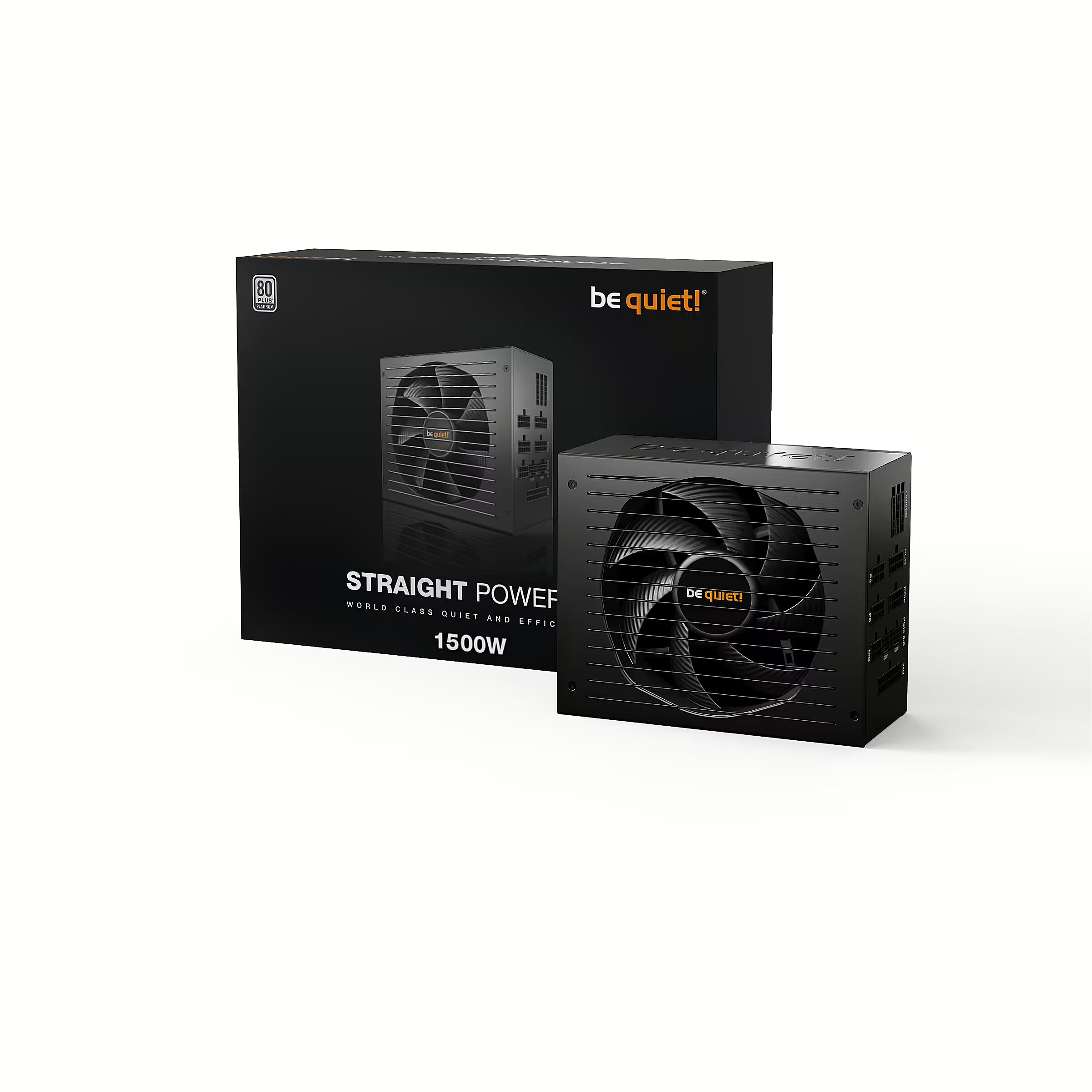

Be Quiet Straight Power 12, 1500W, ATX 3.0, 80PLUS Platinum, PCIe 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 1500W
- 80 PLUS certification: 80 PLUS Platinum
- Fan size: 135 mm

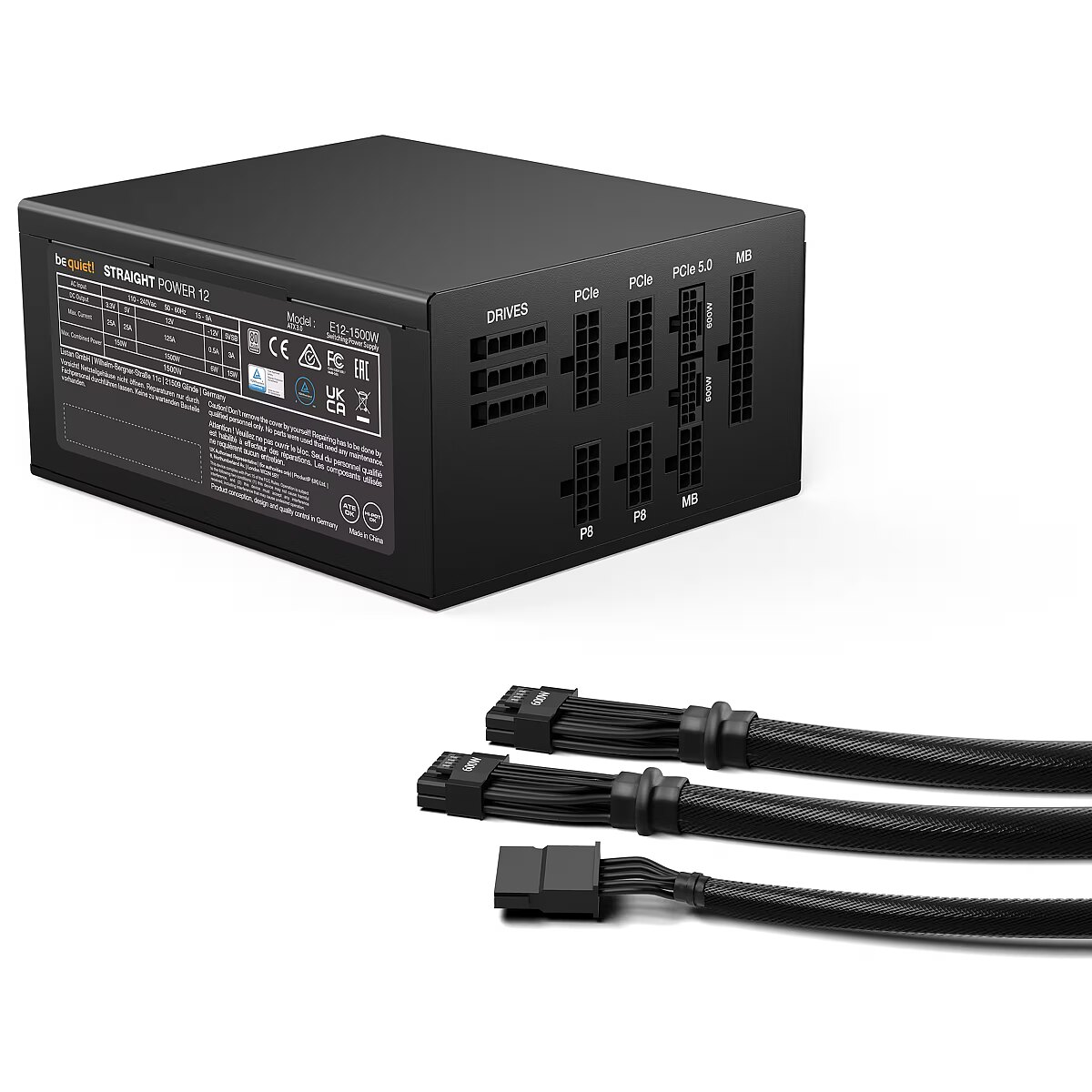

- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
We offer to purchase a Be Quiet power supply unit with a power capacity of 1500W, which has received the 80 PLUS Platinum energy efficiency certification.

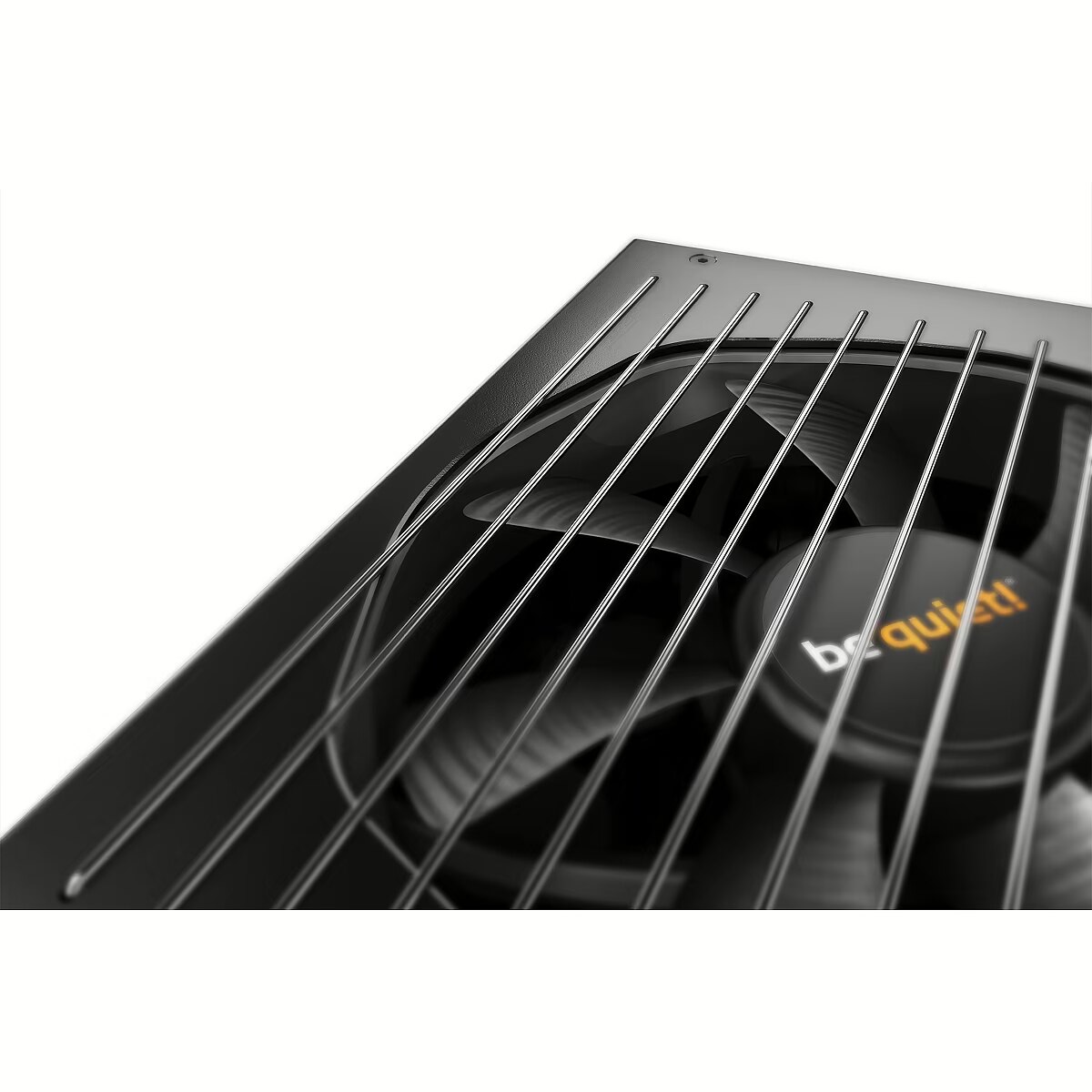

This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.
The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.
This power supply unit is equipped with a 2 x 600W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.

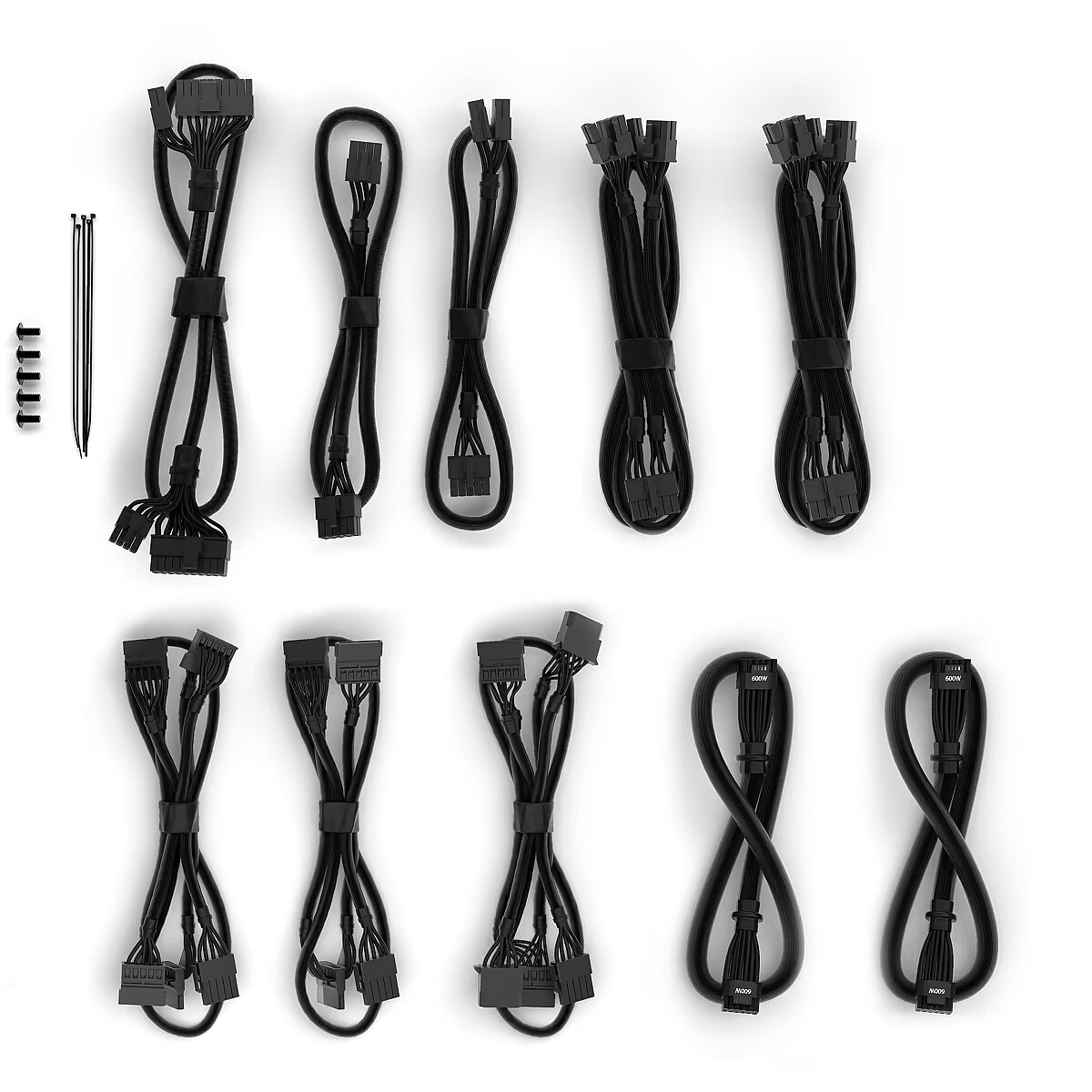

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
This power supply has been manufactured by Be Quiet. You can view all Be Quiet power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Platinum
Total amperage (+12V)
: 125A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 2 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 9
4pin Molex
: 2
More detailed specification
8-pin 12V power connectors - 1
Accessories included -
Brand - be quiet!
BrandPartCode - BN340
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
code - BN340
Colour - Black
Cooling System - 13.5cm fan
Description - Straight Power 12 1500W Platinum ATX3.0 Power Supply Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS Platinum certification and virtually inaudible operation. 80 PLUS Platinum efficiency (up to 93.8%) ATX 3.0 power supply with full support of PCIe 5.0 and graphics cards with 6+2 pin connectors Supports huge power surges Practically inaudible Silent Wings 135 mm fan Funnel-shaped air intake for maximum airflow Full LLC bridge technology for unmatched signal stability One massive, high-performance 12V line Japanese 105°C capacitors for ultimate stability and reliability Modular cable management for maximum convenience 10-year manufacturer's warranty
Description - STRAIGHT POWER 12 1500W World Class Quiet and Efficiency Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation. - 80 PLUS Platinum efficiency (up to 93.9%) - ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors - Handles massive power excursions - Virtually inaudible Silent Wings 135mm fan - Funnel-shaped fan opening on PSU case for high airflow intake - Full bridge LLC technology for unmatched signal stability - One massive high-performance 12V-rail - Japanese 105°C capacitors ensure highest stability and reliability - Modular cable management for maximum convenience - 10-year manufacturer’s warranty
Design - Built-in display - No
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan speed - 0 - 2600 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1650
dimension depth - 105 mm
dimension height - 250 mm
Dimensions - 160 x 150 x 86 mm
Dimensions - 180 x 150 x 86 mm
dimension weight - 4160 g
dimension width - 330 mm
ean - 4260052189450
EAN - 4260052189450
Eans - 4260052189450
EAN_code - 4260052189450
Efficiency - 80 PLUS PLATINIUM
Fan - 13.5 cm
Floppy power connectors - 0
Full Description Line - STRAIGHT POWER 12 1500W|ATX 3.0|1500 Watts|Cooling System 13.5cm fan|80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|Colour Black
Gross Weight Kg - 3,97
GTIN - 4260052189450
guarantee - 120
guarantee_type - normal
Logistics data - Products per shipping (inner) case - 4 pc(s)
Logistics data - Shipping (inner) case height - 34.6 cm
Logistics data - Shipping (inner) case length - 44.7 cm
Logistics data - Shipping (inner) case net weight - 17.3 kg
Logistics data - Shipping (inner) case width - 28.2 cm
LongDesc - World Class Quiet and EfficiencyStraight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.80 PLUS® PLATINUM CERTIFIEDHighly efficient operationStraight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.FUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.0 specificationsStraight Power 12 1500W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsStraight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.SILENT WINGS FANProvides virtually inaudible operationThe high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimalpower consumption.FLAWLESS COOLING CONCEPTFor a longer lifespanThe funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.STATE-OF-THE-ART TECHNOLOGIESRock-steady signal stability and efficiencyWith full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation. JAPANESE 105°C CAPACITORSA testament to high qualityOnly premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.CONVENIENCE AND CONNECTIVITYMaximum utilityModular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
LongProductName - 80 PLUS Platinum, 1500W, 135 mm, 180 x 150 x 86 mm
LongSummaryDescription - be quiet! BN340. Total power: 1500 W, AC input voltage: 110 - 240 V, Peak power: 1570 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, SATA
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer Code - BN340
Manufacturer Name - be quiet
Manufacturer_code - BN340
MB power connector - 20 + 4 pin
Model - BN340
Model name - STRAIGHT POWER 12 1500W
Modular power supply - Yes
MOLEX power connectors - 2
MPN - BN340
MTBF - 100000 hours
Name - 1500W be quiet! Straight Power 12 | 80+Platinum
Name - be quiet! Straight Power 12 1500W
name - be quiet! Straight Power 12 Netzteil 80 PLUS Platinum, ATX 3.0, PCIe 5.0 - 1500 Watt
Name - be quiet! Straight Power 12 Platinum 1500W ATX3.0, PC power supply (black, 2x 12VHPWR, 4x PCIe, cable management, 1500 watts)
name - Power supply Straight Power 12 1500W Platinum ATX3.0
Number of power connectors 12VHPWR - 2
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Packaging content - Cables included - CPU, SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.97 kg
Packaging data - Package width - 248 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 36.4 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX, micro ATX, Mini-ATX
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Floppy disk drive connector - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power cable length - 1000
Ports & interfaces - Peripheral (Molex) power cable length - 1000,850 mm
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 550,700,850,1000 mm
Ports & interfaces - SATA power cable length - 700 mm
Ports & interfaces - SATA power cable length - 850
Ports & interfaces - SATA power cable length - 1000 mm
Power - AC input frequency - 50 - 63 Hz
Power - AC input voltage - 110 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+12V) - 1500 W
Power - Efficiency - 91.9%
Power - Hold time - 20.6 ms
Power - Input current - 15/9 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 125 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 1570 W
Power - Power factor - 0.99
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1500 W
Power supply - 1500 W
producer - Be quiet!
Producer - be quiet!
producerCode - BN340
ProducerCode - BN340
productName - be quiet! BN340 power supply unit 1500 W 20+4 pin ATX ATX Black
ProductName - BN340
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 1500 Watts
PSU Peak Output Power - 1570 Watts
SATA power connectors - 9
Shipping Box Depth Shipping/Package Box Dimensions - 45 cm
Shipping Box Height Shipping/Package Box Dimensions - 35 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 17.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
ShortDescription - 1500 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 170mm | 80 PLUS Platinum
Short description - Netzteil ATX 3.0 be quiet! STRAIGHT POWER 12 1500W BN340
ShortSummaryDescription - be quiet! BN340, 1500 W, 110 - 240 V, 1570 W, 50 - 63 Hz, 15/9 A, 150 W
sizeX - 330
sizeY - 250
sizeZ - 100
Technical details - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Federal Communications Commission (FCC)
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability certificates - Triman
Technical details - Sustainability certificates - UKCA
Technical details - Sustainability certificates - WEEE
Technical details - Sustainability compliance - Yes
Technical details - Warranty period - 10 year(s)
Title - be quiet! BN340 power supply unit 1500 W 20+4 pin ATX ATX Black
Unit Box Height - 0.25
Unit Box Length - 0.33
Unit Box Width - 0.1
Unit Brutto Volume - 0.01142 cubm
Unit Gross Weight - 4.38 kg
Unit Net Weight - 2.12 kg
URL - https://www.bequiet.com/en/powersupply/4106
Vendor Homepage - www.bequiet.com/en/powersupply/4107
vendpn - BN340
Warranty - 24 months
WarrantyInfo - 10 years
warrantyLength - 120
warrantyType - G
Weight - 3,97
Weight - 4.14
weight - 4150
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.12 kg
Weight & dimensions - Width - 150 mm
Accessories included -
Brand - be quiet!
BrandPartCode - BN340
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
code - BN340
Colour - Black
Cooling System - 13.5cm fan
Description - Straight Power 12 1500W Platinum ATX3.0 Power Supply Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS Platinum certification and virtually inaudible operation. 80 PLUS Platinum efficiency (up to 93.8%) ATX 3.0 power supply with full support of PCIe 5.0 and graphics cards with 6+2 pin connectors Supports huge power surges Practically inaudible Silent Wings 135 mm fan Funnel-shaped air intake for maximum airflow Full LLC bridge technology for unmatched signal stability One massive, high-performance 12V line Japanese 105°C capacitors for ultimate stability and reliability Modular cable management for maximum convenience 10-year manufacturer's warranty
Description - STRAIGHT POWER 12 1500W World Class Quiet and Efficiency Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation. - 80 PLUS Platinum efficiency (up to 93.9%) - ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors - Handles massive power excursions - Virtually inaudible Silent Wings 135mm fan - Funnel-shaped fan opening on PSU case for high airflow intake - Full bridge LLC technology for unmatched signal stability - One massive high-performance 12V-rail - Japanese 105°C capacitors ensure highest stability and reliability - Modular cable management for maximum convenience - 10-year manufacturer’s warranty
Design - Built-in display - No
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan speed - 0 - 2600 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1650
dimension depth - 105 mm
dimension height - 250 mm
Dimensions - 160 x 150 x 86 mm
Dimensions - 180 x 150 x 86 mm
dimension weight - 4160 g
dimension width - 330 mm
ean - 4260052189450
EAN - 4260052189450
Eans - 4260052189450
EAN_code - 4260052189450
Efficiency - 80 PLUS PLATINIUM
Fan - 13.5 cm
Floppy power connectors - 0
Full Description Line - STRAIGHT POWER 12 1500W|ATX 3.0|1500 Watts|Cooling System 13.5cm fan|80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|Colour Black
Gross Weight Kg - 3,97
GTIN - 4260052189450
guarantee - 120
guarantee_type - normal
Logistics data - Products per shipping (inner) case - 4 pc(s)
Logistics data - Shipping (inner) case height - 34.6 cm
Logistics data - Shipping (inner) case length - 44.7 cm
Logistics data - Shipping (inner) case net weight - 17.3 kg
Logistics data - Shipping (inner) case width - 28.2 cm
LongDesc - World Class Quiet and EfficiencyStraight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.80 PLUS® PLATINUM CERTIFIEDHighly efficient operationStraight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.FUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.0 specificationsStraight Power 12 1500W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsStraight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.SILENT WINGS FANProvides virtually inaudible operationThe high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimalpower consumption.FLAWLESS COOLING CONCEPTFor a longer lifespanThe funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.STATE-OF-THE-ART TECHNOLOGIESRock-steady signal stability and efficiencyWith full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation. JAPANESE 105°C CAPACITORSA testament to high qualityOnly premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.CONVENIENCE AND CONNECTIVITYMaximum utilityModular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
LongProductName - 80 PLUS Platinum, 1500W, 135 mm, 180 x 150 x 86 mm
LongSummaryDescription - be quiet! BN340. Total power: 1500 W, AC input voltage: 110 - 240 V, Peak power: 1570 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, SATA
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer Code - BN340
Manufacturer Name - be quiet
Manufacturer_code - BN340
MB power connector - 20 + 4 pin
Model - BN340
Model name - STRAIGHT POWER 12 1500W
Modular power supply - Yes
MOLEX power connectors - 2
MPN - BN340
MTBF - 100000 hours
Name - 1500W be quiet! Straight Power 12 | 80+Platinum
Name - be quiet! Straight Power 12 1500W
name - be quiet! Straight Power 12 Netzteil 80 PLUS Platinum, ATX 3.0, PCIe 5.0 - 1500 Watt
Name - be quiet! Straight Power 12 Platinum 1500W ATX3.0, PC power supply (black, 2x 12VHPWR, 4x PCIe, cable management, 1500 watts)
name - Power supply Straight Power 12 1500W Platinum ATX3.0
Number of power connectors 12VHPWR - 2
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Packaging content - Cables included - CPU, SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.97 kg
Packaging data - Package width - 248 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 36.4 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX, micro ATX, Mini-ATX
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Floppy disk drive connector - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power cable length - 1000
Ports & interfaces - Peripheral (Molex) power cable length - 1000,850 mm
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 550,700,850,1000 mm
Ports & interfaces - SATA power cable length - 700 mm
Ports & interfaces - SATA power cable length - 850
Ports & interfaces - SATA power cable length - 1000 mm
Power - AC input frequency - 50 - 63 Hz
Power - AC input voltage - 110 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+12V) - 1500 W
Power - Efficiency - 91.9%
Power - Hold time - 20.6 ms
Power - Input current - 15/9 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 125 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 1570 W
Power - Power factor - 0.99
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1500 W
Power supply - 1500 W
producer - Be quiet!
Producer - be quiet!
producerCode - BN340
ProducerCode - BN340
productName - be quiet! BN340 power supply unit 1500 W 20+4 pin ATX ATX Black
ProductName - BN340
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 1500 Watts
PSU Peak Output Power - 1570 Watts
SATA power connectors - 9
Shipping Box Depth Shipping/Package Box Dimensions - 45 cm
Shipping Box Height Shipping/Package Box Dimensions - 35 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 17.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
ShortDescription - 1500 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 170mm | 80 PLUS Platinum
Short description - Netzteil ATX 3.0 be quiet! STRAIGHT POWER 12 1500W BN340
ShortSummaryDescription - be quiet! BN340, 1500 W, 110 - 240 V, 1570 W, 50 - 63 Hz, 15/9 A, 150 W
sizeX - 330
sizeY - 250
sizeZ - 100
Technical details - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Federal Communications Commission (FCC)
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability certificates - Triman
Technical details - Sustainability certificates - UKCA
Technical details - Sustainability certificates - WEEE
Technical details - Sustainability compliance - Yes
Technical details - Warranty period - 10 year(s)
Title - be quiet! BN340 power supply unit 1500 W 20+4 pin ATX ATX Black
Unit Box Height - 0.25
Unit Box Length - 0.33
Unit Box Width - 0.1
Unit Brutto Volume - 0.01142 cubm
Unit Gross Weight - 4.38 kg
Unit Net Weight - 2.12 kg
URL - https://www.bequiet.com/en/powersupply/4106
Vendor Homepage - www.bequiet.com/en/powersupply/4107
vendpn - BN340
Warranty - 24 months
WarrantyInfo - 10 years
warrantyLength - 120
warrantyType - G
Weight - 3,97
Weight - 4.14
weight - 4150
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.12 kg
Weight & dimensions - Width - 150 mm
