ID: 973801
Product code: BN346
In stock 12 units
Warranty: 2 years

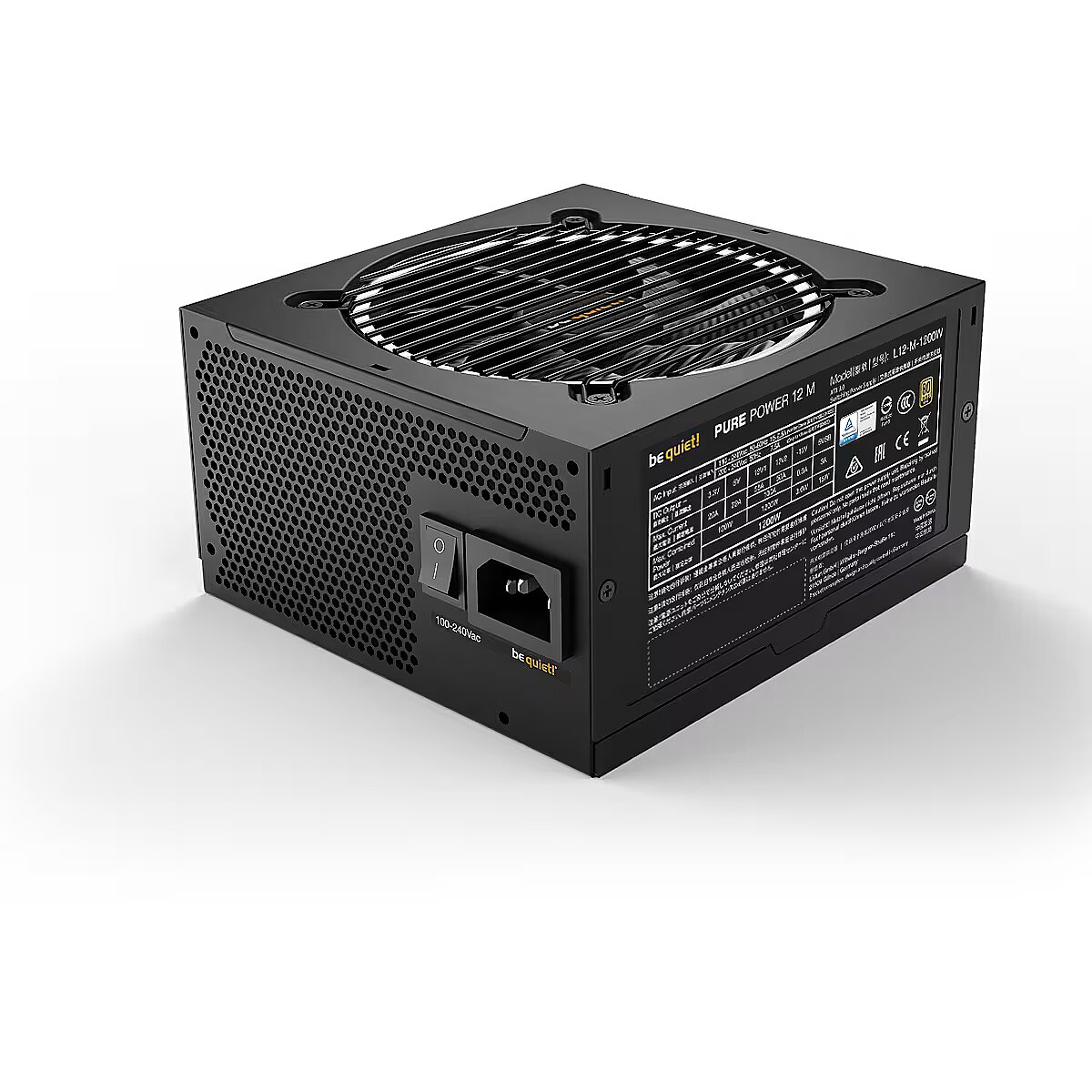

Be Quiet Pure Power 12 M, 1200W, ATX 3.0, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 1200W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Be Quiet brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 1200W.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
This power supply manufacturer is Be Quiet. See all Be Quiet power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1200W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 105A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 2
More detailed specification
Brand - be quiet!
BrandPartCode - BN346
Category - Power Supply Units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Colour - Black
Cooling System - 12cm fan
Description - PURE POWER 12 M 1200W Exceptional quiet, superior features Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1200W offers the best combination of features with outstanding compatibility. 80 PLUS® Gold efficiency (up to 93.7%) ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors Exceptionally silent 120mm be quiet! fan Advanced stability and voltage regulation thanks to LLC technology 2 strong 12V-rails Modular cables for maximum build flexibility One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 0 - 2700 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1339
Dimensions - 160 x 150 x 86mm
EAN - 4260052190166
EAN_code - 4260052190166
Efficiency - 80 PLUS GOLD
Full Description Line - Pure Power 12 M 1200W|ATX 3.0|1200 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 4260052190166
Logistics data - Products per shipping (inner) case - 4 pc(s)
Logistics data - Shipping (inner) case height - 24.3 cm
Logistics data - Shipping (inner) case length - 29.8 cm
Logistics data - Shipping (inner) case net weight - 12.7 kg
Logistics data - Shipping (inner) case width - 42.6 cm
LongDesc - EXCEPTIONAL QUIET, SUPERIOR FEATURESPure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.0 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class.
LongProductName - 1200W, 100-240V 50/60Hz 15A, 80+ Gold, 120mm fan, 160x150x86mm, 1.92kg
LongSummaryDescription - be quiet! PURE POWER 12 M | 1200W. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1250 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PATA, PCIe, SATA
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN346
Model - BN346
Model name - Pure Power 12 M 1200W
MPN - BN346
MTBF - 100000 hours
Name - 1200W be quiet! PURE Power 12 M | 80+ Gold ATX 3.0
Name - be quiet! Pure Power 12M 1200W, PC power supply (black, 5x PCIe, cable management, 1200 watts)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Cables included - AC, CPU, PATA, PCIe, SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 284 mm
Packaging data - Package height - 100 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.19 kg
Packaging data - Package width - 220 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 34.3 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 800
Ports & interfaces - Peripheral (Molex) power cable length - 800,950 mm
Ports & interfaces - Peripheral (Molex) power cable length - 950 mm
Ports & interfaces - SATA power cable length - 500 mm
Ports & interfaces - SATA power cable length - 500,650,800,950 mm
Ports & interfaces - SATA power cable length - 650 mm
Ports & interfaces - SATA power cable length - 800
Ports & interfaces - SATA power cable length - 950 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+12V) - 1200 W
Power - Efficiency - 91.5%
Power - Hold time - 19 ms
Power - Input current - 15 - 7.5 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+12V1) - 55 A
Power - Max output current (+12V2) - 50 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 1250 W
Power - Power factor - 0.98
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under power
Power - Power protection features - Under voltage
Power - Total power - 1200 W
producerCode - BN346
productName - be quiet! PURE POWER 12 M | 1200W power supply unit 20+4 pin ATX ATX Black
ProductName - PURE POWER 12 M | 1200W
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 1200 Watts
PSU Peak Output Power - 1250 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 43 cm
Shipping Box Height Shipping/Package Box Dimensions - 25 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 13.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortSummaryDescription - be quiet! PURE POWER 12 M | 1200W, 1200 W, 100 - 240 V, 1250 W, 50/60 Hz, 15 - 7.5 A, 120 W
sizeX - 220
sizeY - 290
sizeZ - 105
Technical details - Compliance certificates - BSMI
Technical details - Compliance certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RoHS, cTUVus, UKCA, WEEE
Technical details - Compliance certificates - CB
Technical details - Compliance certificates - CCC
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - cTUVus
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - RoHS
Technical details - Compliance certificates - UKCA
Technical details - Compliance certificates - WEEE
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
Title - be quiet! PURE POWER 12 M | 1200W power supply unit 20+4 pin ATX ATX Black
Unit Brutto Volume - 0.008063 cubm
Unit Gross Weight - 3.35 kg
Unit Net Weight - 2.9 kg
URL - https://www.bequiet.com/en/powersupply/4405
Vendor Homepage - www.bequiet.com/en/powersupply/4405
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 120
warrantyType - G
Weight - 3,19
Weight - 3.2
weight - 3300
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.92 kg
Weight & dimensions - Width - 150 mm
