ID: 970288
Product code: R-PX850G-FC0B-EU
In stock 30 units
Warranty: 2 years

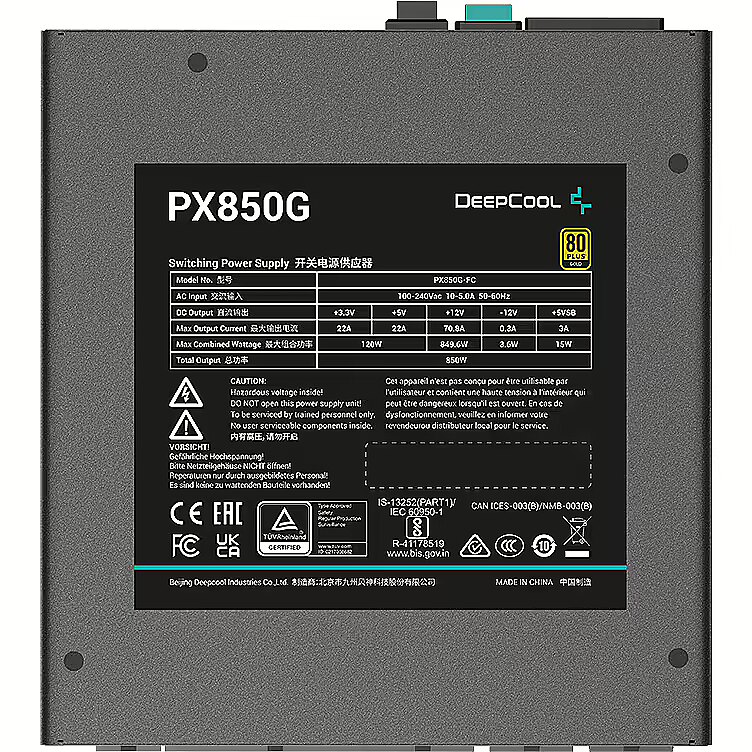

Deepcool PX850G, 850W, 80PLUS Gold, PCI-E 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 19.11.2024
Main product parameters All parameters
- Producer: Deepcool
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
We offer to purchase a Deepcool power supply unit with a power capacity of 850W, which has received the 80 PLUS Gold energy efficiency certification.
850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).
This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
This power supply unit is equipped with a 1 x 600W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.
The power supply unit has received a Cybenetics A - noise level certificate – the noise generated by the unit will be 25-30 decibels.
This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.
The power supply manufacturer is Deepcool. All power supplies produced by Deepcool can be viewed here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Cybenetics A -
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 4
More detailed specification
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|PCIe 5.0
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80Plus GOLD/Cybenetics_GOLD
Code - R-PX850G-FC0B-EU
code - R-PX850G-FC0B-EU
Desc - Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 135mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 3 x 6 + 2 PIN, Garantija: 2 gadi
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2079
EAN - 6933412716716
ean - 6933412716716
EAN_code - 6933412716716
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_109055_1.jpg
LargeDescHTML -
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PX850G-ATX-3.0-80-Plus-Gold-Power-Supply/2023/16807.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PX850G-FC0B-EU
Name - Barošanas bloks DeepCool PX850G 850W
Name - DeepCool PX850G 850W, PC power supply (black, cable management, 850 watts)
name - DeepCool PX850G Netzteil, 80 Plus Gold, ATX 3.0, PCIe 5.0 - 850 Watt
Name - Deepcool | PSU | PX850G | 850 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features > Dimensions (WxDxH) - 150 x 160 x 86 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 225 mm
Package features > Gross depth master carton - 250 mm
Package features > Gross height (mm) - 125 mm
Package features > Gross height master carton - 282 mm
Package features > Gross width (mm) - 305 mm
Package features > Gross width master carton - 355 mm
Package features > Net weight master carton - 9.2 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 51 pc(s)
Package features > Paper/Pasteboard - 260 g
Package features > Plastic (No PET) - 40 g
Package features > Tare weight (kg) - 0.3 kg
Package features > Tare weight master carton - 0.425 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Cables included - AC, PCIe, CPU, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Certification - Cybenetics Gold
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Bearing technology - FDB
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 65 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 650 mm
Ports & interfaces - Peripheral (Molex) power cable length - 800
Ports & interfaces - Peripheral (Molex) power cable length - 950 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 500
Ports & interfaces - SATA power cable length - 650 mm
Ports & interfaces - SATA power cable length - 800 mm
Ports & interfaces - SATA power cable length - 950 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 849.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Maximum input current (@110V) - 5 A
Power - Maximum input current (@220V) - 10 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under power
Power - Total power - 850 W
Power > Nominal power - 850 W
producerCode - R-PX850G-FC0B-EU
Producer product family - PSU
Producer product name - PX850G
productName - DeepCool PX850G power supply unit 850 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 350
sizeY - 220
sizeZ - 135
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability certificates - WEEE
Technical details - Sustainability compliance - Yes
Technical details > Gross weight - 1.4 kg
Technical details > Net weight - 1.1 kg
Technical details > Other features - Fan size 135mm
Technical details > Producer - Deepcool
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 120
warrantyType - G
Weight - 3,70
weight - 3330
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
