ID: 964951
Product code: CP-9020246-EU
Can be ordered 15 units Availability: 14 days after order approval
Warranty: 3 years

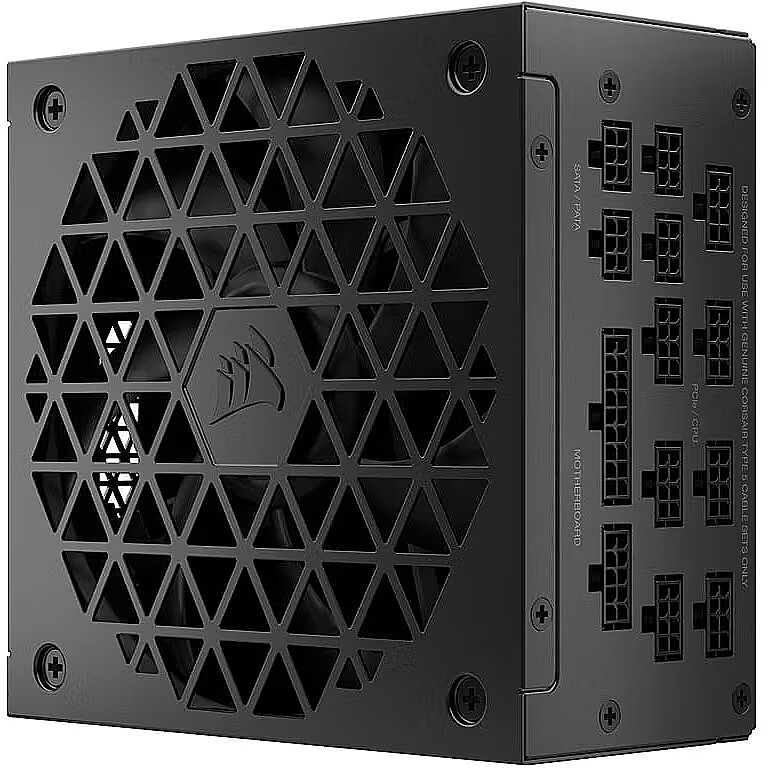

Corsair SF1000L, 1000W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Main product parameters All parameters
- Producer: Corsair
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
This Corsair brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 1000W.
1000W power supply unit will satisfy the requirements of the best gaming computer. There will be enough power for an overclocked high-end processor, multiple high-class graphic cards, a wide water-cooling system, and multiple hard drives.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.
The power supply has a Cybenetics Standard noise level certificate, which means that its noise level is 40-45 dB.
This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.
This is a SFX (Small Form Factor eXtended) type power supply. It is smaller in size and power compared to AFX type units, but is ideally suited for small form (SFF) computers where space is limited. It has smaller size fans and it is compatible with
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Cybenetics Standard
Power supply type
: SFX-L
Power output
1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 83.3A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
category - PC Components|Power Supplies|PCIe 5.0
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Certificates > Certification - 80 Plus Gold
code - CP-9020246-EU
Code - CP-9020246-EU
Description - SF-L Series SF1000L Fully Modular SFX Silent Power Supply (EU) The CORSAIR SF-L series fully modular SFX PSUs, compliant with ATX 3.0 and PCIe 5.0 standards, deliver the consistent high power demanded by the latest PC hardware, all in the compact SFX-L form factor. Compact SFX-L housing The SF-L series power supplies are ideal for small form factor (SFF) computers that do not conserve power, or for saving space in larger builds. ATX 3.0 certified The ATX 3.0 standard requires a high level of reliability and energy efficiency. While many CORSAIR power supplies meet these requirements, the SF-L Series power supplies are formally certified to be ATX 3.0 compliant. Included PCIe 5.0 12VHPWR GPU cable for use with modern graphics cards such as the NVIDIA GeForce RTX 40 series. Micro-fit Corsair type 5 connectors Fully modular CORSAIR Type 5 Gen 1 micro-fit cables so you connect only the cables your system needs while taking up less space. 120mm fan with ZERO RPM support Cooled by a powerful and quiet 120mm rifle bearing fan with Zero RPM support to ensure the PSU is virtually silent when not under heavy load. 80 PLUS Gold certified Consistent output with up to 90% efficiency and Cybenetic certification for lower power consumption, less noise and cooler temperatures. Capacitors up to 105°C Built with 100% Japanese virgin industrial grade electrolytic capacitors up to 105°C for unwavering power and reliability. Maximum operating temperature 40°C Capable of 100% output at temperatures up to 40°C, providing reliable power even under heavy load conditions. World-class support Our award-winning service means you can enjoy your gear with confidence.
dimension depth - 100 mm
dimension height - 180 mm
Dimensions - 64 x 125 x 130 mm
dimension weight - 2381 g
dimension width - 280 mm
EAN - 840006645672
ean - 0840006645672
ean - 840006645672
EAN - 0840006645672
EAN_code - 0840006645672
Fan - 12 cm
Floppy power connectors - 0
guarantee - 84
guarantee_type - normal
Link - https://www.corsair.com/pl/pl/Categories/Products/Zasilacze/SF-L-Series%E2%84%A2-Fully-Modular-Low-Noise-SFX-Power-Supply/p/CP-9020246-EU
Manufacturer - Corsair
Manufacturer_code - CP-9020246-EU
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 3
MPN - CP-9020246-EU
Name - 1000W Corsair SF-L Series SF1000L | 80+ Gold
name - Corsair SF-L Series Netzteil 80 PLUS Gold, ATX 3.0, PCIe 5.0 - 1000 Watt
Name - Corsair SF1000L 1000W, PC power supply (black, cable management, 1000 watts)
Name - Corsair | PSU | SF1000L | 1000 W
name - Modular power supply SF1000L 80+ GOLD SFX-L
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 5
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 100.00 mm
Package features > Gross depth master carton - 250 mm
Package features > Gross height (mm) - 200.00 mm
Package features > Gross height master carton - 282 mm
Package features > Gross width (mm) - 200.00 mm
Package features > Gross width master carton - 355 mm
Package features > Net weight master carton - 9.2 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 400 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 150.00 g
Package features > Tare weight (kg) - 0.60 kg
Package features > Tare weight master carton - 0.425 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance > Bearing technology - FDB
Performance > Form factor - SFX-L
PFC - Active
Power > Nominal power - 1000 W
Power supply - 1000 W
producer - Corsair
Producer product family - PSU
Producer product name - SF1000L
SATA power connectors - 8
Technical details > Gross weight - 2.50 kg
Technical details > Net weight - 1.90 kg
Technical details > Other features - Fan size 120mm
Technical details > Producer - Corsair
vendpn - CP-9020246-EU
Warranty - 120
Warranty - 120 month(s)
Weight - 2,38
Weight - 2.35
