ID: 960866
Product code: GP-UD1300GM PG5
In stock 3 units
Warranty: 2 years

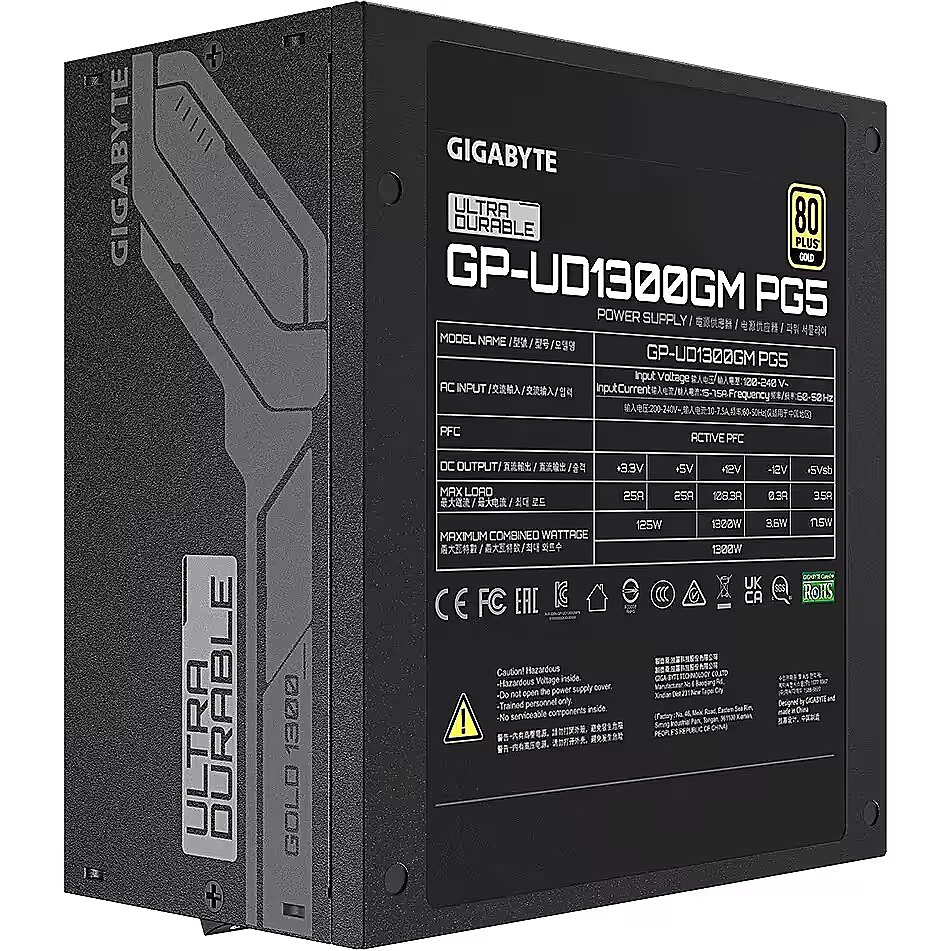

Gigabyte UD1300GM PG5, 1300W, 80PLUS Gold, PCIe 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 1300W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 140 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 8 x 6+2pin
Description
This Gigabyte brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 1300W.
Thanks to the huge 140 mm cooling fan, this power supply unit is much quieter than a standard unit. The fan has a larger wing area, which ensures the necessary airflow at lower fan speeds, thus reducing the overall level of vibration and noise to a minimum.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.

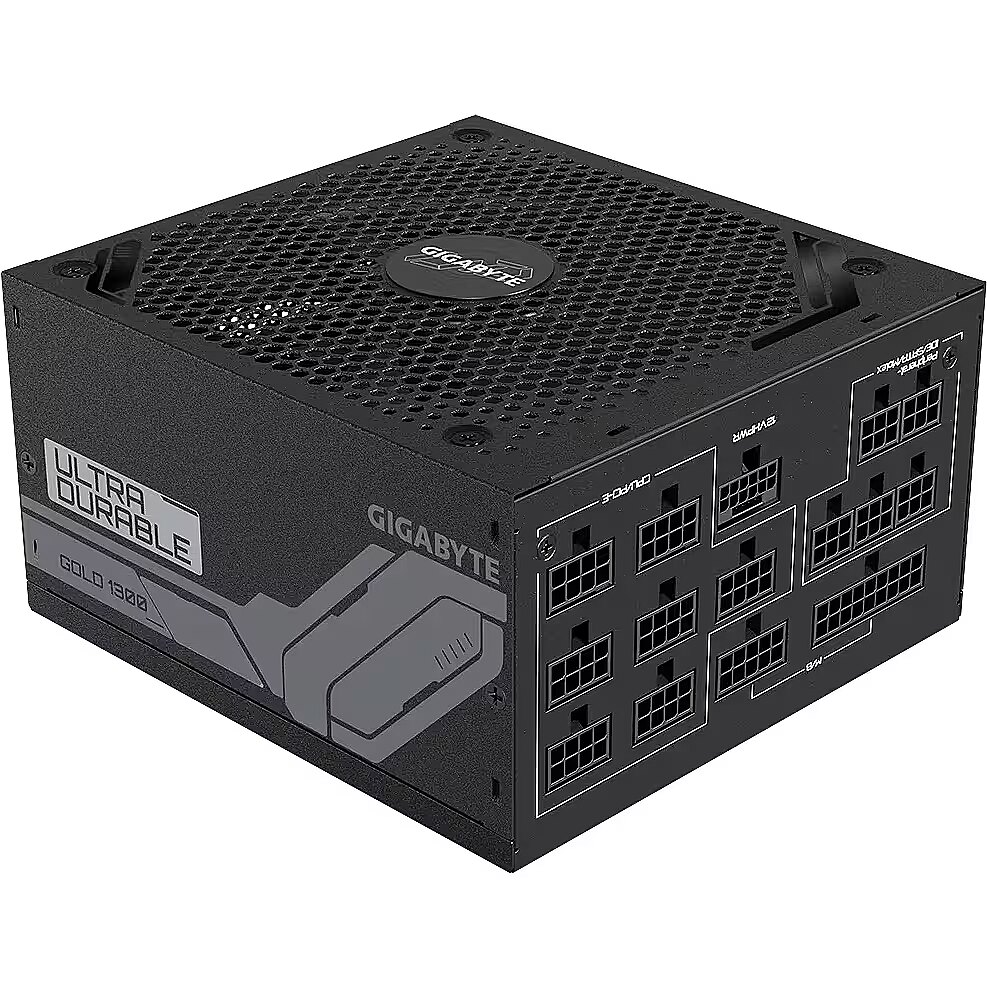

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
This power supply unit is manufactured by Gigabyte. You can view all Gigabyte power supply units here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 108.3A
Fan size
: 140 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular

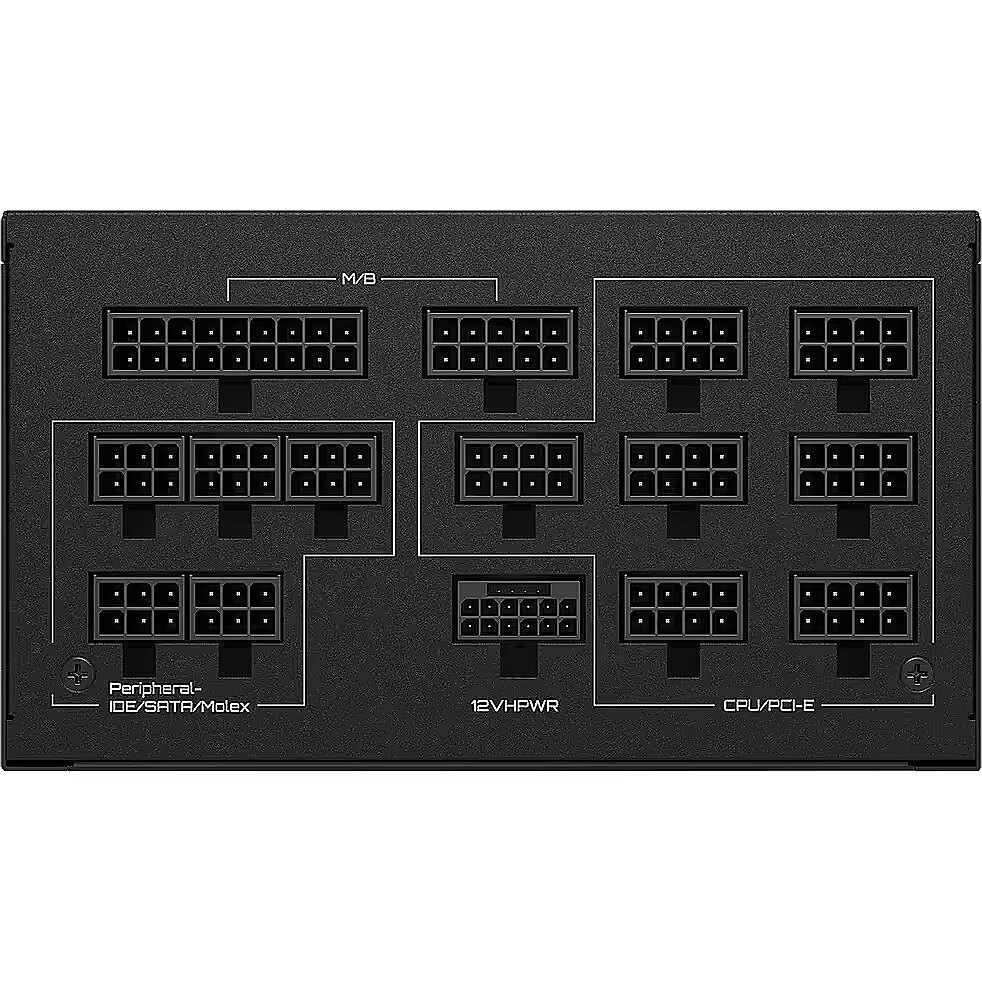

Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 8 x 6+2pin
SATA cconnectors
: 12
4pin Molex
: 6
More detailed specification
Brand - GIGABYTE
BrandPartCode - GP-UD1300GM PG5
Category - Power Supply Units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - GOLD
Code - GP-UD1300GM PG5 GEU1
Colour - Black
Cooling System - 14cm fan
Description - - Ultra Durable - Main Japanese capacitors - Enhanced thermal solution - 140mm smart hydraulic bearing (HYB) fan - OVP/OPP/SCP/UVP/OCP/OTP protection - Support PCIe Gen 5.0 graphics card - Support Intel ATX 3.0 standard - 80 PLUS Gold certified - Fully modular design - Compact size
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 2354
Dimensions - 150 x 160 x 86 mm
EAN - 4719331553388
EAN_code - 4719331553388
Efficiency - 80 PLUS GOLD
Full Description Line - UD1300GM PG5|ATX 3.0|1300 Watts|Cooling System 14cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 4719331553388
Link - https://www.gigabyte.com/Power-Supply/GP-UD1300GM-PG5#kf
LongDesc - Support PCIe Gen 5.0 graphics cardThe UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.Support Intel ATX 3.0 standardThe UD1300GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 140mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.HIGH QUALITYJAPANESE CAPACITORSThe main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.ENHANCED THERMALSOLUTIONCompared with the standard thermal solution, we have enlarged the heatsink and optimized the airflow. The heat dissipation performance is increased, thus prolonging the service life of the components.140MM SMART HYDRAULICBEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.PLENTIFUL POWER SUPPLYThe +12VHPWR and the +12V can provide a total of 1300W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.COMPACT DESIGNLeveraging the engineers' excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160mm compared to traditional design. It can be easily installed in any chassis without space constraints.
LongProductName - 1300W, ATX 12V v3.0, 60-50 Hz, 15-6.5A, 16ms, 150 x 160 x 86 mm
LongSummaryDescription - GIGABYTE UD1300GM PG5. Total power: 1300 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PATA, Peripheral (Molex), SATA
Manufacturer - GigaByte
Manufacturer_code - GP-UD1300GM PG5 1300W
Model - GP-UD1300GM PG5
Model name - UD1300GM PG5
MTBF - 100000 hours
Name - GIGABYTE GP-UD1300GM PG5 1300W, PC power supply (black, 1x 12VHPWR, 8x PCIe, cable management, 1300 watts)
Name - Gigabyte | PSU | GP-UD1300GM PG5 GEU1 | 1300 W
Package features > Embeeded battery - No, No
Package features > Gross depth (mm) - 120.00, 120.00 mm
Package features > Gross depth master carton - 610, 610 mm
Package features > Gross height (mm) - 205.00, 205.00 mm
Package features > Gross height master carton - 285, 285 mm
Package features > Gross width (mm) - 255.00, 255.00 mm
Package features > Gross width master carton - 220, 220 mm
Package features > Net weight master carton - 14.27, 14.27 kg
Package features > Packing quantity - 1.00, 1.00 pc(s)
Package features > Palette Qty - 138, 138 pc(s)
Package features > Paper/Pasteboard - 180.00, 180.00 g
Package features > Plastic (No PET) - 20.00, 20.00 g
Package features > Tare weight (kg) - 0.20, 0.20 kg
Package features > Tare weight master carton - 0.65, 0.65 kg
Package features > Volume (m3) - 0.01, 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01, CL109:6:2017-04-01
Package features > WEEE tax - No, No
Packaging content - Cables included - CPU, PATA, Peripheral (Molex), SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 40 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Bearing technology - Double ball bearing
Performance > Form factor - ATX 12V
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 70 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 200,600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150,600 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 17.5 W
Power - Combined power (+12V) - 1300 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 - 6 A
Power - Maximum input current (@110V) - 6 A
Power - Maximum input current (@220V) - 12 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3.5 A
Power - Max output current (+12V) - 108.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 1300 W
Power > Nominal power - 1300 W
producerCode - GP-UD1300GM PG5
Producer product family - PSU
Producer product name - GP-UD1300GM PG5 GEU1
productName - Gigabyte Netzteil UD1300GM PG5 1300Watt
ProductName - UD1300GM PG5
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 1300 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 34.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 4.168 kg
Shipping Box Width Shipping/Package Box Dimensions - 14.5 cm
ShortSummaryDescription - GIGABYTE UD1300GM PG5, 1300 W, 100 - 240 V, 50 - 60 Hz, 12 - 6 A, 6 A, 12 A
sizeX - 352
sizeY - 148
sizeZ - 226
Technical details - Compliance certificates - CCC, CE, Federal Communications Commission (FCC), RoHS
Technical details - Warranty period - 5 year(s)
Technical details > Gross weight - 1.78 kg
Technical details > Net weight - 1.58 kg
Technical details > Other features - Fan size 140mm; Protection OVP/OPP/SCP/UVP/OCP/OTP
Technical details > Producer - Gigabyte, Gigabyte
Technical_details - The GIGABYTE GP-UD1300GM PG5 1300W PC power supply with fully modular cables is 80 PLUS Gold certified and ensures better energy efficiency. Lower power consumption reduces heat generation and fan noise. The power supply can reach up to 90% efficiency and offers the best solution for system builds. The modular cables reduce clutter and improve air circulation within the case. The Single + 12V Rail offers the best output power, stability and compatibility for the hardware. The quiet 140mm fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The fan offers a longer and more stable service life thanks to the hydraulic bearing. Item no.: 100038273 Type PC power supply Color: Black EAN 4719331553388 Manufacturer no. GP-UD1300GM PG5 1300W Total power 1300 W Control Temperature controlled Standard ATX12V 3.0 ATX design Certification 80 PLUS Gold Current strengths +3.3 V 25 A Power factor correction Active PFC Switch 1x power switch Connectors 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 2x 4-pin 3.5", 6x 4-pin 5.25", 8x 6+2-pin graphics, 1x 12VHPWR, 12x 15-pin SATA Cable Cable Management Yes Cooling Number of fans 1x 140 mm fan Protection functions Current surge protection (OCP), Over voltage protection (OVP), Under voltage protection (UVP), Overload protection (OLP/OPP), Short circuit protection (SCP), Overheating protection (OTP) Further information The GP-UD1300GM PG5 1300W PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the power supply with a PCIe Gen 5.0 graphics card. This cable can supply the graphics card with up to 600 watts of power. The GP-UD1300GM PG5 1300W can handle up to three times GPU power swings and two times overall power swings. It is fully compatible with the Intel PSDG (Power Supply Design Guide) ATX 3.0 standard, which supports up to 200% power excursion, achieves 70% efficiency at low load, and meets required power supply timing standards. Dimensions Width: 150mm x Height: 86mm x Depth/Length: 160mm
Title - GIGABYTE UD1300GM PG5 power supply unit 1300 W 20+4 pin ATX ATX Black
Unit Box Height - 0.22
Unit Box Length - 0.345
Unit Box Width - 0.145
Unit Brutto Volume - 0.01101 cubm
Unit Gross Weight - 4.17 kg
Unit Net Weight - 2.2 kg
URL - https://www.gigabyte.com/Power-Supply/GP-UD1300GM-PG5#kf
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-UD1300GM-PG5#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 120 months
WarrantyInfo - 10 years warranty (Adjusted according to different regions)
warrantyLength - 24
warrantyType - G
Weight - 4,18
weight - 4210
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
