ID: 953773
Product code: 90YE00P3-B0NA00
Can be ordered 9 units Availability: 14 days after order approval
Warranty: 3 years

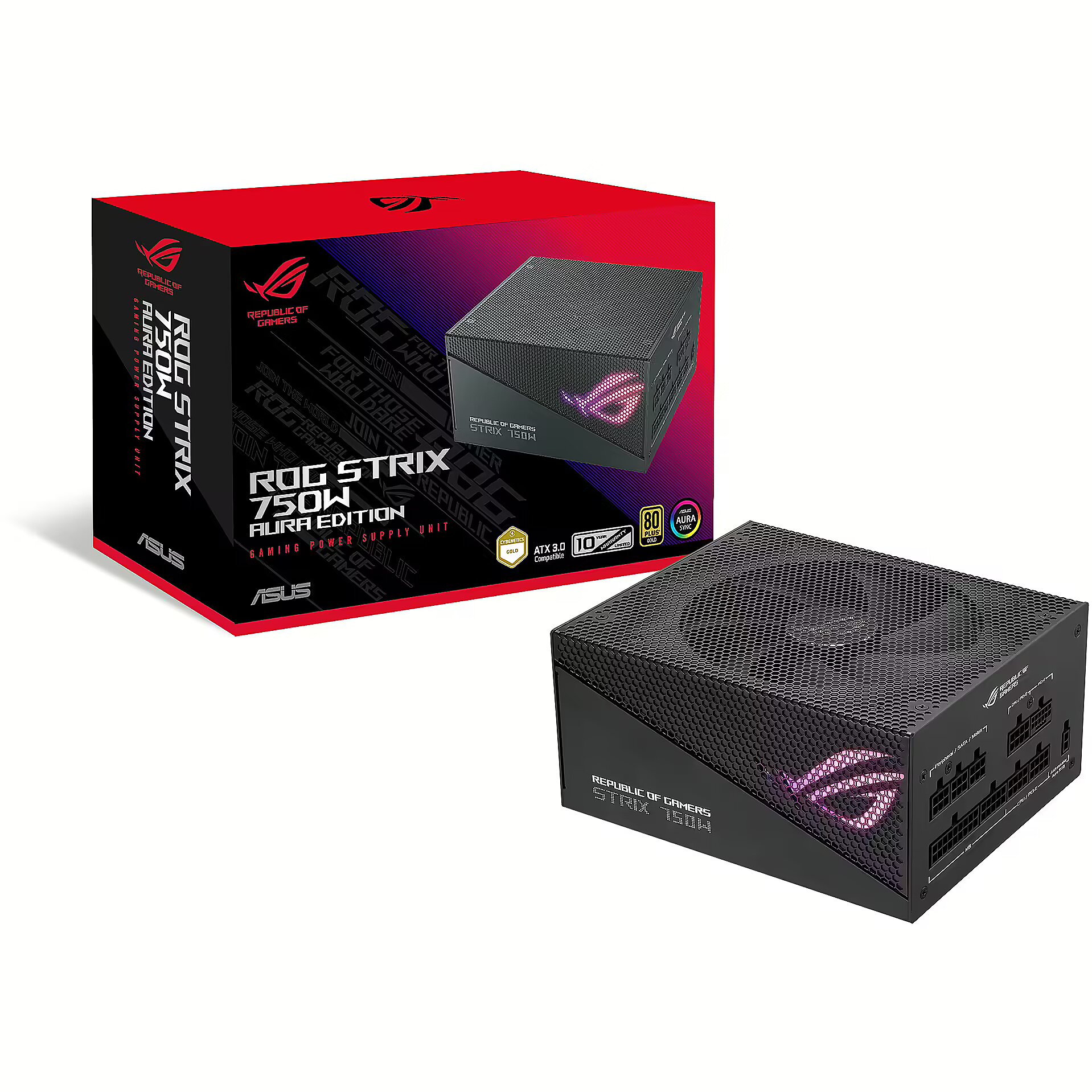

Asus ROG Strix Aura Edition, 750W, ATX 3.0, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Asus
- Power output: 750W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).
Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
1 x 600W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.
The power supply has received the Cybenetics A ++ noise level certification – the noise generated by the unit will be less than 15 decibels.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
The power supply unit has RGB lighting.
This power supply is manufactured by Asus. You can view all Asus power supplies here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Cybenetics A ++
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 62.5A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: RGB
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: 5
4pin Molex
: 4
More detailed specification
8-pin 12V power connectors - 0
Accessories included - Power cord Motherboard power cable (600 mm) 2 x CPU Cable (650 mm) PCI-E Gen 5 16-pin cable (700 mm) PCI-E 1 to 1 cable (700 mm) PCI-E 1 to 2 cable (700 mm) SATA 1 to 2 cable (400+120 mm) SATA 1 to 3 cable (400+120+120 mm) Peripheral cable 1 to 4 (400+150+150+150 mm) RGB addressable cable (800mm) User manual
Brand - ASUS
BrandPartCode - 90YE00P3-B0NA00
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Description -
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 6748
dimension depth - 120 mm
dimension height - 310 mm
Dimensions - 180 x 150 x 86 mm
dimension weight - 3875 g
dimension width - 370 mm
ean - 4711081722366
Eans - 4711081722366
EAN_code - 4711081722366
Fan - 13.5 cm
Floppy power connectors - 0
GTIN - 4711081722366
guarantee - 120
guarantee_type - normal
LongDesc - Exude PowerThe ROG Strix 750W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.COOLINGAluminum CaseBuilt to run coolThe ROG Strix 750W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.ROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.Axial-tech Fan DesignBetter, faster, strongerAxial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.Dual Ball Fan Bearings2x longer lifespanThe fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.0dB TechnologyQuiet intelligenceTo reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 60% or below.ENGINEERING80 Plus Gold CertificationHeart of goldTop-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.Lambda A++ CertificationEffortlessly quietOn average, ROG Strix 750W Gold Aura Edition emits less than 15 dB of noise – earning a coveted Cybenetics Lambda A++ certification.ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.EXPERIENCEAura SyncOutshine the competitionAddressable RGB lighting is built right in to the ROG Strix 750W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.*If the connector cable is not used, the default color effect is rainbow.*To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.10-year WarrantyA decade of powerWe're so confident about the reliability of the ROG Strix 750W Gold Aura Edition that we back it with a 10-year worldwide warranty.*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.
LongProductName - ROG Strix 750W Gold Aura Edition RGB power supply (750 Watt, Aura Sync RGB lighting, 80+ Gold certification, Axial-Tech fan, ATX 3.0 compatible, PCIe 5.0 ready)
LongSummaryDescription - ASUS ROG Strix 750W Gold Aura Edition. Total power: 750 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 120 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Asus
Manufacturer_code - 90YE00P3-B0NA00
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 4
Name - ASUS ROG-STRIX-750G-AURA-GAMING
Name - ASUS ROG STRIX 750W Gold Aura Edition, PC power supply (black, 4x PCIe, cable management, 750 watts)
name - Power supply Rog Strix 750W 80+ Gold Aura ATX 3.0 black
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Other features -
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Packaging data - Package weight - 3.19 kg
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - Ball bearing
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (8-pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 120 mm
Ports & interfaces - SATA power cable length - 120,400 mm
Ports & interfaces - SATA power cable length - 400
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Overcharge
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Asus
Producer - Asus
producerCode - 90YE00P3-B0NA00
ProducerCode - 90YE00P3-B0NA00
productName - ASUS ROG Strix 750W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black
ProductName - ROG Strix 750W Gold Aura Edition
productSize - Normal
SATA power connectors - 5
ShortDescription - 750 | ATX | 135mm | 20 + 4 pin | 80Plus Gold | 180 x 150 x 86 mm |
ShortSummaryDescription - ASUS ROG Strix 750W Gold Aura Edition, 750 W, 100 - 240 V, 120 W, 750 W, 3.6 W, 15 W
sizeX - 351
sizeY - 244
sizeZ - 394
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability compliance - Yes
Title - ASUS ROG Strix 750W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black
URL - https://rog.asus.com/power-supply-units/rog-strix/rog-strix-750g-aura-gaming-model/
vendpn - 90YE00P3-B0NA00
WarrantyInfo -
warrantyLength - 72
warrantyType - G
Weight - 3,60
weight - 3606
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.69 kg
Weight & dimensions - Width - 180 mm
