Endorfy Supremo FM5 Gold, 750W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 936090 Product code: EY7A008
Can be ordered 19 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
114.28 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: Endorfy
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

We offer to purchase a Endorfy power supply unit with a power capacity of 750W, which has received the 80 PLUS Gold energy efficiency certification.

To ensure a good mid-range gaming experience, 750W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 62A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 3 x 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 1
Case
More detailed specification
8-pin 12V power connectors - 2
Accessories included - Supremo FM5 Gold 750 Watt Power Supply Modular cabling Power cable Mounting kit User manual
Category_1 - Power
Category_2 - PSU - Accessories
Certificates 80+ - 80 PLUS Gold
Description - Supremo FM5 Gold 750 W The Supremo FM5 Gold 750 W is a high-performance power supply that is not afraid of the exacting demands of the components in your PC. No wonder, because we packed everything we think you need for stable operation without resetting into it. It's a power supply with DC-DC topology for precise voltage regulation, stable operation and 750 W continuous power delivery. It has a 12cm 120mm Fluctus fan, so the Supremo will calmly maintain adequate temperatures and satisfactory performance. No wonder our PSU has earned the 80 PLUS Gold certification :) Apart from that, the Supremo is small. It is only 14 cm long enough to fit even into smaller cases (unnecessary cables can simply be detached).
Design - Fan diameter - 12 cm
Design - Fan speed - 250 - 1400 RPM
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1188
dimension depth - 100 mm
dimension height - 220 mm
Dimensions - 120 × 120 × 25 mm
dimension weight - 2560 g
dimension width - 270 mm
ean - 5903018666174
EAN_code - 5903018666174
Fan - 12 cm
Fan speed (max) - 1400 rpm
Fan speed (min) - 600 rpm
Floppy power connectors - 0
guarantee - 84
guarantee_type - normal
Manufacturer - ENDORFY
Manufacturer_code - EY7A008
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 1
Name - ENDORFY Supremo FM5 Gold 750W, PC power supply (black, 750 watts)
name - Supremo FM5 Gold 750W PSU
Number of power supply connector 4+4-pin 12V - 0
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 0
Other features - Package dimensions: 270 × 220 × 95 mm
Packaging content - Cables included - AC
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 3
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Certification - CCC, CE, FCC, UKCA, RoHS
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
Ports & interfaces - Cabling type - Modular
Ports & interfaces - Motherboard power connector - 18+10 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express power connectors (8-pin) - 6

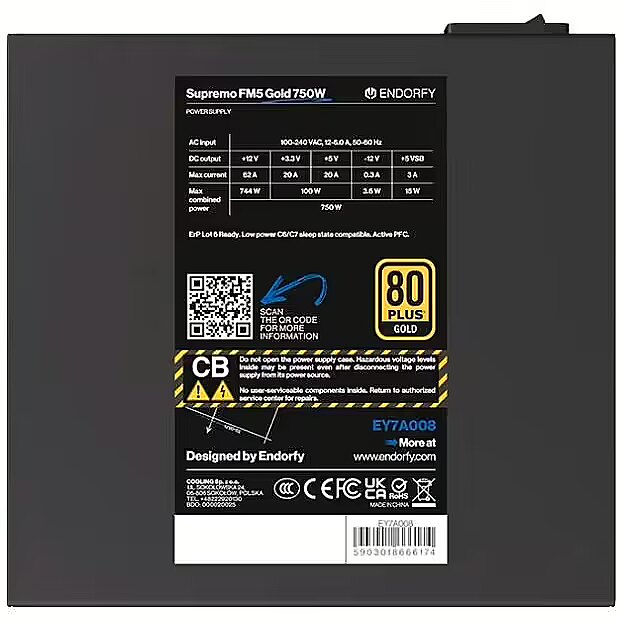

Power - AC input voltage - 115 - 230 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 840 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Endorfy
producerCode - EY7A008
productName - ENDORFY Supremo FM5 Gold 750 W power supply unit 18+10 pin ATX ATX Black
productSize - Normal
SATA power connectors - 8
sizeX - 270
sizeY - 220
sizeZ - 100
Technical details - Sustainability certificates - CCC
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - Federal Communications Commission (FCC)
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability certificates - UKCA
vendpn - EY7A008
warrantyLength - 84
warrantyType - F
Weight - 2,55
weight - 2570
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 140 mm
