ID: 932763
Product code: PYLON650B-BKCEU
Can be ordered 5 units Availability: 14 days after order approval
Warranty: 3 years

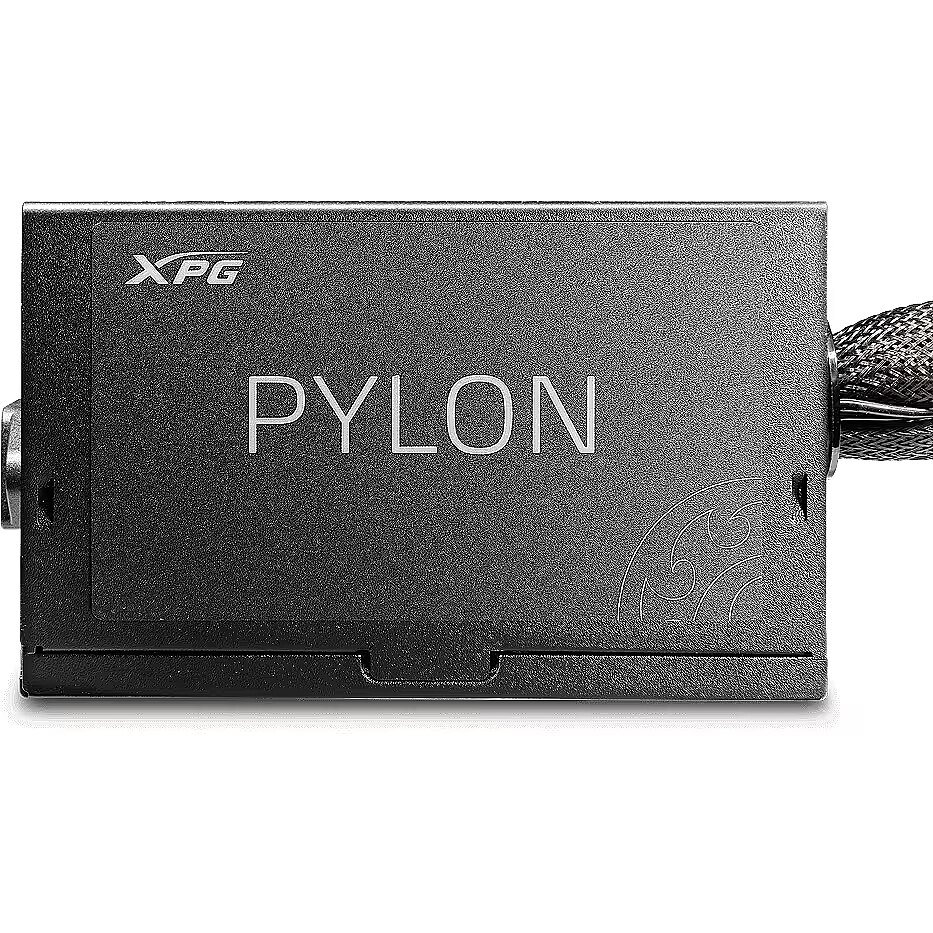

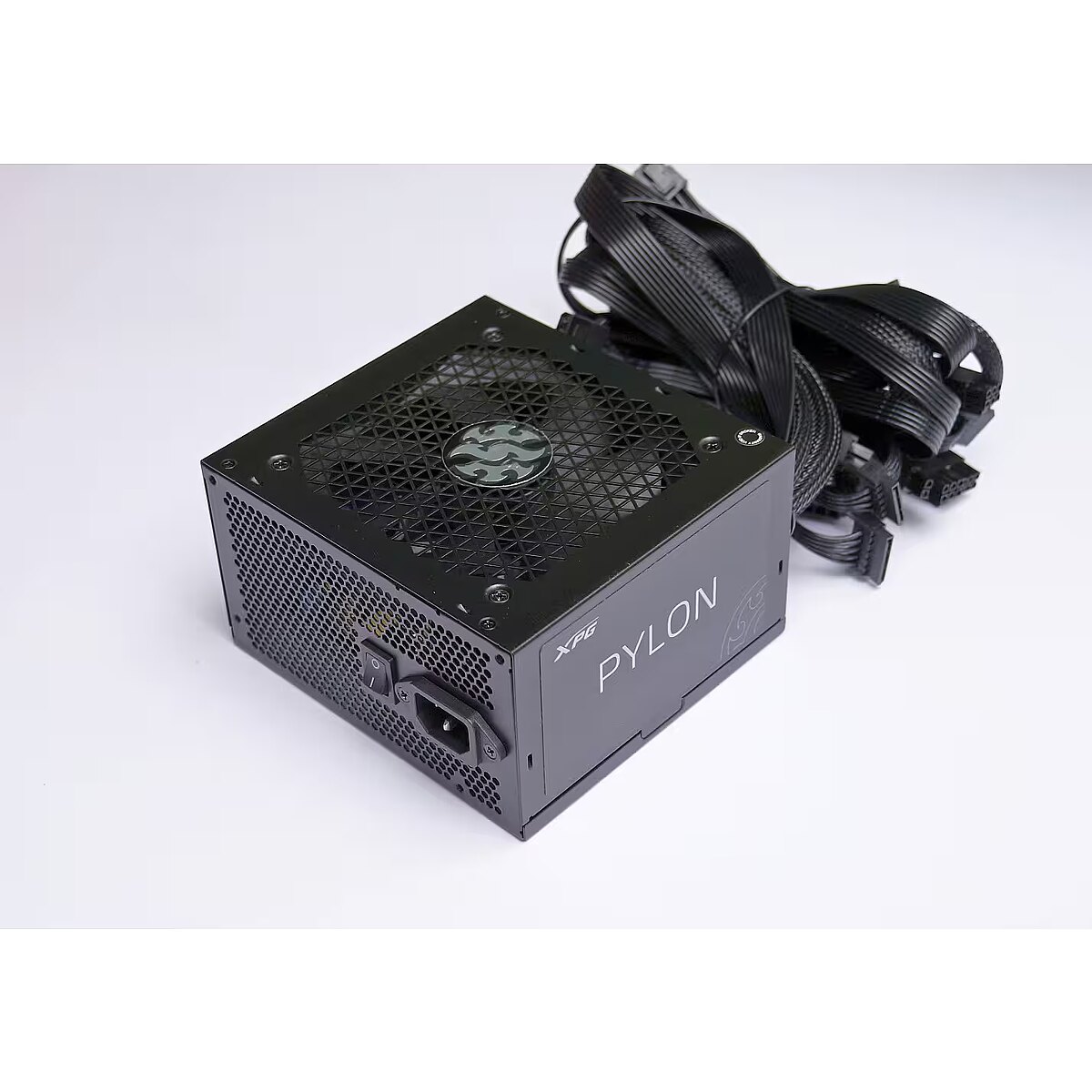

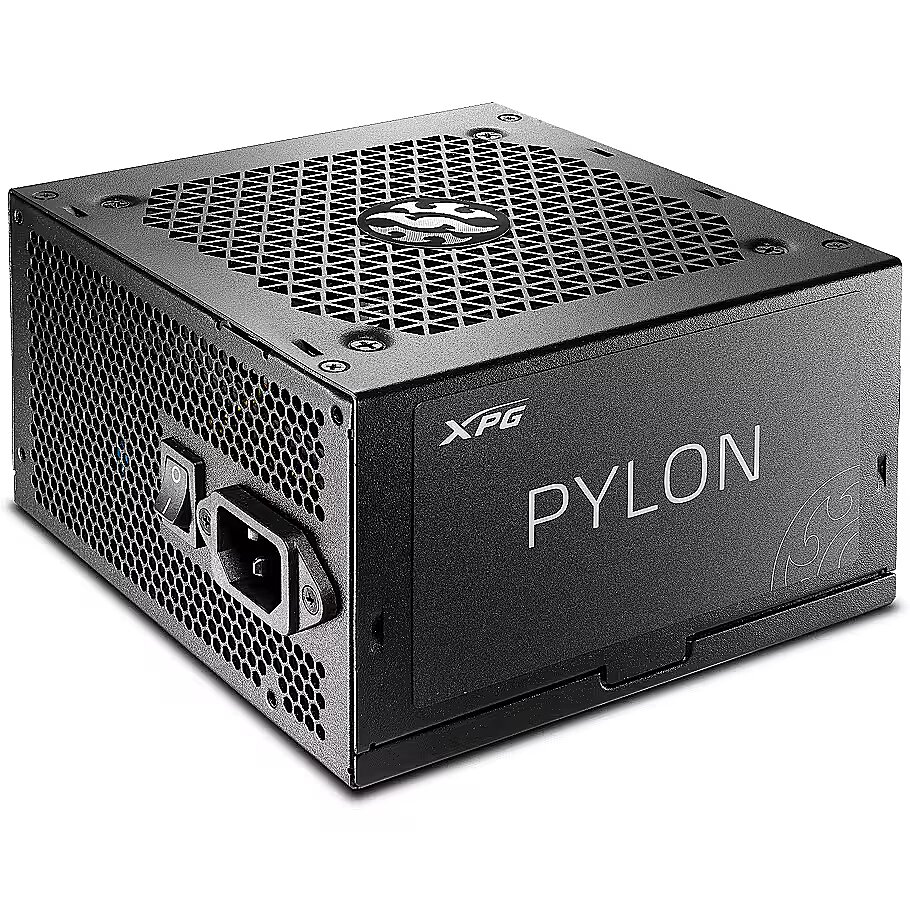

ADATA XPG Pylon, 650W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Adata
- Power output: 650W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
650W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
The power supply unit has received the Cybenetics Standard ++ noise level certificate – the noise generated by the unit will be 30-35 decibels.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Cybenetics Silver
Cybenetics Noise level certification
: Cybenetics Standard ++
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 54A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 3
More detailed specification
Brand - XPG
BrandPartCode - 75260131
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Colour - Black
Cooling System - 12cm fan
Description - XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages. XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation. XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards. The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load. The operating environment is kept quiet and efficient, and prolongs its life expectancy.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Dimensions - 140 x 150 x 86mm
Eans - 4710273776873
Efficiency - 80 PLUS BRONZE
Full Description Line - XPG PYLON|For gaming|ATX 2.4|650 Watts|Cooling System 12cm fan|80 PLUS BRONZE|MTBF 100000 hours|Colour Black
GTIN - 0842243020779
GTIN - 842243020779
GTIN - 4710273776873
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.DC-to-DC Circuit in BRONZE GradeXPG PYLON complies with Intel ATX Power Supply Design Guide‘s sleep mode function, featuring DC-to-DC 100% +12V Full Power in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs. 80 Plus Bronze CertificationXPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation.Cybenetics ETA and LAMBDA CertifiedXPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards. 120mm Fluid Dynamic Bearing (FDB) FanThe fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load.The operating environment is kept quiet and efficient, and prolongs its life expectancy.Main Japanese Capacitor at 105°CHigh quality 105°C Main Japanese Capacity in XPG PYLON Bronze Series ensures great durability and offer highest stability and reliability.8 Industrial-Level ProtectionsXPG PYLON is designed for both efficiency and safety, and backed up by a 3-Year warranty. Fundamental protections such as OPP, UVP, OVP, SCP, OTP and OCP are all included, as well as NLO and SIP which are found in mid to high-end PSU, offering one of the highest standards of stability and security in this category.
LongProductName - PYLON 650, 120mm FDB Fan
LongSummaryDescription - XPG PYLON 650W. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Model - PYLON650B-BKCEU
Model name - XPG PYLON
MTBF - 100000 hours
Name - XPG PYLON 650W
Packaging content - Cables included - AC
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Bearing technology - FDB
Performance - Certification - CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 10/5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 650 W
Producer - XPG
ProducerCode - 75260131
ProductName - PYLON 650W
PSU - ATX 2.4
PSU features - For gaming
PSU Output Power - 650 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 21.5 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 16 kg
Shipping Box Width Shipping/Package Box Dimensions - 38 cm
ShortDescription - 650 | ATX | 120 mm | 20 + 4 pin |86 x 150 x 140 mm| 80 Plus Bronze |
ShortSummaryDescription - XPG PYLON 650W, 650 W, 100 - 240 V, 50 - 60 Hz, 10/5 A, Active, 110 W
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ErP
Technical details - Sustainability compliance - Yes
Title - XPG PYLON 650W power supply unit 24-pin ATX ATX Black
Unit Box Height - 0.118
Unit Box Length - 0.28
Unit Box Width - 0.195
Unit Brutto Volume - 0.00783 cubm
Unit Gross Weight - 2.67 kg
Unit Net Weight - 1.87 kg
URL - https://www.xpg.com/en/feature/670/
Vendor Homepage - www.xpg.com/us/xpg/670
Warranty - 36 months
WarrantyInfo - 3 Years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 140 mm
