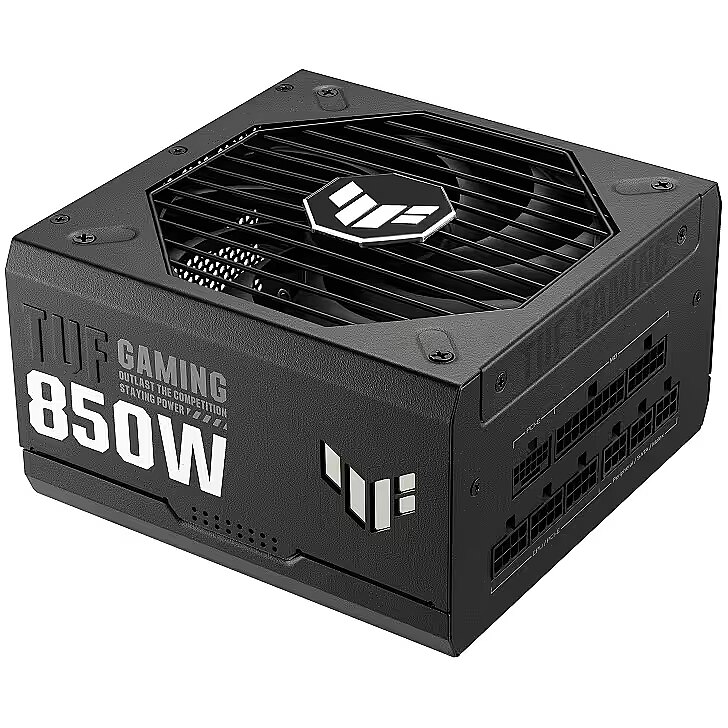

Asus TUF Gaming, 850W, ATX 3.0, 80PLUS Gold

+
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
+ Register your purchase on the ASUS website and get cash back!
ID: 920930 Product code: TUF-GAMING-850G
In stock 2 units
Warranty: 3 years
151.72 €
Main product parameters All parameters
  • Producer: Asus
  • Power output: 850W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

This Asus brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.

850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).

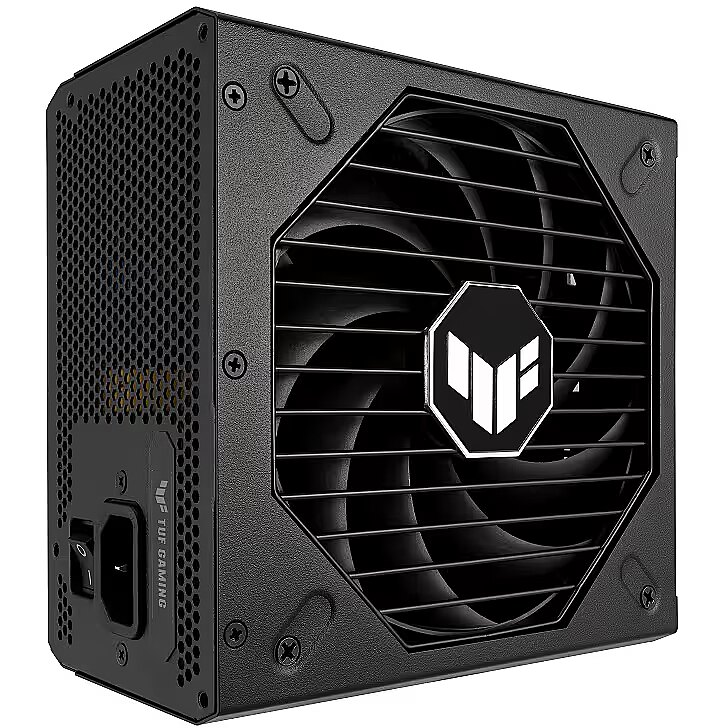

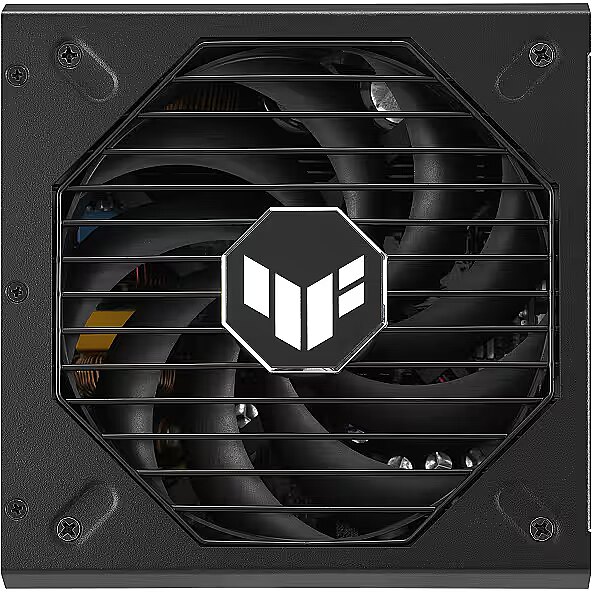

The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.

The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.

This power supply unit is equipped with a 1 x 600W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.

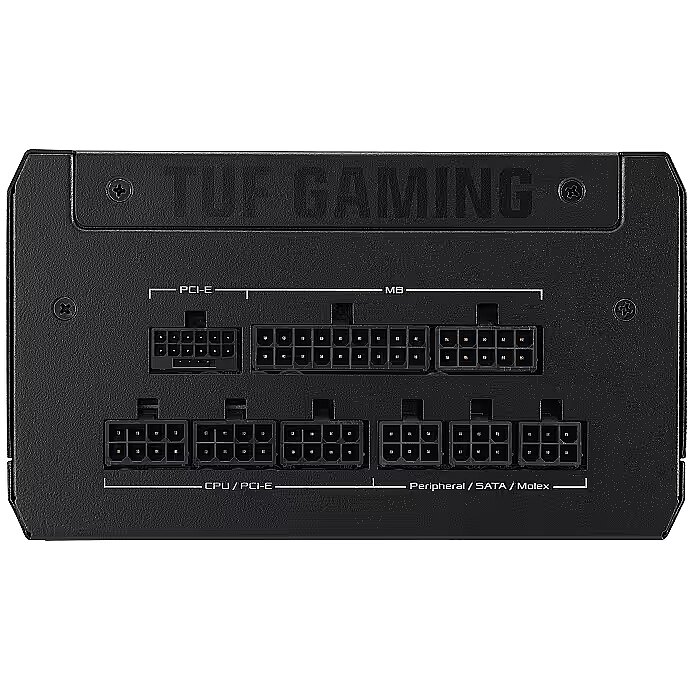

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

This power supply is manufactured by Asus. You can view all Asus power supplies here.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 70.8A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : 1 x 600W 12VHPWR
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 3 x 6+2pin
SATA cconnectors : 5
4pin Molex : 4
Register your purchase on the ASUS website and get cash back!
Case
More detailed specification
Additional information in manufacturers website Asus TUF Gaming, 850W, ATX 3.0, 80PLUS Gold
Brand - ASUS
BrandPartCode - 90YE00S2-B0NA00
category - PC Components|Power Supplies|Modular Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
code - 90YE00S2-B0NA00
Colour - Black
Cooling System - 13.5cm fan
Description - The TUF Gaming 850W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul. - Capacitors and chokes pass demanding tests to achieve Military-grade Certification. - Dual ball fan bearings can last up to twice as long as sleeve bearing designs. - A protective PCB coating protects against moisture, dust, and extreme temperatures. - An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components. - Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. - Fully modular etched cables keep your rig neat and tidy.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Dimensions - 150 x 150 x 86 mm
ean - 4711081786573
Eans - 4711081786573
EAN_code - 4711081786573
Efficiency - 80 PLUS GOLD
Full Description Line - TUF Gaming 850W Gold|For gaming|ATX 3.0|850 Watts|Cooling System 13.5cm fan|80 PLUS GOLD|PFC Active|Colour Black
GTIN - 4711081786573
LongDesc - The TUF Gaming 850W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.Built For The Long HaulThe ASUS TUF Gaming 850W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.TUF ComponentsTop marksWith military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 850W Gold empowers you to build in confidence.​80 Plus Gold CertificationHeart of goldThe TUF Gaming 850W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​10-year WarrantyA decade of power​We're so confident about the reliability of the TUF Gaming 850W Gold that we back it with a 10-year worldwide warranty.​
LongProductName - 850 watt, fully modular power supply, ATX 3.0 compatible, Axial-tech fan, PCB coating, double ball bearings
LongSummaryDescription - ASUS TUF Gaming 850W Gold. Total power: 850 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 130 W. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Asus
Manufacturer_code - 90YE00S2-B0NA00
Model - TUF-GAMING-850G
Model name - TUF Gaming 850W Gold
Name - ASUS TUF-GAMING-850G
Name - ASUS TUF Gaming 850W Gold, PC power supply (black, 4x PCIe, cable management, 850 watts)
name - ASUS TUF Gaming 850W Gold 80 PLUS Gold Netzteil, modular - 850 Watt
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package depth - 200 mm
Packaging data - Package height - 108 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.07 kg
Packaging data - Package width - 310 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 67.5 cm
Ports & interfaces - PCI Express power connectors (8-pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 120,400 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 9.6 W
Power - Efficiency - 92%
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.8 A
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Under voltage
Power - Total power - 850 W
Producer - Asus
ProducerCode - 90YE00S2-B0NA00
ProductName - TUF Gaming 850W Gold
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 850 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 31.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 20.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.09 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
ShortDescription - 850 | ATX | 135mm | 20 + 4 pin |150 x 150 x 86 | 80 PLUS GOLD |
ShortSummaryDescription - ASUS TUF Gaming 850W Gold, 850 W, 100 - 240 V, 130 W, 850 W, 130 W, 9.6 W
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Title - ASUS TUF Gaming 850W Gold power supply unit 24-pin ATX ATX Black
Unit Box Height - 0.205
Unit Box Length - 0.315
Unit Box Width - 0.11
Unit Brutto Volume - 0.007103 cubm
Unit Gross Weight - 3.09 kg
Unit Net Weight - 2.38 kg
URL - https://www.asus.com/Motherboards-Components/Power-Supply-Units/TUF-Gaming/TUF-GAMING-850G/
Vendor Homepage - www.asus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-750g/techspec/
Warranty - 36 months
WarrantyInfo - 10-year warranty included
Weight - 2,40
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.38 kg
Weight & dimensions - Width - 150 mm
