ID: 887402
Product code: R-PK650D-FA0B-EU
Can be ordered 77 units Availability: 14 days after order approval
Warranty: 3 years

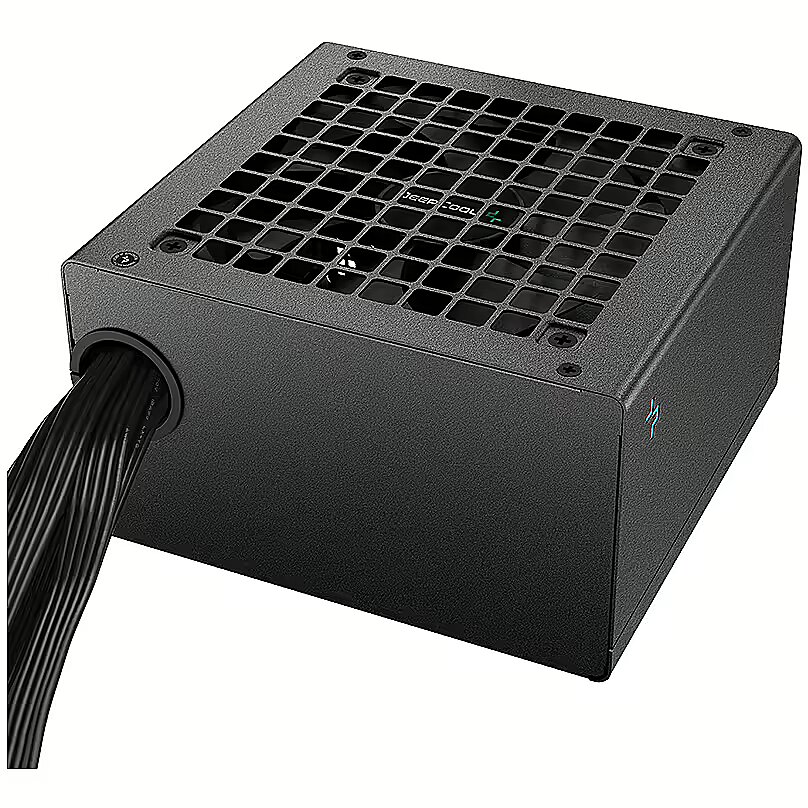

Deepcool PK650D, 650W, 80 PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Deepcool
- Power output: 650W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Deepcool brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 650W.
650W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
The manufacturer of this power supply is Deepcool. View all Deepcool power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 54A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 7
4pin Molex
: 4
More detailed specification
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80 PLUS Bronze Certified
Code - R-PK650D-FA0B-EU
Desc - Jauda: 650W, Energoefektivitāte: 80 Plus Bronze, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 7, MOLEX PATA pieslēgumi: 4, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 1024
EAN - 6933412715177
EAN_code - 6933412715177
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_95687_1.jpg
LargeDescHTML -
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PK650D-80-PLUS-Bronze-Power-Supply/2022/15619.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PK650D-FA0B-EU
Name - Barošanas bloks Deepcool PK650D 650W
Name - DeepCool PK650D 650W, PC power supply (black, 4x PCIe, 650 watts)
Name - Deepcool | PK650D | 650 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 302.00 mm
Package features > Gross depth master carton - 587 mm
Package features > Gross height (mm) - 129.00 mm
Package features > Gross height master carton - 223 mm
Package features > Gross width (mm) - 214.00 mm
Package features > Gross width master carton - 332 mm
Package features > Net weight master carton - 13.6 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 207 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Tare weight master carton - 0.739 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Purpose - PC
Performance > Bearing technology - Hypro Bearing
Performance > Form factor - ATX12V V2.4
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 1
Ports & interfaces - PCI Express power cable length - 62 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 700
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 400
Ports & interfaces - SATA power cable length - 500 mm
Ports & interfaces - SATA power cable length - 600 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 650 W
Power > Nominal power - 650 W
producerCode - R-PK650D-FA0B-EU
Producer product name - PK650D
productName - DeepCool PK650D power supply unit 650 W 20+4 pin ATX Black
productSize - Normal
sizeX - 270
sizeY - 115
sizeZ - 165
Technical details > Gross weight - 2.30 kg
Technical details > Net weight - 1.80 kg
Technical details > Other features - 120mm Fan Size; Protection: SCP, OPP, OTP, OVP, OCP, UVP
Technical details > Producer - Deepcool
Technical details > Warranty - 60 month(s)
Technical_details - Type: PC power supply Color: Black EAN: 6933412715177 Manufacturer No.: R-PK650D-FA0B-EU Series: PK-D Power: 650W : 648W : 110W : Up to 85% : 100-240 volts Default: ATX12V 2.4 Design: ATX Certification: 80 PLUS Bronze Current: 20A : 20A : 2.5A : 0.3A : 54A : 54A Power Factor Correction: Active PFC Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 4x 4-pin 5.25", 4x 6+2-pin graphics, 7x 15-pin SATA Cable: 24-pin mainboard main connector: 1x 50 cm, 8-pin additional motherboard connectors: 1x 62 cm, 1x 74 cm, 5.25-inch drive connectors: 1x 40 cm, 1x 50 cm, 1x 60 cm, 1x 80 cm, SATA drive connectors : 1x 40 cm, 2x 50 cm, 2x 60 cm, 2x 70 cm, 6-/8-pin graphics connectors: 2x 50 cm, 2x 62 cm Cooling: 1x 120mm fan Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Warranty - 60
warrantyLength - 60
warrantyType - G
Weight - 2,16
weight - 2150
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
