Silverstone ST1000-PTS, 1000W, 80PLUS Platinum

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 848158 Product code: 30335
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
240.72 €
Main product parameters All parameters
  • Producer: Silverstone
  • Power output: 1000W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 8 x 6+2pin
Description

Available for purchase is a power supply produced by Silverstone with a power output of 1000W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.

This 1000W power supply unit will be able to run the best gaming computer. It has enough power to run multiple high-end graphics cards, a large water cooling system, an overclocked high-end processor, and several hard drives.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.

The color of the block is Melna,Zila. The block has flat cables, whose color is Melna.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

The power supply has received the Cybenetics A noise level certificate – the noise generated by the unit will be 20-25 decibels.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Titanium
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 83A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna, Zila
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 8 x 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 6
Case
More detailed specification
category - PC Components|Power Supplies|Modular Power Supplies
Category_1 - Power
Category_2 - Computer Power Supplies
code - SST-ST1000-PTS
ean - 4710007226575
EAN_code - 4710007226575
Manufacturer - Silverstone Technology
Manufacturer_code - 30335
Name - Silverstone SST-ST1000-PTS 1000W PC Power Supply (black 8x PCIe, cable management)
name - SilverStone SST-ST1000-PTS Strider Platinum Series 80 PLUS Platinum, modular - 1000 Watt

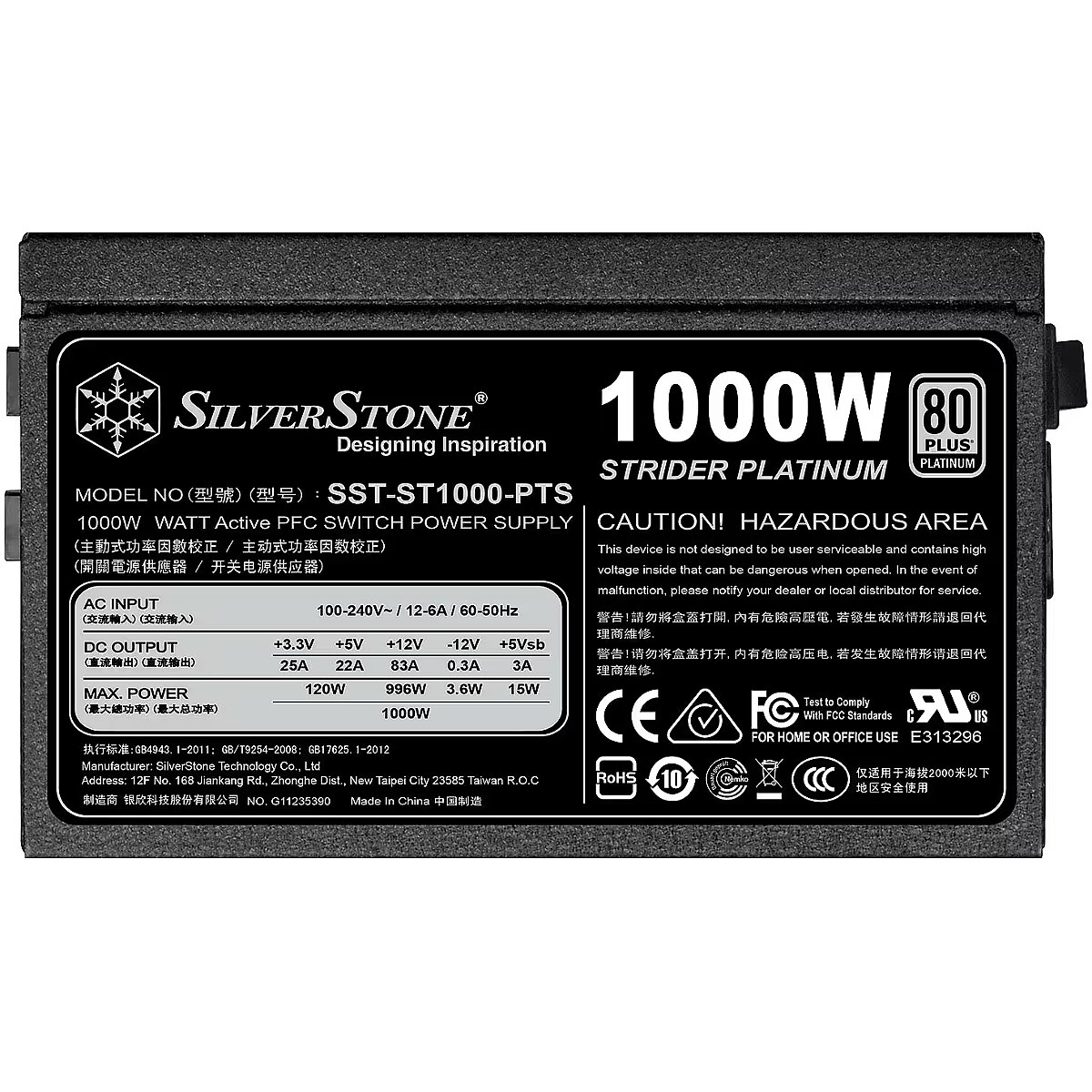

Technical_details - Fan(s): 120mm, semi-passive Volume: > 18.00dB(A) (Manufacturer), 23.87dB(A) (Cybenetics, 115V), 22.86dB(A) (Cybenetics, 230V) Cable Management: fully modular Connectors: 1x 20/?24-Pin, 2x 4/?8-Pin ATX12V, 8x 6/?8-Pin PCIe, 8x SATA, 6x IDE, 2x Floppy average efficiency: 92% (80 PLUS, 115V), 91.0% (Cybenetics, 115V), 92.8% (Cybenetics, 230V) Certificates: 80 PLUS Platinum (115V), ETA-A+ (115V), LAMBDA-A (115V), ETA-A (230V), LAMBDA-A (230V) Dimensions (WxHxD): 150x86x140mm Warranty: five years Quantity of 12V-Rails: 1 +3.3V: 25A +5V: 22A +12V: 83A -12V: 0.3A +5Vsb: 3A PFC: active Form factor: ATX PS/?2 Special features: ErP Lot 6, supports "Haswell" C6/?C7 Low-Power States
Weight - 3,80
