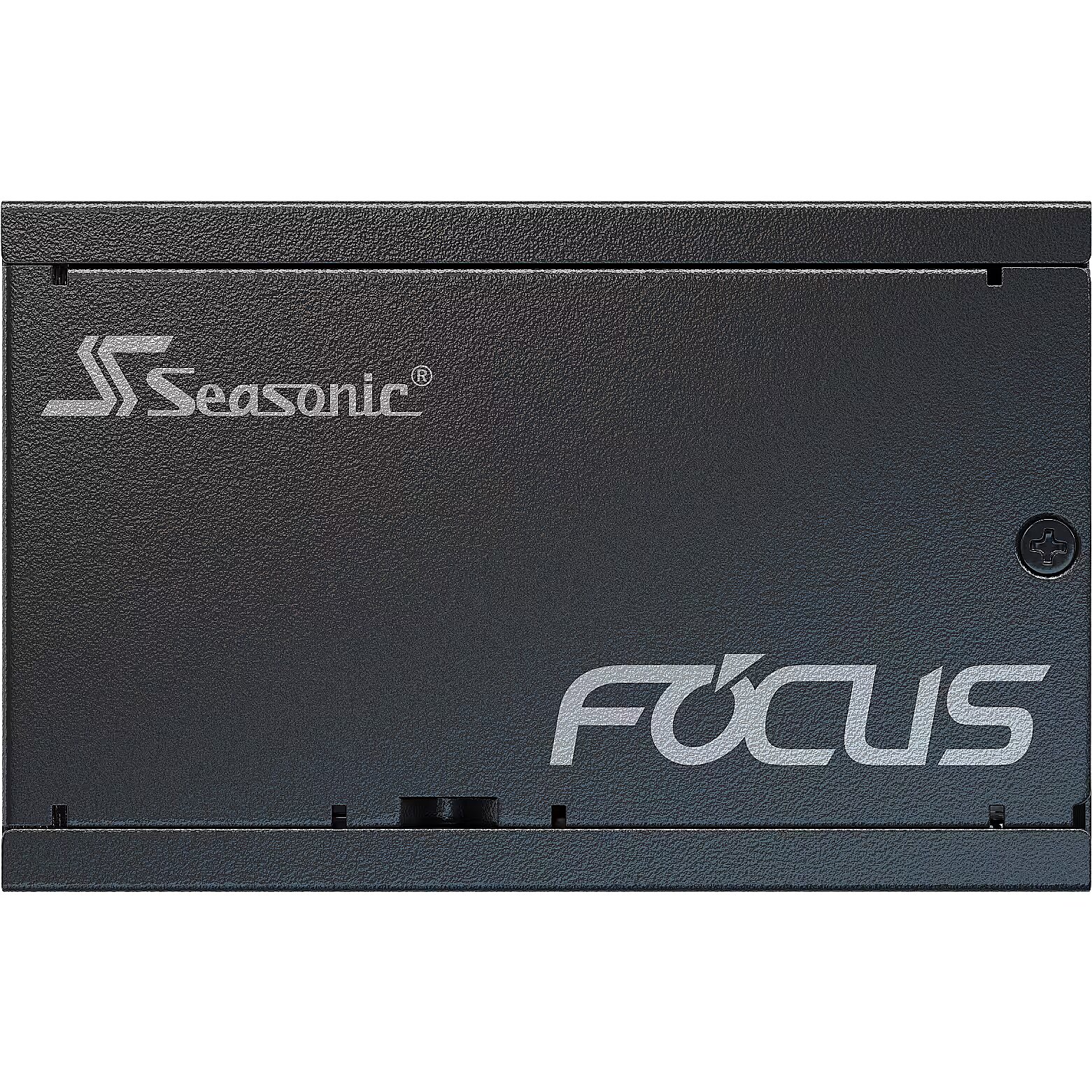

Seasonic Focus SPX (2021), 650W, 80PLUS Platinum

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 837763 Product code: FOCUS-SPX-650
Can be ordered 12 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
161.93 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Producer: Seasonic
  • Power output: 650W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 92 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

Available for purchase is a power supply produced by Seasonic with a power output of 650W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.

650W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.

The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

This is a SFX (Small Form Factor eXtended) type power supply. It is smaller in size and power compared to AFX type units, but is ideally suited for small form (SFF) computers where space is limited. It has smaller size fans and it is compatible with such motherboards as Mini-ITX.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : SFX
Power output 650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 62A
Fan size : 92 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 6
4pin Molex : 3
Case
More detailed specification
category - PC Components|Power Supplies|Modular Power Supplies
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
code - FOCUS-SPX-650
ean - 4711173877103
Eans - 4711173877103
EAN_code - 4711173877103
Manufacturer - Seasonic
Manufacturer_code - FOCUS-SPX-650
Name - Seasonic Focus SPX - 650W
name - Seasonic Focus SPX 80 PLUS Platinum SFX-Netzteil, modular - 650 Watt
Name - Seasonic PRIME PX-650, PC power supply (black, 4x PCIe, cable management, 650 watts)
Producer - Seasonic
ProducerCode - FOCUS-SPX-650
ShortDescription - 650 | SFX | 92 mm | 24 pin | 125 x 63,5 x 100 mm | 80 Plus Platinum | modularny
Technical_details - Type: PC power supply Color: Black EAN: 4711173877103 Manufacturer number: FOCUS-SPX-650 Power: 650W : 648W : 100W : 100-240 volts : 4.5 A at 230 volts / 50 Hz, 9 A at 110 volts / 60 Hz Default: ATX12V 2.3 Design: SFX Certification: 80 PLUS Platinum Current: 20A : 20A : 3 A : 0.3A : 54A : 54A Power Factor Correction: Active PFC Switch: 1x power switch Connectors: 1x 24-pin ATX12V-2.x, 1x 4+4-pin 12V, 3x 4-pin 5.25", 4x 6+2-pin graphics, 6x 15-pin SATA Cable: Yes Cooling: 1x 92mm fan : Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Accessories: 1x SFX to ATX Adapter Bracket Dimensions: Width: 125mm x Depth/Length: 100mm
Weight - 2,05
