ID: 824613
Product code: R-PQA00M-FA0B-EU
Can be ordered 28 units Availability: 14 days after order approval
Warranty: 3 years

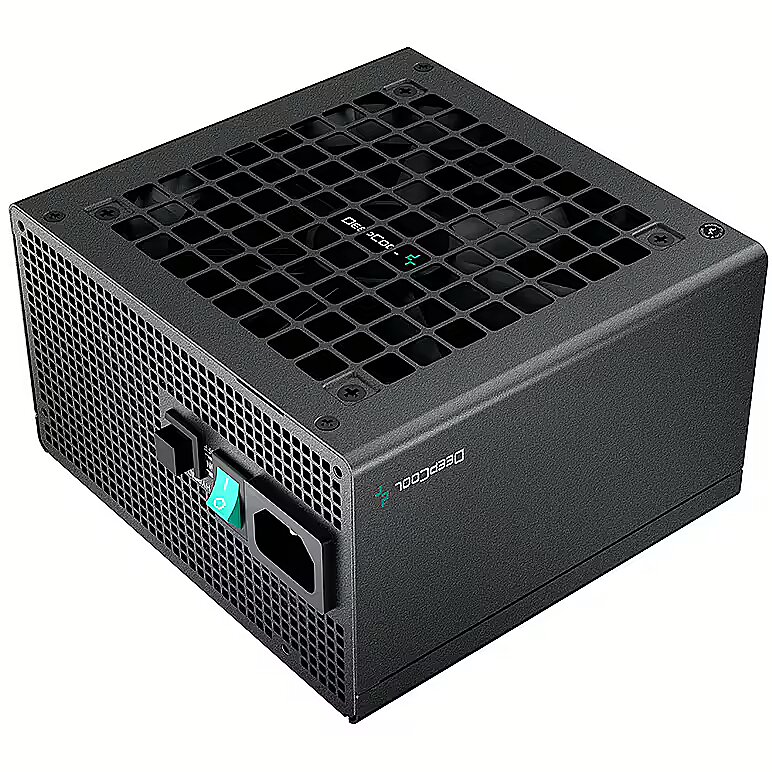

Deepcool PQ1000M, 1000W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Deepcool
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 6 x 6+2pin
Description
This Deepcool brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 1000W.
Even the best gaming computer will be able to operate safely with this 1000W power supply unit. The power will be sufficient for both a substantial water cooling system and multiple high-end graphics cards, an overclocked high-end processor, and several hard drives.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
The manufacturer of this power supply is Deepcool. View all Deepcool power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 83A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 6 x 6+2pin
SATA cconnectors
: 10
4pin Molex
: 5
DeepCool 12VHPWR 600W cable
More detailed specification
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80 PLUS Gold Certified
Code - R-PQA00M-FA0B-EU
Design > Colour of product - Black
EAN - 6933412702023
EAN_code - 6933412702023
Link - https://global.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PQ1000M-80-PLUS-Gold-Modular-Power-Supply/2021/14033.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PQA00M-FA0B-EU
Name - DeepCool PQ1000M 1000W ATX12V V2.4 black
Name - Deepcool | PQ1000M | 1000 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 310 mm
Package features > Gross depth master carton - 585 mm
Package features > Gross height (mm) - 183 mm
Package features > Gross height master carton - 215 mm
Package features > Gross width (mm) - 113 mm
Package features > Gross width master carton - 332 mm
Package features > Net weight master carton - 14.25 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 205 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Tare weight master carton - 0.71 kg
Package features > Volume (m3) - 0.00641049 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Form factor - ATX12V V2.4
Power > Nominal power - 1000 W
Producer product name - PQ1000M
Technical details > Gross weight - 2.85 kg
Technical details > Net weight - 2.35 kg
Technical details > Other features - 120mm Fan Size; OPP/OVP/SCP/OTP/OCP Protections
Technical details > Producer - Deepcool
Technical details > Warranty - 120 month(s)
Technical_details - PQ1000M 1000W, PC power supply The modular power supply of the DeepCool PQ-M series with 80 PLUS Gold represents another generation of power supply and is characterized by quiet operation with high efficiency and stability for powerful PCs. Certified according to 80 PLUS Gold for the generation of environmentally friendly and even power while reducing waste heat and noise. The PQ-M series achieves an efficiency of 90% at 50% system load. Type: PC power supply Color: Black EAN code: 6933412702023 Manufacturer No.: R-PQA00M-FA0B-EU Performance: Total | 1000W Power: +12V total | 996W Power: +3.3V/+5V total | 125W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Power: input current | 6.5 A at 230 volts / 50 Hz, 13 A at 110 volts / 60 Hz Default: ATX12V 2.4 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 25A Amperages: +5 V | 25A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 83 A Amperages: +12 V1 | 83 A Power Factor Correction: Active PFC Switch: 1x power switch Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 5x 4-pin 5.25", 3x 6+2-pin graphics, 10x 15-pin SATA Cables: Cable Management | Yes Cooling: number of fans | 1x 120mm fan Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Warranty - 120
Weight - 2,89
