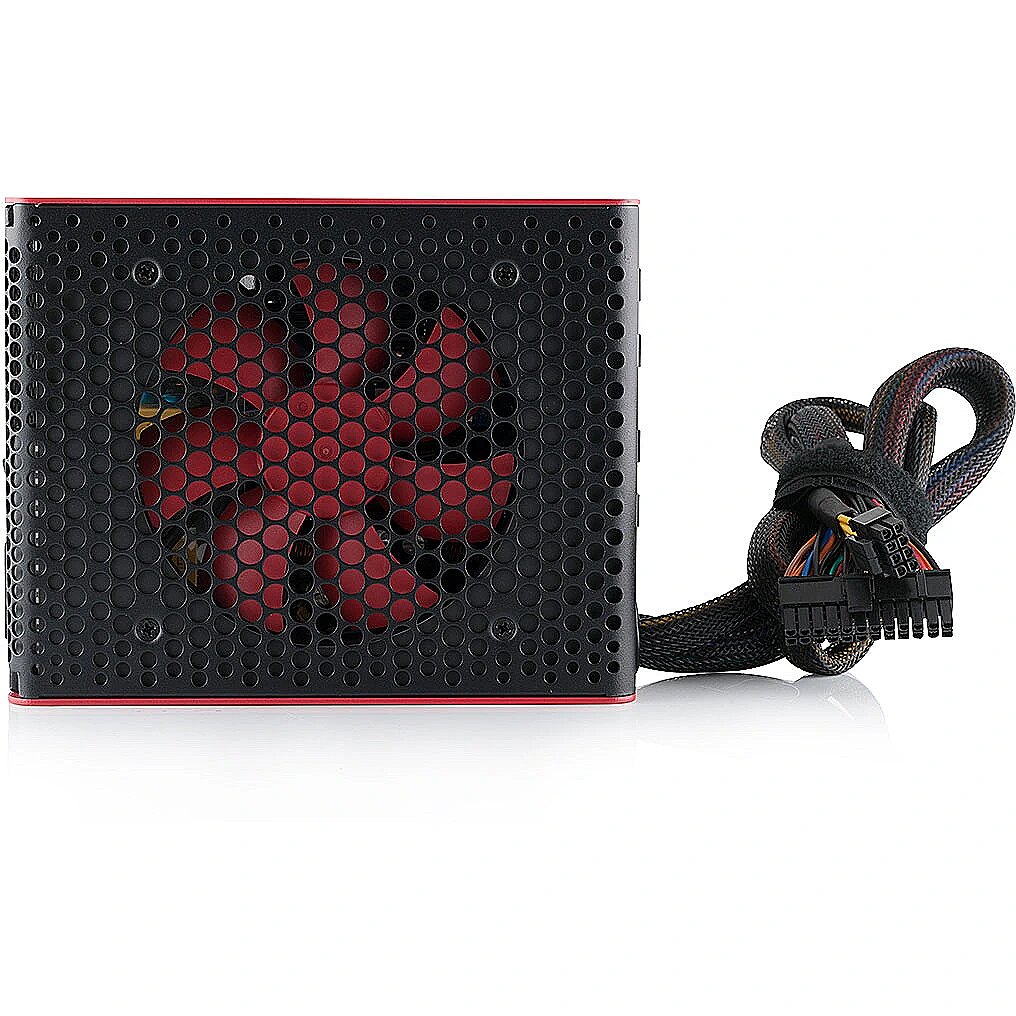

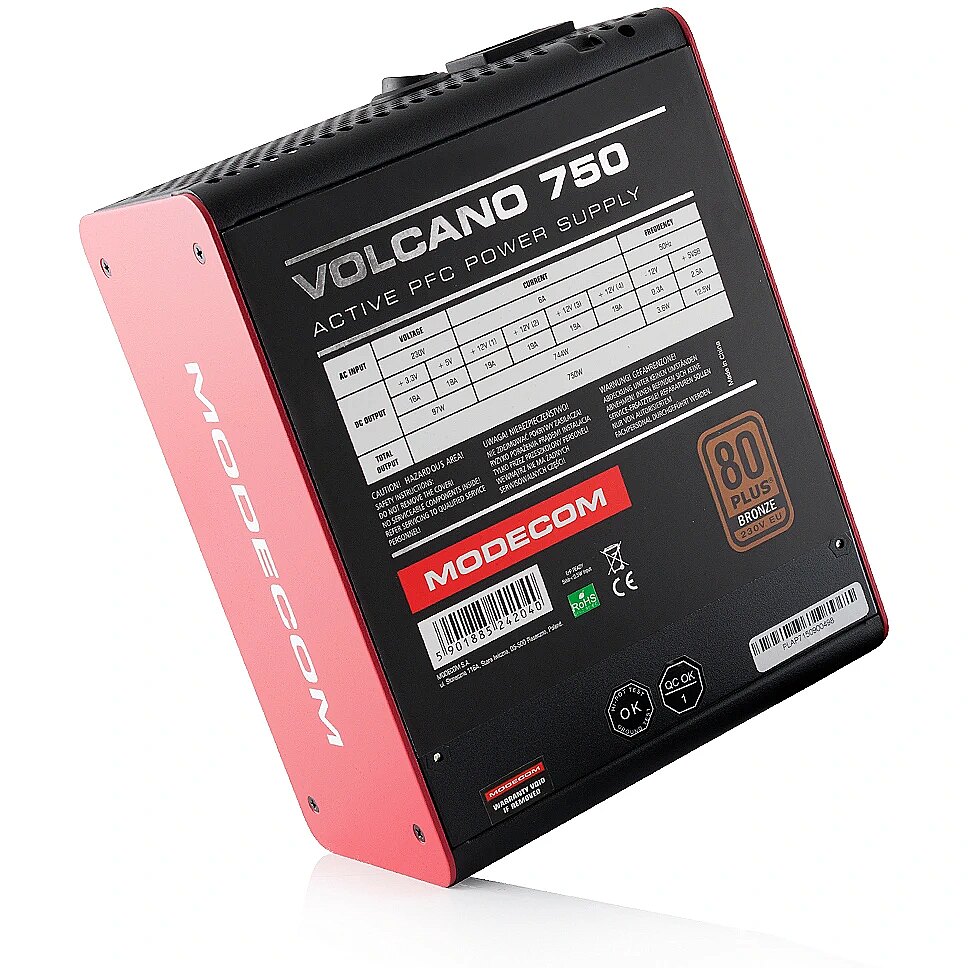

Modecom Volcano, 750W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 822952 Product code: MODECOM_80PLUS_750W_POWER_SUPPL
Can be ordered 8 units Availability: 14 days after order approval
Warranty: 2 years
83.76 €
Delivery options
  • Delivery to Smartpost 6.99 €: 17.04.2025
  • Courier delivery 11.99 €: 17.04.2025
Main product parameters All parameters
  • Producer: Modecom
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Semi-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 x 6+2pin + 2 x 6pin
Description

This Modecom brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 750W.

For polite mid-range computer game playing, a power supply with a 750W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The color of this power supply is Melna,Sarkana. The cable color is Raiba and they are flat.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

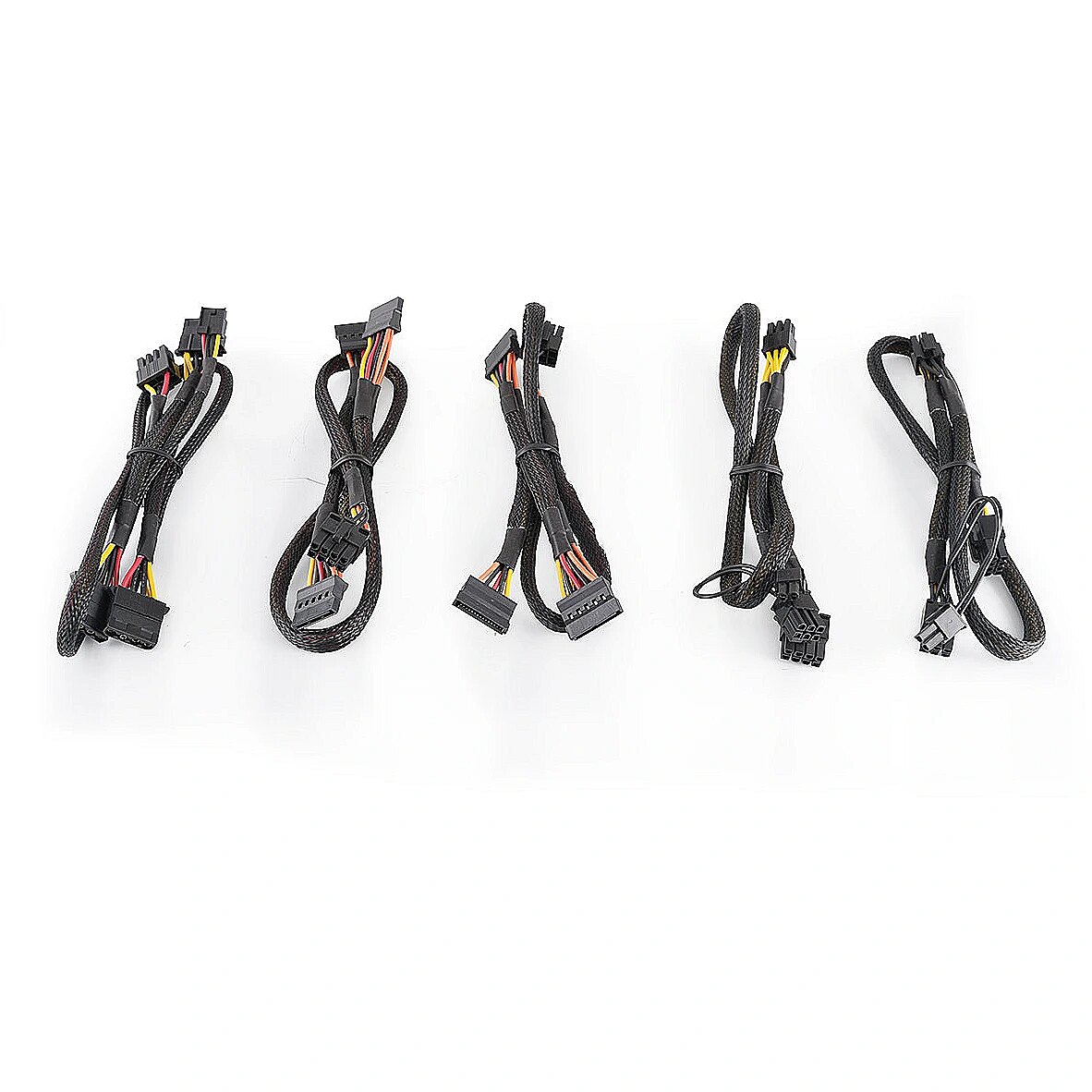

The power supply unit's cables are partially modular. Some cables can be attached or removed as needed, while others are fixed. This unit is intended for those who want a certain level of flexibility but do not want a fully modular system.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 19A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Melna, Red
Modular cables : Semi-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 2 x 6+2pin + 2 x 6pin
SATA cconnectors : 6
4pin Molex : 3
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates 80+ - 80 PLUS Bronze
Description - Modecom Volcano 750 Power Supply
With its unique design, high power output and high efficiency, the MODECOM VOLCANO power supply allows you to seamlessly configure a functional, energy efficient, efficient and stable computer system, stand out from the competition. MODECOM VOLCANO is one of the best high performance power supplies. This is a product for demanding gamers and PC enthusiasts looking for the best quality at an affordable price. It is one such product, after purchase you are convinced that you have chosen well!
Main features: Three groups of independent outputs + 12V, + 5V, + 3.3V Two EMI filters Large heat sinks Quiet fan Resonant converter LLC High capacitance capacitor Active PFC Filter capacitor Semiconductor capacitors Two magnetic amplifiers Highly efficient conversion rate Layout + 5VSB Three groups of independent exits Terminal output lines
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Fan speed - 1800
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product colour - Red
Designation - CE+WEEE
dimensionalWeight - 1874
dimension depth - 115 mm
dimension height - 225 mm
Dimensions -
dimension weight - 3400 g
dimension width - 355 mm
ean - 5901885242040
Fan - 12 cm
Fan speed (max) - 1800 rpm
Floppy power connectors - 1
guarantee - 36
guarantee_type - statutory
MB power connector - 20 + 4 pin
Mean time between failures (MTBF) - 100000 h
Modular power supply - Yes
MOLEX power connectors - 3
name - POWER SUPPLY VOLCANO 750W BRONZE
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - ATX 2.31 Power Supply Performance at 50% load: 85% Housing: Black 0.8T
Other features - Cable management - Yes
Other features - Warranty card - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 2
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.31
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - PCI Express power connectors (6-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input voltage - 230 V
Power - Efficiency - 85%
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 750 W
Power supply - 750 W
producer - MODECOM
producerCode - ZAS-MC85-SM-750-ATX-VOLCANO
productName - Modecom Volcano power supply unit 750 W 20+4 pin ATX ATX Black, Red
productSize - Normal
SATA power connectors - 6
sizeX - 355
sizeY - 220
sizeZ - 120
vendpn - ZAS-MC85-SM-750-ATX-VOLCANO
warrantyLength - 24
warrantyType - G
Weight - 2.2 kg
weight - 3436
Weight & dimensions - Weight - 2.2 kg
