ID: 818559
Product code: GP-UD850GM
In stock >50 units / In office 3 units
Warranty: 3 years
Gigabyte UD850GM, 850W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Wednesday, 13.11.2024
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Gigabyte brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.
850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
The power supply unit has received the Cybenetics Standard ++ noise level certificate – the noise generated by the unit will be 30-35 decibels.

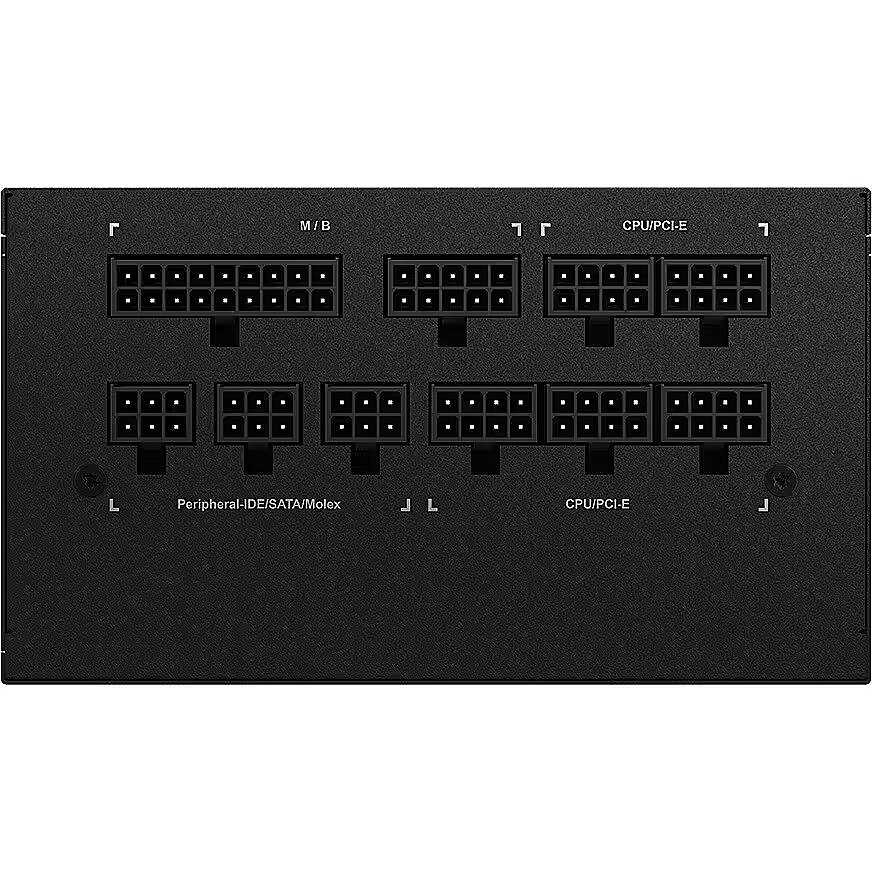

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.
This power supply unit is manufactured by Gigabyte. You can view all Gigabyte power supply units here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Cybenetics Standard ++
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-UD850GM
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Gold
Code - GP-UD850GM
Description -
Description - Ultra Durable + Main Japanese capacitors + Enhanced thermal solution + 120mm smart hydraulic bearing (HYB) fan + OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact design 5 years warranty (Adjusted according to different regions ULTRA DURABLE Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time. ENHANCED THERMAL SOLUTION Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. 120 MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time. PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. SINGLE +12V RAIL Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. COMPACT DESIGN With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
description_en - Gigabyte UD850GM
Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
CPU power cable length: 60 cm
Target, result: PC (computer)
Power Supply Unit (PSU) Form Factor: ATX
80 PLUS certification: 80 PLUS Gold
Product color: Black
Cooling type: Active
Fan diameter: 12 cm
Width: 150 mm
Depth: 140 mm
Height: 86 mm
description_lv - Gigabyte UD850GM
Kopējā jauda: 850 W
Maiņstrāvas ievades spriegums: 100 - 240 V
Maiņstrāvas ievades frekvence: 50 - 60 Hz
Mātesplates strāvas konektors: 20+4 pin ATX
Mātesplates barošanas vada garums: 61 cm
CPU strāvas kabeļa garums: 60 cm
Mērķis, rezultāts: PC (dators)
Strāvas padeves bloka (PSU) formas faktors: ATX
80 PLUS sertifikācija: 80 PLUS Gold
Produkta krāsa: Melns
Dzesēšanas tips: Aktīvs
Ventilatora diametrs: 12 cm
Platums: 150 mm
Dziļums: 140 mm
Augstums: 86 mm
description_ru - Gigabyte UD850GM
Общая мощность: 850 Вт
Входное напряжение переменного тока: 100–240 В
Входная частота переменного тока: 50–60 Гц
Разъем питания материнской платы: 20+4-контактный ATX
Длина кабеля питания материнской платы: 61 см.
Длина кабеля питания процессора: 60 см
Цель, результат: ПК (компьютер)
Форм-фактор блока питания: ATX
Сертификация 80 PLUS: 80 PLUS Gold
Цвет товара: Черный
Тип охлаждения: Активное
Диаметр вентилятора: 12 см.
Ширина: 150 мм
Глубина: 140 мм
Высота: 86 мм
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1310
dimension depth - 120 mm
dimension height - 255 mm
Dimensions - 150 x 140 x 86 mm
dimension weight - 2577 g
dimension width - 205 mm
EAN - 4719331552541
ean - 4719331552541
Eans - 4719331552541
EAN_code - 4719331552541
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Floppy power connectors - 1
Full Description Line - GP-UD850GM|ATX 2.31|850 Watts|80 PLUS GOLD|PFC Active|MTBF 100000 hours
gross_weight - 2.5 kg
GTIN - 4719331552541
guarantee - 60
guarantee_type - normal
Link - https://www.gigabyte.com/Power-Supply/GP-UD850GM/sp#sp
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.HIGH QUALITY JAPANESE CAPACITORSThe main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.ENHANCED THERMAL SOLUTIONCompared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.120MM SMART HYDRAULIC BEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
LongProductName - 850W, ATX, 80 PLUS Gold, ATX 12V v2.31
LongSummaryDescription - GIGABYTE UD850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - GigaByte
Manufacturer_code - GP-UD850GM GEU
MB power connector - 20 + 4 pin
Model - UD850GM
Model name - GP-UD850GM
Modular power supply - Yes
MOLEX power connectors - 3
MTBF - 100000 hours
Name - Gigabyte GP-UD850GM
Name - GIGABYTE GP-UD850GM 850W, PC power supply (black, 4x PCIe, cable management, 850 watts)
Name - Gigabyte | PSU | GP-UD850GM | 850 W
name - Modular power supply UD850GM 850W 80PLUS GOLD ATX
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 255.00 mm
Package features > Gross depth master carton - 620 mm
Package features > Gross height (mm) - 208 mm
Package features > Gross height master carton - 278 mm
Package features > Gross width (mm) - 118 mm
Package features > Gross width master carton - 224 mm
Package features > Net weight master carton - 12.75 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 145 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Tare weight master carton - 0.656 kg
Package features > Volume (m3) - 0.00625872 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.31
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Bearing technology - Hydraulic Bearing (HYB)
Performance > Form factor - ATX 12V v2.31
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3

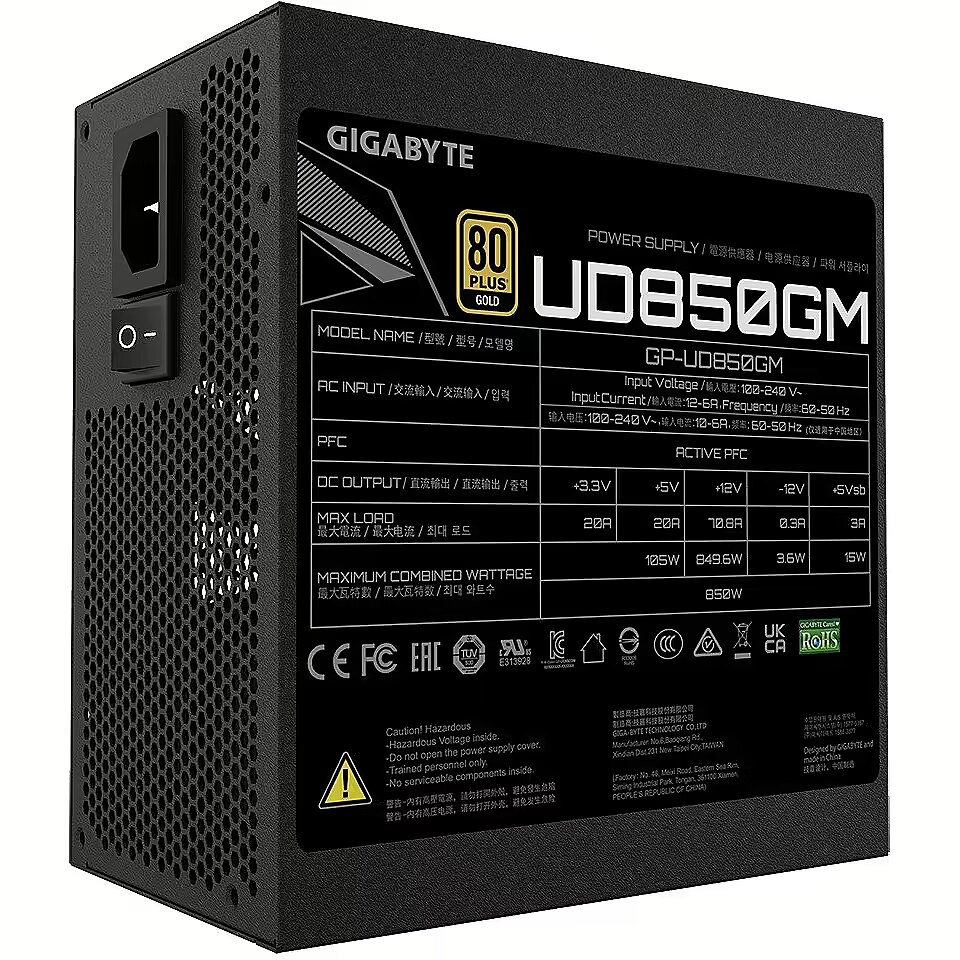

Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 849.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Maximum input current (@110V) - 12 A
Power - Maximum input current (@220V) - 6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power > Nominal power - 850 W
Power supply - 850 W
producer - Gigabyte
Producer - Gigabyte
producerCode - GP-UD850GM
ProducerCode - GP-UD850GM
Producer product family - PSU
Producer product name - GP-UD850GM
productName - Gigabyte UD850GM power supply unit 850 W 20+4 pin ATX ATX Black
ProductName - UD850GM
productSize - Normal
PSU - ATX 2.31
PSU Output Power - 850 Watts
SATA power connectors - 8
Shipping Box Depth Shipping/Package Box Dimensions - 26 cm
Shipping Box Height Shipping/Package Box Dimensions - 21 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.577 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE UD850GM, 850 W, 100 - 240 V, 50 - 60 Hz, 12 A, 6 A, Active
sizeX - 120
sizeY - 210
sizeZ - 260
Technical details > Gross weight - 2.55 kg
Technical details > Net weight - 2.25 kg
Technical details > Other features - Fan size 120mm; Protection OVP/OPP/SCP/UVP/OCP/OTP
Technical details > Producer - Gigabyte
Technical details > Warranty - 60 month(s)
Technical_details - GP-UD850GM 850W, PC power supply The GIGABYTE GP-UD850GM 850W PC power supply with fully modular cables is 80 PLUS Gold certified for better energy efficiency. Lower power consumption reduces heat generation and fan noise. The power supply can reach up to 90% efficiency, providing the best solution for system builds. The modular cables reduce clutter and improve airflow within the case. The single +12V rail offers the best output power, stability and compatibility for the hardware. The 120mm silent fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The fan offers a longer and more stable service life thanks to hydraulic bearings. Type: PC power supply Color: Black EAN: 4719331552541 Manufacturer No.: GP-UD850GM GEU Performance: Total | 850W Power: +12V total | 849 W Power: +3.3V/+5V total | 105W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Power: input current | 6 A at 230 volts / 50 Hz, 12 A at 110 volts / 60 Hz Default: ATX12V 2.3 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 20A Amperages: +5 V | 20A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 70.8A Amperages: +12 V1 | 70.8A Power Factor Correction: Active PFC Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 1x 4-pin 3.5", 4x 4-pin 5.25", 4x 6+2-pin graphics , 8x 15-pin SATA Cables: Cable Management | Yes Cooling: number of fans | 1x 120mm fan Cooling: Regulation | Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Title - GIGABYTE UD850GM power supply unit 850 W 20+4 pin ATX ATX Black
title_en - Gigabyte UD850GM Power Supply 850W
title_lv - Gigabyte UD850GM Barošanas Bloks 850W
title_ru - Gigabyte UD850GM Блок Питания 850W
Unit Box Height - 0.21
Unit Box Length - 0.26
Unit Box Width - 0.12
Unit Brutto Volume - 0.006552 cubm
Unit Gross Weight - 2.58 kg
Unit Net Weight - 2 kg
URL - https://www.gigabyte.com/Power-Supply/GP-UD850GM#kf
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-UD850GM#kf
vendpn - GP-UD850GM
Warranty - 36 months
Warranty - 60
WarrantyInfo - 5 years
warrantyLength - 60
warrantyType - G
weight - 2 kg
Weight - 2,58
weight - 2550
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-UD850GM
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Gold
Code - GP-UD850GM
Description -
Description - Ultra Durable + Main Japanese capacitors + Enhanced thermal solution + 120mm smart hydraulic bearing (HYB) fan + OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact design 5 years warranty (Adjusted according to different regions ULTRA DURABLE Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time. ENHANCED THERMAL SOLUTION Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. 120 MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time. PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. SINGLE +12V RAIL Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. COMPACT DESIGN With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.

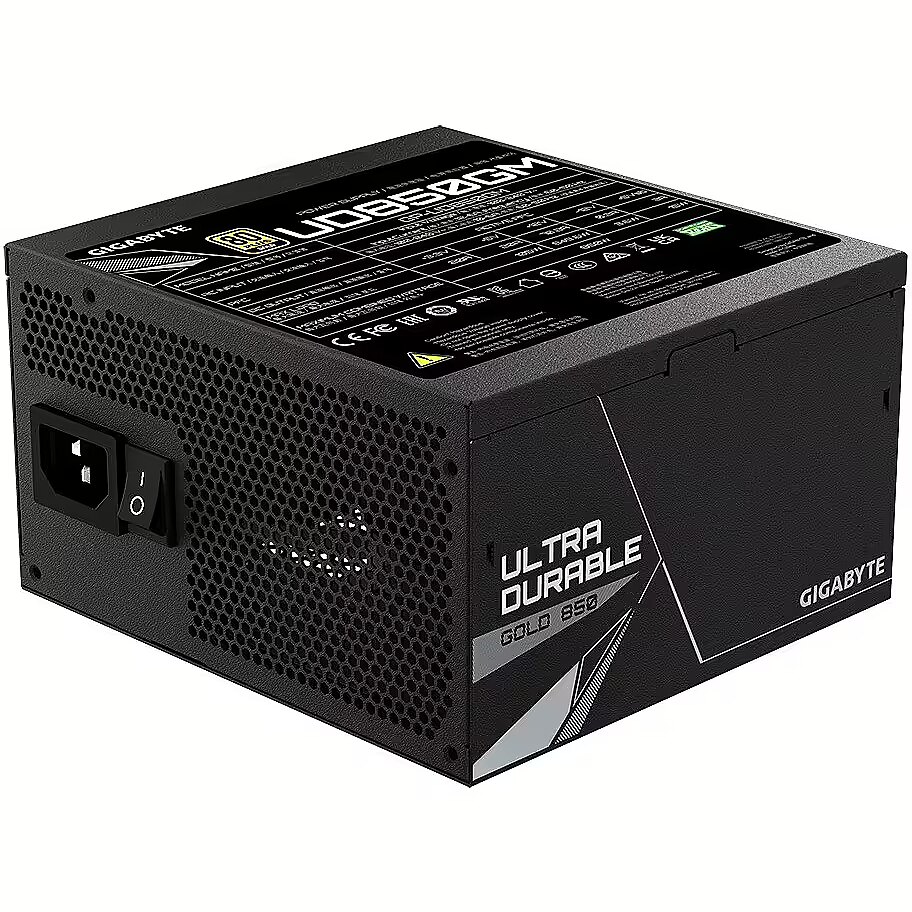

description_en - Gigabyte UD850GM
Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
CPU power cable length: 60 cm
Target, result: PC (computer)
Power Supply Unit (PSU) Form Factor: ATX
80 PLUS certification: 80 PLUS Gold
Product color: Black
Cooling type: Active
Fan diameter: 12 cm
Width: 150 mm
Depth: 140 mm
Height: 86 mm
description_lv - Gigabyte UD850GM
Kopējā jauda: 850 W
Maiņstrāvas ievades spriegums: 100 - 240 V
Maiņstrāvas ievades frekvence: 50 - 60 Hz
Mātesplates strāvas konektors: 20+4 pin ATX
Mātesplates barošanas vada garums: 61 cm
CPU strāvas kabeļa garums: 60 cm
Mērķis, rezultāts: PC (dators)
Strāvas padeves bloka (PSU) formas faktors: ATX
80 PLUS sertifikācija: 80 PLUS Gold
Produkta krāsa: Melns
Dzesēšanas tips: Aktīvs
Ventilatora diametrs: 12 cm
Platums: 150 mm
Dziļums: 140 mm
Augstums: 86 mm
description_ru - Gigabyte UD850GM
Общая мощность: 850 Вт
Входное напряжение переменного тока: 100–240 В
Входная частота переменного тока: 50–60 Гц
Разъем питания материнской платы: 20+4-контактный ATX
Длина кабеля питания материнской платы: 61 см.
Длина кабеля питания процессора: 60 см
Цель, результат: ПК (компьютер)
Форм-фактор блока питания: ATX
Сертификация 80 PLUS: 80 PLUS Gold
Цвет товара: Черный
Тип охлаждения: Активное
Диаметр вентилятора: 12 см.
Ширина: 150 мм
Глубина: 140 мм
Высота: 86 мм
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1310
dimension depth - 120 mm
dimension height - 255 mm
Dimensions - 150 x 140 x 86 mm
dimension weight - 2577 g
dimension width - 205 mm
EAN - 4719331552541
ean - 4719331552541
Eans - 4719331552541
EAN_code - 4719331552541
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Floppy power connectors - 1
Full Description Line - GP-UD850GM|ATX 2.31|850 Watts|80 PLUS GOLD|PFC Active|MTBF 100000 hours
gross_weight - 2.5 kg
GTIN - 4719331552541
guarantee - 60
guarantee_type - normal
Link - https://www.gigabyte.com/Power-Supply/GP-UD850GM/sp#sp
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.HIGH QUALITY JAPANESE CAPACITORSThe main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.ENHANCED THERMAL SOLUTIONCompared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.120MM SMART HYDRAULIC BEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
LongProductName - 850W, ATX, 80 PLUS Gold, ATX 12V v2.31
LongSummaryDescription - GIGABYTE UD850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - GigaByte
Manufacturer_code - GP-UD850GM GEU
MB power connector - 20 + 4 pin
Model - UD850GM
Model name - GP-UD850GM
Modular power supply - Yes
MOLEX power connectors - 3
MTBF - 100000 hours
Name - Gigabyte GP-UD850GM
Name - GIGABYTE GP-UD850GM 850W, PC power supply (black, 4x PCIe, cable management, 850 watts)
Name - Gigabyte | PSU | GP-UD850GM | 850 W
name - Modular power supply UD850GM 850W 80PLUS GOLD ATX
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 255.00 mm
Package features > Gross depth master carton - 620 mm
Package features > Gross height (mm) - 208 mm
Package features > Gross height master carton - 278 mm
Package features > Gross width (mm) - 118 mm
Package features > Gross width master carton - 224 mm
Package features > Net weight master carton - 12.75 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 145 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Tare weight master carton - 0.656 kg
Package features > Volume (m3) - 0.00625872 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.31
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Bearing technology - Hydraulic Bearing (HYB)
Performance > Form factor - ATX 12V v2.31
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 849.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Maximum input current (@110V) - 12 A
Power - Maximum input current (@220V) - 6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power > Nominal power - 850 W
Power supply - 850 W
producer - Gigabyte
Producer - Gigabyte
producerCode - GP-UD850GM
ProducerCode - GP-UD850GM
Producer product family - PSU
Producer product name - GP-UD850GM
productName - Gigabyte UD850GM power supply unit 850 W 20+4 pin ATX ATX Black
ProductName - UD850GM
productSize - Normal
PSU - ATX 2.31
PSU Output Power - 850 Watts
SATA power connectors - 8
Shipping Box Depth Shipping/Package Box Dimensions - 26 cm
Shipping Box Height Shipping/Package Box Dimensions - 21 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.577 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE UD850GM, 850 W, 100 - 240 V, 50 - 60 Hz, 12 A, 6 A, Active
sizeX - 120
sizeY - 210
sizeZ - 260
Technical details > Gross weight - 2.55 kg
Technical details > Net weight - 2.25 kg
Technical details > Other features - Fan size 120mm; Protection OVP/OPP/SCP/UVP/OCP/OTP
Technical details > Producer - Gigabyte
Technical details > Warranty - 60 month(s)
Technical_details - GP-UD850GM 850W, PC power supply The GIGABYTE GP-UD850GM 850W PC power supply with fully modular cables is 80 PLUS Gold certified for better energy efficiency. Lower power consumption reduces heat generation and fan noise. The power supply can reach up to 90% efficiency, providing the best solution for system builds. The modular cables reduce clutter and improve airflow within the case. The single +12V rail offers the best output power, stability and compatibility for the hardware. The 120mm silent fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The fan offers a longer and more stable service life thanks to hydraulic bearings. Type: PC power supply Color: Black EAN: 4719331552541 Manufacturer No.: GP-UD850GM GEU Performance: Total | 850W Power: +12V total | 849 W Power: +3.3V/+5V total | 105W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Power: input current | 6 A at 230 volts / 50 Hz, 12 A at 110 volts / 60 Hz Default: ATX12V 2.3 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 20A Amperages: +5 V | 20A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 70.8A Amperages: +12 V1 | 70.8A Power Factor Correction: Active PFC Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 1x 4-pin 3.5", 4x 4-pin 5.25", 4x 6+2-pin graphics , 8x 15-pin SATA Cables: Cable Management | Yes Cooling: number of fans | 1x 120mm fan Cooling: Regulation | Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Title - GIGABYTE UD850GM power supply unit 850 W 20+4 pin ATX ATX Black
title_en - Gigabyte UD850GM Power Supply 850W
title_lv - Gigabyte UD850GM Barošanas Bloks 850W
title_ru - Gigabyte UD850GM Блок Питания 850W
Unit Box Height - 0.21
Unit Box Length - 0.26
Unit Box Width - 0.12
Unit Brutto Volume - 0.006552 cubm
Unit Gross Weight - 2.58 kg
Unit Net Weight - 2 kg
URL - https://www.gigabyte.com/Power-Supply/GP-UD850GM#kf
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-UD850GM#kf
vendpn - GP-UD850GM
Warranty - 36 months
Warranty - 60
WarrantyInfo - 5 years
warrantyLength - 60
warrantyType - G
weight - 2 kg
Weight - 2,58
weight - 2550
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
