ID: 803861
Product code: R-PF650D-HA0B-EU
Can be ordered 196 units Availability: 14 days after order approval
Warranty: 2 years

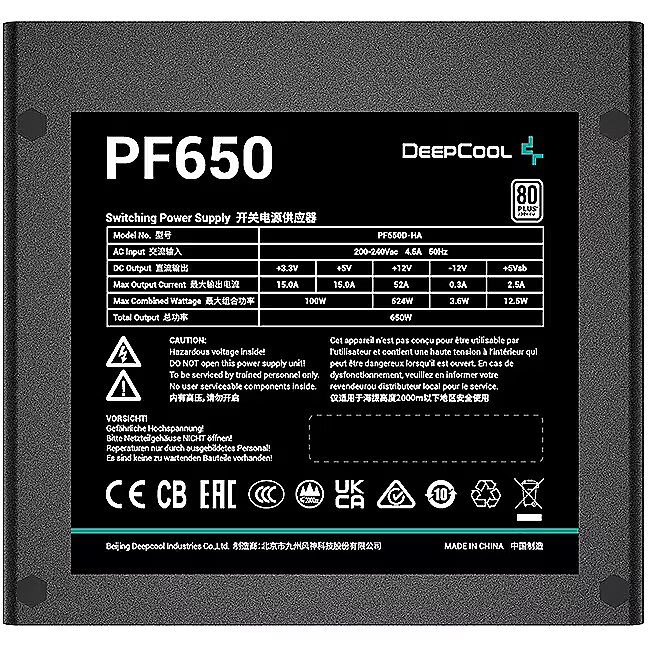

Deepcool PF650, 650W, 80PLUS
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Main product parameters All parameters
- Producer: Deepcool
- Power output: 650W
- 80 PLUS certification: 80 PLUS (White)
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
Available for purchase is a power supply produced by Deepcool with a power output of 650W. The product has been awarded an 80 PLUS (White) energy efficiency certificate.
650W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has been awarded the 80 PLUS (White) energy efficiency certificate, which ensures at least 80% efficiency. This indicates that at least 80 W out of 100 W of power received from the mains by the power supply is delivered to the computer components, with the remaining 20 W being lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
The power supply manufacturer is Deepcool. All power supplies produced by Deepcool can be viewed here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS (White)
Total amperage (+12V)
: 52A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 2
More detailed specification
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80 PLUS Standard Certified
Code - R-PF650D-HA0B-EU
Desc - Jauda: 650W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 3, MOLEX PATA pieslēgumi: 2, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 1098
EAN - 6933412711469
EAN_code - 6933412711469
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_108646_1.jpg
LargeDescHTML -
Link - https://global.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PF650D-230V-Power-Supply-Unit/2021/15137.shtml?status=authorization
Manufacturer - Deepcool
Manufacturer_code - R-PF650D-HA0B-EU
Name - Barošanas bloks DeepCool PF650
Name - DeepCool PF650 650W, PC power supply (black, 2x PCIe, 650 watts)
Name - Deepcool | PF650 | 650 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260 mm
Package features > Gross height (mm) - 180 mm
Package features > Gross width (mm) - 115 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 161 pc(s)
Package features > Paper/Pasteboard - 794 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 1.094 kg
Package features > Volume (m3) - 0.005382 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Performance - 80 PLUS certification - 80 PLUS White
Performance - Bearing technology - Hypro Bearing
Performance - Certification - CB/CCC/CE/UKCA/EAC/RCM
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Form factor - ATX12V V2.4
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - Peripheral (Molex) power cable length - 900
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450
Ports & interfaces > ATX power connector (20+4 pin) - 1
Ports & interfaces > EPS power connector (8-pin) - 1
Ports & interfaces > Number of SATA power connectors - 2
Ports & interfaces > PCI Express power connectors (6+2 pin) - 2
Power - AC input voltage - 230 V
Power - Efficiency - 85%
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 650 W
Power > Nominal power - 650 W
producerCode - R-PF650D-HA0B-EU
Producer product name - PF650
productName - DeepCool PF650 power supply unit 650 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 260
sizeY - 113
sizeZ - 187
Technical details > Gross weight - 1.823 kg
Technical details > Net weight - 0.729 kg
Technical details > Other features - 120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
Technical details > Producer - Deepcool
Warranty - 36
Warranty - 36 month(s)
warrantyLength - 24
warrantyType - G
Weight - 1,90
weight - 1800
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
