Chieftec PowerPlay GPU-1050FC, 1050W, 80PLUS Platinum

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 715515 Product code: GPU-1050FC
In stock 3 units
Warranty: 3 years
154.22 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Producer: Chieftec
  • Power output: 1050W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 8 x 6+2pin
Description

Available for purchase is a power supply produced by Chieftec with a power output of 1050W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.

Thanks to the huge 140 mm cooling fan, this power supply unit is much quieter than a standard unit. The fan has a larger wing area, which ensures the necessary airflow at lower fan speeds, thus reducing the overall level of vibration and noise to a minimum.

80 PLUS Platinum energy efficiency certificate, received by this power supply unit, guarantees at least 92% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the power grid, at least 92 W reaches your computer components, while the remaining 8 W is lost as heat.

The color of the power supply is Melna,Sarkana. It is equipped with flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 1050W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 83.3A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna, Red
Modular cables : Fully-Modular

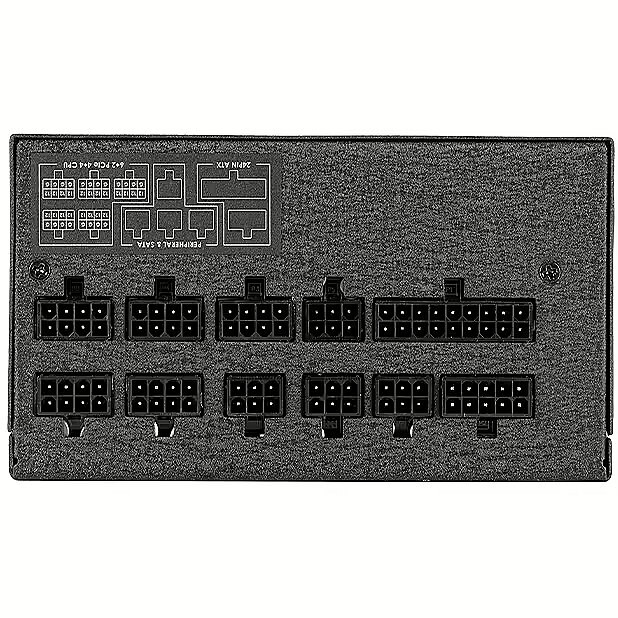

Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 8 x 6+2pin
SATA cconnectors : 9
4pin Molex : 3
Case
More detailed specification
Brand - Chieftec
BrandPartCode - GPU-1050FC
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product colour - Black, Red
Design - Product colour - Red
dimensionalWeight - 1753
EAN_code - 0753263076106
GTIN - 753263076106
GTIN - 0753263076106
Logistics data - Harmonized System (HS) code - 84733020
LongSummaryDescription - Chieftec PowerPlay. Total power: 1050 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,800 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 160 mm, Height: 86 mm
Manufacturer - Chieftronic
Manufacturer_code - GPU-1050FC
Name - Chieftronic GPU-1050FC CM 1050W ATX - Power Play GPU-1050FC
Packaging data - Package type - Box
Packaging data - Package weight - 3.87 kg
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 8
Ports & interfaces - Peripheral (Molex) power cable length - 150 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,700 mm
Ports & interfaces - Peripheral (Molex) power cable length - 700 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,800 mm
Ports & interfaces - SATA power cable length - 800 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 999.96 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 13 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.33 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 1050 W
producerCode - GPU-1050FC
productName - Chieftec PowerPlay power supply unit 1050 W 20+4 pin ATX PS/2 Black, Red
ProductName - PowerPlay
productSize - Normal
ShortSummaryDescription - Chieftec PowerPlay, 1050 W, 100 - 240 V, 47 - 63 Hz, 13 A, Active, 120 W
sizeX - 305
sizeY - 230
sizeZ - 125
Technical_details - Built on Chieftec's years of experience in developing high quality power supplies, the Chieftronic PowerPlay series offers an attractive combination of top specs such as 80 PLUS Gold (at 550W, 650W, 750W) and 80 PLUS Platinum (at 850W, 1050W). High-quality Japanese capacitors for minimal ripple noise and the eye-catching fan grill design complete the whole thing and offer a first-class product. The power supplies are installed in a robust housing and measure just 160 mm deep. Thus, they fit easily in most ATX V12 power supply slots and leave enough space for clean cable management. This combination of efficiency, performance and design make the Chieftronic PowerPlay a world-class power supply series that rightly leads this product lineup at Chieftronic. Details: Color black / red Code EAN 0753263076106 Performance Total 1050 W + 12V total 999W + 3.3V / + 5V total 120W Installation standard ATX12V 2.3 Design ATX Certification 80 PLUS Platinum Currents +3.3 V 22 A +5 V 22 A +5 Vsb 3 A -12V 0.3A +12 V total 83.33 A +12 V1 83.33 A Power Factor Correction Active PFC Switch 1x power switch Connections 1x 24-pin ATX12V 2.x, 2x 4 + 4 pin 12V, 1x 4-pin 3.5 ", 3x 4-pin 5.25", 8x 6 + 2-pin graphic, 9x 15-pin SATA Cable management Yes Cooling Number of fans 1x 140mm fan Temperature-controlled regulation Protective functions: Protection against power surges (OCP), Overvoltage protection (OVP), Overload protection (OLP / OPP), Short-circuit protection (SCP), Overheating protection (OTP), Protection against electrical shock (SIP) Dimensions: 150mm x: 86mm x: 160mm Weight 3.5 kg
Title - Chieftec PowerPlay power supply unit 1050 W 20+4 pin ATX PS/2 Black, Red
warrantyLength - 36
warrantyType - G
Weight - 3,66
weight - 3675
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 3.46 kg
Weight & dimensions - Width - 150 mm
