Modecom Volcano, 750W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 708231 Product code: ZAS-MC90-SM-750-ATX-VOLCANO-GOLD
Can be ordered 20 units Availability: 14 days after order approval
Warranty: 3 years
90.30 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Producer: Modecom
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

Available for purchase is a power supply produced by Modecom with a power output of 750W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.

With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of this power supply is Brūna,Melna. The cable color is Melna and they are flat.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

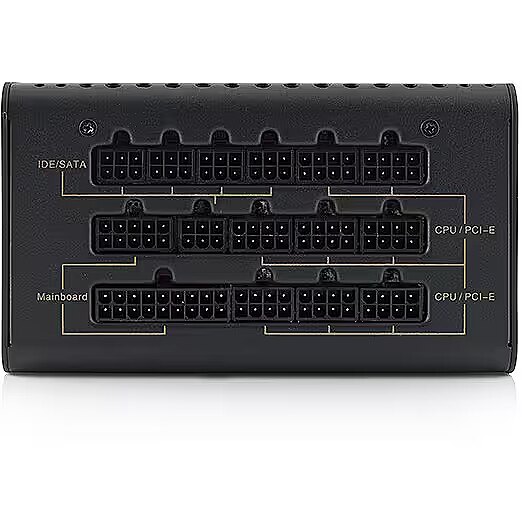

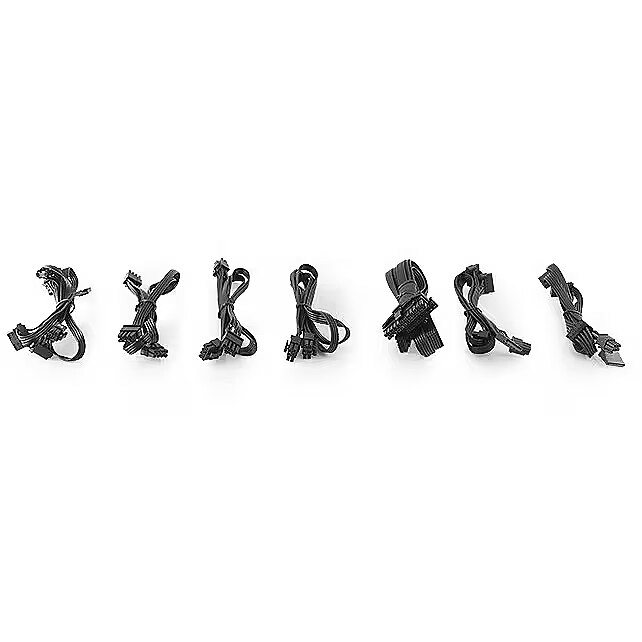

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 62A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Brown, Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates 80+ - 80 PLUS Gold
Description - With its unique design, high power output and high efficiency, the MODECOM VOLCANO power supply allows you to seamlessly configure a functional, energy efficient, efficient and stable computer system, stand out from the competition. MODECOM VOLCANO is one of the best high performance power supplies. This is a product for demanding gamers and PC enthusiasts looking for the best quality at an affordable price. It is one such product, after purchase you are convinced that you have chosen well!
THE MOST IMPORTANT FEATURES:
- Intel ATX 12V Specification Version 2.31
- 750 watt continuous power - provides adequate power reserves.
- Very high efficiency - over 90% at 50% load, certified with official certification.
- Full voltage range 100 ~ 240V
- Active PFC (Active PFC). The value of the power factor PF is 0.99
- The most stable technology configured for the 80 plus gold power supply
- DC2DC circuit with stable design, made in high technology - supports super VGA cards
- Taiwan's high capacitance TEAPO capacitor
- SINOPOWER Taiwanese Transistors
- Highest electromagnetic efficiency
- The use of high purity aluminum (99%) radiators improves heat dissipation up to 60%
- The fastest USB 3.0 charging program
- Strong, single power line Super + 12V
- quiet 120mm fan.
- Fully modular cabling with long, flat cables - will greatly reduce the tangle of cables inside the case and improve airflow.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1874
dimension depth - 200 mm
dimension height - 135 mm
Dimensions - 130 x 195 x 330 mm
dimension weight - 3180 g
dimension width - 335 mm
ean - 5901885244082
Fan - 12 cm
Floppy power connectors - 1
guarantee - 36
guarantee_type - statutory
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 4
name - POWER SUPPLY VOLCANO 750 GOLD 120mm FAN
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Other features - PCI Express slots quantity - 4
Packaging data - Manual - Yes
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.31
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Modular
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 90%
Power - Input current - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 750 W
Power supply - 750 W
producer - MODECOM
producerCode - ZAS-MC90-SM-750-ATX-VOLCANO-GOLD
productName - Modecom Volcano Gold power supply unit 750 W ATX Black
productSize - Normal
SATA power connectors - 8
sizeX - 355
sizeY - 220
sizeZ - 120
vendpn - ZAS-MC90-SM-750-ATX-VOLCANO-GOLD
warrantyLength - 36
warrantyType - R
weight - 3605
