ID: 705014
Product code: BN323
Can be ordered 17 units Availability: 14 days after order approval
Warranty: 3 years

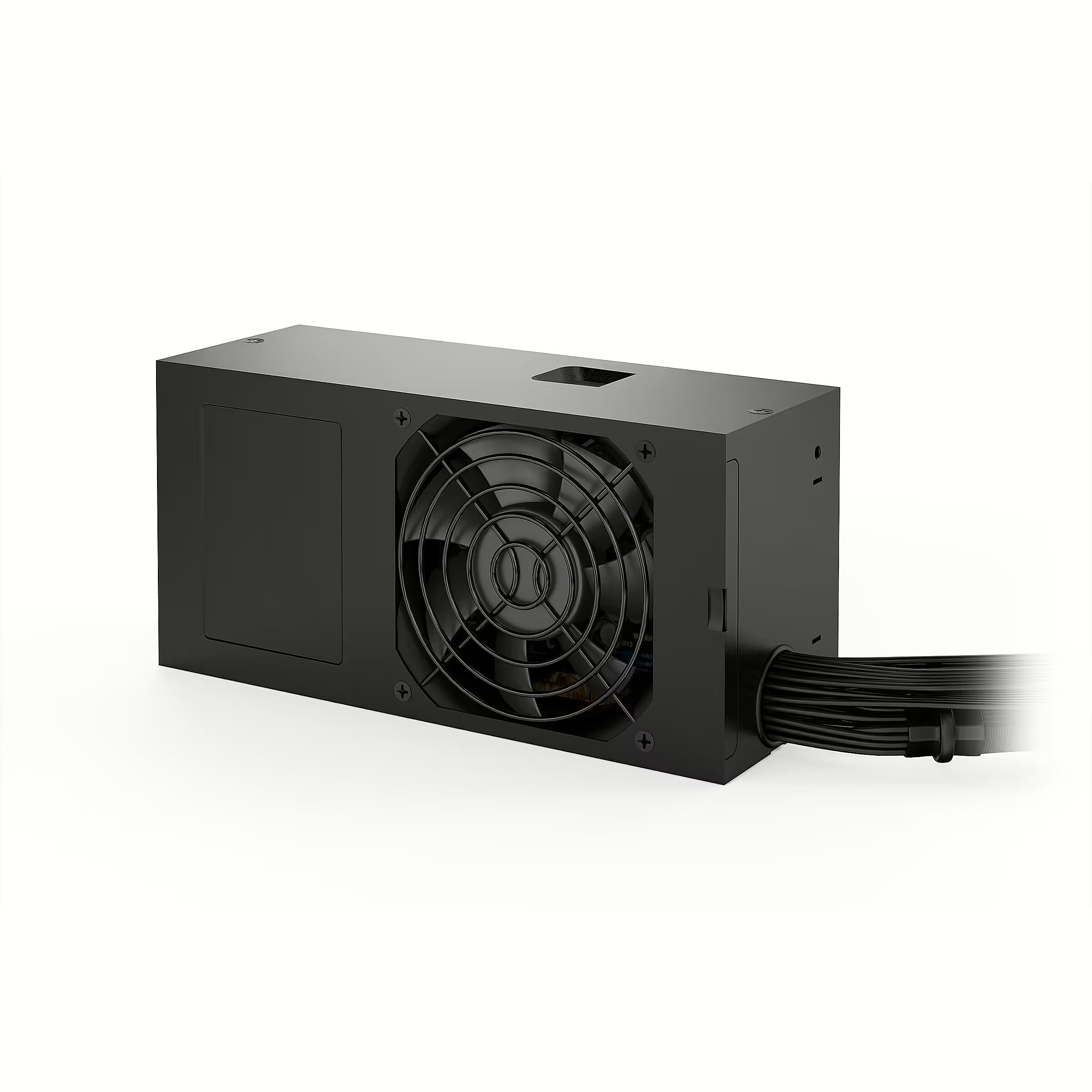

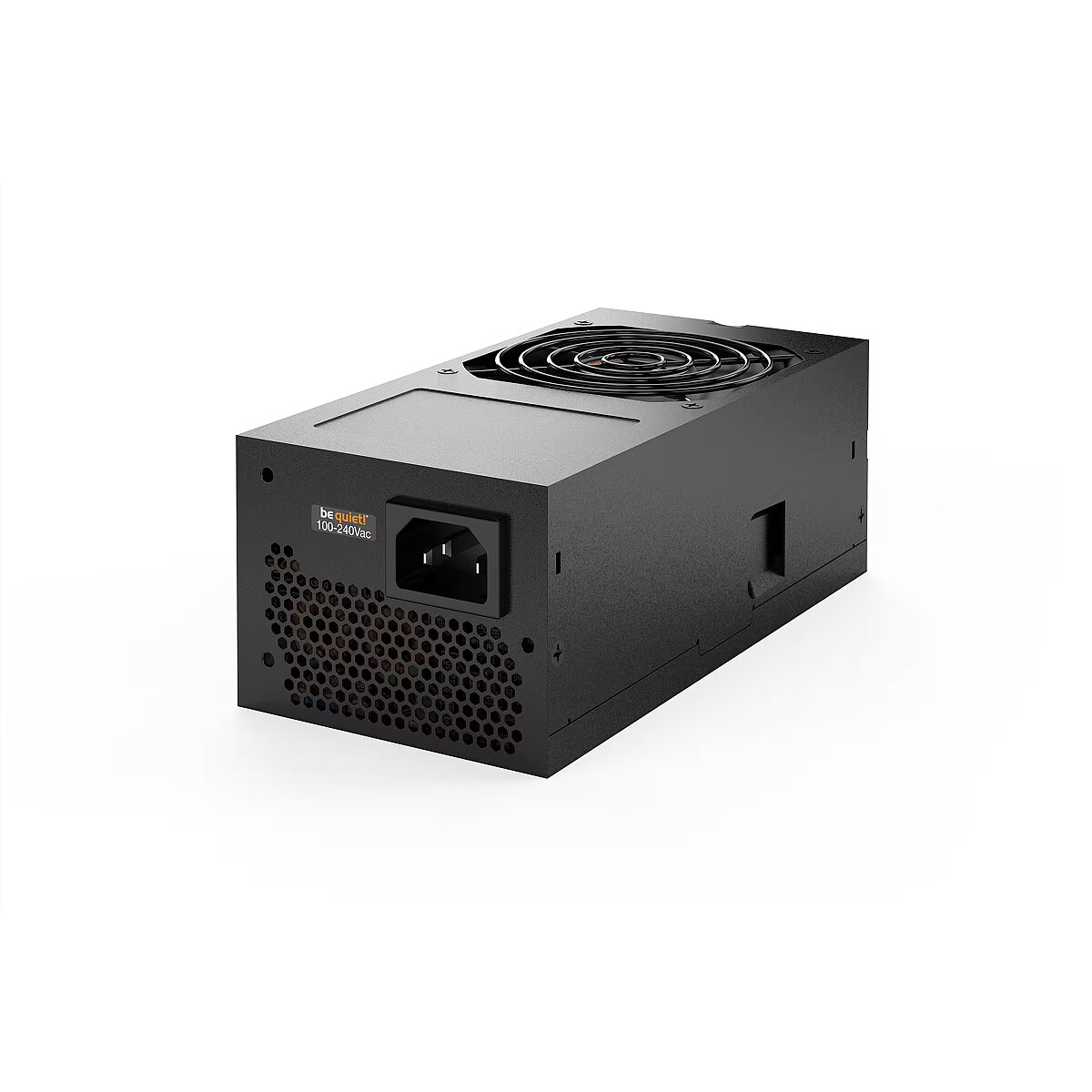

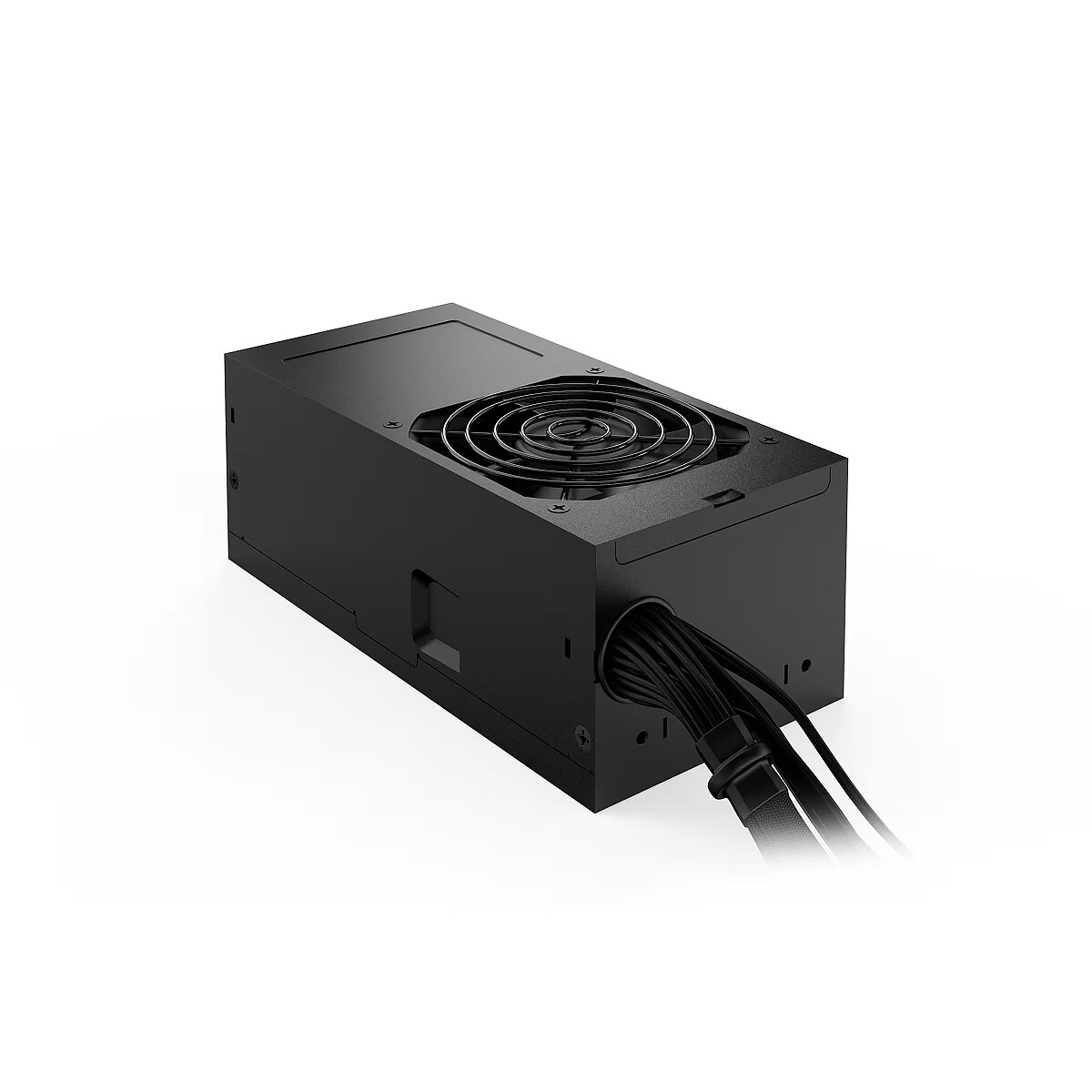

Be Quiet TFX Power 3, 300W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 300W
- 80 PLUS certification: 80 PLUS Gold
- Fan size:
- Modular cables: Nav
- Processor plug-in: 1 x 4-pin EPS
- PCI-E: 2 X 6+2pin
Description
Available for purchase is a power supply produced by Be Quiet with a power output of 300W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
This power supply manufacturer is Be Quiet. See all Be Quiet power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: TFX
Power output
300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 26A
Fan size
:
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 4-pin EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 3
4pin Molex
: 2
More detailed specification
Brand - be quiet!
BrandPartCode - BN323
category - PC Components|Power Supplies|PSUs up to 500 Watts
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
code - BN323
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 550
ean - 4260052188293
EAN_code - 4260052188293
GTIN - 4260052188293
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 9.39 kg
Logistics data - Shipping (inner) case height - 19.5 cm
Logistics data - Shipping (inner) case length - 47.4 cm
Logistics data - Shipping (inner) case width - 27.5 cm
LongDesc - TFX Power 3 300W Gold, the advanced, high-efficiency be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Gold the perfect choice for PCs with TFX form factor.
LongProductName - 300W, ATX TFX12V V2.52, EPS 2.92, 1x 80mm (1323RPM), 80 PLUS Gold
LongSummaryDescription - be quiet! TFX POWER 3 300W Gold. Total power: 300 W, AC input voltage: 100 - 240 V, Peak power: 350 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 300,450,600 mm. Purpose: PC, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 8 cm. Width: 85 mm, Depth: 175 mm, Height: 65 mm
Manufacturer - Be quiet
Manufacturer_code - BN323
Name - be quiet! TFX Power 3 80 + Gold 300W TFX - BN323
name - be quiet! TFX Power 3 Netzteil, 80 PLUS Gold - 300 Watt
Packaging data - Package depth - 80 mm
Packaging data - Package height - 215 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.43 kg
Packaging data - Package width - 159 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.52
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 21.7 dB
Performance - Power supply unit (PSU) form factor - TFX
Performance - Purpose - PC
Performance - Safety - CE, CB, TÜV, CU
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 35 cm
Ports & interfaces - Floppy disk drive cable length - 60 cm
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 35 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express power cable length - 40 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 300,450 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 300,450,600 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 103 W
Power - Combined power (+5V) - 103 W
Power - Combined power (+12V) - 288 W
Power - Efficiency - 90.6%
Power - Hold time - 29 ms
Power - Input current - 4/2 A
Power - Maximum input current (@110V) - 4 A
Power - Maximum input current (@220V) - 2 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 13 A
Power - Max output current (+12V2) - 13 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 350 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Under voltage
Power - Total power - 300 W
producerCode - BN323
productName - be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
ProductName - TFX POWER 3 300W Gold
productSize - Normal
ShortSummaryDescription - be quiet! TFX POWER 3 300W Gold, 300 W, 100 - 240 V, 350 W, 50 - 60 Hz, 4/2 A, 4 A
sizeX - 80
sizeY - 160
sizeZ - 215
Technical details - Compliance certificates - RoHS, WEEE
Technical details - Sustainability certificates - ENERGY STAR, ErP
Technical details - Sustainability compliance - Yes
Title - be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
URL - https://www.bequiet.com/en/download/powersupply/2312?utm_source=newsletter
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 1,47
weight - 1257
Weight & dimensions - Depth - 175 mm
Weight & dimensions - Height - 65 mm
Weight & dimensions - Weight - 1.1 kg
Weight & dimensions - Width - 85 mm
