ID: 671763
Product code: MPE-8501-AFAAG-EU
Can be ordered 30 units Availability: 14 days after order approval
Warranty: 2 years

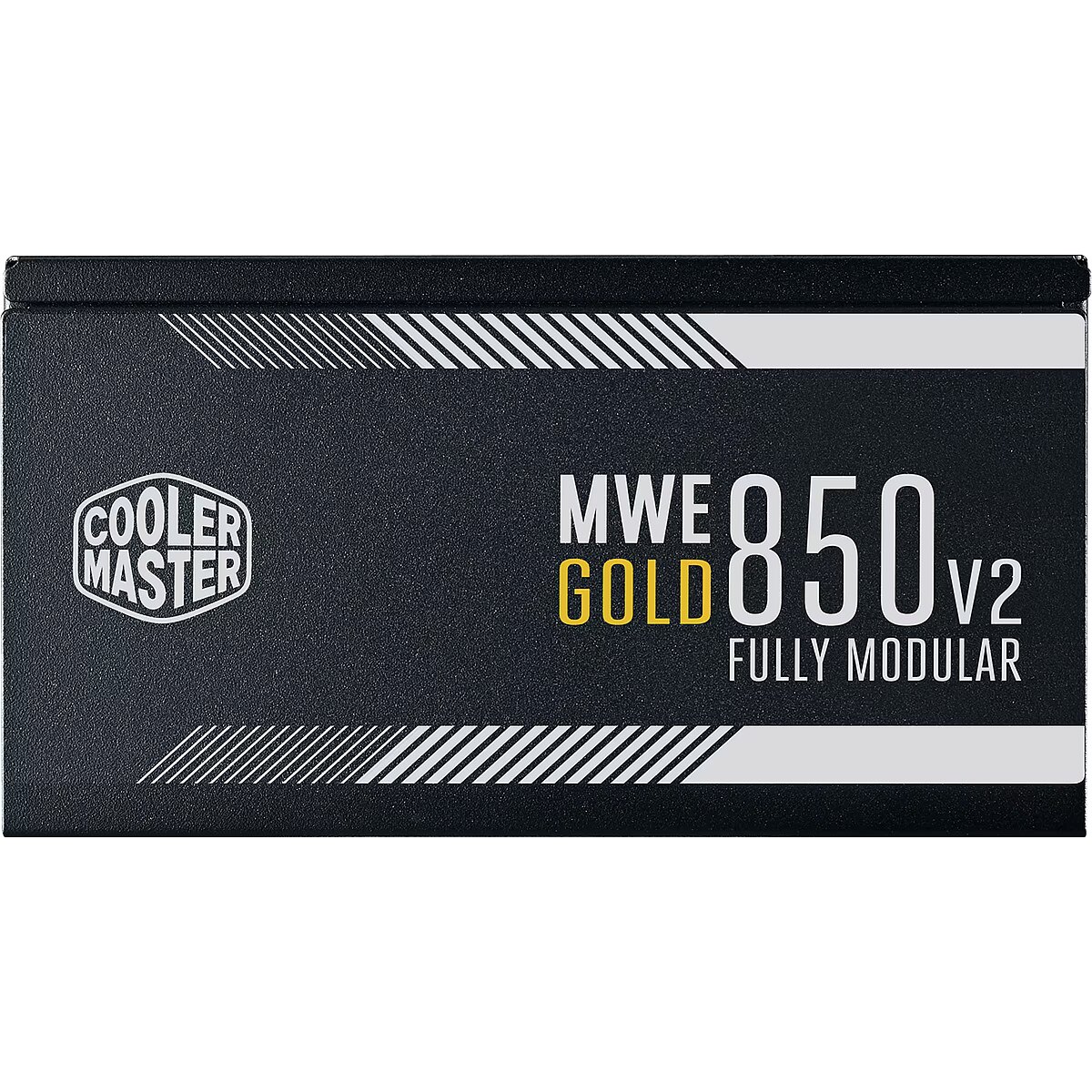

Cooler Master MWE Gold 850 V2, 850W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Cooler Master
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Cooler Master brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.
850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
The noise level of this power supply is 35-40 dB and it has a Cybenetics Standard + noise level certification.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Cybenetics Standard +
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 12
4pin Molex
: 4
More detailed specification
8-pin 12V power connectors - 1
Accessories included - Kabel zasilający
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Certificates > Certification - 80 PLUS Gold
Code - MPE-8501-AFAAG-EU
Description - Power Supply MWE Gold V2 850W modular 80+ Gold POWER UP
The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.
80 PLUS GOLD CERTIFIED
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold - V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.
2 EPS CONNECTORS
All MWE Gold - V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you'll have enough connectors to use your ideal components.
QUIET COOLING
The MWE Gold - V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.
HIGH TEMPERATURE RESILIENCE
While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat.
FULL MODULAR CABLING
The full modular version of the MWE Gold - V2 comes with a set of flat black cables that can be customized to each user's individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system's overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.
5 YEAR WARRANTY
The MWE Gold - V2 comes with a standard 5 year manufacturing warranty from the date of purchase.
dimension depth - 120 mm
dimension height - 310 mm
Dimensions - 160 x 150 x 86 mm
dimension weight - 2780 g
dimension width - 195 mm
EAN - 4719512106310
ean - 4719512106310
Eans - 4719512106310
EAN_code - 4719512106310
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - normal
Link - https://www.coolermaster.com/catalog/power-supplies/mwe-series/mwe-gold-850-v2-full-modular/
Manufacturer - Cooler Master
Manufacturer_code - MPE-8501-AFAAG-EU
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
Name - Cooler Master MWE Gold 850 - V2, PC power supply (black, 4x PCIe, cable management, 850 watts)
Name - Cooler Master MWE Gold V2 850W 80+ Gold modularny
Name - Cooler Master | MPE-8501-AFAAG | 850 W
name - Power Supply MWE Gold V2 850W modular 80+ Gold
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 110.00 mm
Package features > Gross width (mm) - 190.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 318 pc(s)
Package features > Paper/Pasteboard - 300.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Yes
Power > Nominal power - 850 W
Power supply - 850 W
producer - Cooler Master
Producer - CoolerMaster
ProducerCode - MPE-8501-AFAAG-EU
Producer product name - MPE-8501-AFAAG
SATA power connectors - 12
ShortDescription - 850 | ATX | 120mm | 24 pin | 150mm x 160mm x 86mm | 80 Plus Gold | modularny
Technical details > Gross weight - 1.90 kg
Technical details > Net weight - 1.50 kg
Technical details > Producer - Cooler Master
vendpn - MPE-8501-AFAAG-EU
Warranty - 24
Warranty - 24 month(s)
Warranty - 60 months
Weight - 2,77
