ID: 626127
Product code: TUF-GAMING-650B
Can be ordered 36 units Availability: 14 days after order approval
Warranty: 3 years

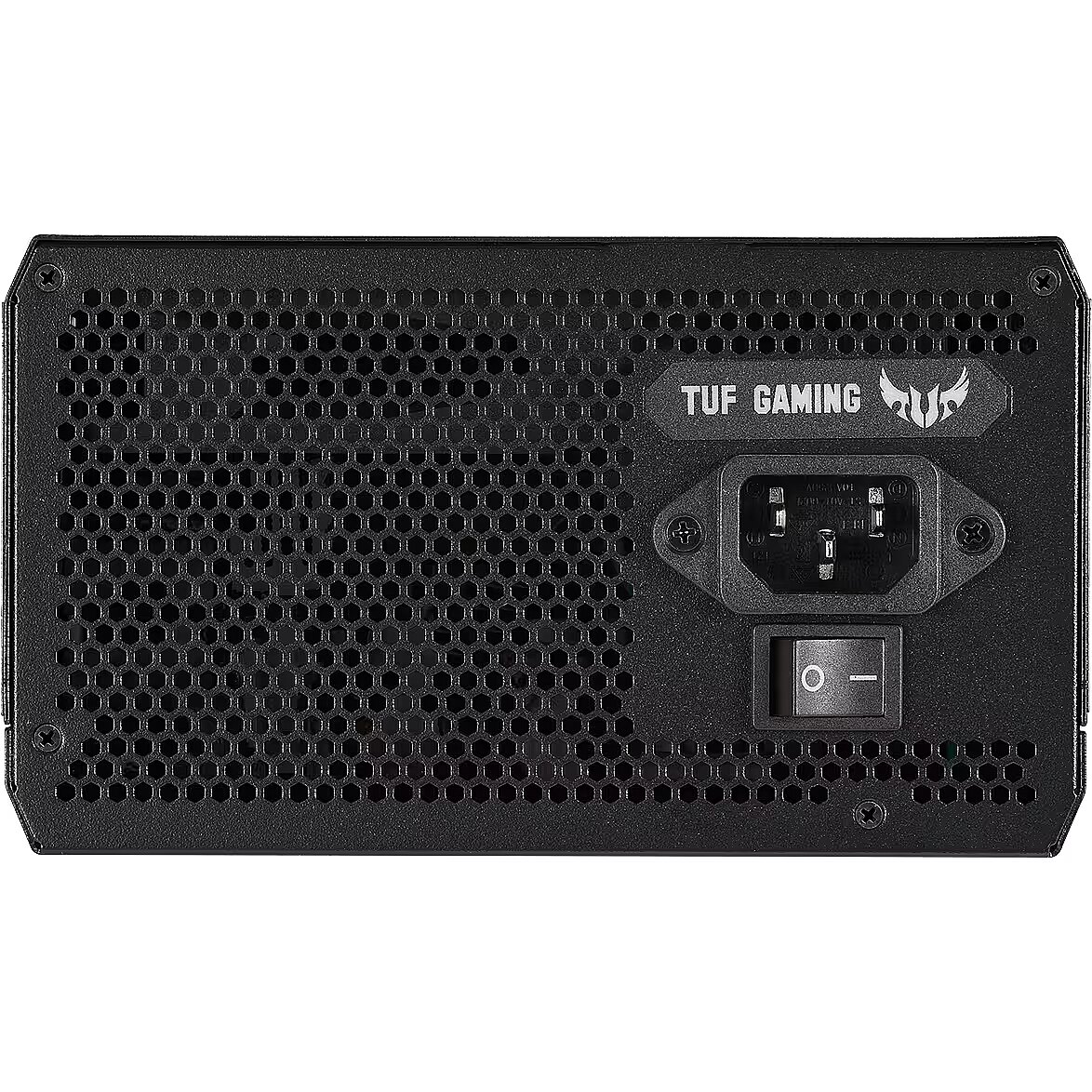

Asus TUF Gaming, 650W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 11.12.2024
Main product parameters All parameters
- Producer: Asus
- Power output: 650W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Asus brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 650W.
650W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
This power supply unit's noise level is 30-35 dB, and it has a Cybenetics Standard ++ noise level certification.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
This power supply is manufactured by Asus. You can view all Asus power supplies here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Cybenetics Standard ++
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 51A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 4
More detailed specification
Brand - ASUS
BrandPartCode - 90YE00D1-B0NA00
category - PC Components|Power Supplies|80 Plus Bronze
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
CnCode CnCode - 85044095
code - 90YE00D1-B0NA00
Description - The ASUS TUF Gaming 650W Bronze PSU leads in durability. - Capacitors and chokes pass demanding tests to achieve Military-grade Certification. - Dual ball fan bearings can last up to twice as long as sleeve bearing designs. - A protective PCB coating protects against moisture, dust, and extreme temperatures. - An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing. - Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. - 0dB technology lets you enjoy light gaming in relative silence. - Sleeved cables leave your rig looking tactically clean. - 80cm 8-pin CPU connector (EPS 12V) MB 24/20-pin x1 CPU 4+4-pin x2 PCI-E 6+2-pin x4 SATA x5 Periplheral x4
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1316
ean - 4718017724159
Eans - 4718017724159
EAN_code - 4718017724159
Efficiency - 80 PLUS BRONZE
Full Description Line - TUF-GAMING-650B|650 Watts|80 PLUS BRONZE
GTIN - 4718017724159
GTIN - 4718017724272
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Built For The Long HaulTUF Gaming series PSUs bring military-grade components and a robust cooling solution together to create a power platform you can depend on. High-quality capacitors and chokes undergo a myriad of tests, including extreme temperatures and vibration tests, to ensure they meet rigorous military specifications. An Axial-tech fan with a dual ball fan bearing design offers more longevity than other fan types, increasing the overall lifespan of the product. It's the perfect PSU to slot into a TUF Gaming rig or any DIY build designed to power through AAA games for years to come.Military−grade CertificationTop marksAll critical capacitors and chokes in TUF Gaming PSUs are certified to military-grade specifications, ensuring reliable operation over a wide range of temperatures.Dual Ball Fan Bearings2x longer lifespanExemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.Protective PCB CoatingAll wrapped upA protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.80 Plus Bronze CertificationBrains and BronzeThe high-quality components used in TUF Gaming power supplies ensure efficient and reliable operation worthy of an 80 PLUS Bronze Certification. The efficiency also leads to low temperatures within the PSU, facilitating an even quieter acoustic profile for the 135mm Axial-tech fan.Axial−tech Fan DesignBetter, faster, strongerOriginally developed for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.0dB TechnologyQuiet intelligenceAn onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 30%, letting you enjoy light gaming in relative silence. Above 30% TDP, the fans automatically start up again.6−year WarrantyEntrenched performanceWe're so confident about the reliability of the TUF Gaming series PSUs that we back them with a 6-year worldwide warranty.Sleeved CablesSlim-fitCables swathed in black sleeving leave your rig looking tactically clean.
LongProductName - ATX12V, 650W, 100 - 240 V, 25A, 80Plus Bronze
LongSummaryDescription - ASUS TUF-GAMING-650B. Total power: 650 W, AC input voltage: 100 - 240 V, Input current: 25 A. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Asus
Manufacturer_code - 90YE00D1-B0NA00
Model name - TUF-GAMING-650B
Name - ASUS TUF-GAMING-650B
name - ASUS TUF Gaming 650B 80 PLUS Bronze Netzteil - 650 Watt
Name - ASUS TUF Gaming 650B PC power supply 650W
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Packaging data - Package weight - 2.75 kg
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 80 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 400 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 612 W
Power - Combined power (-12V) - 9.6 W
Power - Input current - 25 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 51 A
Power - Max output current (-12V) - 0.8 A
Power - Total power - 650 W
Producer - Asus
producerCode - 90YE00D1-B0NA00
ProducerCode - TUF-GAMING-650B
productName - ASUS TUF-GAMING-650B power supply unit 650 W 20+4 pin ATX ATX Black
ProductName - TUF-GAMING-650B
productSize - Normal
PSU Output Power - 650 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 60.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 23.6 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 18.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.8 cm
ShortDescription - 650 | ATX | 135mm | 20 + 4 pin | 80 PLUS Bronze|
ShortSummaryDescription - ASUS TUF-GAMING-650B, 650 W, 100 - 240 V, 25 A, 130 W, 612 W, 130 W
sizeX - 110
sizeY - 205
sizeZ - 292
Technical details - Compliance certificates - RoHS
Title - ASUS TUF-GAMING-650B power supply unit 650 W 20+4 pin ATX ATX Black
Unit Box Height - 0.2
Unit Box Length - 0.29
Unit Box Width - 0.11
Unit Brutto Volume - 0.008757 cubm
Unit Gross Weight - 3.05 kg
Unit Net Weight - 2.06 kg
URL - https://www.asus.com/Motherboards-Components/Power-Supply-Units/All-series/TUF-GAMING-650B/
Vendor Homepage - www.asus.com/Motherboards-Components/Power-Supply-Units/TUF-Gaming/TUF-GAMING-650B/
Warranty - 36 months
WarrantyInfo -
warrantyLength - 72
warrantyType - G
Weight - 2,86
weight - 2851
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.06 kg
Weight & dimensions - Width - 150 mm
