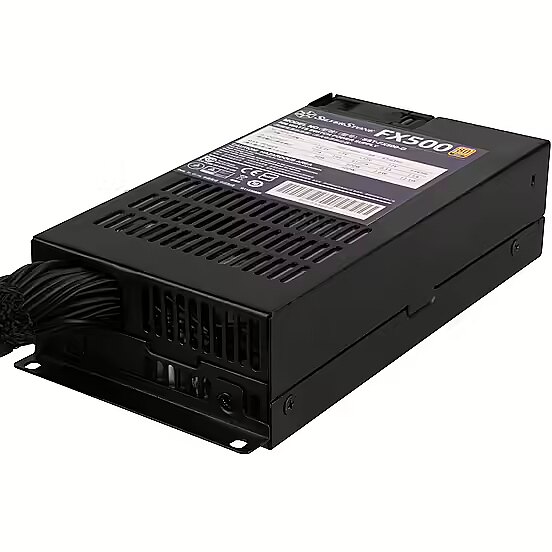

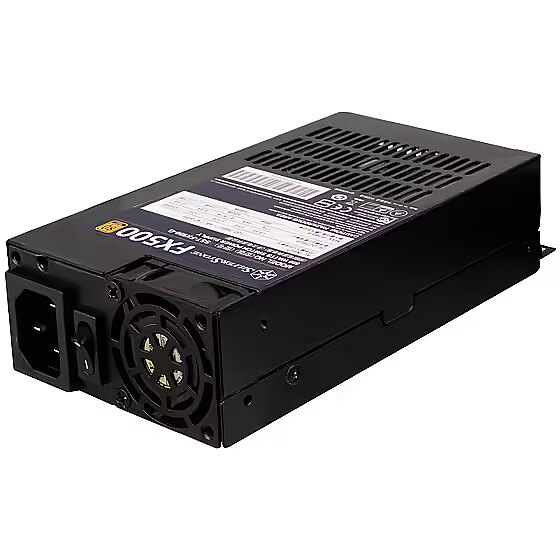

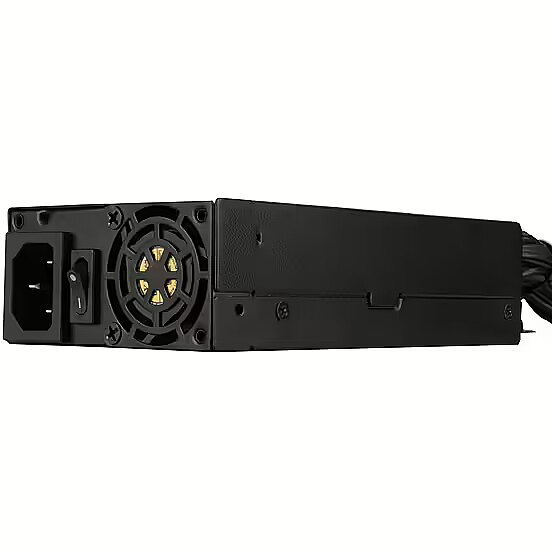

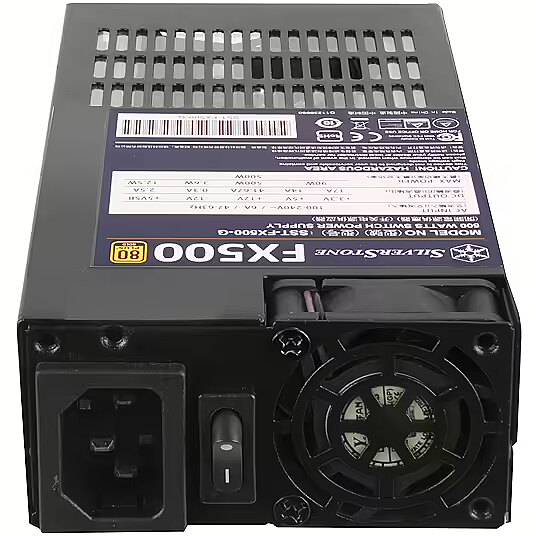

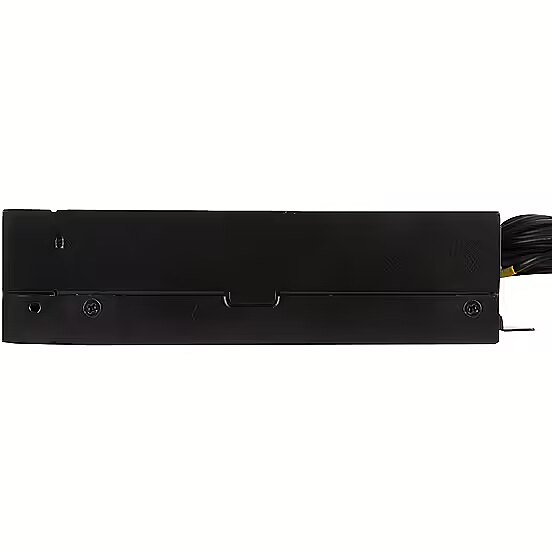

Silverstone FX500-G, 500W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 605629 Product code: SST-FX500-G
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Silverstone
  • Power output: 500W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 40 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Similar Products
This product Silverstone FX500-G, 500W, 80PLUS Gold
Recommended Gigabyte UD1000GM, 1000W, 80PLUS Gold
Recommended Gigabyte UD850GM, 850W, 80PLUS Gold
Recommended Gigabyte P750GM, 750W, 80PLUS Gold
Recommended NZXT C1200 Black (2023), 1200W, 80PLUS Gold, PCIe 5.0
Show similar specs. Hide similar specs.
143.83 €
117.06 €
90.95 €
82.18 €
178.45 €
Basic information
Cybenetics Efficiency certification Nav Nav Cybenetics Platinum Cybenetics Platinum Cybenetics Gold
Cybenetics Noise level certification Nav Nav Cybenetics Standard ++ Cybenetics Standard ++ Cybenetics Standard +
Power supply type Flex-ATX ATX ATX ATX ATX
Power output 500W 1000W 850W 750W 1200W
80 PLUS certification 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold
Total amperage (+12V) 61.67A 83.3A 70.8A 61A 100A
Fan size 40 mm 120 mm 120 mm 120 mm 135 mm
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Nav Fully-Modular Fully-Modular Fully-Modular Fully-Modular
Ports and equipment
PCI-E 5.0 Nav Nav Nav Nav 1 x 600W 12VHPWR
Processor plug-in 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS
Motherboard power 20+4pin 20+4pin 20+4pin 20+4pin 24-pin
PCI-E 2 X 6+2pin 6 x 6+2pin 4 X 6+2pin 4 X 6+2pin 2 X 6+2pin
SATA cconnectors 4 Eight Core Eight Core Eight Core Eight Core
4pin Molex 3 3 3 3 4
Description

Available for purchase is a power supply produced by Silverstone with a power output of 500W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : Flex-ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 61.67A
Fan size : 40 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 4
4pin Molex : 3
More detailed specification
category - PC Components|Power Supplies|PSUs up to 500 Watts
Category_1 - Power
Category_2 - Computer Power Supplies
code - SST-FX500-G
ean - 4710679810379
EAN_code - 4710679810379
Manufacturer - Silverstone Technology
Manufacturer_code - SST-FX500-G
name - SilverStone SST-FX500-G 80 PLUS Gold - 500 Watt
Name - SilverStone SST-FX500-G, PC PSU
Weight - 1,34
