ID: 604214
Product code: GP-P850GM
In stock >50 units
Warranty: 3 years

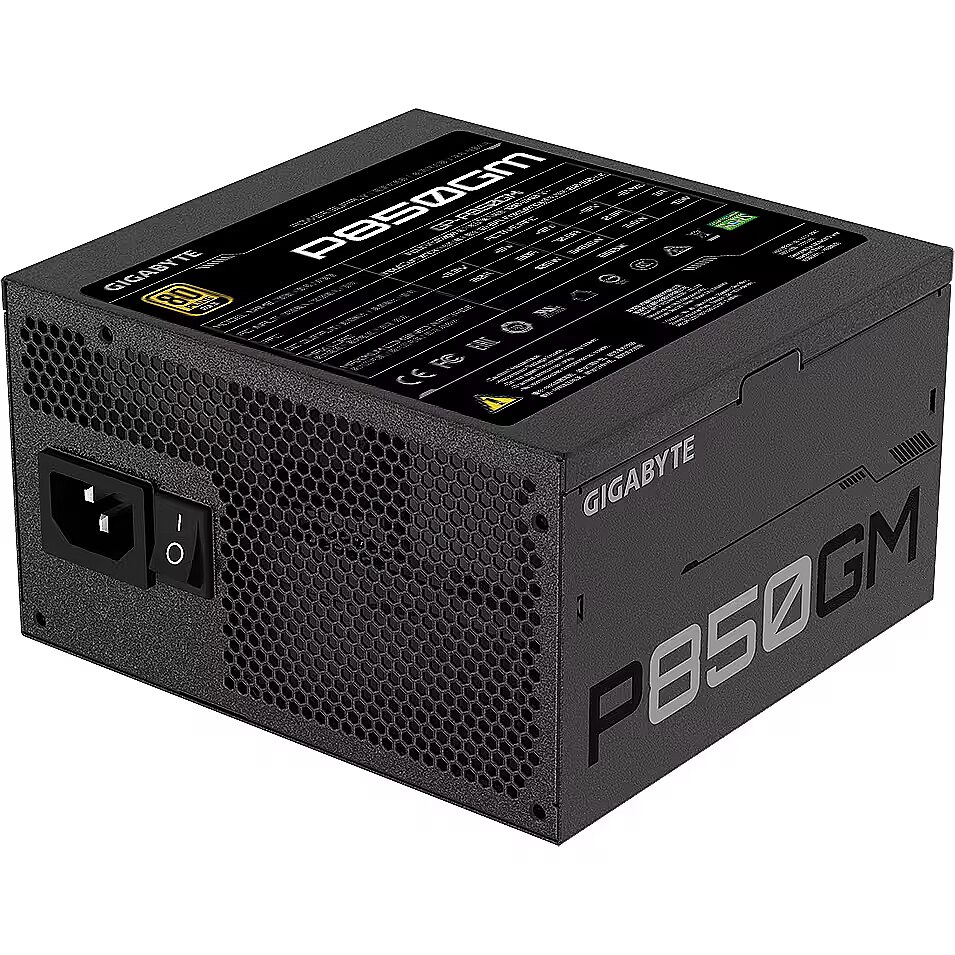

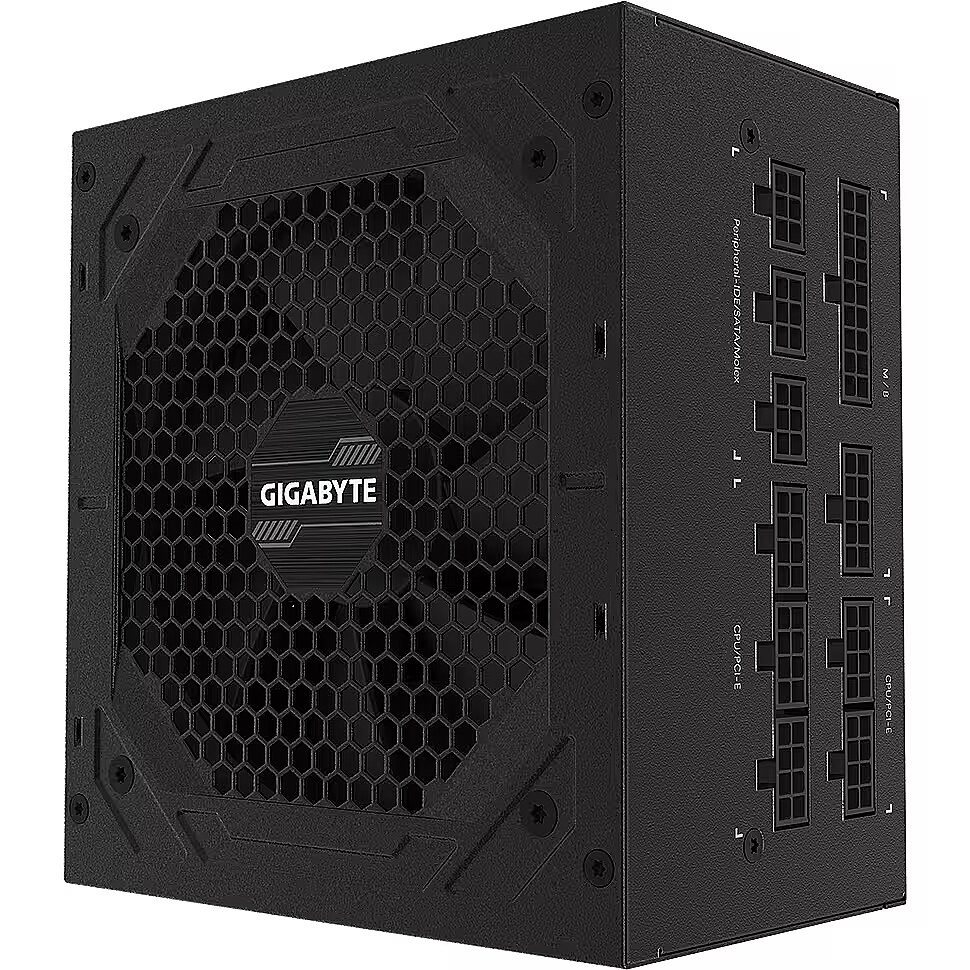

Gigabyte P850GM, 850W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 03.12.2024
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
Available for purchase is a power supply produced by Gigabyte with a power output of 850W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).

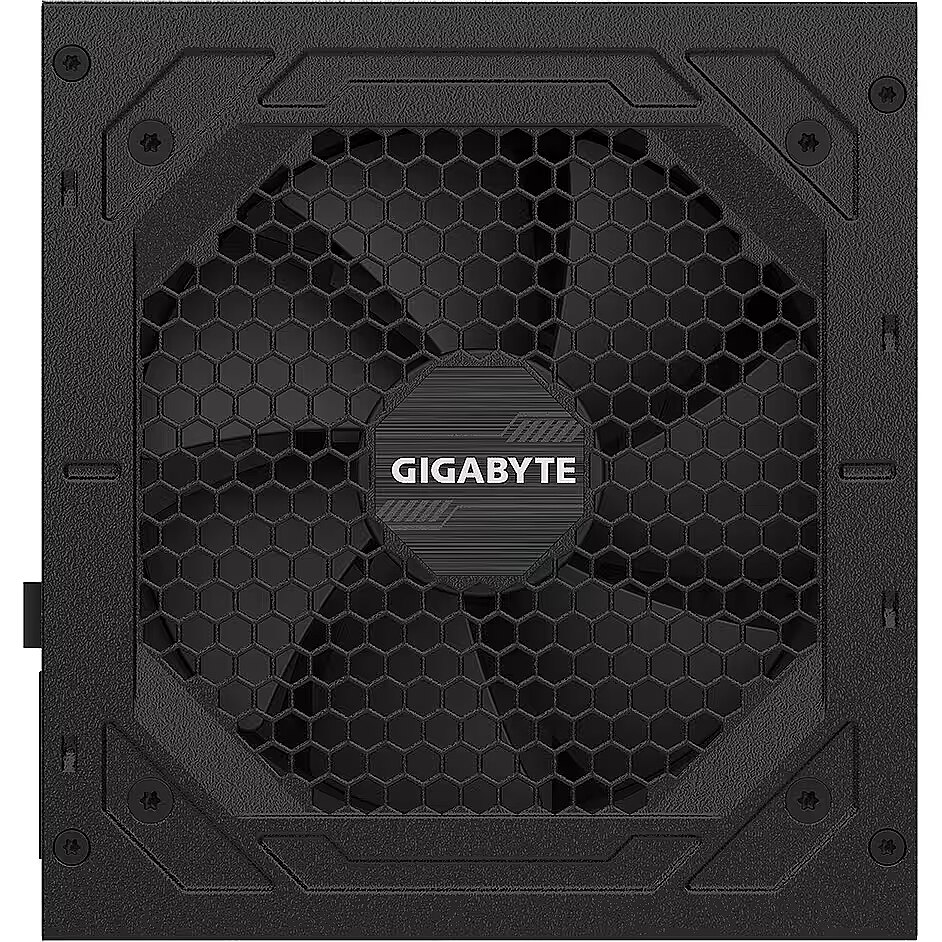

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
The noise level of this power supply is 35-40 dB and it has a Cybenetics Standard + noise level certification.

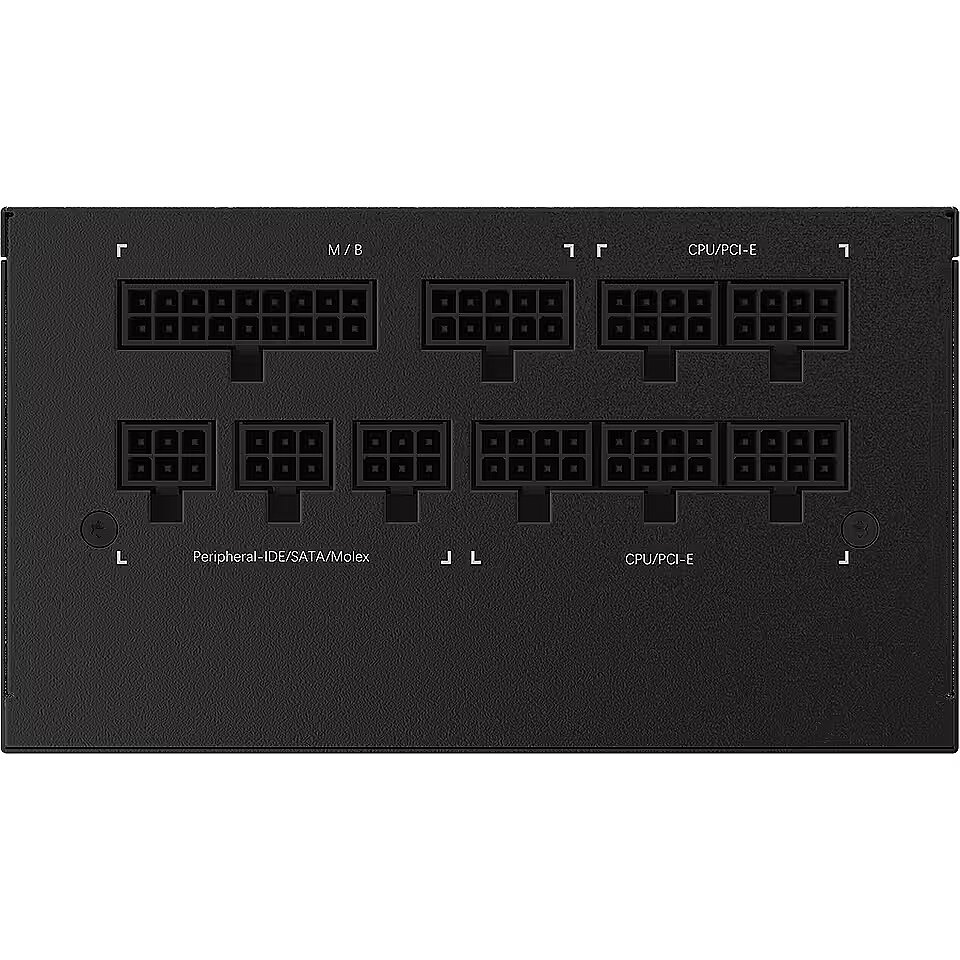

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
The manufacturer of this power supply is Gigabyte. View all Gigabyte power supplies here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Cybenetics Standard +
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-P850GM
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Gold
Code - GP-P850GM
Desc - Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
Description - Cechy Certyfikat 80 PLUS Gold W pełni modułowa konstrukcja Wentylator 120 mm z inteligentnym łożyskiem hydraulicznym (HYB) Główne kondensatory japońskie Potężna pojedyncza linia + 12V Ochrona OVP/OPP/SCP/UVP/OCP/OTP Kompaktowy rozmiar 5 lat gwarancji (dostosowana do różnych regionów)
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1285
dimension depth - 120 mm
dimension height - 210 mm
Dimensions - 150 x 140 x 86 mm
dimension weight - 2516 g
dimension width - 250 mm
EAN - 4719331551865
ean - 4719331551865
Eans - 4719331551865
Fan - 12 cm
Floppy power connectors - 0
GTIN - 4719331551865
GTIN - 4719331551872
guarantee - 60
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_66253_1.jpg
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.HIGH QUALITY JAPANESE CAPACITORSThe main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.120MM SMART HYDRAULIC BEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.SINGLE +12V RAILSingle +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.DIMENSIONSCompact size to fit any small chassis.
LongProductName - 850W, ATX, 80 PLUS Gold, 20+4-pin, 2x 4+4-pin, 4x PCI-e 6+2-pin, 8x SATA, 3x 4-pin
LongSummaryDescription - GIGABYTE P850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 600,750,900 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 0
Name - Gigabyte GP-P850GM
Name - Gigabyte P850GM
name - P850GM 850W PFC 120mm hydraulic fan ATX
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.31
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 89 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 600 mm
Ports & interfaces - SATA power cable length - 600,750,900 mm
Ports & interfaces - SATA power cable length - 750 mm
Ports & interfaces - SATA power cable length - 900
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 846 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Maximum input current (@110V) - 12 A
Power - Maximum input current (@220V) - 6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power supply - 850 W
producer - Gigabyte
Producer - Gigabyte
producerCode - GP-P850GM
ProducerCode - GP-P850GM
productName - Gigabyte P850GM power supply unit 850 W 20+4 pin ATX ATX Black
ProductName - P850GM
productSize - Normal
SATA power connectors - 8
ShortDescription - 850 | ATX | 140 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE P850GM, 850 W, 100 - 240 V, 50 - 60 Hz, 12 A, 6 A, Active
sizeX - 255
sizeY - 210
sizeZ - 120
Title - GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
URL - https://www.gigabyte.com/Power-Supply/P850GM#kf
vendpn - GP-P850GM
WarrantyInfo - 5 years
warrantyLength - 60
warrantyType - G
weight - 2480
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
