ID: 600524
Product code: AEROLUX-550-80BRONZE
Can be ordered 27 units Availability: 14 days after order approval
Warranty: 2 years

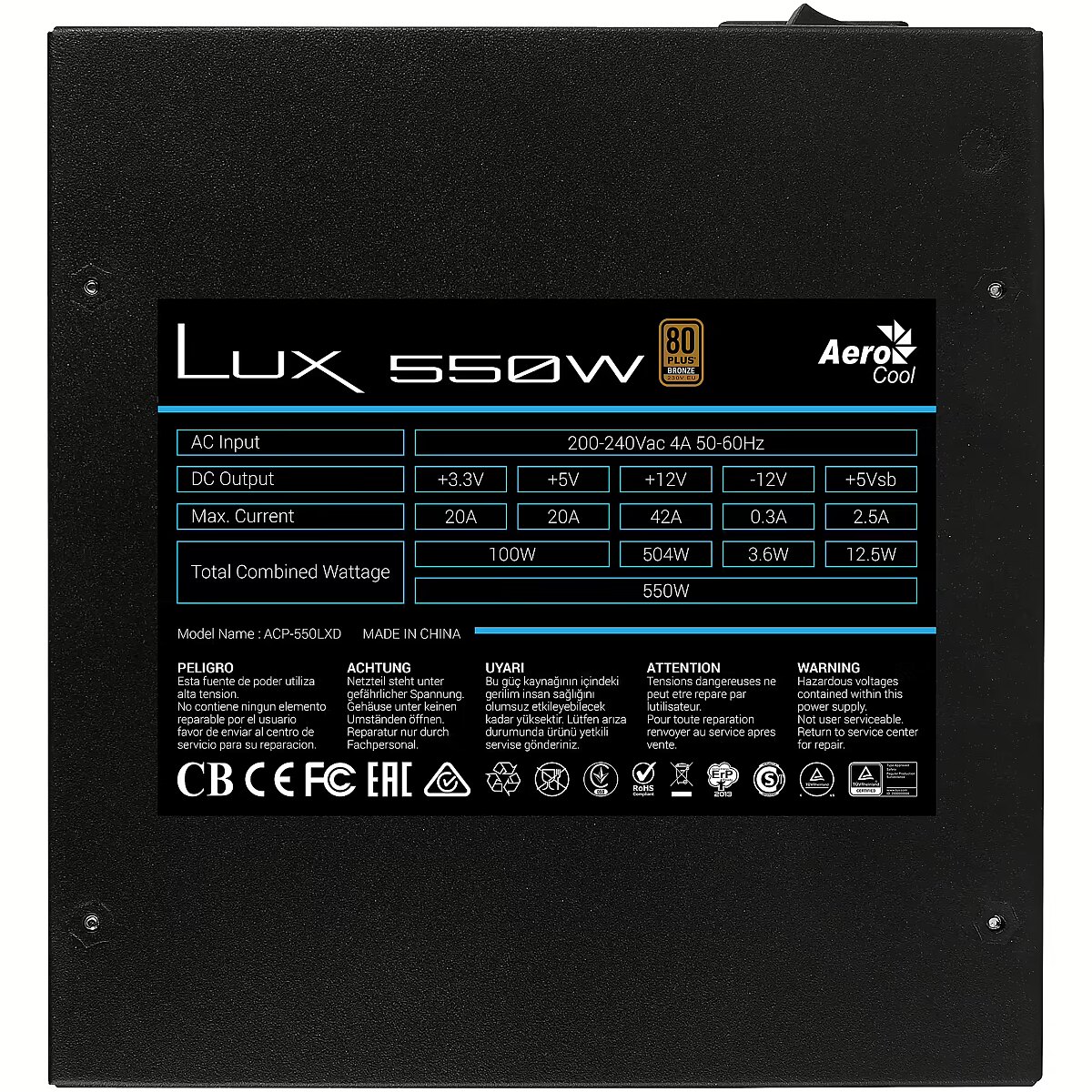

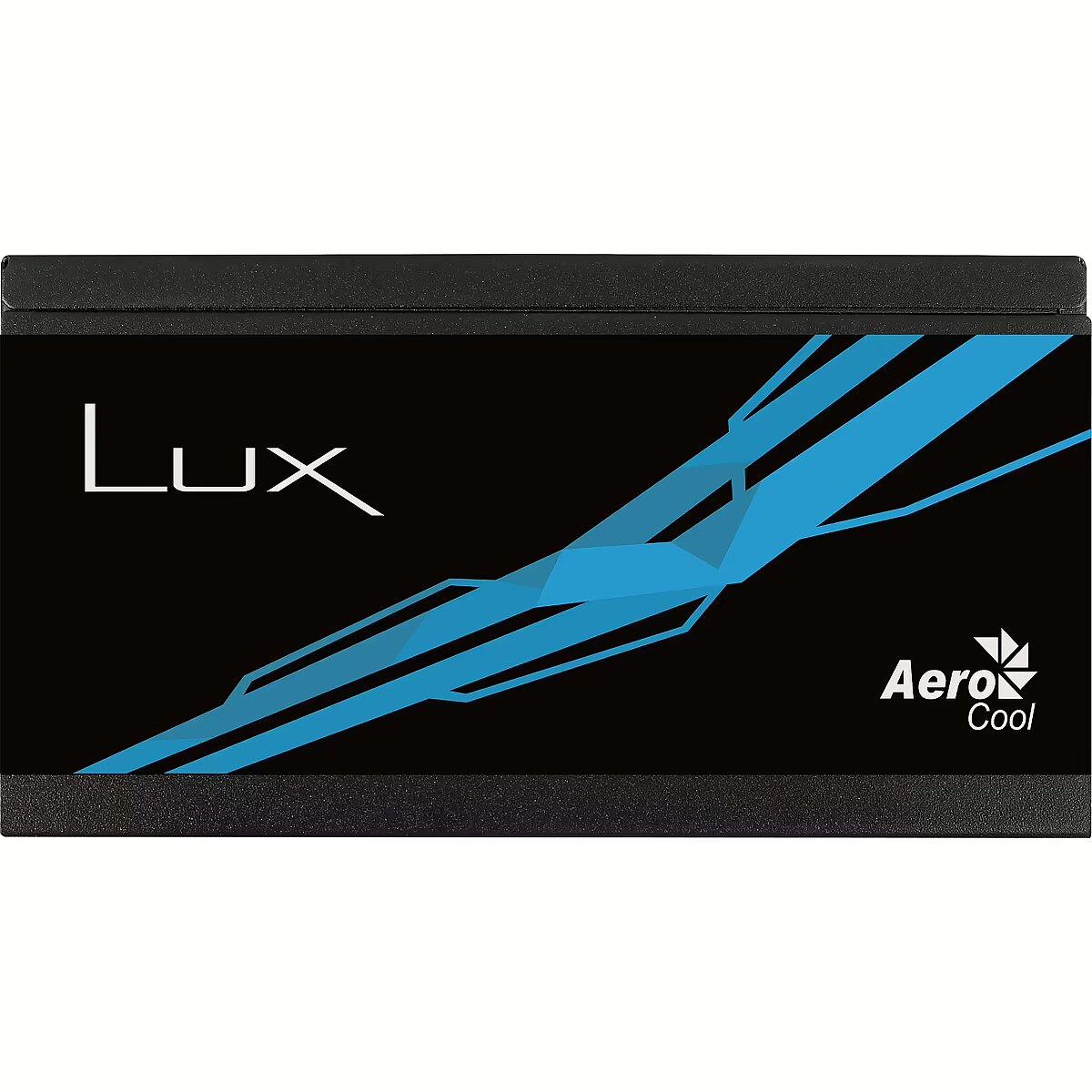

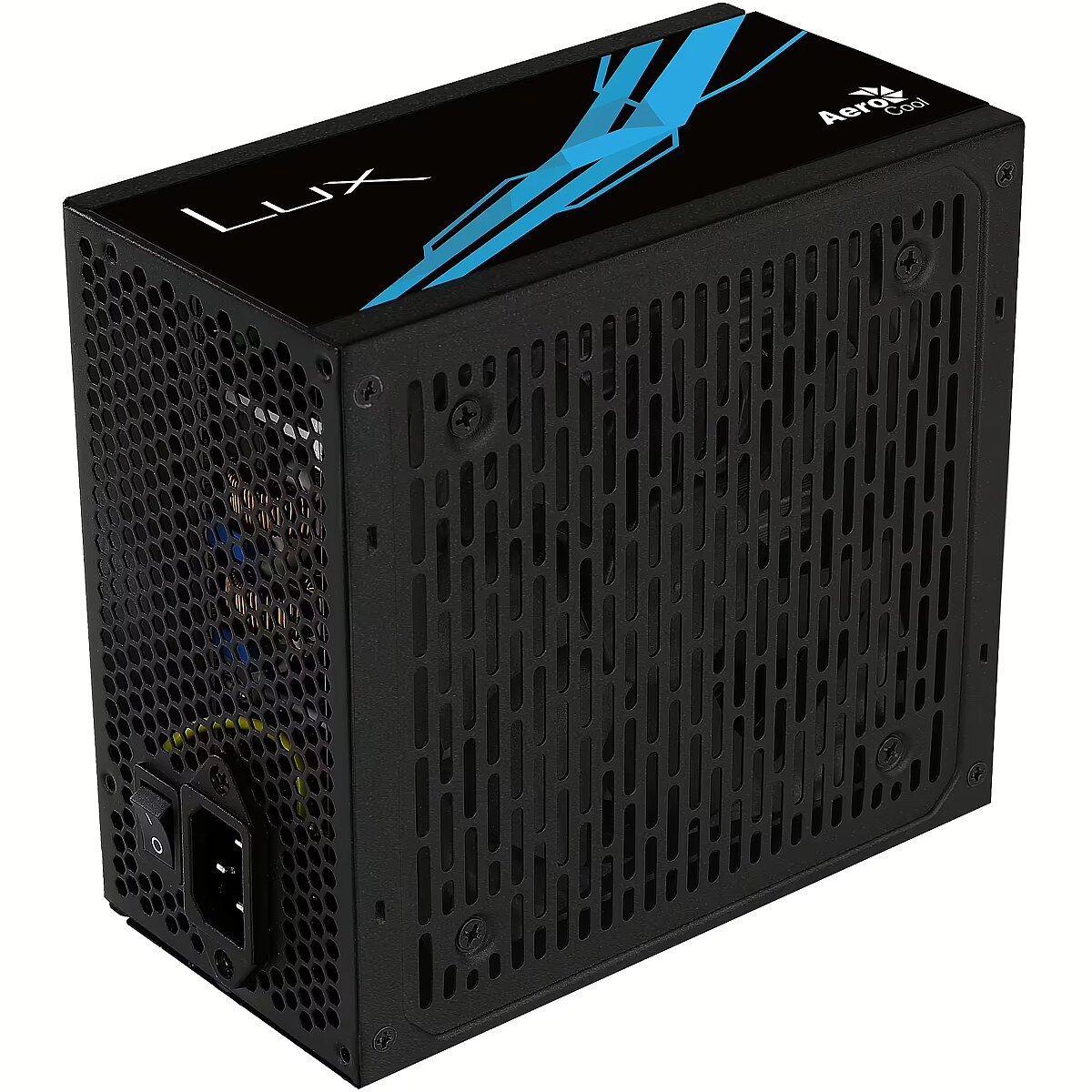

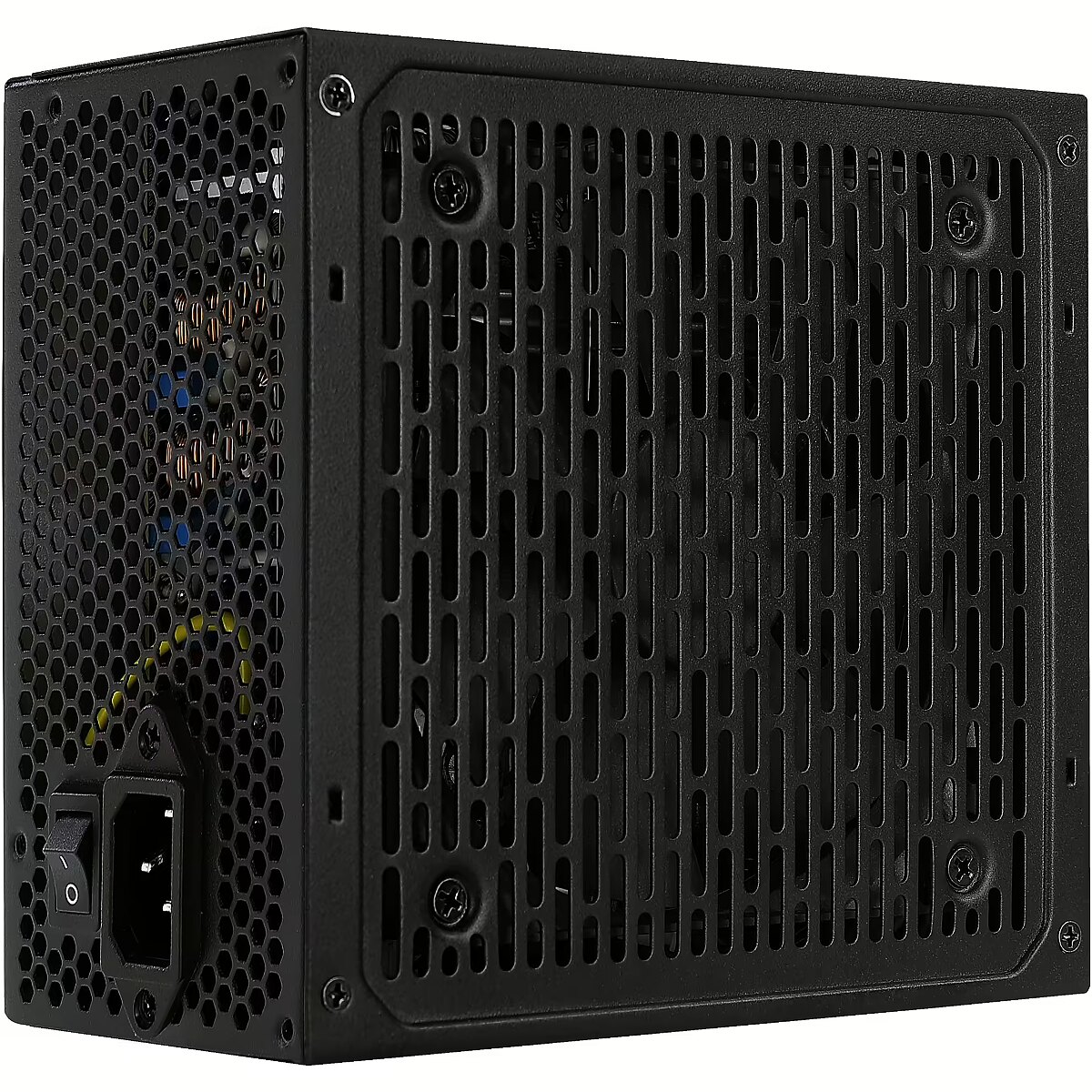

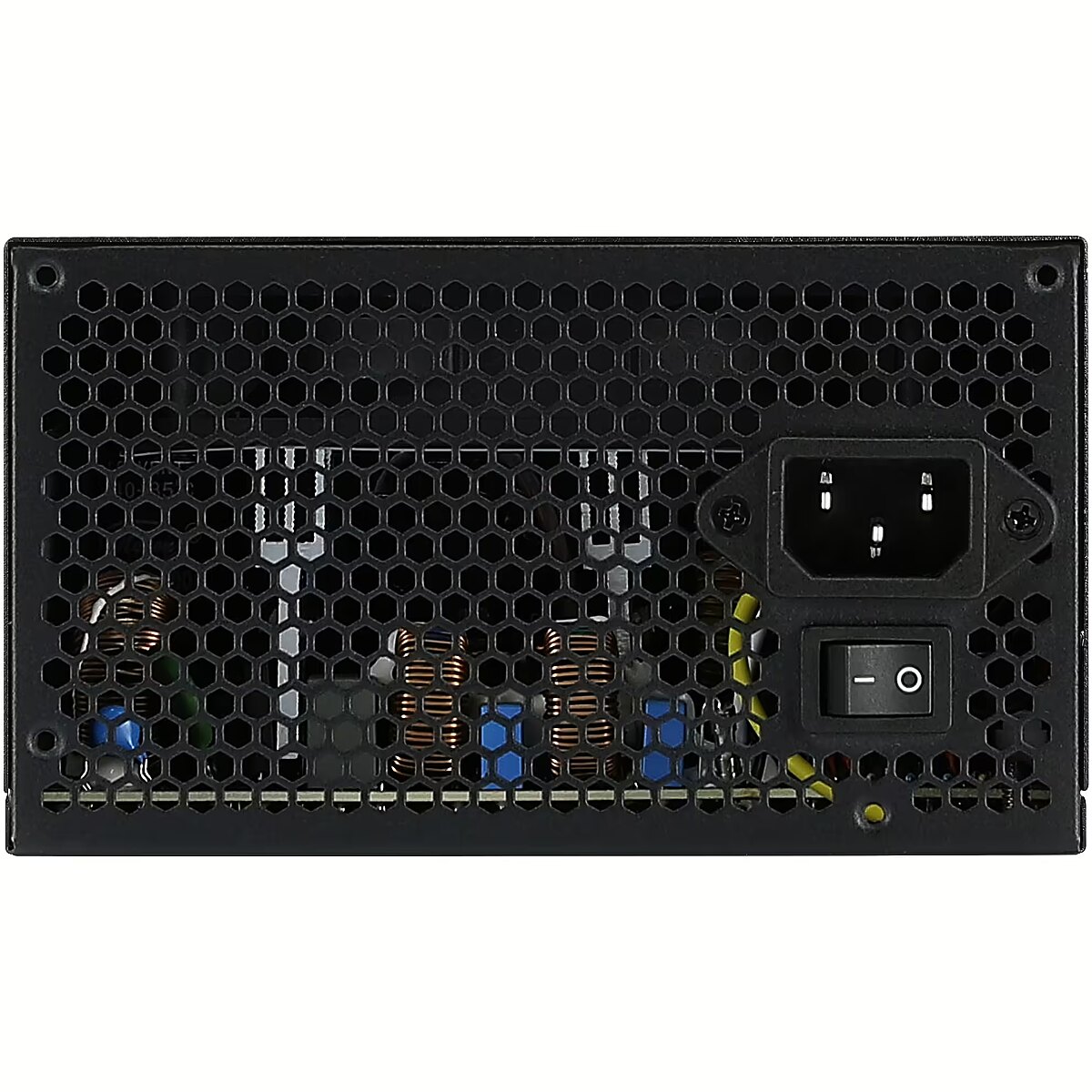

Aerocool LUX, 550W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Aerocool
- Power output: 550W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Description
This Aerocool brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 550W.
With 550W power, it will be enough to run Office programs, browse the internet, and play simple computer games. It will be able to run a computer with a budget-level processor, integrated graphics card, small SSD, or HDD disk. If there is a desire to upgrade computer components in the future, it is definitely worth considering a more powerful power supply unit.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 42A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 4
4pin Molex
: 2
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates 80+ - 80 PLUS Bronze
Description - Power supply LUX 550W 80+ Bronze ATX 80Plus 230V EU Bronze Certified for up to 88%+ efficiency Built-in APFC (Active Power Factor Correction) rates > 0.9 OPP/OVP/UVP/SCP electrical protection included 30% Increased ventilation area in the body of the PSU allows for increased air flow Silent 12cm black fan with optimized thermal fan speed control Compatible with all Intel form factors up to ATX12V Ver.2.4 Soft, black, flat cables allow for more convenient cable management
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 540
dimension depth - 96 mm
dimension height - 198 mm
Dimensions -
dimension weight - 1548 g
dimension width - 233 mm
ean - 4718009156234
Fan - 12 cm
Floppy power connectors - 0
guarantee - 24
guarantee_type - normal
Logistics data - Master (outer) case height - 215 mm
Logistics data - Master (outer) case length - 495 mm
Logistics data - Master (outer) case width - 250 mm
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 2
name - Power supply LUX 550W 80+ Bronze ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 1
Other features -
Other features - Manual - Yes
Packaging data - Cables included - AC
Packaging data - Package depth - 195 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package width - 230 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 45 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - SATA power cable length - 550
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 504 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 42 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 550 W
Power supply - 550 W
producer - AeroCool
producerCode - AEROLUX-550-80BRONZE
productName - Aerocool LUX 550W power supply unit 20+4 pin ATX ATX Black
productSize - Normal
SATA power connectors - 4
sizeX - 90
sizeY - 150
sizeZ - 200
vendpn - AEROLUX-550-80BRONZE
warrantyLength - 24
warrantyType - G
weight - 1620
