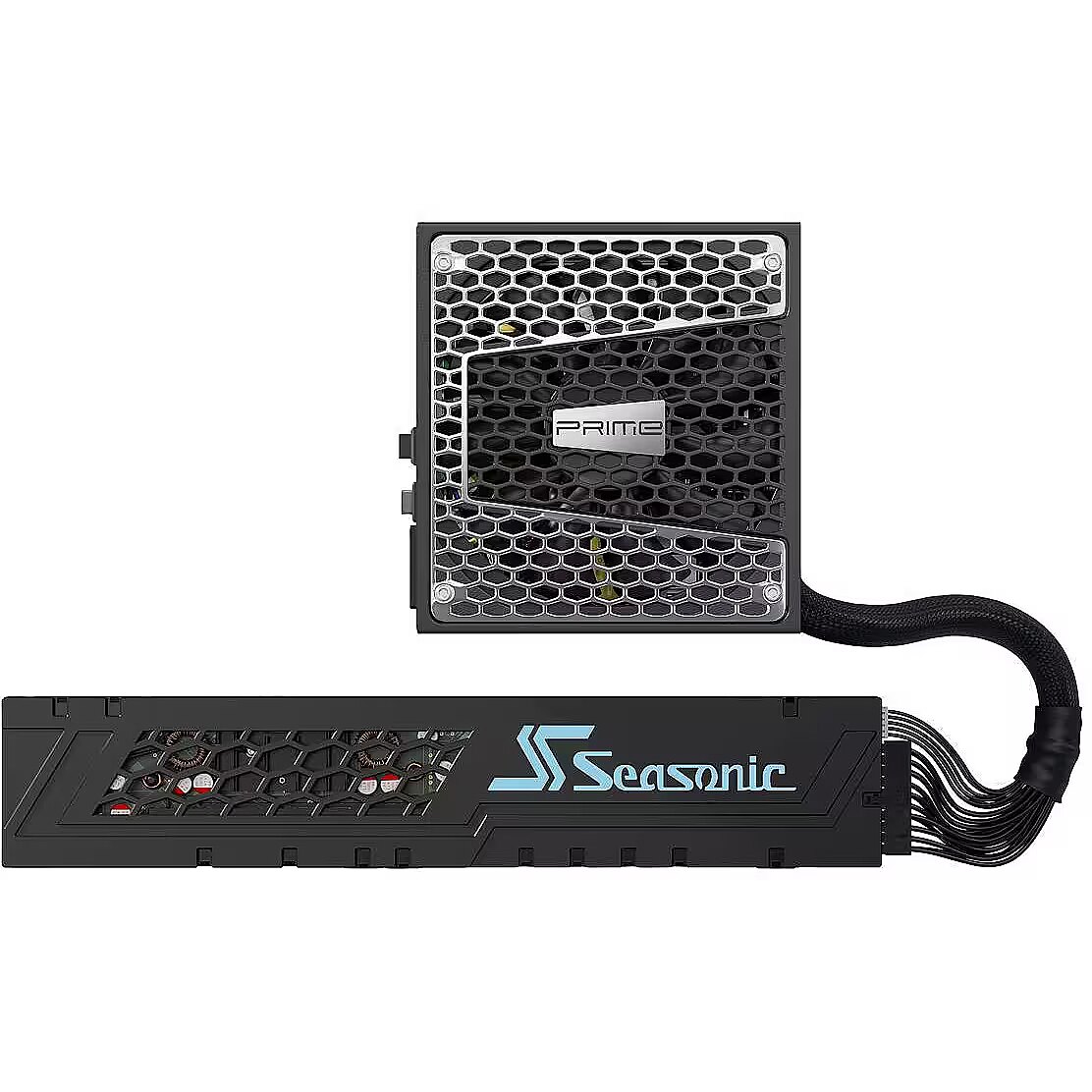

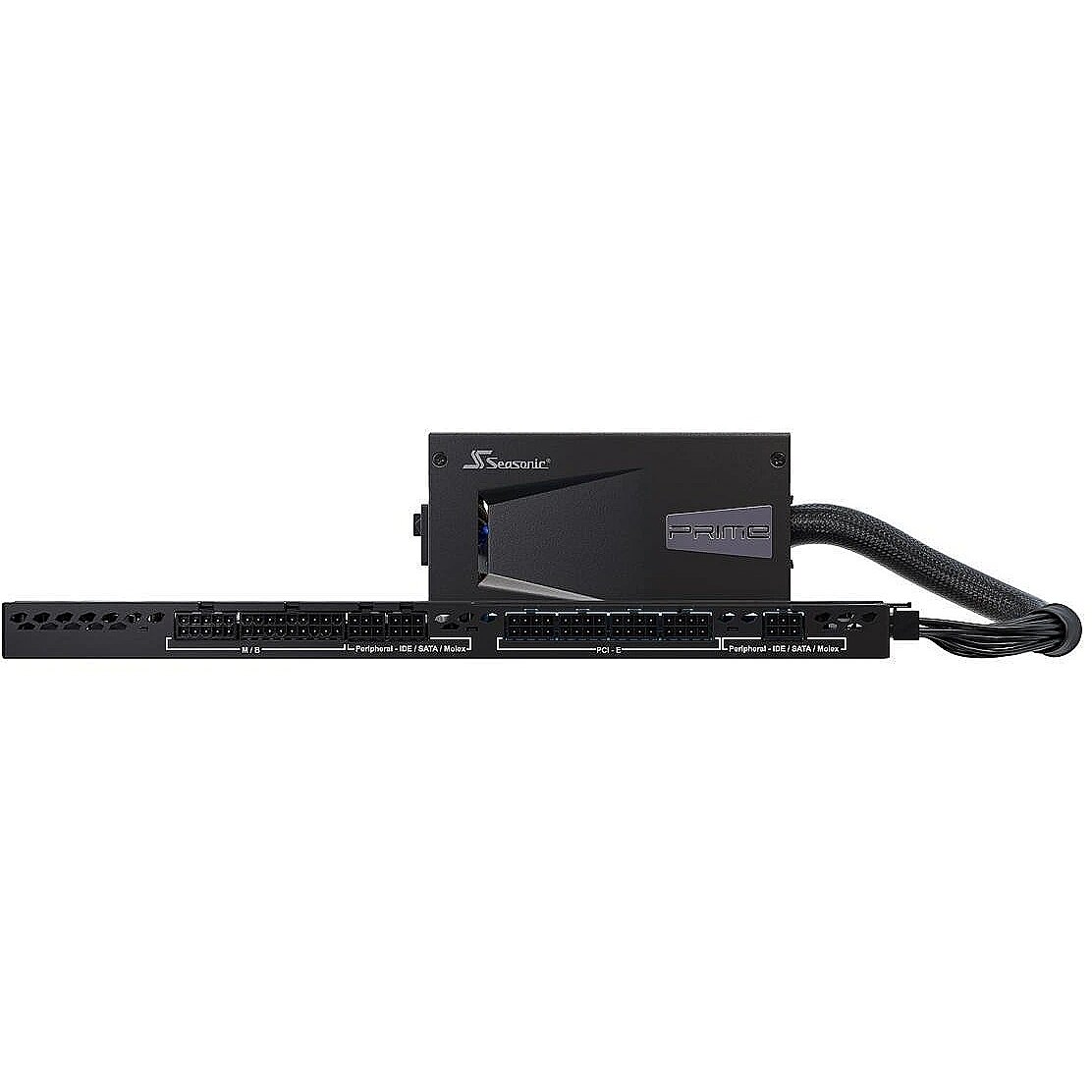

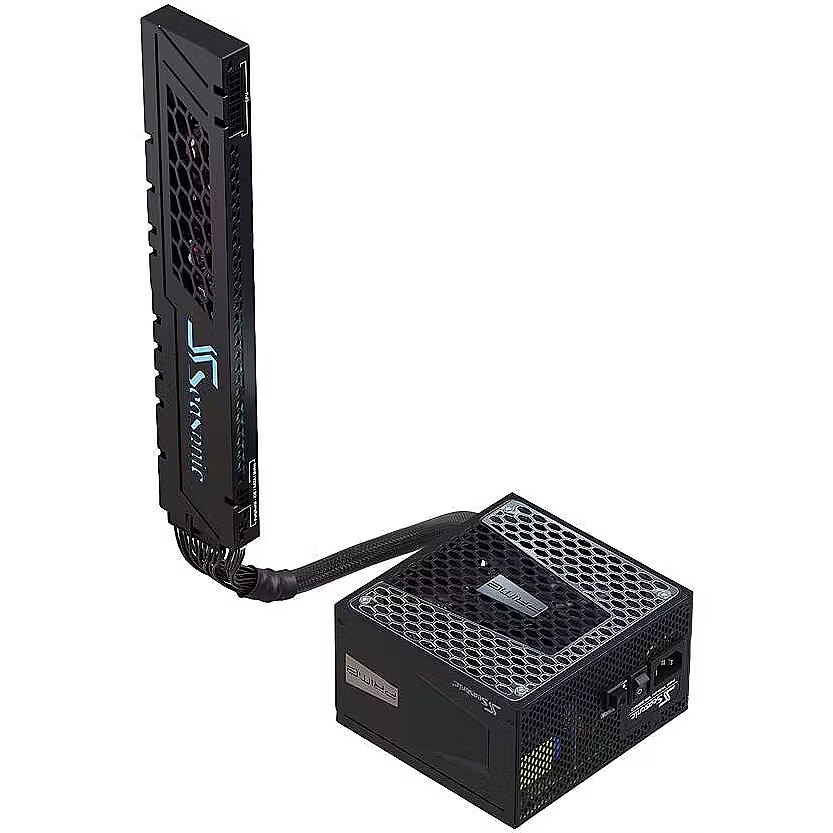

Seasonic Connect, 750W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 524355 Product code: SSR-750FA
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Seasonic
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Similar Products
This product Seasonic Connect, 750W, 80PLUS Gold
Recommended XPG COREREACTOR II VE, 750W, 80PLUS Gold
Recommended Cougar Atlas, 750W, 80PLUS Bronze
ADATA XPG Pylon, 750W, 80PLUS Bronze
Recommended Seasonic G12-GM, 850W, 80PLUS Gold
Show similar specs. Hide similar specs.
115.03 €
104.11 €
65.01 €
69.47 €
118.07 €
Basic information
Cybenetics Efficiency certification Cybenetics Gold Cybenetics Gold Nav Cybenetics Silver Nav
Cybenetics Noise level certification Cybenetics Standard + Nav Nav Cybenetics Standard ++ Nav
Power supply type ATX ATX ATX ATX ATX
Power output 750W 750W 750W 750W 850W
80 PLUS certification 80 PLUS Gold 80 PLUS Gold 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Gold
Total amperage (+12V) 62A 62.5A 62.5A 62.5A 70A
Fan size 135 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Fully-Modular Fully-Modular Nav Nav Semi-Modular
Ports and equipment
PCI-E 5.0 Nav 1 x 600W 12V-2X6 Nav Nav Nav
Processor plug-in 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 20+4pin 24-pin 20+4pin 24-pin 20+4pin
PCI-E 4 X 6+2pin 3 x 6+2pin 4 X 6+2pin 4 X 6+2pin 3 x 6+2pin
SATA cconnectors Eight Core 6 Eight Core Eight Core 6
4pin Molex 3 2 3 3 3
Description

This Seasonic brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 750W.

With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.

80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

The power supply has received a Cybenetics Standard + noise level certificate – the noise generated by the unit will be 35-40 decibels.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Cybenetics Gold
Cybenetics Noise level certification : Cybenetics Standard +
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 62A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 3
More detailed specification
category - PC Components|Power Supplies|Modular Power Supplies
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
code - SSR-750FA
ean - 4711173875611
Eans - 4711173875611
EAN_code - 4711173875611
Manufacturer - Seasonic
Manufacturer_code - SSR-750FA
Name - Seasonic CONNECT - 750W
name - Seasonic CONNECT 80 PLUS Gold Netzteil, modular - 750 Watt
Name - Seasonic CONNECT 750 GOLD 750W, PC power supply (black, 4x PCIe, cable management)
Producer - Seasonic
ProducerCode - SSR-750FA

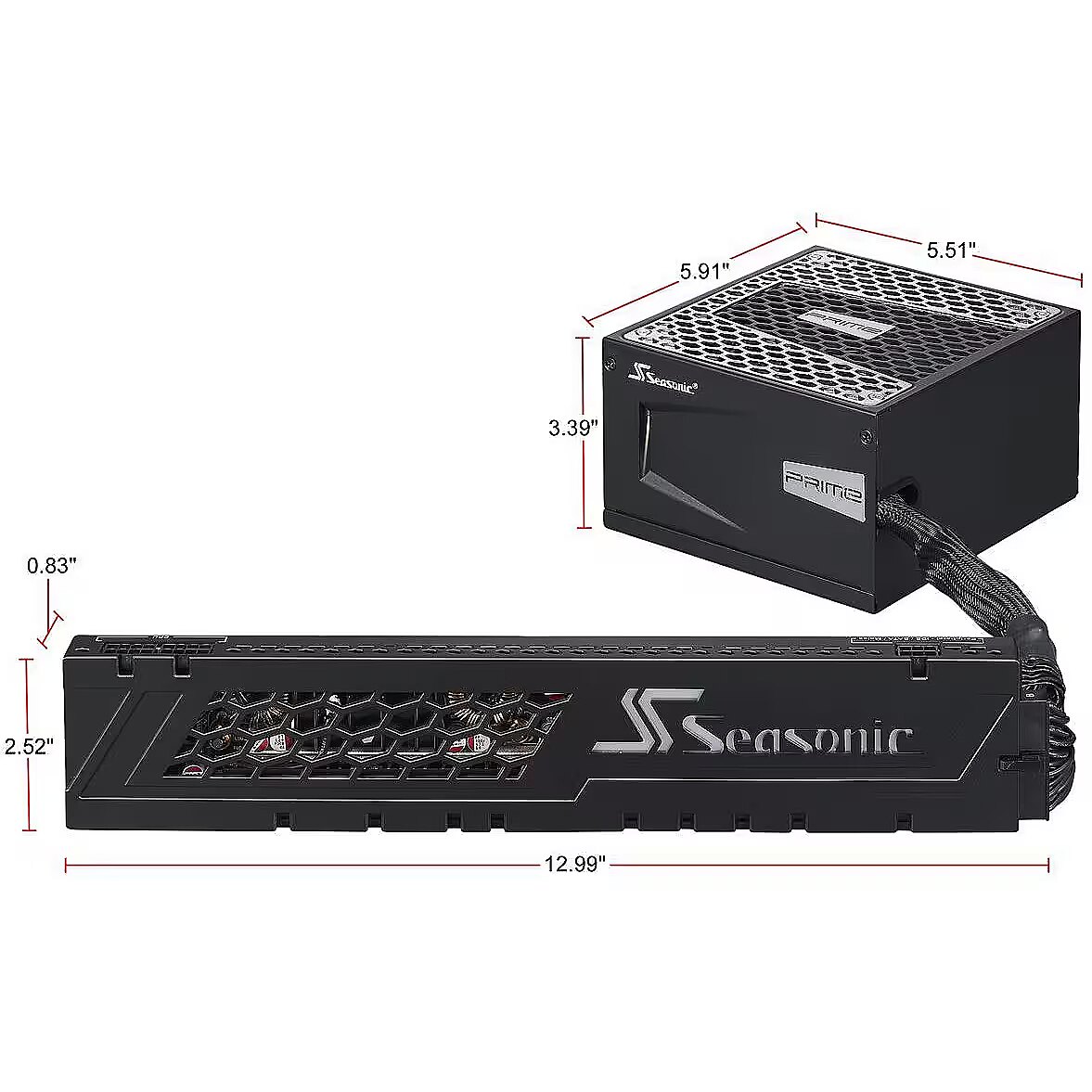

ShortDescription - 750 | ATX | 135 mm | 24 pin | 150 x 86 x 140 mm | 80 Plus Gold | modularny
Weight - 3,43
