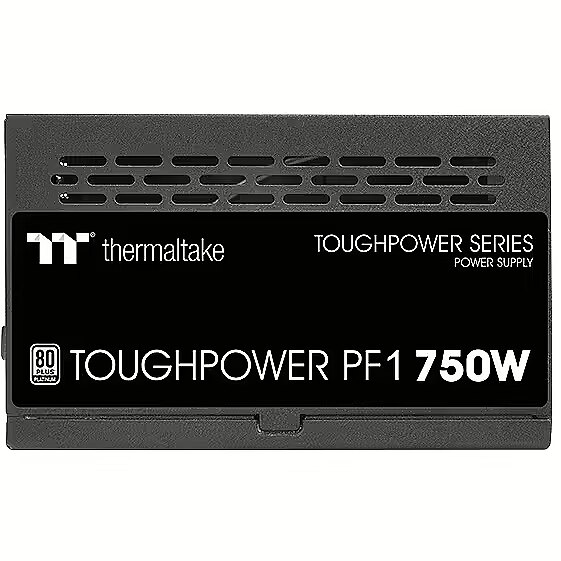

Thermaltake Toughpower PF1, 750W, 80PLUS Platinum

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 499796 Product code: PS-TPD-0750FNFAPE-1
Can be ordered 56 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
126.97 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

This Thermaltake brand power supply unit has an 80 PLUS Platinum energy efficiency certificate and a power output of 750W.

To ensure a good mid-range gaming experience, 750W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).

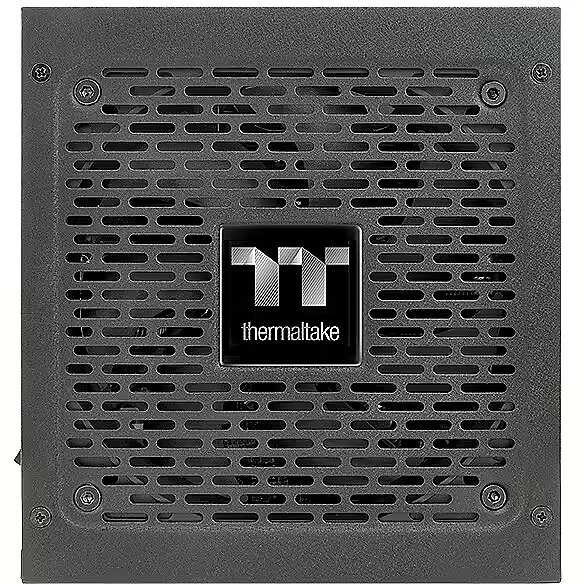

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.

The power supply unit has received the 80 PLUS Platinum energy efficiency certificate, which guarantees at least 92% efficiency at 50% load. This means that for every 100W of power the power supply unit receives from the electrical grid, at least 92W are delivered to your computer components, while the remaining 8W are lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

The power supply has a Cybenetics A - noise level certificate, which means that its noise level is 25-30 dB.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Cybenetics Gold
Cybenetics Noise level certification : Cybenetics A -
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 62A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 9
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 1
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
Description -
dimension depth - 320 mm
dimension height - 135 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 3000 g
dimension width - 220 mm
ean - 4713227525404
Eans - 4713227525404
EAN_code - 4713227525404
Fan - 12 cm
Floppy power connectors - 1
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPD-0750FNFAPE-1
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
name - Power supply Toughpower PF1 750W 80+Platinum
Name - Thermaltake Toughpower PF1 750W
Name - Thermaltake Toughpower PF1 Platinum 750W
Number of power supply connector 4+4-pin 12V - 0
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 750 W
producer - Thermaltake
Producer - Thermaltake
ProducerCode - PS-TPD-0750FNFAPE-1
SATA power connectors - 9
ShortDescription - 750 | ATX | 135mm | 20+4 | 140mm x 86mm x 150mm | 80 PLUS Platinum | modularny
vendpn - PS-TPD-0750FNFAPE-1
Weight - 2,65
